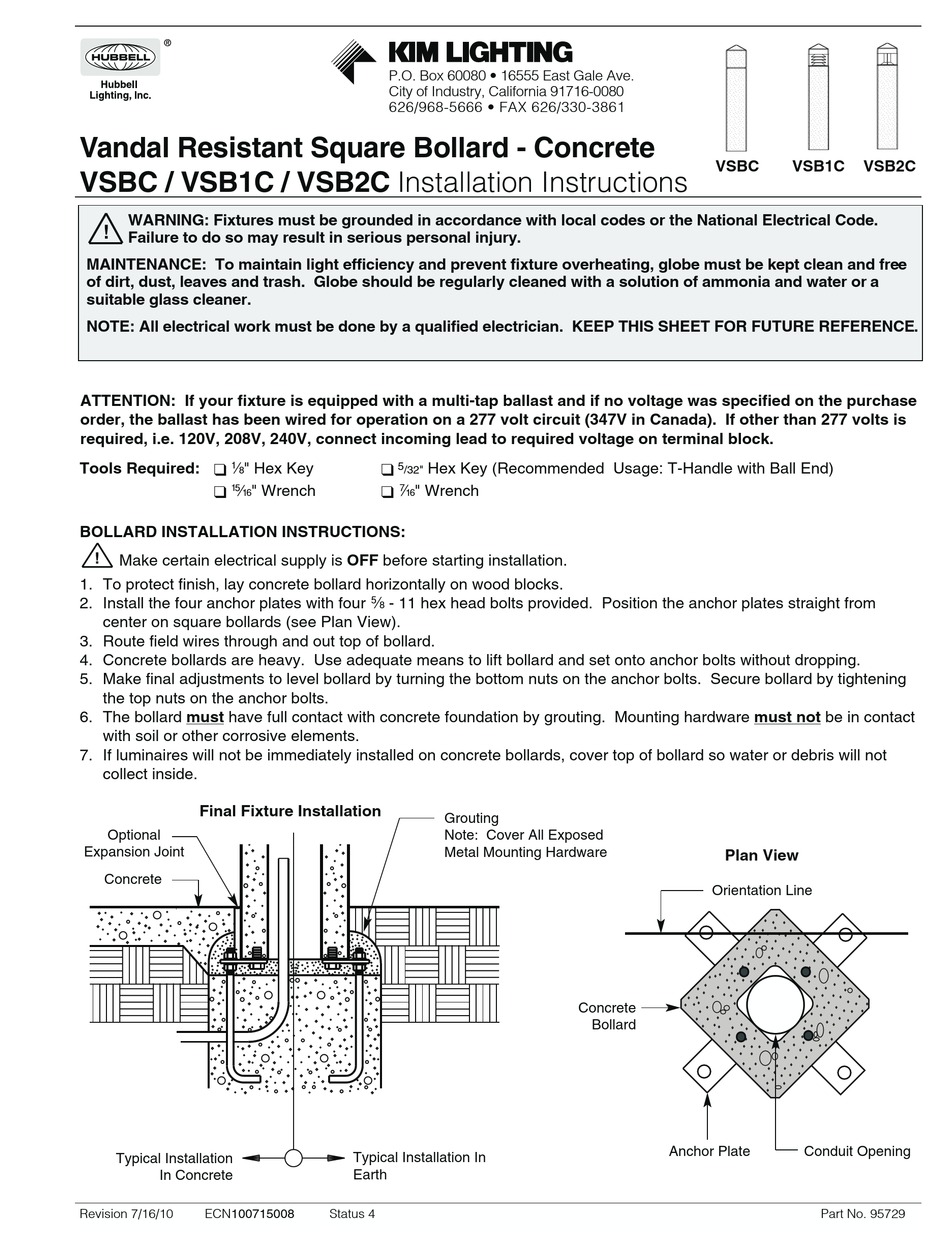

Hubbell KIM LIGHTING VSBC Installation Instructions

Vandal Resistant Square Bollard - Concrete
VSBC / VSB1C / VSB2C Installation Instructions
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
!
Failure to do so may result in serious personal injury.
MAINTENANCE: To maintain light efficiency and prevent fixture overheating, globe must be kept clean and free
of dirt, dust, leaves and trash. Globe should be regularly cleaned with a solution of ammonia and water or a
suitable glass cleaner.
NOTE: All electrical work must be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
ATTENTION: If your fixture is equipped with a multi-tap ballast and if no voltage was specified on the purchase
order, the ballast has been wired for operation on a 277 volt circuit (347V in Canada). If other than 277 volts is
required, i.e. 120V, 208V, 240V, connect incoming lead to required voltage on terminal block.
Tools Required: B" Hex Key
I" Wrench

BOLLARD INSTALLATION INSTRUCTIONS:

!
Make certain electrical supply is OFF before starting installation.
1. To protect finish, lay concrete bollard horizontally on wood blocks.
2. Install the four anchor plates with four D - 11 hex head bolts provided. Position the anchor plates straight from
center on square bollards (see Plan View).
3. Route field wires through and out top of bollard.
4. Concrete bollards are heavy. Use adequate means to lift bollard and set onto anchor bolts without dropping.
5. Make final adjustments to level bollard by turning the bottom nuts on the anchor bolts. Secure bollard by tightening
the top nuts on the anchor bolts.
6. The bollard must have full contact with concrete foundation by grouting. Mounting hardware must not be in contact
with soil or other corrosive elements.
7. If luminaires will not be immediately installed on concrete bollards, cover top of bollard so water or debris will not
collect inside.

Final Fixture Installation

Optional
Expansion Joint
Concrete
Typical Installation
In Concrete
Revision 7/16/10 ECN 100715008
P.O. Box 60080 • 16555 East Gale Ave.
City of Industry, California 91716-0080
626/968-5666 • FAX 626/330-3861
Hex Key (Recommended Usage: T-Handle with Ball End)
5 /32"
G" Wrench
Grouting
Note: Cover All Exposed
Metal Mounting Hardware
Typical Installation In
Earth
Status 4
VSBC
Plan View
Orientation Line
Concrete
Bollard
Anchor Plate
VSB1C VSB2C
Conduit Opening
Part No. 95729
