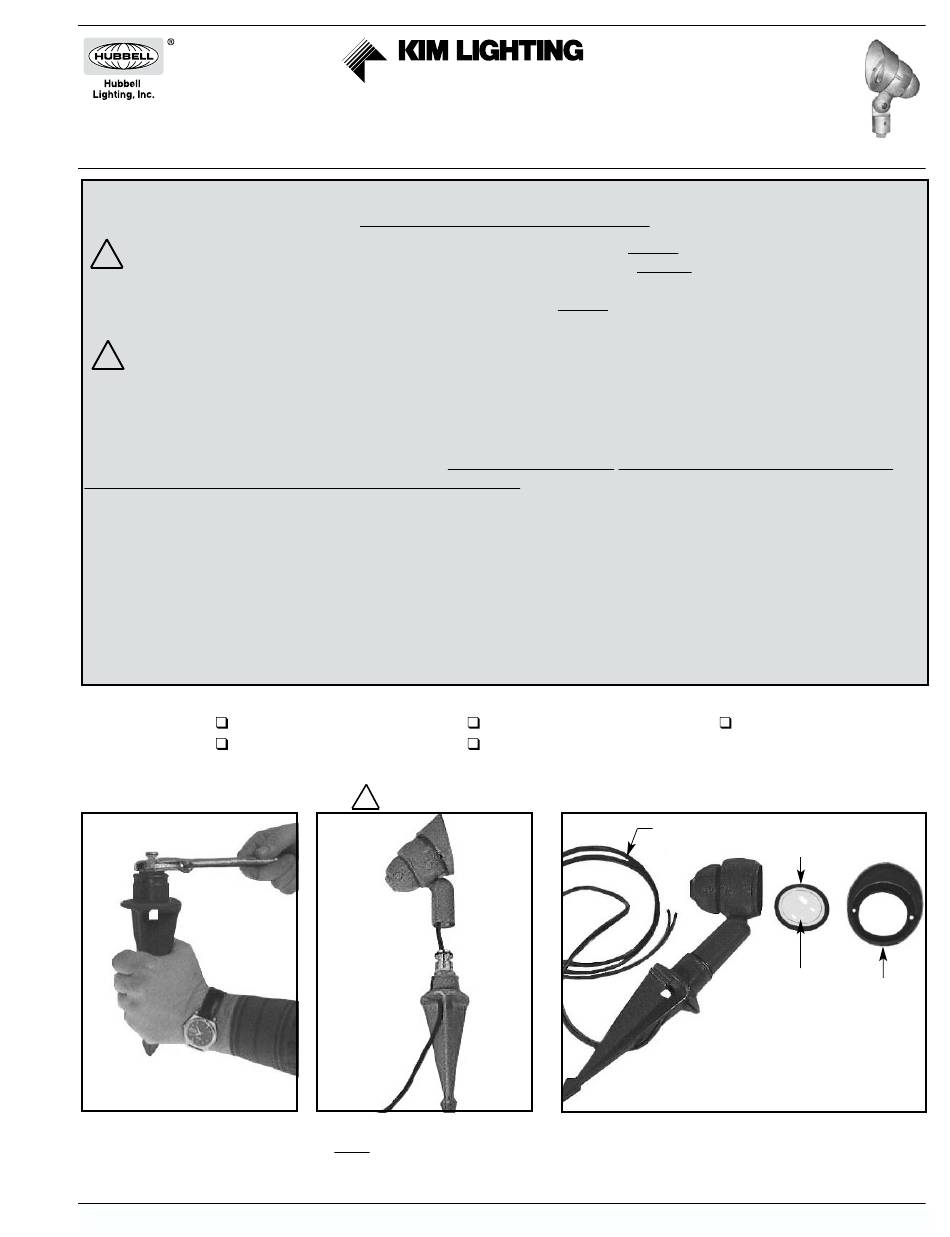

Accent Series - KLV710 / KLV715 Installation Instructions
SCARAB
™
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS
WARNING: To reduce the risk of FIRE OR INJURY TO PERSONS: Do not overdrive fixtures with greater
!
than 12 volts or fixture over-heating and short lamp life will occur. Do not overload the transformer by
installing (or relamping) higher wattage lamps than planned. Note: Total wattage of all lamps connected to one
transformer must not exceed the capacity of that transformer. Do not install luminaire within 10 feet (3.04m) of
a pool, spa or fountain.
SAFETY WARNING: When relamping, be sure electrical supply is OFF. Low voltage fixtures can
!
become very HOT depending on the lamp wattage used. Glass lenses and metal areas above & around
the lamp can become HOT enough to blister hands. Lamp gets HOT quickly! Contact only switch/plug when
turning on. Use discretion when touching fixture and be sure to allow fixture to cool before relamping. When
relamping fixture avoid touching the lamp envelope with bare hands. If touching the lamp is necessary during
installation, clean the envelope with alcohol and dry with a clean, soft cloth before turning ON. Contamination
of the envelope may reduce lamp performance. Particular care should be taken not to locate fixtures where
small children can reach them if higher wattages are used.
NOT INTENDED FOR INDOOR USE.
MAINTENANCE: To maintain light efficiency and prevent fixture-overheating, glass lenses and enclosure must
be kept clean and free of dirt, dust, leaves, trash (combustible materials) and mineral deposits from water.
DO NOT operate luminaire with missing or damaged lens.
NOTE: Keep the lamp free from impact while burning, as this may deform the filament and shorten the lamp life.
All electrical work should be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
Unit intended for mounting with Diffuser/Glass Barrier and Lamp Holder greater than 2 in. (5.08 cm)
from the ground plane.
Tools Required: Phillips Screwdriver
Adjustable Wrench
INSTALLATION INSTRUCTIONS:
1. Tighten coupling onto
mounting device. (Consult
Kim Landscape Catalog for
mounting device options.)
Revision 10/14/11
EC 111014007
P.O. Box 60080 • 16555 East Gale Ave.
City of Industry, California 91716-0080
626/968-5666 • FAX 626/330-3861
IMPORTANT SAFETY INSTRUCTIONS!
B" Hex Wrench
Silicone Grease
Make certain the electrical supply is OFF before starting installation.
!
2. Install fixture onto coupling.
Note: Kim "KLV" Mounting
Options can be installed
before fixture is installed.
Status 10
Flatblade Screwdriver
Fixture Cable

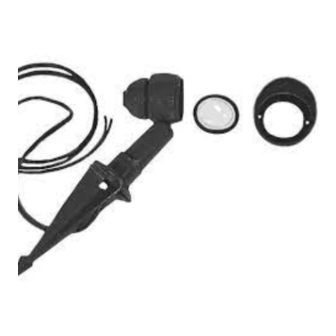

3. Remove lens and shield. Install lamp of type
and wattage shown on fixture label and chart
below. Do not exceed maximum wattage. Coat
screws with silicone grease.
KLV710
KLV715
Gasket
Lens
Shield
Part No. 95588
