17760 Rowland St.
City of Industry, CA 91748
626/968-5666

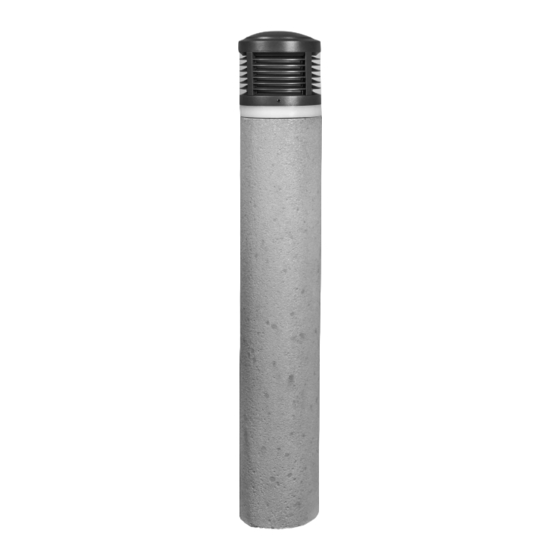

Kim Pavilion 7" Concrete Bollard, Installation Instructions
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
!
Failure to do so may result in serious personal injury.
NOTE: All wiring must be done by a qualified electrician.
Luminaires provided with receptacle outlet panel, (42A-ROP / 42A-ROP-L), shall be provided with instructions to install
weather resistant receptacles suitable for wet locations.
KEEP THIS SHEET FOR FUTURE REFERENCE.
Tools Required:
q #2 Phillips Screwdriver
q Rachet Driver extension
Make certain electrical supply is OFF before starting fixture installation.
!
10/28/20
EC 180814007
q 3/4" Deep Socket, 6- or 12- point
q 1/8" Hex Key
Rev A
q Rachet Driver
q 9/16" Wrench

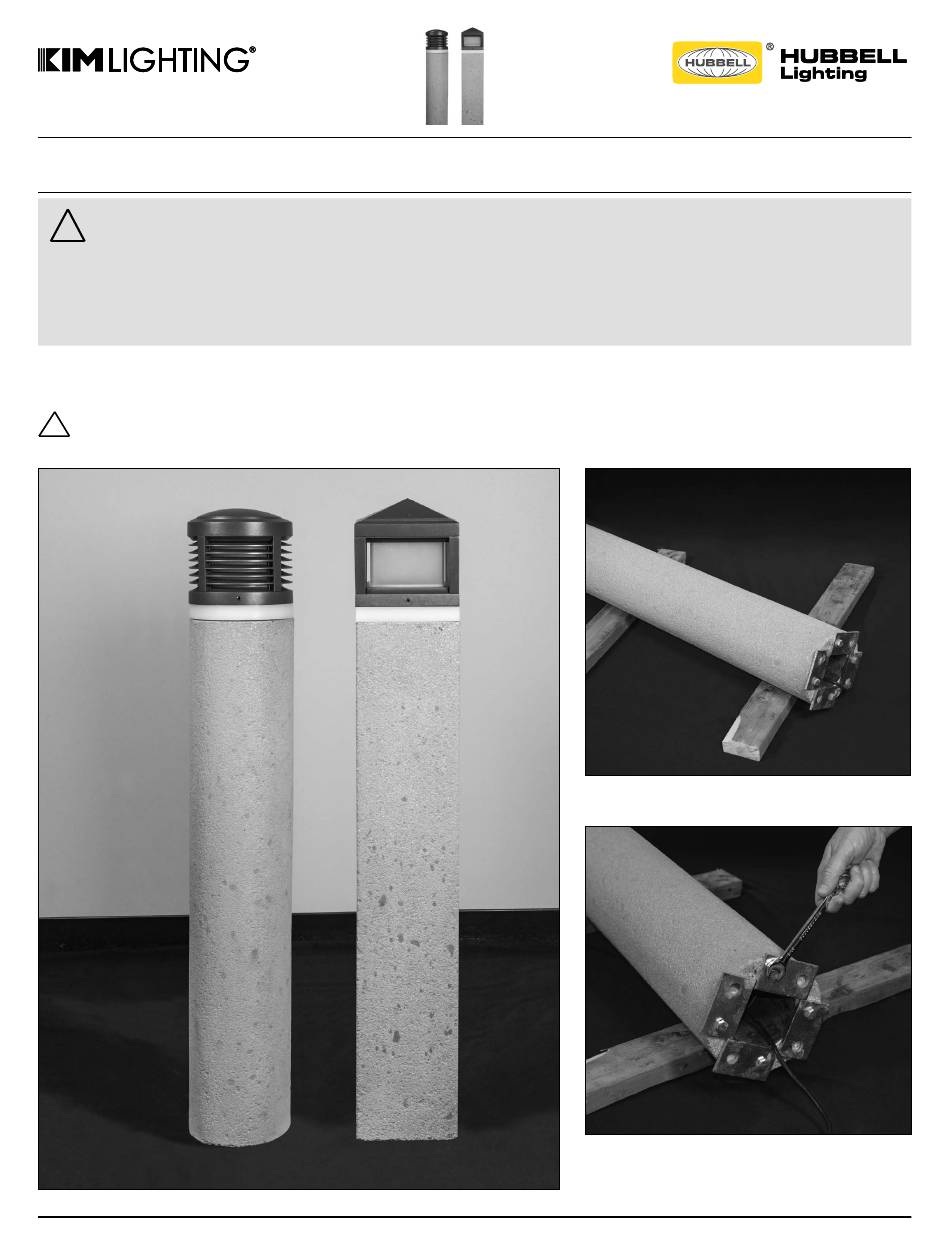

1. To protect finish, lay concrete bollard horizontally on
wood blocks.
2. Install the four anchor plates using the four
3/8"-16 hex bolts provided. A 9/16" wrench
is needed.
Part No. 93088555
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hubbell Kim Pavilion PA7R
Summary of Contents for Hubbell Kim Pavilion PA7R
- Page 1 17760 Rowland St. City of Industry, CA 91748 626/968-5666 Kim Pavilion 7” Concrete Bollard, Installation Instructions WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code. Failure to do so may result in serious personal injury. NOTE: All wiring must be done by a qualified electrician.
- Page 2 Kim Pavilion 7” Concrete Bollard, Installation Instructions 3.Route field wires through and out of the 4. Make final adjustments to level the bollard by turning the bottom nuts on the ½”-13 top of bollard. Concrete bollards are heavy; ground-anchor bolts – the ¾” drive socket will be needed for nut tightening. The bollard use adequate means to safely lift bollard must have full contact with concrete foundation by grouting.
- Page 3 Kim Pavilion 7” Concrete Bollard, Installation Instructions MOUNTING CONCRETE BODY Once attached to base mounting plate, fixture may be rotated 20° in either direction and secured with set screws at base of the bollard body. KIM Lighting logo indicates ‘street side’ output Round/Square Pavilion Street Side Street Side...
-
Page 4: Dmx Address
• Fixture cabling from Control Box to fixture shall be installed per NEC and Local Codes. For more information about DMX click here: Hubbell DMX White Paper • 17760 Rowland Street • City of Industry, CA 91748 • 626-968-5666 Page 4... -
Page 5: Apple Ios
(Hubbell RGBW Connect App) - (Refer to device compatibility chart to insure that your device is compatible). APPLE iOS Pavilion RGBW luminaire can be controlled wirelessly via Bluetooth® using the Hubbell RGBW Connect App. The App requires an Apple device supporting Bluetooth® low energy (BLE). - Page 6 Kim Pavilion 7” Concrete Bollard, Software Instructions (For RGBW only) (Cont. from previous page) (Cont. from previous page) APPLE iOS APPLE iOS Three Ways to Select Color: 15. From “Color Wheel” Tap on the “House/Home” symbol in the bottom left side of the screen on the navigation bar.
- Page 7 Kim Pavilion 7” Concrete Bollard, Software Instructions (For RGBW only) (Hubbell RGBW BT Remote App) - (Refer to device compatibility chart to insure that your device is ANDROID OS compatible).Pavilion RGBW luminaire can be controlled wirelessly via Bluetooth® using the Hubbell RGBW BT Remote app.
- Page 8 Kim Pavilion 7” Concrete Bollard, Software Instructions (For RGBW only) Three Ways to Select Color: 15. From “Color Wheel” Tap on the “House/Home” symbol in the bottom left side of the screen on the navigation bar. Rotate your finger around the color wheel until you find your desired color.
- Page 9 Kim Pavilion 7” Concrete Bollard, Software Instructions (For RGBW only) Cache APPLE iOS Clearing the cache: 1. If you are locked out of the Hubbell RGBW Remote App when you enter the wrong password Exit the App, Clear the Cache by following the steps below–...
- Page 10 Kim Pavilion 7” Concrete Bollard, Software Instructions (For RGBW only) Trouble pairing device and KIM REMOTE with fixture. 1. When pairing initially, stand as close as possible to the fixture. 2. Power down fixture for 15 seconds and power back on. 3.
- Page 11 Kim Pavilion 7” Concrete Bollard, Installation Instructions Installation warnings and cautions for standard product Avertissements d’installation et mises en garde WARNING: Make certain all electrical supply is OFF before CAUTION: Lighted lamp is HOT! Do not touch hot lens, staring installation or beginning maintenance procedures. guard or enclosure.
-
Page 12: Additional Warnings
Kim Lighting • 17760 Rowland Street • Rowland Height, CA 91748 • Phone: 626-968-5666 Due to our continued efforts to improve our products, product specifications are subject to change without notice. May 20, 2021 9:53 AM © 2021 HUBBELL LIGHTING, All Rights Reserved • For more information visit our website: www.kimlighting.com...
