Summary of Contents for SpeedyBee F745 35A BLS AIO
-
Page 1: Table Of Contents
User Manual SpeedyBee F745 35A BLS AIO contents Part 1 - OverView Specifications Dimensions Package Layout Part 2 - Flight Controller Wiring Diagram FC Firmware Update BlackBox Analyzer Part 3 - ESC Connection with Motors & Power Cable ESC Configuration... -
Page 2: Part 1 - Overview
Part 1 - OverView Specifications 1/11 Overview Product Name SpeedyBee F745 35A BLS AIO... -
Page 3: Dimensions
Package 3/11 MANUAL / APP DOWNLOAD www.SpeedyBee.com SpeedyBee F745 35A BLS AIO x 1 35V 470uF Capacitor x 1 XT30 Power Cable(Length: 7cm) x 1 6pin DJI Air Unit cable x 1 External USB Port module(Wire Length: 5mm) x 1 M2(Diameter) * 12mm(Length) Screw x 5 M2(Hole Diameter) * 6.6mm(Height) Anti-vibration Silicone Grommets x 5... -

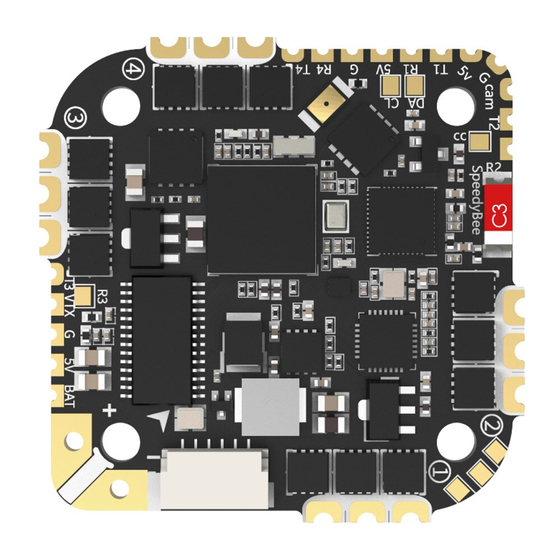

Page 4: Layout
Layout 4/11 BIUE LED D+, D-, GND pads (For external USB port) MCU: STM32F745 MCU: BB21 Driver Chips LED Indicator Definition GREEN LED - Solid Green indicates Bluetooth is connected. BLUE LED - Flight controller status light which is controlled by the flight controller firmware. BOOT Button... -
Page 5: Part 2 - Flight Controller
Part 2 - Flight Controller Wiring Diagram 5/11 5-36V 5-36V Video Video G/TX M/RX M/RX Camera DJI Air Unit Spectrum SBUS(R1) SBUS VBAT SBUS SBUS Reciever CH2 RX CH1 TX Video VIDEO PGND 3.7-5V Crossfire Nano Rx Analog VTX Buzzer LED Stripe USB-C Module* * Due to the size limitation, there's no 5V output from the... -
Page 6: App
6/11 Get the SpeedyBee App Search ‘SpeedyBee’ on Google Play or App Store. Or download the Android .apk file on our website: https://www.speedybee.com/download. Connect the App... -
Page 7: Fc Firmware Update
FC Firmware Update 7/11... -
Page 8: Blackbox Analyzer
BlackBox Analyzer 8/11 Connection with Motors & Power Cable 9/11 Motor 4 Motor 2 Motor 1 Motor 3 Note: In order to prevent the AIO from being burnt out instantaneous voltage spikes on powering up, it is strongly recommended to use the Low ESR capacitor in the package. - Page 9 10/11...
- Page 10 11/11 You could flash both BLHeli_S and Blue Jay firmware for this ESC. You need to pulg in the battery to the AIO and then connect a USB cable between the AIO and your PC. Then flash ESC firmware (BLHeli_S or Blue Jay) in the following online configurator: https://esc-configurator.com/ Note: ESC Type should be set as 'J-H-40'.
