Page 1: Table Of Contents
User Manual SpeedyBee F745 35A BLS AIO contents Part 1 - OverView Specifications Dimensions Package Layout Part 2 - Flight Controller Wiring Diagram FC Firmware Update BlackBox Analyzer Part 3 - ESC Connection with Motors & Power Cable ESC Configuration... -
Page 2: Part 1 - Overview

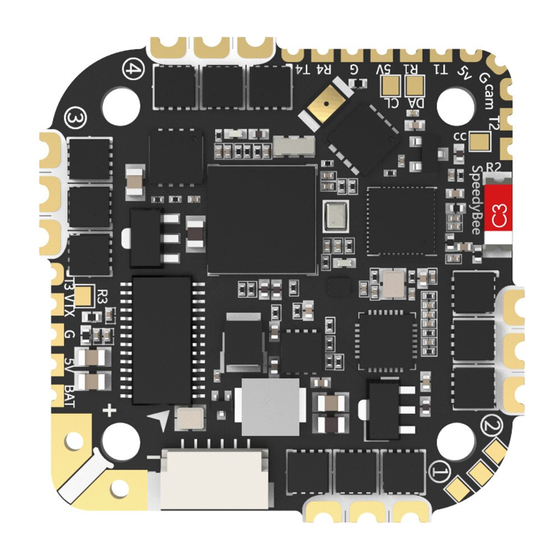

Part 1 - OverView Specifications 1/11 Overview Product Name SpeedyBee F745 35A BLS AIO Power Input 3S - 6S Lipo Mounting 25.5 x 25.5mm, 3mm hole diameter Dimension 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5" or above Weight 10.1g... -
Page 3: Dimensions
Package 3/11 MANUAL / APP DOWNLOAD www.SpeedyBee.com SpeedyBee F745 35A BLS AIO x 1 35V 470uF Capacitor x 1 XT30 Power Cable(Length: 7cm) x 1 6pin DJI Air Unit cable x 1 External USB Port module(Wire Length: 5mm) x 1 M2(Diameter) * 12mm(Length) Screw x 5 M2(Hole Diameter) * 6.6mm(Height) Anti-vibration Silicone Grommets x 5... -
Page 4: Layout
1. Hold the BOOT button (the only button on the FC), and power to FC at the same time, then the FC will enter DFU mode. 2. Open the SpeedyBee app, go to the FC Firmware Flashing page, and perform the Firmware Flashing as prompted. -
Page 5: Part 2 - Flight Controller
Part 2 - Flight Controller Wiring Diagram 5/11 5-36V 5-36V Video Video G/TX M/RX M/RX Camera Spektrum SRXL2 Receiver DJI Air Unit PPM Receiver SBUS(R1) SBUS VBAT SBUS SBUS Reciever CH2 RX CH1 TX Video VIDEO PGND 3.7-5V Analog VTX Crossfire Nano Rx Buzzer LED Stripe... -
Page 6: App
6/11 Get the SpeedyBee App Search ‘SpeedyBee’ on Google Play or App Store. Or download the Android .apk file on our website: https://www.speedybee.com/download. Connect the App... -
Page 7: Fc Firmware Update
FC Firmware Update 7/11... -
Page 8: Blackbox Analyzer
BlackBox Analyzer 8/11 Part 3 - ESC Connection with Motors & Power Cable 9/11 Motor 4 Motor 2 Motor 1 Motor 3 Low ESR Capacitor XT30 Power Cable Note: In order to prevent the AIO from being burnt out instantaneous voltage spikes on powering up, it is strongly recommended to use the Low ESR capacitor in the package. -
Page 9: Esc Configuration
ESC Configuration 10/11... -
Page 10: Esc Firmware Update
ESC Firmware Update 11/11 You could flash both BLHeli_S and Blue Jay firmware for this ESC. You need to pulg in the battery to the AIO and then connect a USB cable between the AIO and your PC. Then flash ESC firmware (BLHeli_S or Blue Jay) in the following online configurator: https://esc-configurator.com/ Note: ESC Type should be set as ' J -H-40'.
