Robertshaw RS8110 Operation Manual

Hide thumbs Also See for RS8110:

Advertisement

Quick Links

Download this manual
RS8110
Op e r a t i o n M a n u a l

Advertisement

loading
Need help?

Need help?

Do you have a question about the RS8110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robertshaw RS8110

Summary of Contents for Robertshaw RS8110

  • Page 1 RS8110 Op e r a t i o n M a n u a l...

  • Page 3: Table Of Contents

    RS8110 Table of Contents Page Caution Table of Contents Thermostat Operation Equipment damage hazard. Thermostat Quick Reference Do not operate the cooling system if the outdoor Adjusting the Temperature temperature is below 50°F Differential/Swing (10°C) to prevent possible Installation Settings compressor damage.

  • Page 4: Thermostat Operation

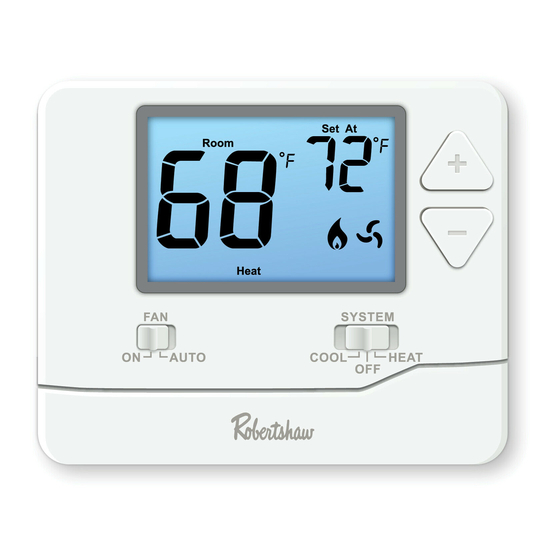

    THERMOSTAT OPERATION Set At Room Cool SYSTEM COOL OFF AUTO HEAT a LCD Display d Temperature Setpoint Buttons b Fan Switch e Easy change battery door c System Switch...
  • Page 5 THERMOSTAT OPERATION a LCD Display d Temperature Setpoint Buttons See page 6 for details about Press the + or - buttons to this display read out. select the desired room temperature. b Fan Switch Select ON or AUTO. ON e Easy change battery door will run the fan continuously.

  • Page 6: Thermostat Quick Reference

    THERMOSTAT QUICK REFERENCE Battery Door Information Replace with 2xAAA Alkaline 1.5V AAA 1.5V AAA Batteries. High quality Alkaline batteries are recommended. Use the finger bevel on the lower portion of the thermostat to open the easy access battery door. Caution: When the low battery icon appears replace your 2x AAA batteries immediately.
  • Page 7 THERMOSTAT QUICK REFERENCE Important The low battery indicator is displayed when the 2x AAA batteries need to be replaced.
  • Page 8 THERMOSTAT QUICK REFERENCE Room Temperature: Setpoint Temperature: Displays the selected Indicates the current setpoint temperature. room temperature. Set At Room NOTE: The compressor System Operation Low Battery delay feature is active if Indicators: Indicator: these icons are flashing. Replace batteries The compressor will not when indicator is icon will display...

  • Page 9: Adjusting The Temperature Differential/Swing

    ADJUSTING THE TEMPERATURE DIFFERENTIAL HEAT DIFFERENTIAL OR SWING Select HEAT with the system switch, hold down the + and - buttons together for 3 seconds to access the HEAT SWING setting. Use the + or - key to adjust the swing from ±0.2°F to ±2°F. Wait approximately 15 seconds or slide the system switch to return to normal operation COOL DIFFERENTIAL OR SWING Select COOL with the system switch, hold down the + and - buttons together...

  • Page 10: Installation Settings

    INSTALLATION SETTINGS Select OFF with the system switch, hold down the + and - buttons together for 3 seconds to access the CALIBRATION setting. Use the + to adjust the temperature from -4°F to +4°F. Then press - to access the F(Fahrenheit) or C(Celsius) setting, use + to select.

  • Page 11: Terminal Designations

    TERMINAL DESIGNATIONS RH .... 24 VAC (system power supply) HEAT RC .... 24 VAC (system power supply) COOL C ....Common 24 VAC (system power supply) W ....HEAT Y ....COOL G ....FAN B ....REV VALVE HEAT O ....
  • Page 12 Customer Service +1.800.304.6563 Technical Service +1.800.445.8299 Use Phone Year HVACCustomerService@robertshaw.com to Scan for Limited www.robertshaw.com • 352-00309-001 Warranty Info Warranty...
