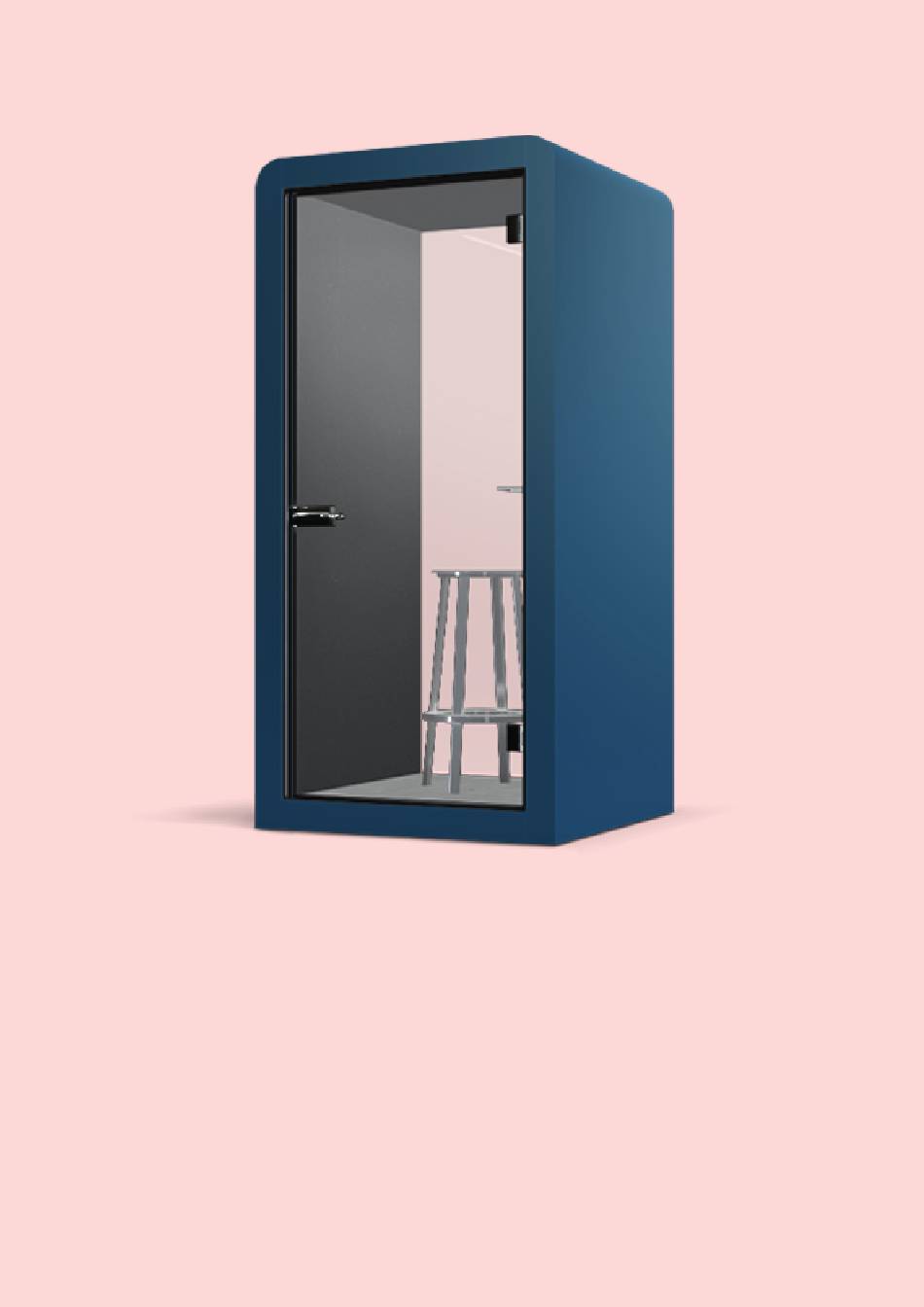

- Page 1 Silen Space 1 Assembly Manual RIGHT HANDED silenspace.com #silenspace...
- Page 2 1096mm 2106mm G2 x2 1140mm 894mm...
- Page 3 2350mm 4,5x50mm 3,5x35mm 5x60mm TOOLS: Suc�on cups Allen key min. 2x120mm 2pcs Level 1pcs Scissors 1pcs 2-10mm 1set Rubber mallet 1pcs Cordless drill with Ratche�ng wrench with drill bits set long 5mm Allen key U�lity knife 1pcs Stepladder 1pcs Screwdriver 1pcs Cleaning supplies 1set 300L extrastong trash- bags 5pcs...
- Page 5 1. Remove carpet plugs on marked posi�ons and use a long 5mm allen key to adjust 4 levelling glides in the corners to avoid the floor module from shi�ing during assembly. Note! Glides must be lowered minimally. 2. Insert the posi�oning rods a�ached to side modules (B and C) into the floor module posi�oning holes.
- Page 6 4. A�ach assembly support beams (E) to the side modules. 5. Place safety support beams (F) on top 5x60mm of the assembly support beams (E). 6. Li� ceiling module (D) on top of the side modules (B and C) and secure the ceiling module by lowering it between the side modules un�l connectors are even to each other.
- Page 7 7. Remove support beams (E) and (F) a�er ceiling module is a�ached. 8. Connect the electrical fi�ngs between side module (B) and table (L), then place table on top of the pre-installed laths on side module.
- Page 8 9. Back-glass panel installa�on: 9.1 Click in profile (G2) to the ceiling module using a rubber mallet and plas�c block to secure it. 9.2 Place the back-glass panel (G) into the aluminum profiles: Step 1. Li� the glass panel (G) into the top aluminum profile using suc�on cups, Step 2.
- Page 9 FRONT BACK 9.3 Secure the back-glass panel by wedging two shims “e” between the glass panel (G) and the wooden spacer making sure they are �ght. Carefully shi� the glass panel with a plas�c crowbar to create clearance for the shims “e”. Note! Shims “e”...
- Page 10 10. Door frame installa�on: 10.1 10.1 A�ach expanding tape “f” to the sides and top of the door frame (H). Note! Expanding tape must be cut in the corners, not curved around the corners. 10.2 10.2 Posi�on the door frame (H) in the front opening and shi�...
- Page 11 10.3 c x8 10.3 Drive in screws (c) to a�ach the door frame (H) to the side modules. Cover the openings with plugs (g). 4,5x50mm 10.4 Drive in screws (c) to a�ach the door frame (H) 10.4 to the floor module. d x4 10.5 Remove protec�on tape from decora�ve door threshold (J).
- Page 12 11. Door glass installa�on: 11.1 11.1 Remove the covering plate from the hinges using a 3mm allen key to unlock the pin. 11.2 11.2 Use 4mm allen key to remove the securing plate from hinges. 11.3 11.3 Use suc�on cups to li� door-glass panel (K) to the hinges.
- Page 13 11.4 11.4 11.4 Door-glass panel (K) must be equally centered in rela�on to all four sides with approximate 6mm gap between the glass and door frame. 11.5 Fix the glass by a�aching the securing plate back Max 15Nm on the hinges using a 4mm allen key. 11.5 11.6 Rea�ach the covering plate on top of door frame hinges.
- Page 14 12. Lock and handle installation: 12.1 12.1 Use 3mm allen key to open the preassembled handle set “h”. 12.2 A�ach the dedicated tool provided with lock assembly “m” to handle “h” 12.2 to remove the lock assembly “m” cover plates. 12.3 Use 4mm allen key to open the rest of the lock assembly “m”.
- Page 15 12.4 INSIDE 12.4 Place the lock assembly “m” on door-glass and secure bolts with 4mm allen key. Note! Make sure part “m” is positioned at a 90-degree angle in relation with door-glass edge. 12.5 Rea�ach the cover plates on lock assembly “m” using the 12.5 dedicated tool with handle “h”.
- Page 16 13.2 13.1 13.3 13.4 13.3 13.4 13.2 13.2 13. Covering trim installa�on: 13.1 A�ach engraved covering trim (R) on the front side of ceiling module. 13.2 A�ach covering trims (P) on the front/back side of floor module and back side of ceiling module. 13.3 A�ach covering trim (M) on the front/back side of side module and connect it with pins a�ached to part (R) and (P).
- Page 17 14. To relocate the cabin, li� up previously lowered levelling glides and move it to desired loca�on. Repeat step 1. to secure the cabin again. Note! Also adjust the middle glide so it supports the middle of the floor.
- Page 18 15. Clean all the interior and exterior surfaces. 16. Remove cover plate from the ceiling module and con�nue based on one of the following op�ons: Op�on 1: To connect the „Space” to general power supply with bo�om connector use Schematic 1. Op�on 2: To connect the „Space”...
- Page 19 Schema�c 2. 17. Make sure LED lights and power socket are func�oning properly and your product is ready for use. Thank you for choosing Silen Space.
