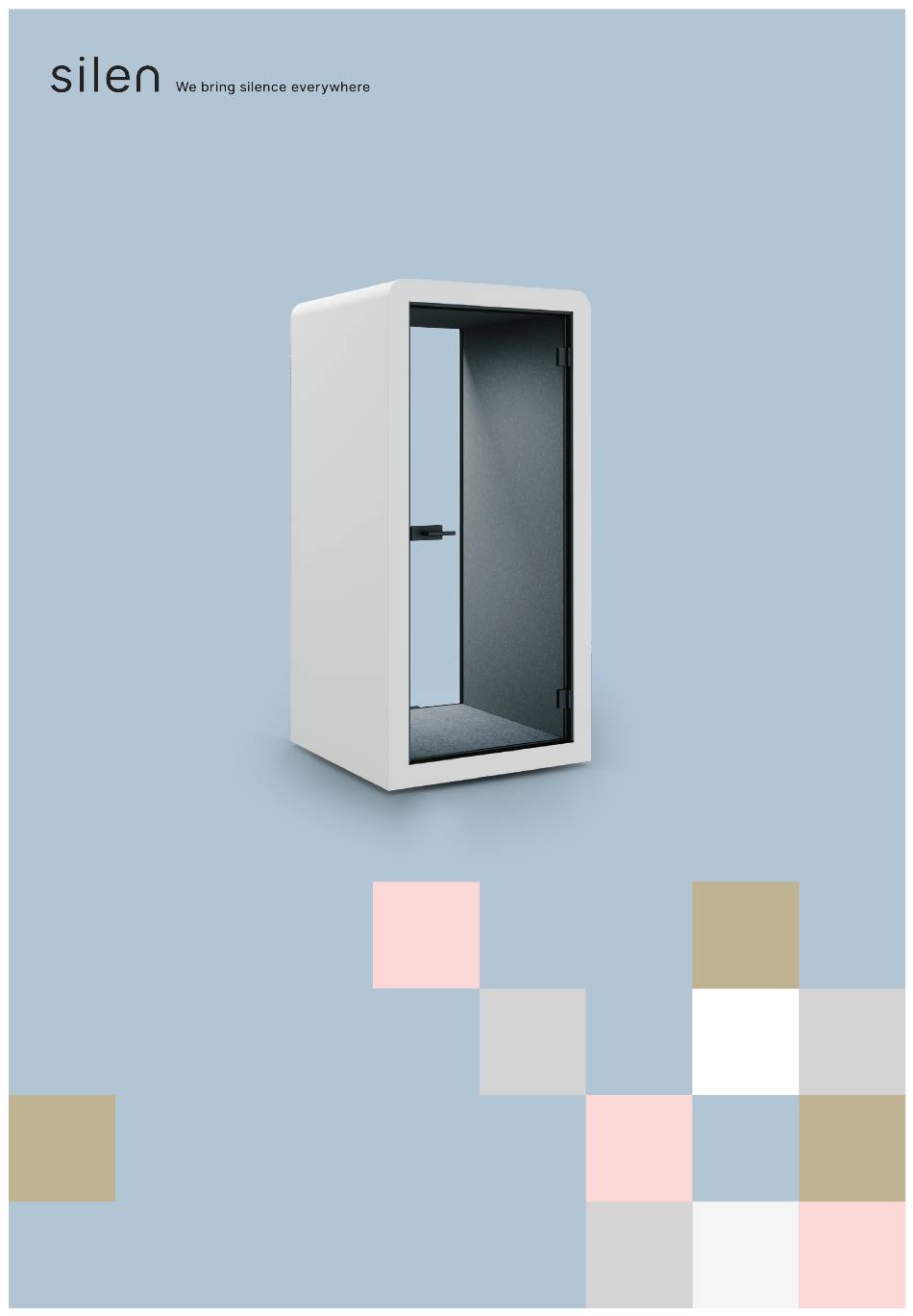

- Page 1 Silen Space 1 Assembly Manual RIGHT HANDED...
- Page 2 A x1 D x1 B x1 C x1 H x1 K x1 G x1 P x3 R x1 M x2 N x2 L x1 G1 x2 E x2 1096mm F x2 2106mm G2 x2 1140mm J x1 894mm...
-
Page 3: Table Of Contents
2350mm c x8 e x1 a x4 g x8 h x1 4,5x50mm b x4 d x4 f x1 k x1 m x1 5x60mm 3,5x35mm TOOLS: Suction cups min. 2x120mm 2pcs Level 1pcs Scissors 1pcs 2-10mm 1set Rubber mallet 1pcs Cordless drill with Ratcheting wrench with drill bits set long 5mm Allen key... -
Page 5: A X4
1. Remove carpet plugs on marked positions and use a long 5mm allen key to adjust 4 levelling glides in the corners to avoid the floor module from shifting during assembly Note! Glides must be lowered minimally. 2. Insert the positioning rods attached to side modules (B and C) into the floor module positioning holes. - Page 6 b x4 4. Attach assembly support beams (E) to the side modules. 5. Place safety support beams (F) on top 5x60mm of the assembly support beams (E). 6. Lift ceiling module (D) on top of the side modules (B and C) and secure the ceiling module by lowering it between the side modules until connectors are even to each other.
- Page 7 7. Remove support beams (E) and (F) after ceiling module is attached. 8. Connect the electrical fittings between side module (B) and table (L), then place table on top of the pre-installed laths on side module.
- Page 8 9. Back-glass panel installation: 9.1 Click in profile (G2) to the ceiling module using a rubber mallet and plastic block to secure it. 9.2 Place the back-glass panel (G) into the aluminum profiles: Step 1. Lift the glass panel (G) into the top aluminum profile using suction cups, Step 2.
- Page 9 e x1 FRONT BACK 9.3 Secure the back-glass panel by wedging two shims “e” between the glass panel (G) and the wooden spacer making sure they are tight. Note! Shims “e” must be cut into fitting size first. Carefully shift the glass panel with a plastic crowbar to create clearance for the shims “e”.
- Page 10 f x1 10. Door frame installation: 10.1 10.1 Attach expanding tape “f” to the sides and top of the door frame (H). Note! Expanding tape must be cut in the corners, not curved around the corners. 10.2 10.2 Position the door frame (H) in the front opening and shift it evenly between side modules.
-
Page 11: C X8
c x8 10.3 Drive in screws (c) to attach the door frame (H) to the side modules. Cover the openings with plugs (g). 4,5x50mm 10.4 Drive in screws (c) to attach the door frame (H) g x8 to the floor module. 10.4 10.3 d x4... - Page 12 11. Door glass installation: 11.1 11.1 Remove the covering plate from the hinges using a 3mm allen key to unlock the pin. 11.2 11.2 Use 4mm allen key to remove the securing plate from hinges. 11.3 Use suction cups to lift door-glass panel (K) 11.3 to the hinges.
- Page 13 11.4 11.4 11.4 Door-glass panel (K) must be equally centered in relation to all four sides with approximate 6mm gap between the glass and door frame. 11.5 Fix the glass by attaching the securing plate back Max 15Nm on the hinges using a 4mm allen key. 11.5 11.6 Reattach the covering plate on top of door frame hinges.
-
Page 14: M X1
h x1 m x1 12. Lock and handle installation: Note! Before lock and handle installation see manual „Switching the handedness on a lock case“ 12.1 12.1 Use 3mm allen key to open the preassembled handle set “h”. 12.2 Attach the dedicated tool provided with lock assembly “m” to handle “h” 12.2 to remove the lock assembly “m”... - Page 15 12.4 INSIDE 12.4 Place the lock assembly “m” on door-glass and secure bolts with 4mm allen key. Note! Make sure part “m” is positioned at a 90-degree angle in relation with door-glass edge. 12.5 Reattach the cover plates on lock assembly “m” using the 12.5 dedicated tool with handle “h”.
- Page 16 13.2 13.1 13.3 13.4 13.3 13.4 13.2 13.2 13. Covering trim installation: 13.1 Attach engraved covering trim (R) on the front side of ceiling module. 13.2 Attach covering trims (P) on the front/back side of floor module and back side of ceiling module. 13.3 Attach covering trim (M) on the front/back side of side module and connect it with pins attached to part (R) and (P).
- Page 17 14. To relocate the cabin, lift up previously lowered levelling glides and move it to desired location. Repeat step 1. to secure the cabin again. Note! Also adjust the middle glide so it supports the middle of the floor.
- Page 18 15. Clean all the interior and exterior surfaces. k x1 16. Remove cover plate from the ceiling module and continue based on one of the following options: Option 1: To connect the „Space” to general power supply with bottom connector use Schematic 1. Option 2: To connect the „Space”...
- Page 19 Schematic 2. 17. Make sure LED lights and power socket are functioning properly and your product is ready for use. Thank you for choosing Silen Space.
- Page 20 Silen OÜ Veerenni 38, Tallinn ESTONIA silenspace.com...
