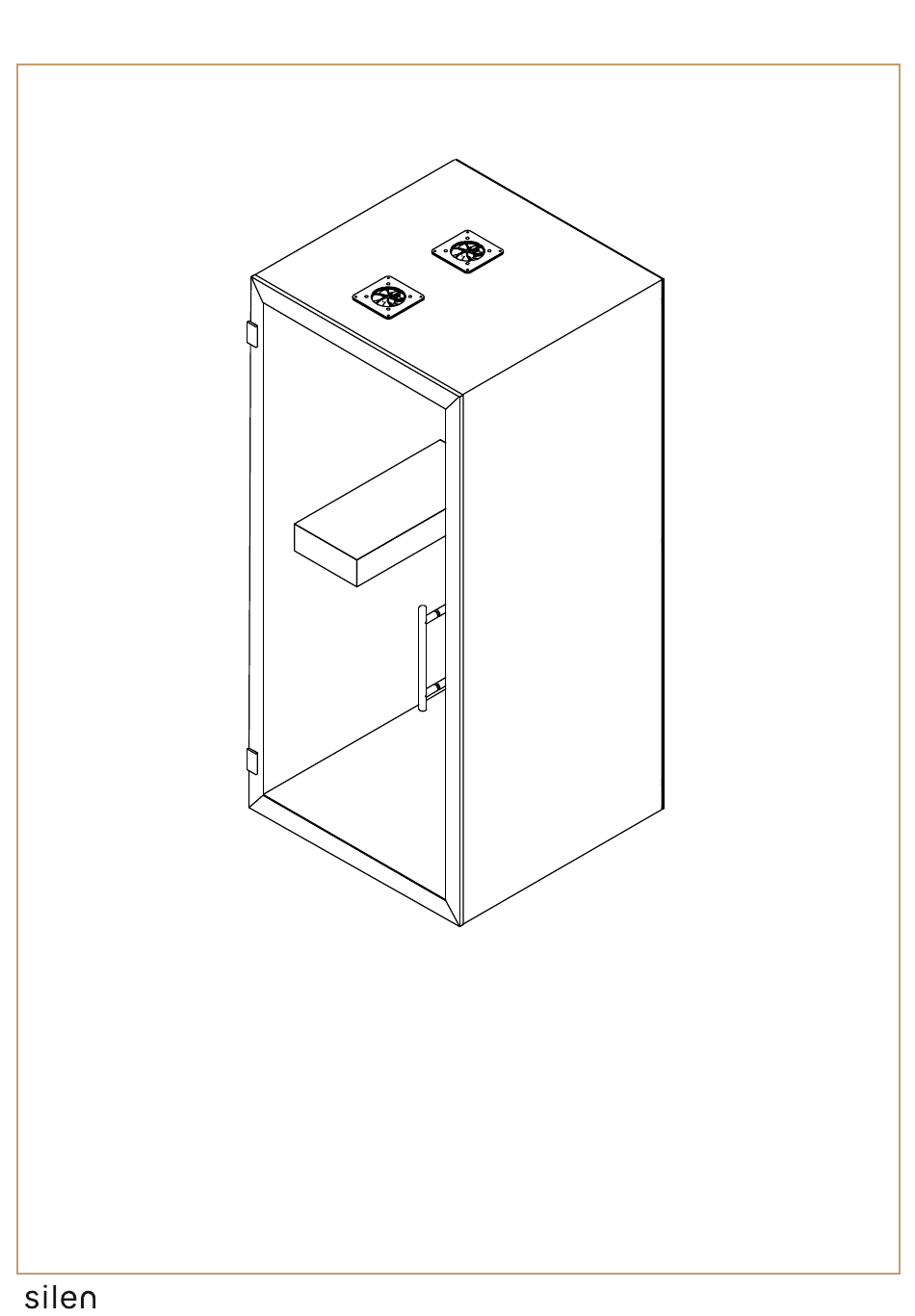

  • Page 1 CHATBOX Assembly Manual...
  • Page 2 Product components IMPORTANT SAFETY INFORMATION Assembly requires approximate 4 x 4 m Take photographs before and a�er 4x4m open floor space for safety. opening the cardboard packages to document any damage caused during delivery. Required Assembly Space Risk of �p-over during product Minimum two persons required DANGER! assembly, addi�onal support...
  • Page 3 A�achments and Tools TOOLS: Allen key set Level Screwdriver Scissors k x1 6x8mm ATTACHMENTS: a x4 b x4 c x4 d x6 e x6 M6x35 M6x45 M6x80 M5x35 Allen 5mm Allen 5mm Allen 5mm Allen 2,5mm i x1 j x1 f x6 g x6 h x10...
  • Page 4 1. Floor module Assembly Place the Floor module (A) at desired loca�on of the Chatbox. Remove carpet plugs on marked posi�ons and use a 5mm allen key and a level to adjust all 7 levelling glides. Note! Glides must be lowered minimally.
  • Page 5 2. Side module Assembly 2 Person Assembly DANGER! Tip-Over Hazard! a x4 Li� the Side modules (B and C) on top of the Floor module (A) and drive in screws “a” to secure the Side modules. Note! Assembly must be supported from the side to avoid tipping over before second Side module is attached.
  • Page 6 3. Ceiling module Assembly b x4 2 Person Assembly Step 1. Li� the Ceiling module (D) on top of the Side modules (B and C) and drive in screws “b” to secure the side modules. Step 2. Connect the electrical fi�ngs and place the fi�ngs into the Ceiling module (D) Step 1.
  • Page 7 4. Table Assembly 2 Person Assembly c x4 Step 1. Step 2. c x4 M6x80 Allen 5mm Step 3. Step 1. Li� table (E) above the lath a�ached to side module (B), push the table (E) against the side module (B) and lower the table (E) un�l it stands on the lath.
  • Page 8 5. Gasket Assembly k x1 6x8mm...
  • Page 9 ASSEMBLY OPTIONS FOR CHATBOX HANDEDNESS RIGHT HANDED ASSEMBLY LEFT HANDED ASSEMBLY *6L Le� Handed Rear Glass *6R Right Handed Rear Glass assembly @ page 8-9 assembly @ page 11-12 *7L Le� Handed Door *7R Right Handed Door Frame Frame assembly @ page 10...
  • Page 10 *6L. Le� Handed Rear Glass Assembly Don’t support on 2 Person Assembly corner d x6 e x6 M5x35 Allen 2,5mm f x6 g x6 d x6 e x6 f x6 g x6...
  • Page 11 Step 3. Li� the glass panel (F) on top of previ- ously a�ached parts. Step 4. Use parts “f” and “g” and a 1,5mm allen key to a�ach the Rear glass (F) on the Chatbox Step 4. Step 1. Step 2.
  • Page 12 BACK Open TABLE FRONT Place support under Frame Open h x10 Drive in screws “h” to a�ach the Door frame (G) to the Chatbox Note! Door must be in “open” position and supported from bottom edge for assembly. B&C B&C...
  • Page 13 6R. Right Handed Rear Glass Assembly Don’t support on 2 Person Assembly corner d x6 e x6 M5x35 Allen 2,5mm f x6 g x6 f x6 g x6 d x6 e x6...
  • Page 14 Step 3. Li� the glass panel (F) on top of previ- ously a�ached parts. Step 4. Use parts “f” and “g” and ta 1,5mm allen key to a�ach the Rear glass (F) on the Chatbox Step 2. Step 4. Step 1.
  • Page 15 BACK Open TABLE FRONT Place support under Frame Open h x10 Drive in screws “h” to a�ach the Door frame (G) to the Chatbox Note! Door must be in “open” position and supported from bottom edge for assembly. B&C B&C...
  • Page 16 8. Door Handle Assembly Open Step1. Place the Door handle “i” on the Door glass (G) and secure it with the provid- i x1 ed handle set a�achments. Step 2. Place the second half of the handle on top of the a�achments and secure the bolts with an allen key.
  • Page 17 9. Connec�ng the eletrical fi�ngs Remove the Cover plate from Ceiling module (D) to expose electrical fi�ngs. Connect the Power cord “j” and return Cover plate. j x1 - Powercord connection - Side panel (table socket) connection...
  • Page 18 Optional. Power cord posi�oning...
  • Page 19 10. Covering plate Assembly A�ach the Covering plates (I) by placing them first on top of the Chatbox and then slowly let the magnets pull the side panel to it’s place.
