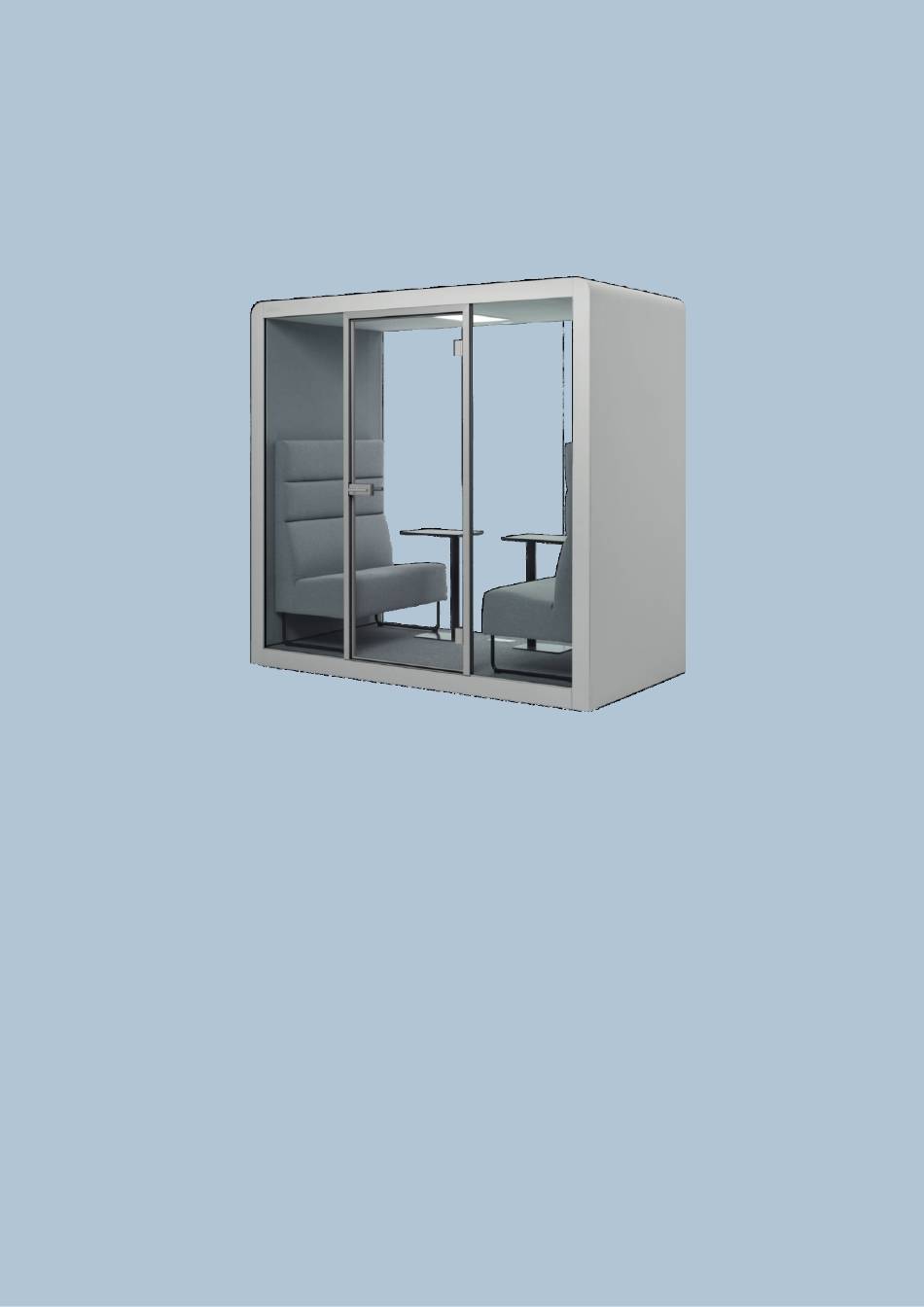

  • Page 1 Silen Space 2 Assembly Manual silenspace.com #silenspace...
  • Page 3 2400mm 1300mm 742x2085mm 673x2085mm 2106mm 2198mm 648mm...
  • Page 4 2350mm 5x60mm 3,5x35mm 2085mm TOOLS: Suc on cups Allen key min. 2x120mm 4pcs Level 1pcs Ratche ng straps 2pcs 2-10mm 1set Rubber mallet 1pcs Cordless drill with Ratche ng wrench with U lity knife 1pcs Stepladder 1pcs drill bits set long 5mm All n key Screwdriver 1pcs Cleaning supplies 1set...
  • Page 6 1. Remove carpet plugs on marked posi ons and use a long 5mm allen key to adjust 4 levelling glides in the corners to avoid the floor module from shi ing during assembly. Note! Glides must be lowered minimally. 1160 120 1160 2.
  • Page 7 5. A ach assembly support beams (E) to the side modules. 6. Place safety support beams (F) on top 5x60mm of the assembly support beams (E). 7. Li ceiling module (D) on top of the side modules (B and C) and secure the ceiling module by lowering it between the side modules un l connectors are even to each other.
  • Page 8 9. Back-glass panel installa on: 9.1 Click in profile (G2) to the ceiling module using a rubber mallet and plas c block to secure it.
  • Page 9 FRONT BACK 9.2 Place two back-glass panels (L) into the aluminum profiles: Step 1. Li the glass panel (L) into the top aluminum profile using suc on cups, Step 2. Push the bo om of the glass panel (L) towards the front of the cabin, Step 3.
  • Page 10 9.4 To add the middle back-glass panel: FRONT Step 1. Clean the ver cal edges of glass panel (L) with solvent based solu on to remove any residue, Step 2. Use suc on cups to posi on the glass panel (L) into top aluminum profile, Step 3.
  • Page 11 9.5. Click in profile (G1) to the side modules using a rubber mallet and plas c block to secure it. Note! Slide the ver cal profile (G1) up between the top profile and side module. 9.6 Click in profile (G2) to the floor module using a rubber mallet and plas c block to secure it.
  • Page 12 10. Front glass panel and door frame installa on: 10. 1 Click in profile (G2) to the floor module using a rubber 10.1 mallet and plas c block to secure it. 10. 2 Place two front-glass panels (G) into the aluminum profiles: 10.2 Step 1.
  • Page 13 10. 4 Install the door frame (H): 10.4 Step 1. Li the door frame (H) into the top aluminum profile, Step 2. Push the bo om of the door frame (H) towards the back of the cabin, Step 3. Lower the door frame (H) un l it stands on the floor module.
  • Page 14 10.6 10. 6 A ach four suc on cups on the side glass panels (as shown on schema c 10.6). Place ratche ng straps between the top and bo om suc on cups and ghten un l both panels are slid into the door frame profiles.
  • Page 15 11. Door glass installa on: 11. 1 Remove the covering plate from the hinges using a 3mm allen key 11.1 to unlock the pin. 11. 2 Use 4mm allen key to remove the securing plate from hinges. 11.2 11. 3 Use suc on cups to li door-glass panel (K) 11.3 to the hinges.
  • Page 16 11.4 11. 4 Door-glass panel (K) must be equally centered in 11.4 rela on to all four sides with approximate 6mm gap between the glass and door frame. 11. 5 Fix the glass by a aching the securing plate back Max 15Nm on the hinges using a 4mm allen key.
  • Page 17 12. Lock and handle installa on: Note! Before lock and handle installa on see manual „Switching the handedness on a lock case“ 12.1 Use 3mm allen key to open the preassembled handle set “h”. 12.1 12.2 A ach the dedicated tool provided with lock assembly “m” to handle “h” to remove the lock assembly “m”...
  • Page 18 12.4 INSIDE 12.4 Place the lock assembly “m” on door-glass and secure bolts with 4mm allen key. Note! Make sure part “m” is posi oned at a 90-degree angle in rela on with door-glass edge. 12.5 Rea ach the cover plates on lock assembly “m” using the 12.5 dedicated tool with handle “h”.
  • Page 19 13.2 13.1 13.3 13.4 13.3 13.2 13.4 13.2 13. Covering trim installa on: 13.1 A ach engraved covering trim (R) on the front side of ceiling module. 13.2 A ach covering trims (P) on the front/back side of floor module and back side of ceiling module.
  • Page 20 14. To relocate the cabin, li up previously lowered levelling glides and move it to desired loca on. Repeat step 1. to secure the cabin again. Note! Make sure to adjust all 8 glides when in the final posi on.
  • Page 21 15. Clean all the interior and exterior surfaces. 16. Remove cover plate from the ceiling module and con nue based on one of the following op ons: Op on 1: To connect the „Space” to general power supply with bo om connector use Schema c 1. Op on 2: To connect the „Space”...
  • Page 22 Schema c 2. 17. Make sure LED lights and power socket are func oning properly and your product is ready for use. Thank you for choosing Silen Space products.
