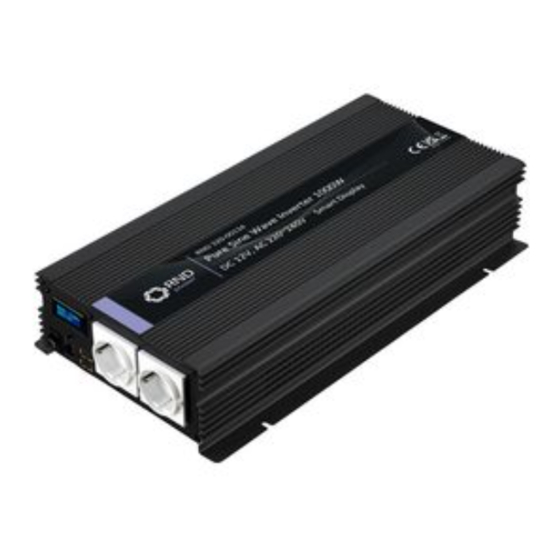

- Page 1 Intelligent DC AC: Pure sine wave inverter. User Manual RND 320-00134 www.rnd-electronics.com CAUTION: Read the instructions before using the machine...
- Page 2 PLEASE READ THE INSTRUCTION MANUAL BEFORE USE INTRODUCTION RND 320-00134 - Pure Sine Wave Power Inverter is advanced in design and equipped with a Smart Display and QC3.0 USB. This product has a high-efficiency output ranging from 1000W~3000W and minimalistic aesthetic design.
- Page 3 PRODUCT FEATURES • Intelligent Fan Control • Smart Display • Multi Pre-Alarm & Shutdown • USB Quick Charge 3.0 • Adjustable Settings by Display Alarm Protections: Battery Button Type / Low Voltage / Short • Energy Saving Mode Circuit / Overheat / Overload DISPLAY SCREEN WELCOME SCREEN 1500W}: output watt {12}: input volt {2}: out-...
-
Page 4: Available Options
PROTECTIONS (AUTOMATICALLY SHOW UP WHEN TRIGGERED) WELCOME SCREEN Pre-Alarm <!> : Low Voltage, Overload, Overtemp Shutdown (X) : Low Voltage, Overload, Overtemp, Short Circuit, High Voltage Example: SETTINGS Press and hold the display button for 5 seconds to switch to the settings menu. Here, click the display but- ton to select setting. -
Page 5: Installation
INSTALLATION Connect Battery (CAUTION: DO NOT REVERSE INPUT) Use the RED battery cord to connect from (+) the positive terminal to (+) the DC battery. Use the BLACK battery cord to connect from (—) the negative terminal to (—) the DC battery. Connect Chassis Earth The chassis earth lug should be connected to an earth point, which will vary depending on where the power inverter is installed. - Page 6 SPECIFICATION Model: SN-1000LCD Model: SN-1500LCD System Continuous Power 1000W 1500W Surge Power 2000W 3000W Output Voltage 110/120/127 VAC; 220/230/240 VAC BTN Output Waveform Pure Sine Wave Total Harmonic Distortion < 3% Output USB Port QC3.0 x 2 Ports Standby Current (Normal DC 12V: <...
-
Page 7: Troubleshooting
SAFETY DO NOT use the inverter near any flammable substance DO NOT place the inverter near any water, moisture, oil or grease DO NOT expose the inverter to direct sunlight or heat source Make sure to provide adequate ventilation to the inverter Make sure to keep the inverter out of reach from children TROUBLESHOOTING There are several reasons why the inverter may not be responding and the potential solutions to fix it. - Page 8 www.rnd-electronics.com...
