DIGITAL WEATHER FORECASTER
WITH REMOTE THERMO-HYGRO
SENSOR AND RADIO CONTROLLED
CLOCK
MODEL NO.:
USER'S MANUAL
INTRODUCTION
Congratulations on your purchase of the Weather forecaster with
cable free sensor and radio-controlled calendar clock BAR112HGA.
This unit has a large four-line liquid crystal display (LCD) for
displaying weather forecast information, in/outdoor temperatures
and
relative humidity, radio frequency (RF) controlled calendar
clock and daily alarm. Also, the main unit can support up to three
remote sensors.
Other features include
day of week
languages, crescendo alarm, and interchangeable clock display
modes.
BAR112HGA
display in
three
abbreviated
MAIN FEATURES: MAIN UNIT
1
MA X
T EMP
RH
MA X
1
1
MO DEL N O. BA R11 2H GA
T es te d To C o m p ly
W ith F C C S t an d a r d s
F O R H O M E OR OF F IC E U S E
RESET
Advertisement
Table of Contents
Related Manuals for Oregon Scientific BAR112HGLA
Summary of Contents for Oregon Scientific BAR112HGLA
- Page 1 DIGITAL WEATHER FORECASTER WITH REMOTE THERMO-HYGRO SENSOR AND RADIO CONTROLLED CLOCK MODEL NO.: BAR112HGA USER’S MANUAL INTRODUCTION Congratulations on your purchase of the Weather forecaster with cable free sensor and radio-controlled calendar clock BAR112HGA. This unit has a large four-line liquid crystal display (LCD) for displaying weather forecast information, in/outdoor temperatures relative humidity, radio frequency (RF) controlled calendar clock and daily alarm.
- Page 2 A . FRONT DISPLAY A four line easy-to-read A1. WEATHER FORECAST WINDOW Graphically illustrates a weather forecast B. [ ] BATTERY-LOW INDICATOR Activates when the remote-sensor or main unit battery power is low C. [ ] RADIO-RECEPTION SIGNAL Indicates the condition of radio reception D.
-
Page 3: Features: Remote Thermo-Hygro Sensor
FEATURES: REMOTE THERMO-HYGRO SENSOR TWO-LINE LCD Displays the current temperature and humidity monitored by the remote unit LED INDICATOR Flashes when the remote sensor °C/°F SLIDE SWITCH Selects between Centigrade (°C) and Fahrenheit (°F) CHANNEL SLIDE SWITCH Select remote sensor Channel 1, Channel 2 or Channel 3 RESET Returns all user programmed... -
Page 4: Battery And Channel Installation: Remote Unit
easier synchronization between the transmission and reception of signals. 4. Position the remote sensor and main unit within effective transmission range, which, in usual circumstances, feet (30 meters) under ideal conditions. Note that the effective range is vastly affected by the building materials and where the main and remote units are positioned. -
Page 5: Low Battery Warning
LOW BATTERY WARNING When it is time to replace batteries, the low-battery indicator will be displayed for the selected channel. HOW TO USE THE TABLE STAND OR WALL MOUNTING The main unit has a removable table stand which when can support the unit on a flat surface. Or you can remove the stand mount the unit on a wall using the recessed screw hole. -
Page 6: How To Check Remote And Indoor Temperature & Humidity
If no signals are received, blanks “---” will be displayed and the kinetic wave icon will not show. To force a signal search: • Press and hold [CHANNEL] & [MEM] for enforce a 3-minute search. This is useful in synchronizing the transmission and reception of the remote and main units. -
Page 7: How To Read The Kinetic Wave Display
HOW TO READ THE KINETIC WAVE DISPLAY The kinetic wave display shows the signal receiving status of the main unit. There are three possible forms: The unit is in searching mode. Transmission data are securely registered. No signal received in search mode. REMOTE SENSOR SCANNING The unit can be set to automatically scan and display readings from the remote sensors and indoor readings. -
Page 8: Temperature, Humidity & Pressure Trend Indicators
TEMPERATURE, HUMIDITY & PRESSURE TREND INDICATORS The temperature-trend, humidity-trend and indicators show the trends of collected readings. Arrows indicate a rising, steady or falling trend. Arrow indicator Temperature Rising Trend Arrow indicator Humidity Trend Rising Arrow indicator Pressure Trend Rising Note: If the reading goes above or below the... - Page 9 The high-low displays are as follows: Sequence Respective Display Pressing HI/LO once Enters HI temperature display Pressing HI/LO twice Enters HI humidity display Pressing HI/LO third time Enters LO temperature display Pressing HI/LO fourth time Enters LO humidity display To set a high or low temperature or humidity alarm: 1.
-
Page 10: Weather Forecast Function
WEATHER FORECAST FUNCTION The unit is capable of detecting atmospheric pressure changes. Based on collected data, it can predict the weather for the forthcoming 12 to 24 hours. The effective range covers an area of Indicator displays on the unit Forecast Sunny Slightly Cloudy... -
Page 11: How To Set The Clock Manually
- Strong - Weak - No signal - Receiving HOW TO SET THE CLOCK MANUALLY To set the clock manually, hold [MODE/SET] for three seconds. The hour digits will blink. Press [ (clock) to select the hour. Keep pressing the button increase the value rapidly. -
Page 12: How To Stop An Alarm
HOW TO STOP AN ALARM To stop an alarm, you can use either press [ [ AL ON/OFF ] button. Pressing [ ] will stop the alarm, which is still armed and will activate at the set time the following day. [ AL ON/OFF ] button is pressed instead, the alarm will be stopped and deactivated all together. -
Page 13: Note On Compliance
(L x Wx D) o Consult the dealer of an experienced radio/TV technician for help. Company Name: Oregon Scientific, Inc. Address: 19861 SW 95th Place, Tualatin, Oregon 97062, USA Telephone Number: (1)503-6398883 Name and model number of the product: Digital Weather... -
Page 14: Customer Assistance
CAUTION — The content of this manual is subject to change without further notice. — Due to printing limitation, the displays shown in this manual may differ from the actual display. — The contents of this manual may not be reproduced without the permission of the manufacturer. - Page 15 MODEL: BAR112HGA DIGITAL WEATHER FORECASTER WITH REMOTE THERMO-HYGRO SENSOR AND RADIO CONTROLLED CLOCK Instruction Manual **** Mode D'emploi **** Bedienungsanleitung **** Manuale di Istruzioni **** Instrucciones de Funcionamiento...
Need help?
Do you have a question about the BAR112HGLA and is the answer not in the manual?
Questions and answers

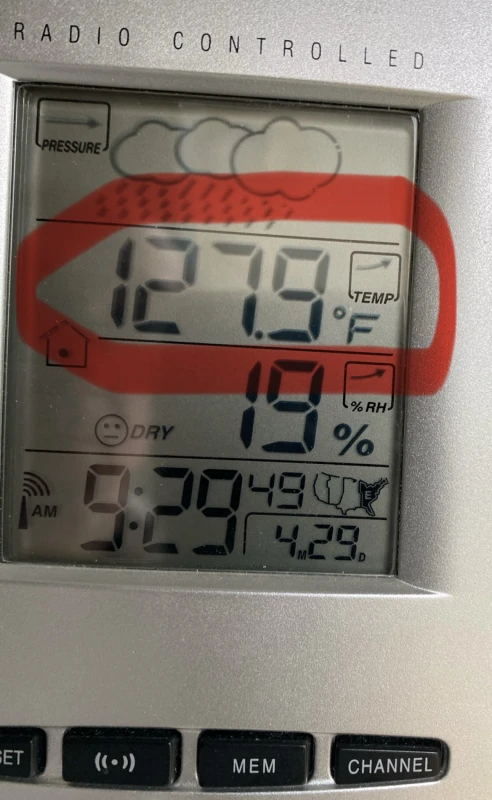

My BAR112HGA displays a very high inaccurate Temperature, how do I change it ? What is the cause of this ? Batteries are new.
To fix the inaccurate temperature display on your Oregon Scientific BAR112HGA, follow these steps:
1. Check Batteries: Ensure fresh batteries are correctly installed in both the main unit and the remote sensor.
2. Reset the Units: Press the reset button on both the main unit and the remote sensor to re-establish the connection and recalibrate readings.
3. Check Signal: Make sure the remote sensor is within the transmission range and not obstructed. Avoid placing it near metal objects or electronic devices that may cause signal interference.
4. Avoid Transmission Collision: Ensure that only one remote sensor is transmitting at a time to prevent data collision.
5. Reposition Sensor: Place the remote sensor in a shaded, well-ventilated area away from direct sunlight, heat sources, or moisture to get accurate outdoor readings.
6. Verify Comfort Level Indicators: Use the comfort level indicators to assess whether the displayed temperature and humidity fall within the expected range.
If the issue persists after these steps, the sensor may be faulty and require replacement.
