Daikin Modular T Installation Manual page 7

5

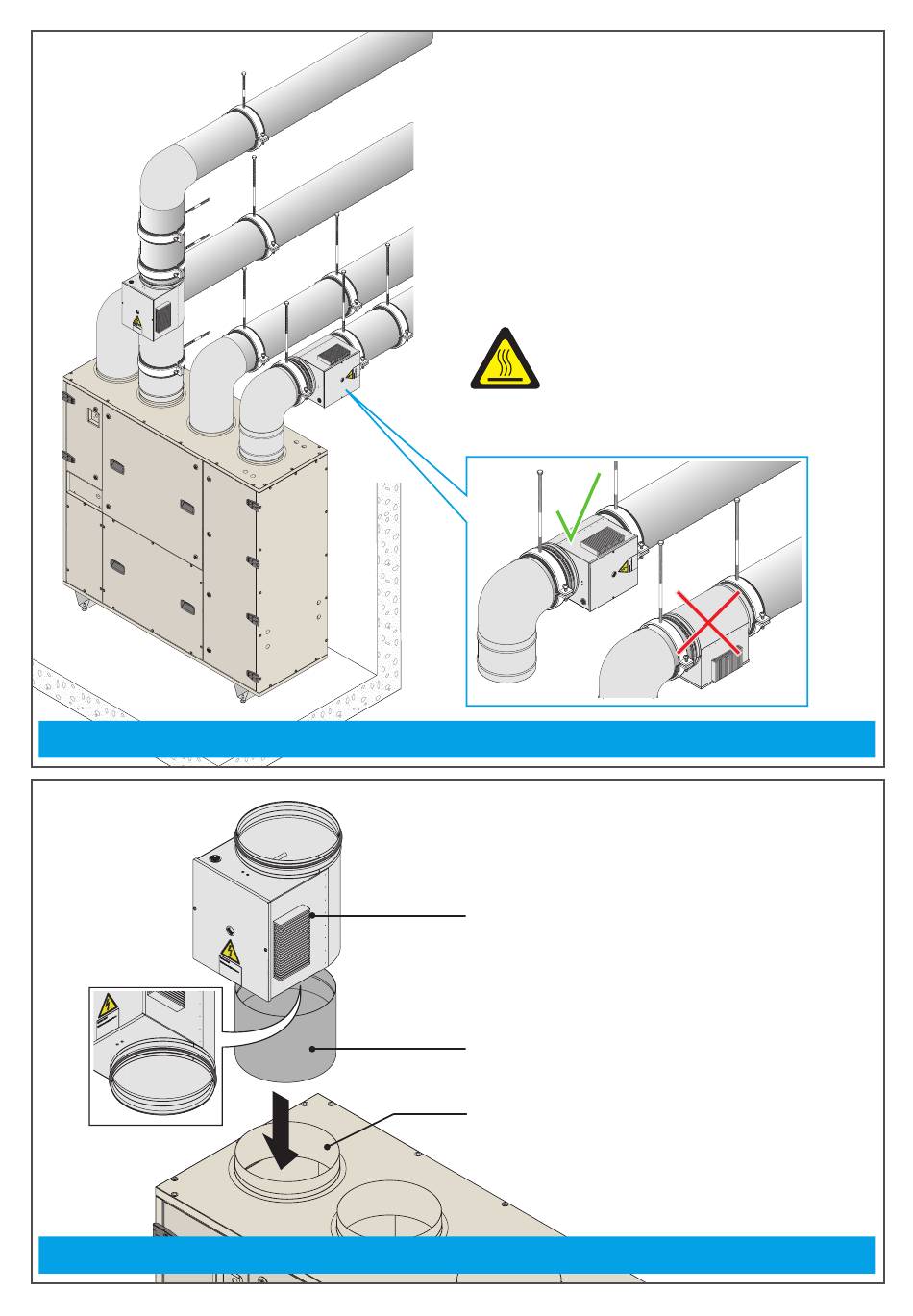

Example of installation of the electric post/pre heating both horizontally and vertically
6
Installation of electric pre/post heating
Electric post/pre heating coil can be positioned
horizontally and vertically.
both
The ducts and the electric coils must be
permanently fixed to a fixed structure
example a wall or a ceiling) using brackets (not
supplied).
Electric post/pre heating coil should be
installed in such a way that it is accessible for
maintenance or any other operation.
The electric post/pre heating coil should
not be facing down.
Provide thermal insulation (not
supplied) around the electric coils
because they reach high temperatures
(<60 °C).
Electric post/pre heating coil with
gaskets already inserted
coupling not provided
(provide for sealing gaskets)
see fig. 1 for the correct lenght and diameter
unit spigot with gasket already inserted
(for
7
