netvox R718EA User Manual

Wireless tilt angle and surface temperature sensor
Hide thumbs Also See for R718EA:
Table of Contents

Advertisement

Quick Links

Download this manual
R718EA

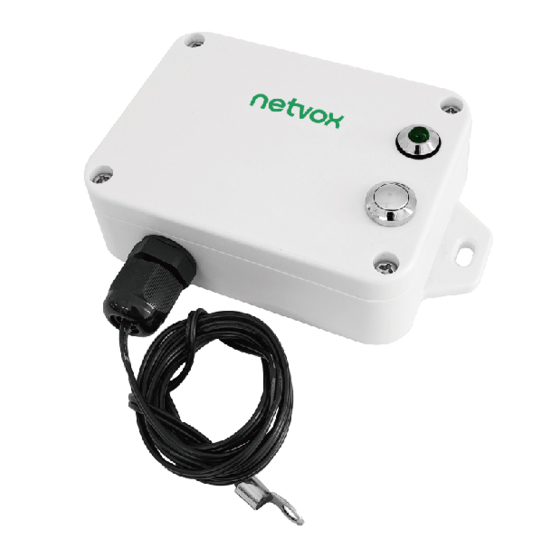

Wireless Tilt Angle and Surface Temperature Sensor
Wireless Tilt Angle
and
Surface Temperature Sensor
R718EA
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R718EA and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R718EA

Summary of Contents for netvox R718EA

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    5. Data Report ........................6 5.1 ActiveThreshold and InActiveThreshold ..............7 5.2 Calibration ........................7 5.3 The X, Y, Z axis direction of R718EA ............... 7 5.4 Example of ReportDataCmd ..................8 5.5 Example of data configuration ................... 9 5.6 Example for MinTime/MaxTime logic ..............10 6.

  • Page 3: Introduction

    1. Introduction The R718EA is a LoRaWAN ClassA device, it detects the angle of three-axis tilt and surface temperature of the detected object, and it is compatible with LoRaWAN protocol. When the device moves or vibrates over threshold value, it immediately reports the data of temperature and the tilt angle.

  • Page 4: Appearance

     Available third-party platform: Actility / ThingPark, TTN, MyDevices/Cayenne  Low power consumption and long battery life Battery Life: ⁻ Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html ⁻ At this website, users can find battery lifetime for variety models at different configurations. 1. Actual range may vary depending on environment.

  • Page 5: Set Up Instruction

    4. Set up Instruction On/Off Power on Insert batteries. (Users may need a screwdriver to open) Turn on Press and hold the function key for 3 seconds till the green indicator flashes once. Turn off Press and hold the function key for 5 seconds till green indicator flashes 20 times. (Restore to factory setting) Power off Remove Batteries.

  • Page 6: Data Report

    (1) The device report interval will be programmed based on the default firmware which may vary. (2) The interval between two reports must be the minimum time. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://cmddoc.netvoxcloud.com/cmddoc to resolve uplink data.

  • Page 7: Activethreshold And Inactivethreshold

    The 0g offset or offset is an important accelerometer indicator because it defines the baseline used to measure acceleration. After installing R718EA, turn on the device and wait for the device join the network 1 minute, the device will automatically offset the calibration.

  • Page 8: Example Of Reportdatacmd

    Version– 1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype doc ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype NetvoxPayLoadData– Fixed bytes (Fixed =8bytes) Tips 1.

  • Page 9: Example Of Data Configuration

    Reserved (8Bytes,Fixed 0x00) ReadConfigReportReq 0x02 Reserved (9Bytes,Fixed 0x00) Temperature BatteryChange AngleChange Change Reserved MinTime MaxTime ReadConfigReportRsp 0x82 (1byte (1byte (2Bytes,Fixed R718EA 0x9A (2bytes Unit:s) (2bytes Unit:s) (1byte Unit:1°) Unit:0.1v) 0x00) Unit:0.1°C) Threshold Inactivetime Reserved SetActiveThresholdReq 0x03 (2Bytes) (1Byte,Unit:1s) (6Bytes,Fixed 0x00)

  • Page 10: Example For Mintime/Maxtime Logic

    (2) Read device parameters Downlink: 029A000000000000000000 Device returns: 829A003C003C01050A0000 (current device parameters) (3) Configure device parameters ActiveThreshold=16, Inactivetime =5 seconds Assuming that the Active Threshold is set to 10m/s , the value to be set is 10/9.8/0.0625=16.32,and the last value obtained is an integer and is configured as 16.

  • Page 11: Installation

    After installing and fixing R718EA, please turn on the device. After the device is joined, one minute later, R718EA would perform the offset calibration of the device. R718EA would need some time to gather the data of three-axis tilt angle, the voltage of battery and the surface temperature for reference.

  • Page 12: Information About Battery Passivation

    7. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode and thionyl chloride if they are in storage for a long time or if the storage temperature is too high.

  • Page 13: Important Maintenance Instruction

    The test method of IP67 waterproof grade is: The device is immersed in 1m deep water for 30min, and the internal electronic function is normal. IP65, dust-proof and to prevent damage caused by water from nozzles in all directions from invading electrical appliances. It can be used in general indoor environment and sheltered outdoor environment.
