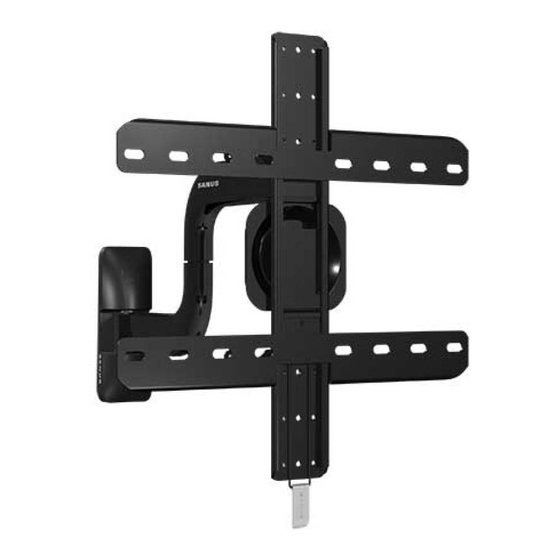

Summary of Contents for Sanus VMF518
- Page 1 THANK YOU FOR CHOOSING SANUS THE #1 TV MOUNT BRAND IN THE US. VMF 518 Instruction Manual Scan for easy install video...
- Page 2 TWO SIMPLE STEPS TO FINDING YOUR STUDS: Step 1 Holding it vertically, lightly move the SANUS Pull apart the SANUS Magnetic Stud Finder to Step 2 Magnetic Stud Finder up and down while expose the probing pin within. Starting about sliding across your wall.
- Page 3 VMF518 We’ll Make It Stress-Free If you have any questions along the way, just give us a call. 1-800-359-5520 (UK: 0800-056-2853) We’re ready to help! Lo haremos sin estrés Si tiene preguntas mientras realiza la instalación, llámenos. 1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.
- Page 4 Does your TV weigh No — Perfect! more than 75 lb 75 lb (34 kg) including Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call (34 kg) 1-800-359-5520 (UK: 0800-056-2853) to fi nd a compatible mount. accessories? What is your...
- Page 5 STEP 1 Attach Bracket to TV Parts and Hardware for STEP 1 WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;...
- Page 6 1-1 Select TV Screws 1-2 Spacers Hand thread screws into the threaded inserts on the back of your TV Spacers and screws are supplied to install your TV bracket. to determine which screw diameter (M4, M5, M6, or M8) to use. Determine your preference for spacer configuration when attaching your TV bracket.
- Page 7 1-3 Attach TV Brackets Slide the horizontal TV brackets over the ends of the vertical TV bracket Standard configurations are shown. For special applications, or if you are uncertain NOTE: The horizontal and vertical TV brackets must be oriented in the positions shown. about your hardware selection, contact Customer Service at 1-800-359-5520.
- Page 8 Vertically center TV bracket Visually line up the locator holes in the horizontal TV brackets with a hole in the vertical TV bracket and install using four screws Tighten the four screws (PAGE 7) on the horizontal TV brackets Screws...
- Page 9 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product. *Sanus Magnetic Stud Finder NOTE: Not all hardware included will be used.
- Page 10 (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ● Stud center must be verified Min. 1 1/2 in. (38 mm) Locate a nail/screw in the stud using the Sanus magnetic stud finder provided. Find the edges of the stud using the probe of the stud finder...
- Page 11 Level the wall plate template and tape in place. NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com. IMPORTANT : Be sure you mark and drill into the center of the stud.
- Page 12 Remove the wall plate template Remove the covers on the arm assembly/wall plate Hang the arm assembly/wall plate on the top lag bolt...
- Page 13 10. Install the bottom lag bolt . Firmly tighten both lag bolts until they are pulled flush against the arm assembly/wall plate NOTE: Hold the arm assembly/wall plate in place when tightening the first lag bolt to keep the plate from shifting out of place. CAUTION: Avoid potential personal injury or property damage! Both lag bolts MUST BE firmly tightened to prevent unwanted...
- Page 14 Level the wall plate template and mark the hole locations. NOTE: For assistance in determining wall plate location, see Height Finder at sanus.com. Drill two pilot holes using a 3/8 in. (10 mm) diameter drill bit.
- Page 15 CAUTION: Be sure the anchors are seated flush with the concrete surface. Partially install the top lag bolt , leaving about 1/2 in. (13 mm) space from the wall. NOTE: This space allows you to hang the arm assembly/wall plate onto the top lag bolt Remove the covers on the arm assembly/wall plate...
- Page 16 Install the bottom lag bolt . Firmly tighten both lag bolts until they are pulled flush against the arm assembly/wall plate NOTE: Hold the arm assembly/wall plate in place when tightening the first lag bolt to keep the plate from shifting out of place. CAUTION: Avoid potential personal injury or property damage! Both lag bolts MUST BE firmly tightened to prevent unwanted...
- Page 17 STEP 3 Hang TV onto Arm Assembly/Wall Plate HEAVY ! You may need assistance with this step. Position the arm assembly/wall plate so the elbow is pressed against the wall. Pull out the release pin on vertical TV bracket and turn counterclockwise until the pin locks in place.
- Page 18 Hang the TV onto the arm assembly/wall plate by hooking onto the top support Press the bottom of the TV into the arm assembly/wall plate until the safety catch locks the TV in place. Turn the release pin clockwise until the pin springs back into place and locks the release cord. CAUTION: Avoid potential personal injury or property damage! Always make sure the release pin is fully seated and the release...
-
Page 19: Manage Cables
Manage Cables Route your TV cables along the arm assembly/wall plate and press into the channels in the arm as shown. Cables... - Page 20 Adjustments LEVEL TILT Your TV should adjust easily when Your TV should adjust easily when moved, then moved, then stay in place. stay in place. Adjust the tension screw if your Adjust the tension screw if your TV naturally TV is too loose or too tight. tilts up or down.
