THANK YOU FOR CHOOSING SANUS
THE #1 TV MOUNT BRAND IN THE US.

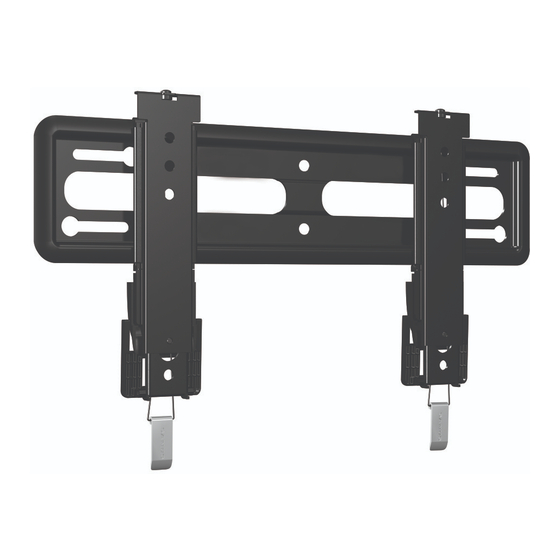

VML 5 Instruction Manual
Scan for easy
install video

Advertisement

loading
Need help?

Need help?

Do you have a question about the VML5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sanus VML5

Summary of Contents for Sanus VML5

  • Page 1 THANK YOU FOR CHOOSING SANUS THE #1 TV MOUNT BRAND IN THE US. VML 5 Instruction Manual Scan for easy install video...
  • Page 2 TWO SIMPLE STEPS TO FINDING YOUR STUDS: Step 1 Holding it vertically, lightly move the SANUS Pull apart the SANUS Magnetic Stud Finder to Step 2 Magnetic Stud Finder up and down while expose the probing pin within. Starting about sliding across your wall.
  • Page 3 VML5 We’ll Make It Stress-Free If you have any questions along the way, just give us a call. 1-800-359-5520 (UK: 0800-056-2853) We’re ready to help! Lo haremos sin estrés Si tiene preguntas mientras realiza la instalación, llámenos. 1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.
  • Page 4 Does your TV weigh No — Perfect! (including accessories) 75 lb more than 75 lbs. Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call (34 kg) (34 kg)? 1-800-359-5520 (UK: 0800-056-2853) to fi nd a compatible mount. What is your...

  • Page 5: Attach Brackets To Tv

    Attach Brackets to TV STEP 1 Parts and Hardware for STEP 1 WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;...
  • Page 6 1.1 Select TV Screw Diameter 1.2 Select TV Screw Length Standard configurations are shown. For special If your TV has a flat back AND you want your TV closer to the applications, or if you Hand thread screws into the threaded inserts wall, use the shorter screws.
  • Page 7 1.3 Attach TV Brackets Center the TV brackets over your TV hole pattern as shown. Be sure to use the same holes and that the brackets are level. NOTE: Loosen the adjustment screws on TV brackets to extend the mounting holes over your TV hole pattern. Standard Install using the spacer, TV screw and washer combination you selected for your TV.
  • Page 8 STEP 2 Attach Wall Plate to Wall For wood stud (Double Stud) installations, follow STEP 2A on PAGE 10 For wood stud (Single Stud) installations, follow STEP 2B on PAGE 13 For concrete installations, follow STEP 2C on PAGE 16 For steel stud installations, follow STEP 2D on PAGE 18...
  • Page 9 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product. NOTE: Not all hardware included will be used. Sanus Magnetic Stud Finder* Wall Plate...
  • Page 10 Stud centers must be verified – not all walls have conventional 16 in. (406 mm) or 24 in. (610 mm) stud spacing Locate a nail/screw in the studs using the Sanus magnetic stud finder provided. Find the edges of the studs using the...
  • Page 11 Place the wall plate template at your desired height and position the slotted holes over your stud center lines. Level the wall plate template and tape in place. IMPORTANT : Be sure you mark and drill into the center of the stud. Drill the four pilot holes using a 7/32 in.
  • Page 12 Remove the wall plate template Install the wall plate using four lag bolts . Firmly tighten all four lag bolts until they are pulled flush against the wall plate NOTE: Hold the wall plate in place when tightening the first lag bolt to keep the plate from shifting out of place.
  • Page 13 Minimum horizontal space between fasteners: 16 in. (406 mm) ● Stud center must be verified Locate a nail/screw in the stud using the Sanus magnetic stud finder provided. Find the edges of the stud using the probe of the stud finder Mark the center of the stud with a pencil.
  • Page 14 Place the wall plate template at your desired height and position the MIDDLE HOLES over your stud center lines. Level the wall plate template and tape in place. CAUTION: Avoid potential personal injury or property damage! You MUST install using the center holes in the stud as shown IMPORTANT : Be sure you mark and drill into the center of the stud.
  • Page 15 Remove the wall plate template Install the middle two lag bolts (into the stud), and firmly tighten until they are pulled flush against the wall plate CAUTION: Avoid potential personal injury or property damage! Both lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate .
  • Page 16 STEP 2C Solid Concrete or Concrete Block Option CAUTION: Avoid potential personal injuries and property damage! ● Mount the wall plate directly onto the concrete surface ● Minimum solid concrete thickness: 8 in. (203 mm) ● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm) ●...
  • Page 17 Remove the wall plate template and insert four anchors CAUTION: Be sure the anchors are seated flush with the concrete surface. Install the wall plate using four lag bolts . Firmly tighten all four lag bolts until they are pulled flush against the wall plate NOTE: Hold the wall plate in place when tightening the first lag bolt to keep the plate from shifting out of place.
  • Page 18 This product must be centered on the studs. ● Stud type and structural strength must conform to the North American Locate a nail/screw in the stud using the Sanus magnetic stud finder provided. Specification for the Design of Cold-Formed Steel Structural Members Find the edges of the stud using the probe of the stud finder [362 S 125 18, C-Shape, S - Stud Section].
  • Page 19 CAUTION: Avoid potential personal injury or property damage! SINGLE STUD installs MUST use the center holes in the stud as shown. NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com. IMPORTANT : Be sure you mark and drill into the center of the stud.
  • Page 20 Insert the four anchors into the drilled holes (DOUBLE STUD installs = four in studs. SINGLE STUD installs = two in studs / two in dryway). Pull to rotate the anchor inside the wall. Hold the end of the anchor , while sliding the cap against the drywall.
