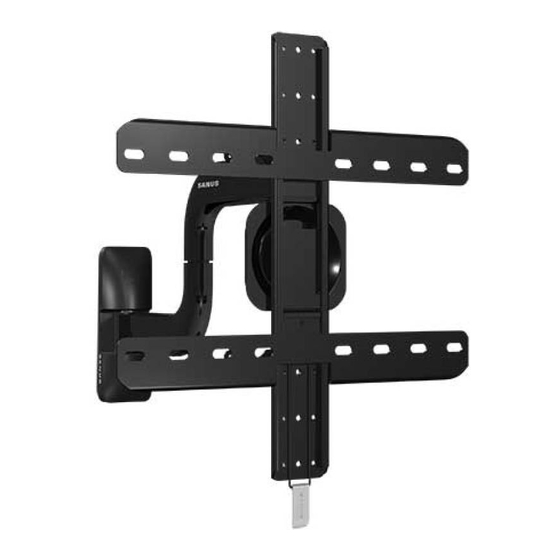

Sanus VMF518 Instruction Manual

Hide thumbs Also See for VMF518:

Advertisement

Quick Links

Download this manual
THANK YOU FOR CHOOSING SANUS
THE #1 TV MOUNT BRAND IN THE US.
VMF 518 Instruction Manual
Scan for easy
install video

Advertisement

loading
Need help?

Need help?

Do you have a question about the VMF518 and is the answer not in the manual?

Questions and answers

Related Manuals for Sanus VMF518

Summary of Contents for Sanus VMF518

  • Page 1 THANK YOU FOR CHOOSING SANUS THE #1 TV MOUNT BRAND IN THE US. VMF 518 Instruction Manual Scan for easy install video...
  • Page 2 TWO SIMPLE STEPS TO FINDING YOUR STUDS: Step 1 Holding it vertically, lightly move the SANUS Pull apart the SANUS Magnetic Stud Finder to Step 2 Magnetic Stud Finder up and down while expose the probing pin within. Starting about sliding across your wall.
  • Page 3 VMF518 We’ll Make It Stress-Free If you have any questions along the way, just give us a call. 1-800-359-5520 (UK: 0800-056-2853) We’re ready to help! Lo haremos sin estrés Si tiene preguntas mientras realiza la instalación, llámenos. 1-800-359-5520 (Reino Unido: 0800-056-2853) Estamos listos para ayudarlo.
  • Page 4 Does your TV weigh No — Perfect! 75 lbs. (including accessories) more than 75 lbs. Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call (34 kg) 1-800-359-5520 (UK: 0800-056-2853) to fi nd a compatible mount. (34 kg)? What is your...

  • Page 5: Step 1 Attach Bracket To Tv

    STEP 1 Attach Bracket to TV Parts and Hardware for STEP 1 WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;...
  • Page 6 1.1 Select TV Screws 1.2 Spacers Hand thread screws into the threaded inserts on the back of your TV Spacers and screws are supplied to install your TV bracket. to determine which screw diameter (M4, M5, M6, or M8) to use. Determine your preference for spacer configuration when attaching your TV bracket.
  • Page 7 1.3 Attach TV Brackets Slide the horizontal TV brackets over the ends of the vertical TV bracket Standard configurations are shown. For special applications, or if you are uncertain NOTE: The horizontal and vertical TV brackets must be oriented in the positions shown. about your hardware selection, contact Customer Service at 1-800-359-5520.
  • Page 8 Position the TV bracket assembly over your TV hole pattern, center horizontally and If your TV included inset spacers or LOOSELY install using the spacer, screw and washer combination you selected for your TV. wall mount adapters, CAUTION: Avoid potential personal injury or property damage! The TV Bracket see Troubleshooting oriented on the bottom of the on PAGES 26-27.
  • Page 9 Vertically center TV bracket Visually line up the locator holes in the horizontal TV brackets with a hole in the vertical TV bracket and install using four screws...
  • Page 10 Securely tighten the four screws (from PAGE 8) on the horizontal TV brackets Screws...
  • Page 11 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product. NOTE: Not all hardware included will be used. Sanus Magnetic Stud Finder * Arm Assembly/Wall Plate...
  • Page 12 (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ● Stud center must be verified Locate a nail/screw in the stud using the Sanus magnetic stud finder provided. Find the edges of the stud using the probe of the stud finder Mark the center of the stud with pencil.
  • Page 13 Level the wall plate template and tape in place. NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com. IMPORTANT : Be sure you mark and drill into the center of the stud.
  • Page 14 Remove the wall plate template Remove the covers on the arm assembly/wall plate Hang the arm assembly/wall plate on the top lag bolt...
  • Page 15 10. Install the bottom lag bolt . Firmly tighten both lag bolts until they are pulled flush against the arm assembly/wall plate NOTE: Hold the arm assembly/wall plate in place when tightening the first lag bolt to keep the plate from shifting out of place. CAUTION: Avoid potential personal injury or property damage! Both lag bolts MUST BE firmly tightened to prevent unwanted...
  • Page 16 Level the wall plate template and mark the hole locations. NOTE: For assistance in determining wall plate location, see Height Finder at sanus.com. Drill two pilot holes using a 3/8 in. (10 mm) diameter drill bit.
  • Page 17 CAUTION: Be sure the anchors are seated flush with the concrete surface. Partially install the top lag bolt , leaving about 1/2 in. (13 mm) space from the wall. NOTE: This space allows you to hang the arm assembly/wall plate onto the top lag bolt Remove the covers on the arm assembly/wall plate...
  • Page 18 Install the bottom lag bolt . Firmly tighten both lag bolts until they are pulled flush against the arm assembly/wall plate NOTE: Hold the arm assembly/wall plate in place when tightening the first lag bolt to keep the plate from shifting out of place. CAUTION: Avoid potential personal injury or property damage! Both lag bolts MUST BE firmly tightened to prevent unwanted...
  • Page 19 STEP 3 Hang TV onto Arm Assembly/Wall Plate HEAVY ! You may need assistance with this step. Position the arm assembly/wall plate so the elbow is pressed against the wall. Pull out the release pin on vertical TV bracket and turn counterclockwise until the pin locks in place. TOP VIEW...
  • Page 20 Hang the TV onto the arm assembly/wall plate by hooking onto the top support Press the bottom of the TV into the arm assembly/wall plate until the safety catch locks the TV in place.
  • Page 21 Turn the release pin clockwise until the pin springs back into place and locks the release cord CAUTION: Avoid potential personal injury or property damage! Always make sure the release pin is fully seated and the release cord is locked, so the TV is securely fastened to the arm assembly/wall plate...

  • Page 22: Manage Cables

    Manage Cables Route your TV cables along the arm assembly/wall plate and press into the channels in the arm as shown. Cables...
  • Page 23 Adjustments LEVEL Your TV should adjust easily when moved, then stay in place. Adjust the tension screw if your TV is too loose or too tight. NOTE: Once your TV is in place, you can tighten the tension screw to prevent unwanted movement. Tighten Loosen...
  • Page 24 TILT Your TV should adjust easily when moved, then stay in place. Adjust the tension screw if your TV naturally tilts up or down. NOTE: If you do not intend to adjust the tilt for different viewing locations, you can , tighten the tension screw prevent unwanted movement.
  • Page 25 REMOVING THE TV HEAVY ! You may need assistance with this step. Disconnect all cables from the TV. Pull out the release pin on vertical TV bracket and turn counterclockwise until the pin locks in place. Pull and hold the release cord while pulling the bottom of the TV outward.

  • Page 26: Troubleshooting

    Flat Back / Low Profile and your installation requires Use your TV supplied spacers and TV Supplied TV Supplied do not use the Sanus spacers Spacer Spacer NOTE: If using the M8x35 mm screws , you may or may not...
  • Page 27 For TVs that come with inset spacers or wall mount adapter rings, Rounded Back / Extra Space and your installation requires Use the Sanus spacers TV Supplied Spacers and longer screws. Do not use your TV supplied spacers. NOTE: If using the M8x45 mm...
  • Page 28 Features Adjustment allows fi ngertip control Fully articulating arm extends from of TV or restriction of TV movement 3.2 in. (82 mm) to 18.7 in. (474 mm) Fully articulating arm with three pivot points creates optimal viewing position TV bracket expands to fi...
  • Page 29 Dimensions 12° [mm] 3.32 84.2 15.75 400.0 12° 7.87 17.22 200.0 437.5 19.04 15.75 18.66 7.87 10.79 483.5 400.0 474.0 200.0 274.0 3.94 100.0 18.97 11.81 481.9 300.0...
  • Page 30 ¿Su televisor pesa más de 34 kg No — ¡Perfecto! 34 kg (75 lb), incluidos Sí — Este soporte NO es compatible. Visite MountFinder.Sanus.com o llame al (75 lb) los accesorios? 1-800-359-5520 (Reino Unido: 0800-056-2853) para encontrar un soporte compatible. ¿Tabiques ¿Hormigón sólido...
  • Page 31 ESPAÑOL PASO 1 Colocar las placas de sujeción en el televisor Ver página 5 Piezas y elementos de sujeción para el PASO 1 ADVERTENCIA: Este producto contiene piezas pequeñas que, si fuesen tragadas, podrían producir asfixia. Antes de iniciar el ensamblaje, compruebe que todas las piezas estén incluidas y en buenas condiciones. Si faltan piezas o alguna está dañada, no devuelva el artículo al distribuidor;...
  • Page 32 ESPAÑOL 1,3 Fije las placas de sujeción Deslice las placas de sujeción horizontales sobre los extremos de la placa de sujeción vertical del televisor NOTA: Las placas de sujeción horizontal y vertical del televisor deben estar orientadas en las posiciones que se muestran en la figura. Posicione el módulo de la placa de sujeción sobre el patrón de orificios del televisor, céntrelo horizontalmente y coloque sin ajustar la combinación de separador, tornillo y arandela que seleccionó...
  • Page 33 Nivele la plantilla de la placa mural y fíjela con cinta adhesiva en el lugar. NOTA: Si necesita ayuda para determinar la ubicación de la placa mural, utilice la herramienta HeightFinder disponible en sanus.com. IMPORTANTE : Asegúrese de marcar y perforar el centro del montante.
  • Page 34 Nivele la plantilla de la placa mural y marque la ubicación de los orificios. NOTA: Si necesita ayuda para determinar la ubicación de la placa mural, utilice la herramienta HeightFinder disponible en sanus.com. Haga los dos orificios guía con una mecha de 10 mm (3/8") de diámetro.
  • Page 35 ESPAÑOL PASO 3 Cuelgue el televisor en el brazo/la placa mural Ver página 19 ¡ELEMENTO PESADO ! Es posible que necesite ayuda en este paso. Coloque el brazo/la placa mural de modo que el codo quede presionado contra el muro. Tire del pasador de la placa en de sujeción vertical del televisor y gírelo hacia la izquierda hasta que el pasador quede fijo en su lugar.

  • Page 36: Solución De Problemas

    / perfil bajo soportes murales, su instalación requiere Use los separadores proporcionados con el televisor y no use los separadores Sanus NOTA: Si está usando tornillos M8 de 35 mm , es posible que necesite (o no) las arandelas , según la longitud de sujeción del tornillo.
  • Page 37 / para soportes murales, su instalación requiere espacio adicional Use los separadores Sanus y los tornillos más largos. No use los separadores proporcionados con el televisor. NOTA: Si está usando tornillos M8 de 45 mm , es posible que necesite (o no) las arandelas , según la longitud de sujeción del tornillo.
  • Page 38 Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product.
  • Page 39 Learn ways to get the most out of your space. FACEBOOK.COM/SANUSSYSTEMS Find product updates and more. Learn installation tips, tricks and household know-hows. TWITTER.COM/SANUSSYSTEMS View step-by-step product videos to ease your install experiences. YOUTUBE.COM/SANUSSYSTEMS Find the latest news stories about your favorite SANUS products.
  • Page 40 If you ever have questions about your SANUS product, give us a call at 1-800-359-5520. We're ready to help! If you ever have questions about your SANUS product, give us a call at 1-800-359-5520. We're ready to help! ‘Monthly prize’...
