Item # 1002 554 971
Model # FBS80022
USE AND CARE GUIDE

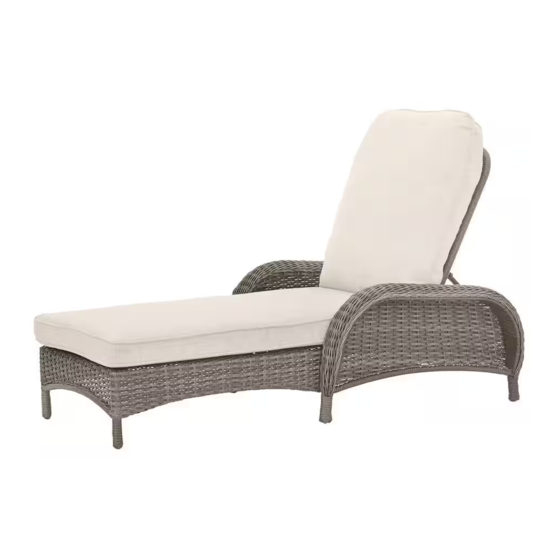

BEACON PARK CHAISE LOUNGE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chaise. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEACON FBS80022 and is the answer not in the manual?

Questions and answers

Summary of Contents for HAMPTON BAY BEACON FBS80022

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chaise. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
  • Page 2 Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............Product Caution ..............2 Package Contents ..............Safety Warnings ..............2 Assembly ................ 5 Warranty ................ 2 Care and Cleaning ............
  • Page 3 Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...
  • Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Right arm Left arm Chaise seat and back Connection bar Cushion...
  • Page 5 Assembly CONNECTING THE CHAISE SEAT AND BACK AND THE CONNECTION BAR TO THE LEFT ARM Place the left arm (B) on a soft surface, and attach the chaise seat and back (C) to the left arm (B) using M6x50 combination bolts (BB) and plastic washers (CC), as shown below.
  • Page 6 Assembly (continued) CONNECTING THE CHAISE SEAT AND BACK AND THE CONNECTION BAR TO THE RIGHT ARM Attach the chaise seat and back (C) to the right arm (A) using the M6x50 combination bolts (BB) and plastic washers (CC), as shown below. Attach the connection bar (D) to the right arm (A) using M6x50 combination bolts (BB) and M6x20 combination bolts (AA).
  • Page 7 Assembly (continued) TIGHTENING THE BOLTS Once all of the bolts are in place, fully tighten the bolts. Turn the chaise right side up. Ensure all connections are secure before use. Place the cushion (E) to finish the assembly of the chaise. Care and Cleaning For best results, clean the chaise with a damp cloth and dry thoroughly.
  • Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
