Item # 1001 868 828
1001 868 809
Model # FTA70512A
FTA70512A - W
USE AND CARE GUIDE

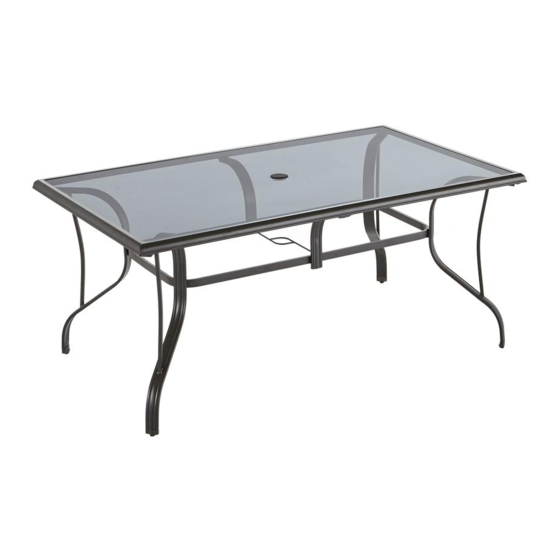

STATESVILLE ALUMINUM RECTANGULAR GLASS DINING TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
y through the purchase of this dining table. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY FTA70512A
Summary of Contents for HAMPTON BAY FTA70512A
- Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
- Page 2 Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 ..
- Page 3 Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...
- Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Table top Table leg Support tube Leg connector...
- Page 5 Assembly Attaching the table legs and support tubes to the table top Place the table top (A) upside down on a soft surface. Attach the table legs (B) and the support tubes (C) to the table top (A) using M6x15 combination bolts (BB). NOTE : Loosely tighten all bolts using the hex wrench (CC).
- Page 6 Assembly (continued) Attaching the leg connector to the table legs and the support tubes Attach the leg connector (D) to the table legs (B) and the support tubes (C) using M6x25 combination bolts (AA). NOTE : Loosely tighten all bolts using the hex wrench (CC).
- Page 7 Assembly (continued) Tightening all bolts Once all bolts are in place, fully tighten all the bolts. Turn the table right side up. Ensure all connections are secure before use. Care and Cleaning For best results, clean the table with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
- Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
