Item # 1005 442 742
Model # FRS60704A-STB
USE AND CARE GUIDE

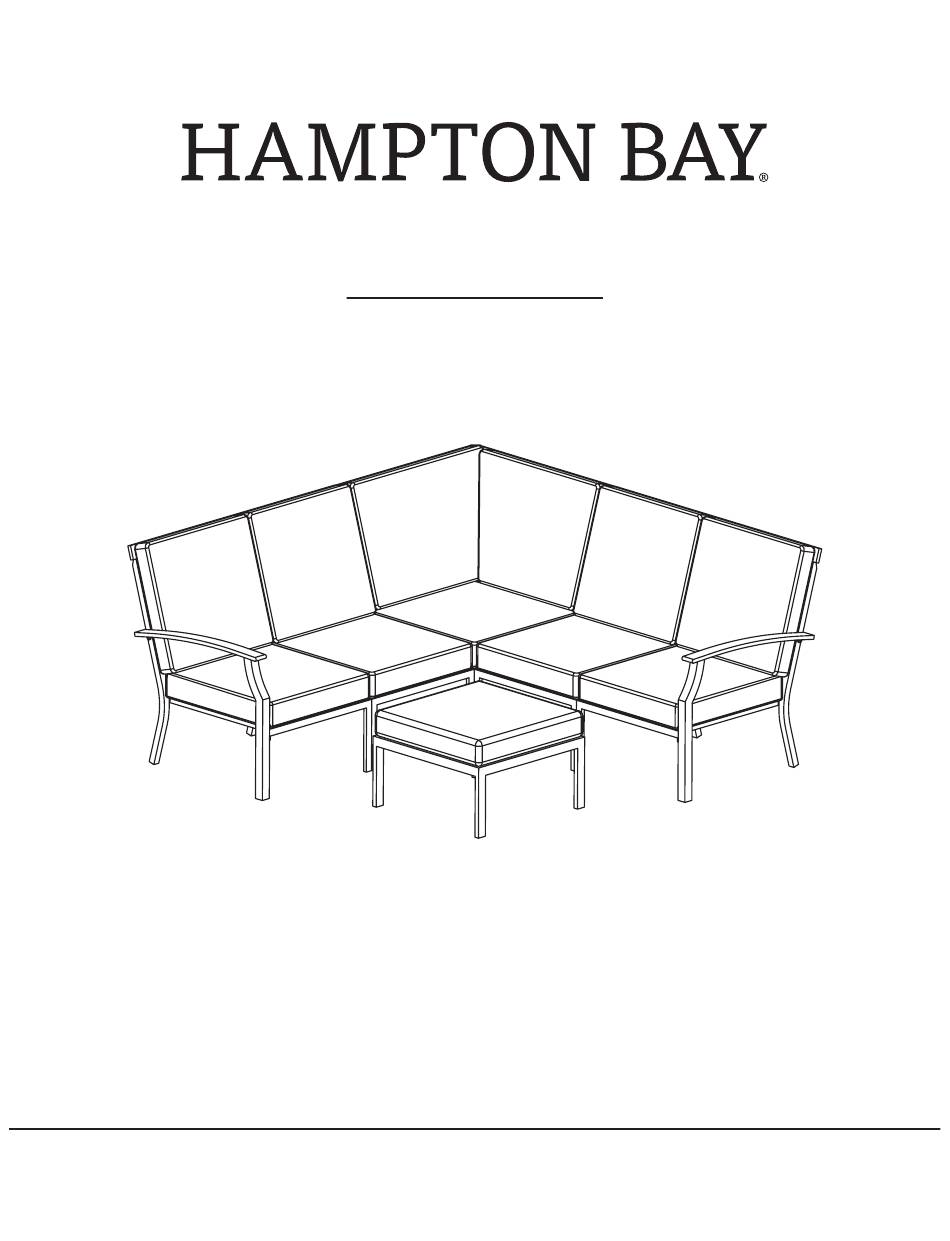

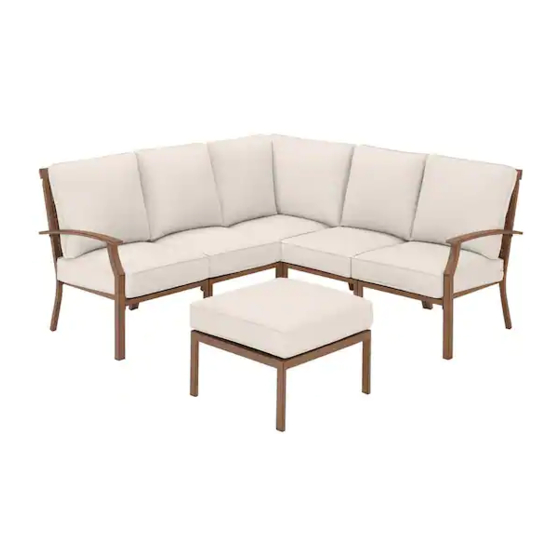

GENEVA 6PC SECTIONAL SET - BARE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive continually to create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY FRS60704A-STB
Summary of Contents for HAMPTON BAY FRS60704A-STB
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive continually to create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents........2 Left Arm Chair Package Contents . -
Page 3: Warranty
Warranty 3 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty. -
Page 4: Hardware Included
Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 32+1 M6x30 Combination Bolt 13+1 M6x45 Combination Bolt M6 Nut M6 Washer Hex Wrench Wrench Metal Sheet CORNER CHAIR PACKAGE CONTENTS Part Description Quantity Corner Chair Back Cushion A Corner Chair Back Cushion B... -
Page 5: Left Arm Chair Package Contents
Pre-assembly (continued) LEFT ARM CHAIR PACKAGE CONTENTS Part Description Quantity Corner Brace Back Cushion Seat Cushion Left Arm Left Arm Chair Seat Left Arm Chair Backrest HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. -
Page 6: Right Arm Chair Package Contents
Pre-assembly (continued) RIGHT ARM CHAIR PACKAGE CONTENTS Part Description Quantity Corner Brace Back Cushion Seat Cushion Right Arm Right Arm Chair Seat Right Arm Chair Backrest... -
Page 7: Armless Chair Package Contents
Pre-assembly (continued) ARMLESS CHAIR PACKAGE CONTENTS Part Description Quantity Corner Brace Back Cushion Seat Cushion Armless Chair Seat Armless Chair Backrest HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. -
Page 8: Ottoman Package Contents
Pre-assembly (continued) OTTOMAN PACKAGE CONTENTS Part Description Quantity Corner Chair & Ottoman Cushion Ottoman... -
Page 9: Corner Chair Assembly
Corner Chair Assembly Attaching The Corner Chair Seat To The Left Backrest NOTE: Loosely tighten all bolts using the hex wrench (FF) . Place the left backrest (E) on a soft place. Attach the corner chair seat (F) to the left backrest (E) using M6x30 combination bolts (BB). Attaching The Corner Brace To The Corner Chair Seat And The Left Backrest NOTE: Loosely tighten all bolts using the hex wrench (FF) . - Page 10 Corner Chair Assembly (continued) Attaching The Corner Chair Seat To The Right Backrest NOTE: Loosely tighten all bolts using the hex wrench (FF) . Attach the corner chair seat (F) to the right backrest (D) using M6x30 combination bolts (BB). Attaching The Corner Brace To The Corner Chair Seat And The Right Backrest NOTE: Loosely tighten all bolts using the hex wrench (FF) .
- Page 11 Corner Chair Assembly (continued) Attaching The Right Backrest With The Left Backrest NOTE: Loosely tighten all bolts using the hex wrench (FF) . Attach the right backrest (D) with the left backrest (E) using M6x30 combination bolts (BB). Attaching The Metal Plate To The Right Backrest And The Left Backrest NOTE: Loosely tighten all bolts using the hex wrench (FF) .
- Page 12 Corner Chair Assembly (continued) Tightening The Bolts Once all of the bolts are in place, fully tighten the bolts. Ensure all connections are secure before use.
-
Page 13: Left Arm Chair Assembly
Left Arm Chair Assembly Attaching The Left Arm Chair Seat To The Left Arm Chair Backrest NOTE: Loosely tighten all bolts using the hex wrench (FF) . Place the left arm chair backrest (M) on a soft place. Attach the left arm chair seat (L) to the left arm chair backrest (M) using M6x30 combination bolts (BB). Attaching The Corner Brace To The Left Arm Chair Seat And The Left Arm Chair Backrest NOTE: Loosely tighten all bolts using the hex wrench (FF) . - Page 14 Left Arm Chair Assembly (continued) Attaching The Left Arm Chair Seat To The Left Arm NOTE: Loosely tighten all bolts using the hex wrench (FF) . Attach the left arm chair seat (L) to the left arm (K) using M6x15 combination bolts (AA). Attaching The Left Arm To The Left Arm Chair Backrest NOTE: Loosely tighten all bolts using the hex wrench (FF) .
- Page 15 Left Arm Chair Assembly (continued) Tightening The Bolts Once all of the bolts are in place, fully tighten the bolts. Turn the chair right side up. Ensure all connections are secure before use. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
-
Page 16: Right Arm Chair Assembly
Right Arm Chair Assembly Attaching The Right Arm Chair Seat To The Right Arm Chair Backrest NOTE: Loosely tighten all bolts using the hex wrench (FF) . Place the right arm chair backrest (P) on a soft place. Attach the right arm chair seat (O) to the right arm chair backrest (P) using M6x30 combination bolts (BB). - Page 17 Right Arm Chair Assembly (continued) Attaching The Right Arm Chair Seat To The Right Arm NOTE: Loosely tighten all bolts using the hex wrench (FF) . Attach the right arm chair seat (O) to the right arm (N) using M6x15 combination bolts (AA). Attaching The Right Arm To The Right Arm Chair Backrest NOTE: Loosely tighten all bolts using the hex wrench (FF) .
- Page 18 Right Arm Chair Assembly (continued) Tightening The Bolts Once all of the bolts are in place, fully tighten the bolts. Turn the chair right side up. Ensure all connections are secure before use.
-
Page 19: Armless Chair Assembly
Armless Chair Assembly Attaching The Armless Chair Seat To The Armless Chair Backrest NOTE: Loosely tighten all bolts using the hex wrench (FF) . Place the armless chair backrest (R) on a soft place. Attach the armless chair seat (Q) to the armless chair backrest (R) using M6x30 combination bolts (BB). - Page 20 Armless Chair Assembly (continued) Tightening The Bolts Once all of the bolts are in place, fully tighten the bolts. Turn the chair right side up. Ensure all connections are secure before use.
-
Page 21: Set Assembly
Set Assembly Connecting The Seat Connect the sectional seat together using M6x45 combination bolts (CC), M6 washers (EE) and M6 nuts (DD). Fully tighten all bolts using hex wrench (FF) and wrench (GG) at this step. Attaching The Backrests Attach the sectional using metal plate (HH) and M6x15 combination bolts (AA) on the backrests. -
Page 22: Care And Cleaning
Set Assembly (continued) Checking The Set Ensure all connections are secure before use. Place the corner chair back cushions (A&B), corner chair & ottoman seat cushions (C), the back cushions (I), the seat cushion Care Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. - Page 23 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
