Item # 1005 442 740
Model # FBS60431-BA
USE AND CARE GUIDE

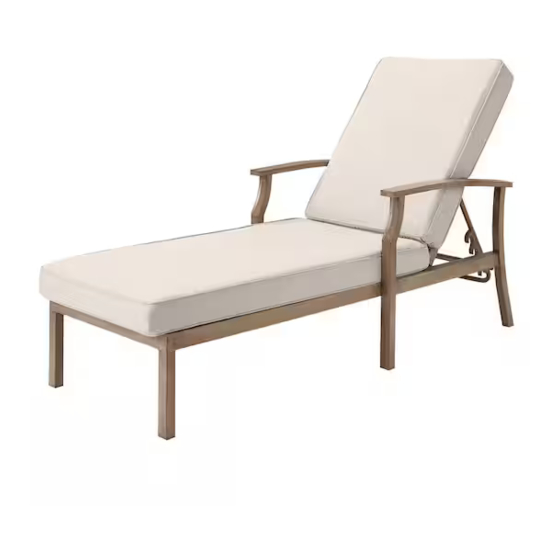

GENEVA CHAISE LOUNGE-BARE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
lly
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY GENEVA FBS60431-BA
Summary of Contents for HAMPTON BAY GENEVA FBS60431-BA
- Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
Table of Contents Table of Contents........2 Pre-Assembly. -
Page 3: Warranty
Warranty 3 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty. -
Page 4: Hardware Included
Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt M6x30 Combination Bolt M6x50 Combination Bolt Plastic Washer Hex Wrench PACKAGE CONTENTS Part Description Quantity Backrest Left Arm Right Arm Seat Front Connection Bar Rear Connection Bar Back Cushion Seat Cushion... -
Page 5: Assembly
Assembly Connecting The Seat To The Right Arm NOTE: Loosely tighten all bolts using the hex wrench (EE). Place the right arm (C) on a soft surface. Connect the seat (D) to the right arm (C) using M6x30 combination bolts (BB). Connecting The Seat To The Left Arm NOTE: Loosely tighten all bolts using the hex wrench (EE). - Page 6 Assembly (continued) Connecting The Connection Bars To The Arms NOTE: Loosely tighten all bolts using the hex wrench (EE). Connect the front and rear connection bars (E&F) to the left and right arms (B&C) using M6x15 combination bolts (AA). Attaching The Backrest To The Seat NOTE: Loosely tighten all bolts using the hex wrench (EE).
-
