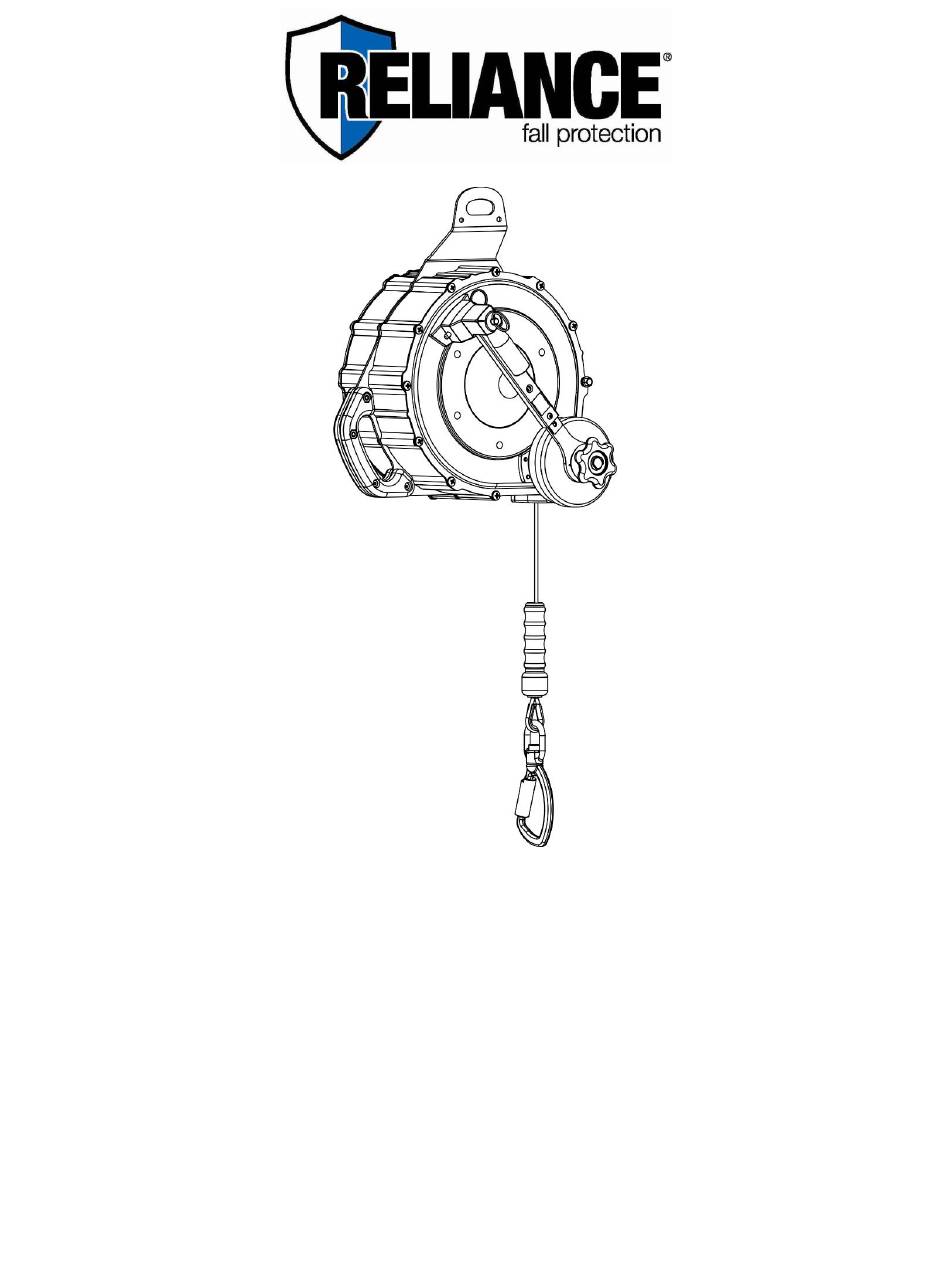

SUPPLEMENTAL INSTRUCTIONS FOR USE
Series 4120XXX Enviro-Shield™
Self Retracting Lifeline with Rescue
Complies with the current ANSI Z359.14-2012 and all applicable OSHA regulations and
requirements.
Reliance Industries P.O. Box 2046 Deer Park, TX 77536
Phone: 281-930-8000 Toll Free: 888-362-2826 Fax: 281-930-8666

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enviro-Shield 4120 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reliance Enviro-Shield 4120 Series

Summary of Contents for Reliance Enviro-Shield 4120 Series

  • Page 1 SUPPLEMENTAL INSTRUCTIONS FOR USE Series 4120XXX Enviro-Shield™ Self Retracting Lifeline with Rescue Complies with the current ANSI Z359.14-2012 and all applicable OSHA regulations and requirements. Reliance Industries P.O. Box 2046 Deer Park, TX 77536 Phone: 281-930-8000 Toll Free: 888-362-2826 Fax: 281-930-8666...
  • Page 2 Enviro-Shield™ to be mounted overhead in areas where there are no other convenient anchor points for personal fall arrest means, or on the Reliance Tripod as part of a confined space access system. The Swivel Locking Carabiner permits connection to the harness dorsal D-ring, while the swivel provides an easy to see load indicator showing whether the Enviro-Shield™...
  • Page 3 Identifying Components of Enviro-Shield™ Self Retracting Lifeline with Rescue Figure 1 Anchor Connector Slot Handle Bracket Handle Bracket Handle Bracket Ring Optional Mode Knob Carry Handle Tripod Crank Handle Crank Arm Bracket Cable Grip Swivel Carabiner w/ Load Indicator 4120050-1, 4120085-1, 4120130-1 PRODUCT SPECIFICATIONS Part Working...
  • Page 4 Verify that the SRL-R is set to the SRL mode as indicated on the actuation knob label. Connect the SRL-R to either a suitable overhead anchorage, or the Reliance Tripod mounting bracket in accordance to the SRL and Tripod manuals. Perform per-use checks and inspections in accordance to the SRL manual. Attach to the users full body harness back D-ring and use the SRL-R in accordance to the SRL manual.
  • Page 5  RAISING AND LOWERING IN RESCUE MODE In the event of a fall, lift first at least one half turn to unlock drum before attempting to lower. After raising to unlock the drum, then raise or lower the individual being rescued by turning the crank in the appropriate direction as indicated on the SRL-R.
  • Page 6  RESETTING THE SRL-R FROM RESCUE MODE TO FALL ARREST MODE 1. Remove load from the line, pull and rotate activation knob until arrow points from “Rescue” to “SRL” mode; the knob has a lock position and will resist slight twisting pressure when properly locked.
  • Page 7 PRODUCT LABELS Rescue Specifications Mode Arrow Mode Pin Stops All Models Reliance Industries P.O. Box 2046 Deer Park, TX 77536 Phone: 281-930-8000 Toll Free: 888-362-2826 Fax: 281-930-8666...
