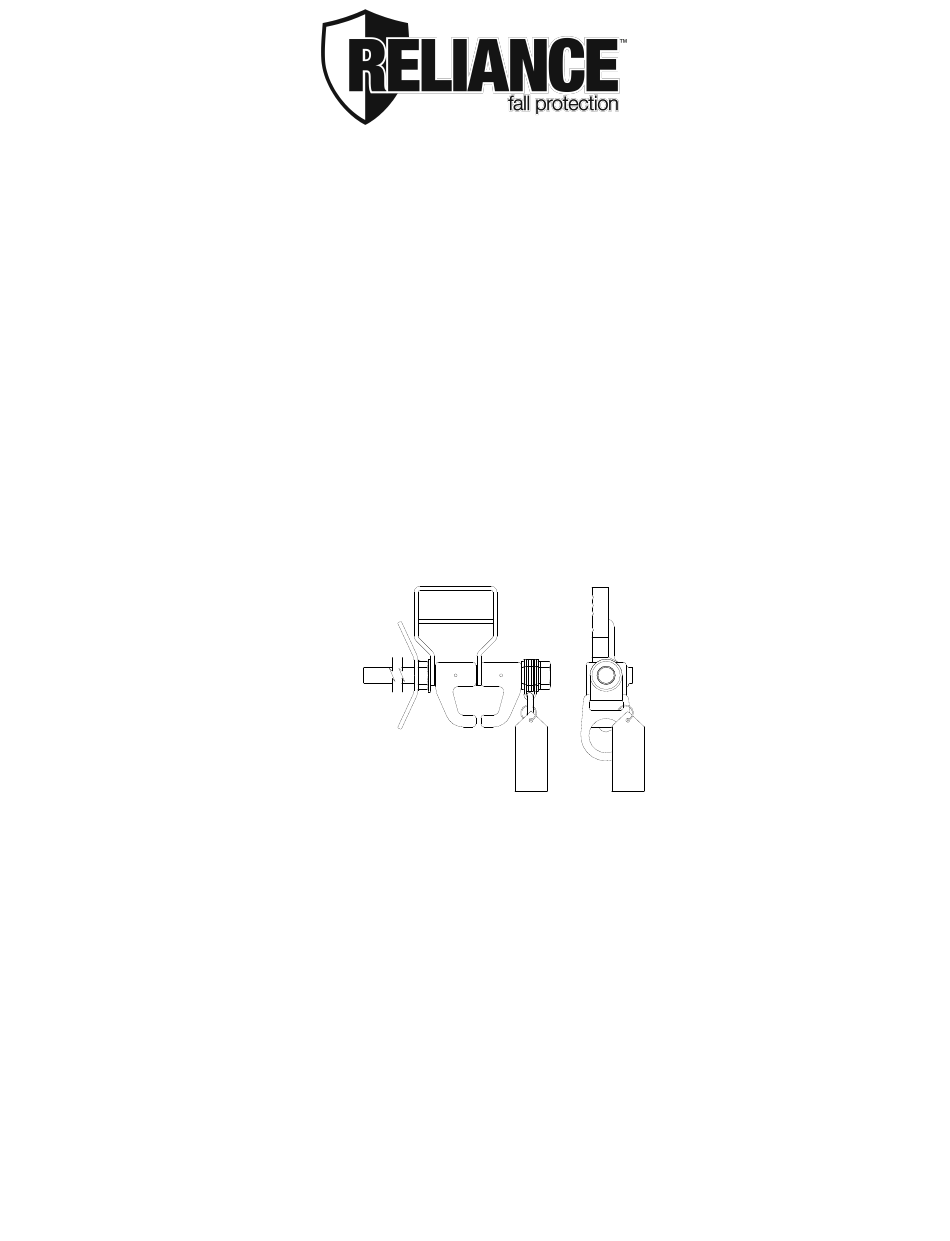

- Page 1 Reliance Industries, LLC Operating instructions HLL Anchor Clamp with Footrest Model # 3092 Reliance Industries, LLC PO Box 140008 Denver, CO 80214 Ph. (800) 488-5751 Ph. (303) 424-8650 Fax (303) 424-8670...
-
Page 2: General Instructions
User Instructions 3092 HLL Anchor Clamp with Footrest Reliance Industries, General Instructions It is the responsibility of the employer, as part of a total fall arrest rescue and evacuation program, to retain the manufacturer’s instructions and make them readily available to all users. - Page 3 User Instructions 3092 HLL Anchor Clamp with Footrest Reliance Industries, Intended use and purpose of the equipment The HLL Anchor Clamp with Footrest is an anchorage connector intended for use only for connection to I-beams with rigid flanges. An anchorage is a secure means of attachment to which the personal fall arrest system is connected.
- Page 4 User Instructions 3092 HLL Anchor Clamp with Footrest Reliance Industries, Use only with the Skyline HLL system using 3/8‐7 x 19 steel cable and the • Skyline Shock Absorber pre‐tensioned to 1000 lbf. Use only with HLL systems in which the anticipated maximum line tension ...
- Page 5 User Instructions 3092 HLL Anchor Clamp with Footrest Reliance Industries, PFAS, of at least: a) 3,600 pounds (16 kN) when certification exists, or b) 5,000 pounds (22.2 kN) in the absence of certification. The manufacturer is not responsible for damages resulting from an improper application or use of this product.
- Page 6 User Instructions 3092 HLL Anchor Clamp with Footrest Reliance Industries, • Do not use equipment around moving machinery and electrical hazards. Do not use equipment near sharp edges and abrasive surfaces. Avoid exposure to physical and chemical hazards which the product is not designed to withstand.
- Page 7 User Instructions 3092 HLL Anchor Clamp with Footrest Reliance Industries, Model # 3092 HLL Anchor Clamp with Footrest Permissible installation configurations when used as a personal fall arrest anchorage. Install anchor Tighten hand clamp over knob. beam flange NOTE: Footrest not shown for clarity Fig. 1 Reliance Industries, LLC Denver, CO 80214 Ph. (800) 488‐5751 Fax (303) 424‐8670 ...
- Page 8 User Instructions 3092 HLL Anchor Clamp with Footrest Reliance Industries, Model # 3092 HLL Anchor Clamp with Footrest Permissable methods of attachment when used as a horizontal lifeline anchorage, Permissable methods of attachment when used as a personal fall arrest anchorage, The following attachments ARE NOT ALLOWEDand could result in SERIOUS INJURY or DEATH.:...
- Page 9 User Instructions 3092 HLL Anchor Clamp with Footrest Reliance Industries, Inspection, Maintenance and Storage The user of this product is responsible for the execution of inspection, maintenance and possible repairs. The user shall inspect equipment before each use to ensure that the equipment is in serviceable condition and operating correctly.
- Page 10 User Instructions 3092 HLL Anchor Clamp with Footrest Reliance Industries, Formal Inspection Buyer/client: Product description: HLL Anchor Clamp w/Footrest Model No. 3092 Year of manufacture: Date of purchase: Date of first use: Name of user: ...
- Page 11 User Instructions 3092 HLL Anchor Clamp with Footrest Reliance Industries, Checklist HLL Anchor Clamp Model No.: 3092 1. Year 2. Year 3. Year 4. Year 5. Year 6. Year Date Date Date Date Date Date By a qualified person: Inspector Inspector Inspector Inspector Inspector Inspector ...
