INSTRUCTIONS FOR USE
4XXX - 4XXXXXX Series Skyloc
/
™
Skyloc II
/Roto-Loc
/Enviro-Shield
™
™
™
Self Retracting Lifelines
Complies with the current ANSI Z359.14 and
all applicable OSHA regulations and requirements.
Reliance Industries
Phone : 281-930-8000
P.O. Box 2046
Toll Free : 888-362-2826
Deer Park, TX 77536
Fax : 281-930-8666
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Reliance Skyloc 4 Series
Summary of Contents for Reliance Skyloc 4 Series
- Page 1 /Roto-Loc /Enviro-Shield ™ ™ ™ Self Retracting Lifelines Complies with the current ANSI Z359.14 and all applicable OSHA regulations and requirements. Reliance Industries Phone : 281-930-8000 P.O. Box 2046 Toll Free : 888-362-2826 Deer Park, TX 77536 Fax : 281-930-8666...
-
Page 2: Table Of Contents
Contents DESCRIPTION 3 - 8 PRODUCT SPECIFICATIONS 9 - 10 APPLICATION A. PURPOSE ........................9 PERSONAL FALL ARREST ..................9 B. USE LIMITATIONS .......................9 CAPACITY ......................9 FREE FALL ......................10 FALL CLEARANCE ..................10 - 11 SWING PENDULUM FALLS ..............11 - 13 CHEMICAL HAZARDS ..................13 HEAT ........................13 CORROSION .................... - Page 3 IMPORTANT: Alterations or misuse of this product or failure to follow in- structions may result in serious injury or death. If you have questions on the use, care, or suitability of this equipment for your application, contact RELIANCE Fall Protection for information.
-
Page 4: Description

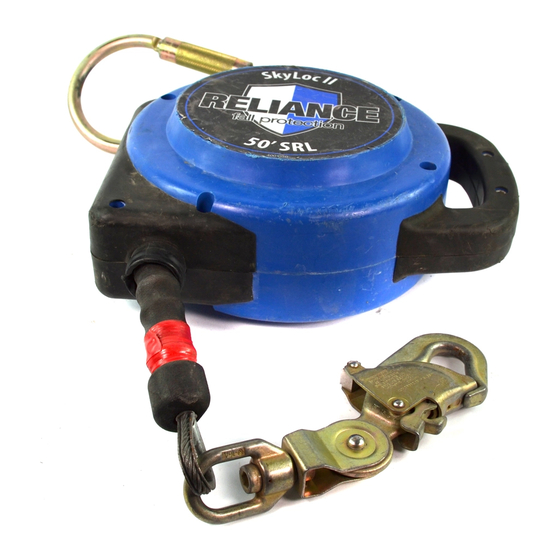

DESCRIPTION The Skyloc /Skyloc II /Roto-Loc /Enviro-Shield Self Retracting Lifeline (SRL) ™ ™ ™ ™ is designed to be a component in a personal fall arrest systems (PFAS). It may be used in most situations where a combination of worker mobility and fall protection is required (i.e. - Page 5 Instructions for Use Swiveling Anchor Connector Housing Carry Carry Handle Handle Front Label Easy Grip Cable Pull Load Indicating Swivel Snap Hook Figure 2 4000020-1, 4000030-1, 4000050-1, 4000085-1, 4000100-1, 4008025-1, 4008040-1, 4008080-1 Swiveling Anchor Connector Housing Carry Carry Handle Handle Front Label Easy Grip Cable Pull Load Indicating...
- Page 6 Load Indicating Anchor Connector Rubber Overmold Label Area Housing Rubber Ball Stop Ferrules (2X) Web or Cable lanyard Thimble Eye Figure 4 Snap Hook 4015, 4020 Handle Handle Screw & Nut (2X) Label Torque Nut Rear Cover Cover Acorn Nut Serial Number Label Area Housing Screws...
- Page 7 Instructions for Use Load Indicating Anchor Swivel Label Area Housing Housing Easy Grip Cable Pull Load Indicating Swivel Snap Hook Figure 6 4400012-1 Page 7...
-
Page 8: Product Specifications
PRODUCT SPECIFICATIONS Working Housing Housing Part # Line Type Weight Capacity Hook Type Length Type Dimensions 3/16” (4.5mm) 3006 Pelican LDPE over ABS 11”L X 6”W X 3”H 4015 18’ (5.5m) 7 lbs (3.1kg) 400 lbs (181kg) galvanized Zn Plate Plastic (28cm X 15cm X 8cm) 1”... -
Page 9: Application
• 310 lb Max. Capacity : 1 worker, max. combined tool & body weight ≤ 310 lbs (140.6kg). • 400 lb Maximum Capacity : 1 worker, max. combined tool & body weight of ≤ 400 lbs (181kg). Certain Models have capacity up to 440 lbs (200kg). Contact Reliance Industries if higher capacity models are needed. -
Page 10: Free Fall
Avoid slack line. Do not lengthen the SRL by connecting a lanyard or other components without consulting Reliance. 3) FALL CLEARANCE: There must be sufficient clearance below the user to arrest a fall before the user strikes the ground or other obstruction. -
Page 11: Swing Pendulum Falls
Instructions for Use Figure 7 4) SWING PENDULUM FALLS: Swing falls occur when the anchorage point is not DIRECTLY above the point where a fall occurs. If the worker fall in such a situation, there is a possibility of a swing fall that may bring him into contact with objects below or to the side of him, possibly causing serious injury or death. - Page 12 RIGHT WRONG Figure 8 If an object is in his swing path (or that of the line) a hazardous situation exists. Two factors become evident in this situation : First, due to the swing fall, horizontal speed of the worker may be high enough to cause injury if an obstacle in the swing fall path is struck by either the user or the line (web).
-
Page 13: Chemical Hazards
Instructions for Use hazard also increases as the initial (before fall) length of extended line is increased and as the initial angle which the line makes with the vertical is increased. For example, if the initial extended line length is 10 ft (3m), the drop at the bottom of the pendulum swing would be 1.3 ft (0.4m) This is in addition to the linle extension due to the devices internal shock absorption which may be as much as 3.3. -
Page 14: Electrical Hazards
An energy absorbing component can sometimes be added in-line to further protect the worker. Compatibility and total fall distance must be considered if this is done. Contact Reliance before using an in- line energy absorbing component or lanyard with an SRL. NOTE... -
Page 15: Systems Requirements
Connecting subsystems must be suitable for use in the application (e.g. fall arrest or restraint). RELIANCE manufactures a line of connecting subsystems for most applications. -
Page 16: Anchorages And Anchorage Connectors
2. Pass a large carabiner or bow shackle (or other Reliance approved connecting means) through the swivel eye or handle at the top of the... -
Page 17: Preparation For Use
Removal is the opposite if installation. Installation methods are not limited to bow shackles or carabiners. Custom brackets are available for permanent or specialized installations. Contact Reliance to help identify specific installation methods for your situation. C. INSPECT PRIOR TO USE: Before the use of this SRL, inspect the SRL and all components of the PFAS: 1) Inspect the SRL to verify that it is in serviceable condition. -
Page 18: Plan Scope Of Work To Be Performed, Analysis
D. PLAN SCOPE OF WORK TO BE PERFORMED (JOB SAFETY TASK ANALYSIS) Plan procedures to safely perform tasks when using any components of a PFAS. Some considerations are listed below (see APPLICATIONS, item B. USE LIMITATIONS section for additional details); 1) Anchorage Selection. -
Page 19: Care Of The Skyloc/Skyloc Ii/Enviroshiel Srl
Contact Reliance Engineering for help in selecting equipment for these applications. 5) Rescue and Evacuation - The user and employer must have a rescue plan in place, training in its use, and the means to implement it at hand. -
Page 20: Inspections
If you have questions concerning the condition of your SRL, or have any doubt about putting it into service contact RELIANCE. B. Store SRL’s in a cool, dry, clean environment. Avoid areas where heat, oil, chemicals or their vapors may exist. Thoroughly inspect after extended storage. - Page 21 (Figures 9, 10, 12 or 13). Once the load indicator has been deployed, the SRL must be returned to a Reliance Industries approved repair facility for evaluation and recertification. Inspect load indicator webbing on SRL’s with web lifelines.
-
Page 22: Training
2) The worker should also verify that conditions around the SRL location have not changed that may affect its’ ability to arrest a fall, such as obstacles or equipment directly below the anchorage point which might create a swing fall. 3) Before every use, the worker should extract all of the cable, rope, or webbing line and examine it for defects that would affect its overall strength. -
Page 23: Rescue Planning
The system and all components must be withdrawn from service if sub- jected to fall arrest forces. Those components may be returned to service only after being certified by a Qualified Person. Only original Reliance Industries equipment and replacement parts are approved for use in this system. -
Page 24: Warnings And Limitations
Reliance Industries testing platform, and because the User might use this product in combination with other manufacturer’s products in a manner not evaluated, contemplated, or tested by Reliance, the User or System Designer is ultimately responsible for verifying or vali- dating the suitability and compatibility of this product for use in his applica- tion or system. -
Page 25: Labeling
5) Use only Reliance supplied or qualified compatible components. 6) Do not tie knots in the cable, rope, or web line of the unit. Tying knots in cable, rope, or web line reduces the overall strength of the wire rope. - Page 26 PRODUCT LABELS 4000020-1, 4000030-1, 4000050-1, 4000085-1, 4000100-1, 4008025-1, 4008040-1, 4008080-1,4302020-1,4302030-1, 4302050-1, 4302080-1, 4302100-1 4015, 4020 Page 26...
- Page 27 Instructions for Use PRODUCT LABELS 4030, 4050, 4051, 4075, 4100, 4101, 4120, 4121, 4130, 4131 Page 27...
- Page 28 PRODUCT LABELS 4102050-1, 4102130-1 Page 28...
- Page 29 Instructions for Use NOTES Page 29...
-
Page 30: Inspection Record
EQUIPMENT RECORD SPECIFICATIONS Skyloc /Skyloc II /Roto-Loc ™ ™ ™ PART NUMBER Enviro-Shield SRL’S ™ SERIAL NUMBER Certified to meet the current ANSI DATE Z359.14 and OSHA regulations MANUFACTURED for the Self Retracting Lifeline PURCHASE DATE component of a complete personal fall arrest system. -
Page 31: Part Number List
When products offered by Reliance Industries LLC are manufactured by a third party. Original equipment manufacturer (OEM) warranty shall apply and may be outside the control of Reliance Industries LLC. - Page 32 Reliance Industries P.O. Box 2046 Deer Park, TX 77536 Phone : 281-930-8000 Toll Free : 888-362-2826 Fax : 281-930-8666 www.relsafe.com Copyright 2019 Reliance Fall Protection 4000000-100 Rev B...
