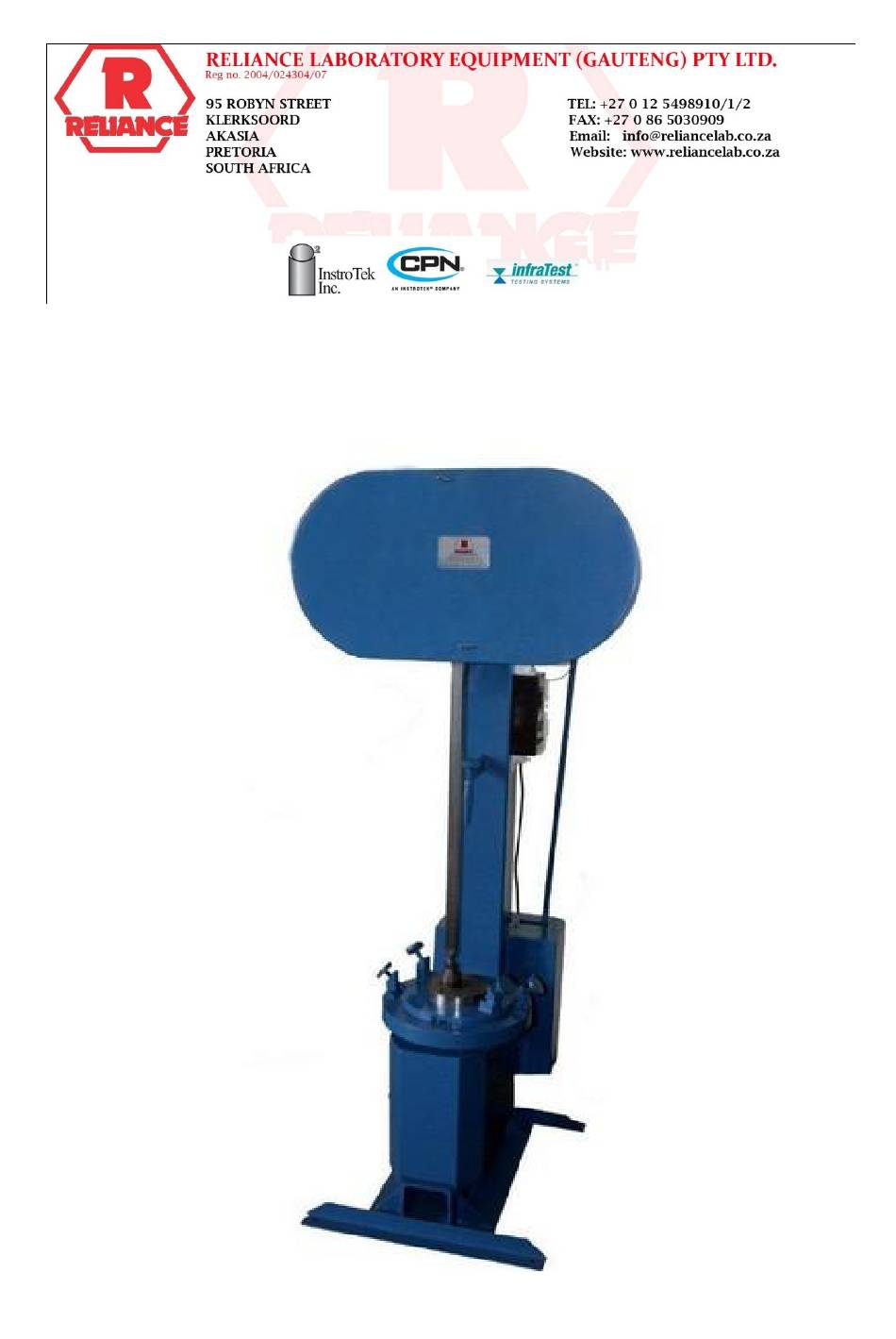

  • Page 1 AUTOMATIC ROUNDFOOT COMPACTOR (RMC-8)
  • Page 2: Table Of Contents

    CONTENTS Chapter 1 Introduction Notes Different Standards Chapter 2 Compactor and Parts Chapter 3 Preparing The Compactor for Operation Removing The CBR Mould Body Belt Adjustment Adjusting The Drop of The Hammer Adjusting The Drop Height of The Hammer Chapter 4 Spare Parts...
  • Page 3: Notes

    INTRODUCING THE RMC-8: RELIANCE ROUNDFOOT AUTOMATIC SOIL COMPACTOR AUTOMATION The RMC-8 is fully automatic which makes for ease and simplicity of operation, eliminating extensive operation training. UNIFORM COMPACTION The sprocket drive used to rotate the mould in the compactor has been modified in such a way that the mould follows a pattern to give the exact hammer fall configuration described in the SANS method.
  • Page 4: Compactor And Parts

    CHAPTER 2 COMPACTOR AND PARTS Drive Gear (pg.5) Counter (pg.4) Resting Bracket Rack/Compaction Hammer 25 CBR Mould Body Compaction Baseplate Compactor Table Table Drive Cover...
  • Page 5 COMPACTION HAMMER COUNTER PROXY/ARM Counting Arm Compactor Hammer Shoe Compactor Hammer Shoe Tip COUNTER Sensor Cable Set Button On/Off Button Fuse Holder...
  • Page 6: Removing The Cbr Mould Body

    To change the flange around loosen the wing nuts holding the flange by the flange handle. Rotate the flange through 180 degree and replace the flange on the studs. After find adjustment the RMC-8 is ready for the selected test.
  • Page 7: Adjusting The Drop Of The Hammer

    ADJUSTING THE DROP OF THE HAMMER SIDE TO SIDE If the Compaction shoe makes contact on one of the sides of the CBR Mould Body adjustment might be necessary. The CBR Mould Body should first be checked to ensure that it is not deformed or oval. Loosen the Securing Bolt.
  • Page 8: Adjusting The Drop Height Of The Hammer

    ADJUSTING THE DROP HEIGHT OF THE HAMMER Make a reference measure for your drop Height. P.S. – MAKE IT WITH SOMETHING RIGID THAT WILL FIT INTO THE GUIDE. From the top of the hammer guide make a line on the hammer using chalk of a marker (Point A). Using your reference measure from Point A and make a second mark at Point B.
  • Page 9: Spare Parts

    Compactor Hammer Shoe  Compactor Hammer Shoe Tip  Counter  Belt Holder  Rubber Belts  Compaction Base Plate  CBR Mould Body  Tip Drive Chain For Services and Repairs and/ Quotations, PLEASE send in your Compactor to Reliance.
