SERVICE MANUAL

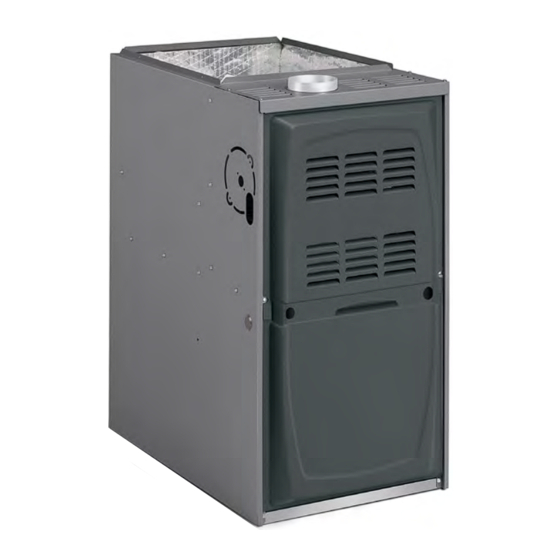

A80US2V Gas Furnace
This is a safety alert symbol and should never be ignored. When you see this symbol on labels or in manuals, be alert to
the potential for personal injury or death.
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer (or
equivalent), service agency or the gas supplier.
As with any mechanical equipment, contact with sharp
sheet metal edges can result in personal injury. Take
care while handling this equipment and wear gloves
and protective clothing.
508155-01
WARNING
CAUTION

Table of Contents

Technical Specifications - A80US2V............................2
Parts Arrangement.......................................................5
Unit Components .........................................................6
Placement and Installation ........................................27
Start-Up .....................................................................27
Heating System Service Checks ...............................28
Typical Operating Characteristics ..............................31
Maintenance ..............................................................32
Wiring and Sequence of Operation ...........................35
...................................................................................40
Program Unit Capacity Size Modes...........................44
Operation ...................................................................49
Electric shock hazard.
Can cause injury or death. Before attempting
to perform any service or maintenance,
turn the electrical power to unit OFF at
disconnect switch(es). Unit may have
multiple power supplies.
*P508155-01*
Issue 2108
WARNING
(P) 508155-01
Page 1 of 49
