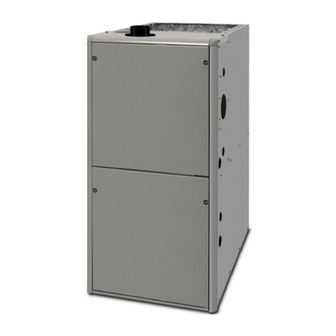

Allied A97DS2V Installation Instructions Manual

Warm air gas furnace downflow air discharge direct vent & non-direct vent
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION INSTRUCTIONS
A97DS2V with
107046-XX Control
This is a safety alert symbol and should never be ignored. When you see this symbol on labels or in manuals, be alert to
the potential for personal injury or death.
NOTICE
A thermostat is not included and must be ordered
separately.
•
A Comfort Sync
®
communicating applications.
•
In non-communicating applications, a traditional
non-communication thermostat may be used.
In all cases, setup is critical to ensure proper system
operation.
Field wiring for both communicating and non-
communicating applications is illustrated in these
instructions.
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional installer (or
equivalent), service agency or the gas supplier.
As with any mechanical equipment, personal injury can
result from contact with sharp sheet metal edges. Be
careful when you handle this equipment.
508363-01
This manual must be left with the homeowner for future reference.
thermostat must be used in
WARNING
CAUTION
Warm Air Gas Furnace
Downflow Air Discharge
Direct Vent & Non-Direct Vent

Table of Contents

Unit Dimensions ..........................................................2
Parts Arrangement.......................................................3
Gas Furnace ................................................................4
Shipping and Packing List ...........................................4
Safety Information .......................................................4
General ........................................................................6
Combustion, Dilution & Ventilation Air .........................7
Installation ...................................................................9
Filters .........................................................................12
Duct System ..............................................................12
Venting Practices .......................................................15
Condensate Piping ....................................................31
Gas Piping .................................................................34
Electrical ....................................................................36
Unit Start-Up ..............................................................52
Other Unit Adjustments..............................................55
Blower Motor Performance ........................................56
Integrated Control Diagnostic Modes ........................60
Integrated Control Diagnostic Codes.........................61
Service.......................................................................66
Planned Service ........................................................68
Repair Parts List ........................................................68
*P508363-01*
Issue 2336
Manufactured By
Allied Air Enterprises LLC
215 Metropolitan Drive
West Columbia, SC 29170
(P) 508363-01
Page 1 of 69
