Summary of Contents for Hunter Gallery Edition

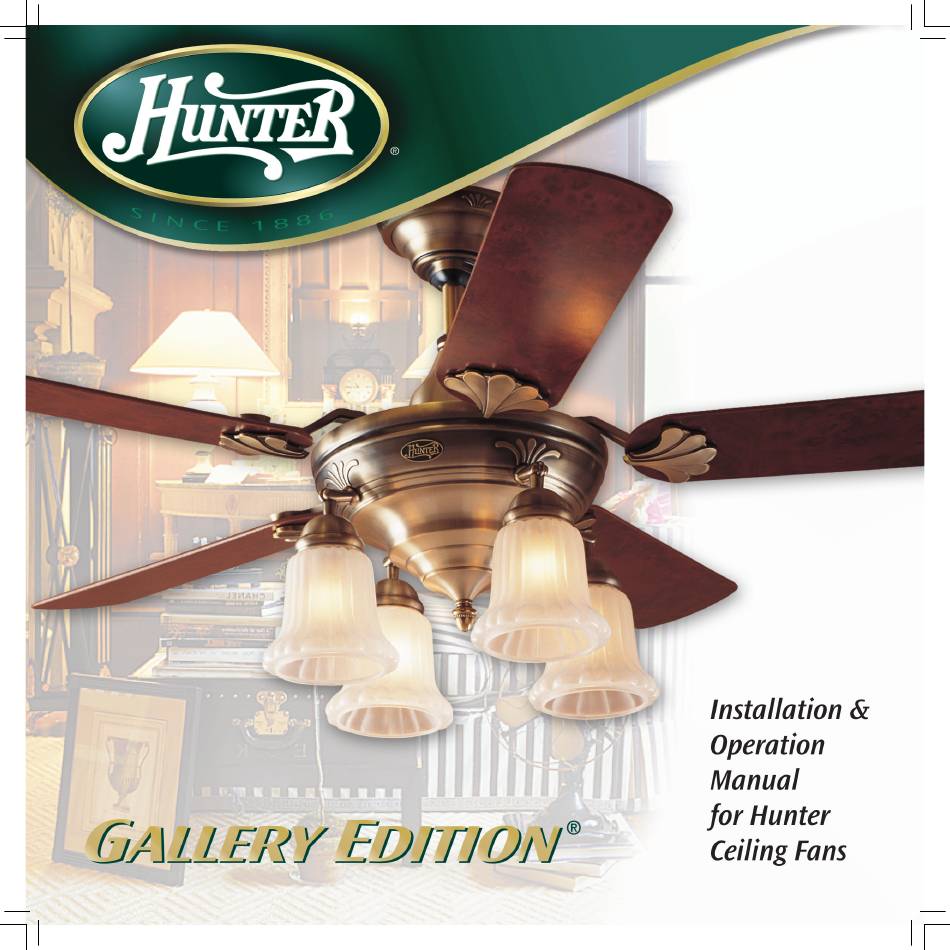

- Page 1 41880-01 • 05/13/04...
-
Page 2: Table Of Contents
10 • Operating the Remote Control • To reduce the risk of fire, electrical shock, or motor damage, do not and Mounting the Holder....14 use a solid-state speed control with this fan. Use only Hunter speed 11 • Operating and Cleaning controls. - Page 3 Understanding Mounting Hunter’s patented mounting system provides you maximum installation fl exibility and ease. You can install your Hunter fan in one of two ways, depending on your preference: Standard or Angle mounting. e steps in this manual include instructions for both mounting methods.
-
Page 4: Getting Ready
• Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •... -
Page 5: Installing The Ceiling Plate
Do not over tighten. Steps 2-3 – 2-5 Flat Washer 3” Screw For Angled Ceilings: Be sure to orient the ceiling plate so that the arrows printed on the ceiling plate are pointing towards the ceiling peak. 41880-01 • 05/13/04 Hunter Fan Company... -
Page 6: Assembling And Hanging The Fan
In the transmitter you can access the jumpers from the battery compartment. e jumpers are very small. You can move them most easily using a small pair of pliers or tweezers. IMPORTANT! Before you change jumper switches, make sure the battery is not connected to the transmitter. Hunter Fan Company 41880-01 • 05/13/04... - Page 7 CAUTION: e remote control device complies with part 13 of the FCC rule. Changes or modifications not expressly approved by Hunter Fan Company could void your authority to operate this equipment. Operation is subject to the following two conditions: 1.
-
Page 8: Securing Fan To Secondary Support System
4-7. Coil up the excess cable. 4-8. Return to the fan so you can complete the fan wiring. Step 4-1 Steps 4-6 – 4-7 Steps 4-2 – 4-3 Steps 4-4 – 4-5 Support Brace Outlet Box Braided Ceiling Cable Hunter Fan Company 41880-01 • 05/13/04... -
Page 9: Wiring The Fan
5-5. Run the white antenna wire from the receiver through one of the Wire Nut slots in the ceiling plate so that it rests between the ceiling plate and the ceiling. Push it to the edge of the ceiling plate for clear reception. 41880-01 • 05/13/04 Hunter Fan Company... -
Page 10: Installing The Canopy And Canopy Trim Ring
2. Press fi rmly on opposite sides of the ring towards the canopy. e tabs will fl ex out releasing the trim ring from the canopy Step 6-3 Steps 6-4 – 6-5 Canopy Screw Hunter Fan Company 41880-01 • 05/13/04... -
Page 11: Assembling The Blades
7-4. For each blade, insert one blade mounting screw through the Grommet blade iron, and attach lightly to the fan. Insert the second blade mounting screw, then securely tighten both mounting screws. Blade Assembly Screw Steps 7-2 – 7-4 Blade Mounting Screw Medallion 41880-01 • 05/13/04 Hunter Fan Company... -
Page 12: Attaching The Decorative Clamps
8 • Attaching the Decorative Clamps Your Hunter Fan comes with two decorative clamps. Each clamp assembly is made up of two pieces. 8-1. Place the two halves of the lower clamp around the lower end of the spindle and the motor adapter. -
Page 13: Installing The Glass Bowls
9 • Installing the Glass Bowls 9-1. Lower the glass between the clips and twist to snap into place. 9-2. Install bulbs as shown. Step 9-1 Step 9-2 41880-01 • 05/13/04 Hunter Fan Company... -
Page 14: Operating The Remote Control And Mounting The Holder
10-6. You can mount the remote holder to any toggle switch plate with the screws already in the switch plate. Or, you can simply mount the remote holder on the wall. Steps 10-1 – 10-4 Step 10-5 Step 10-6 Hunter Fan Company 41880-01 • 05/13/04... -
Page 15: Operating And Cleaning Your Ceiling Fan
To Change Airfl ow Direction Turn the fan off and let it come to a complete stop. Slide the reversing switch on the fan to the opposite position. Restart fan. Reversing Switch 41880-01 • 05/13/04 Hunter Fan Company... -
Page 16: Troubleshooting
3. Turn power off , support fan very carefully, and check that the hanger ball is properly seated. If you need parts or service assistance, please call 888-830-1326 or visit us at our WEB site at http://www.hunterfan.com. Hunter Fan Company 2500 Frisco Avenue Memphis, Tennessee 38114 Hunter Fan Company 41880-01 • 05/13/04...
