Summary of Contents for Hunter Grove Park

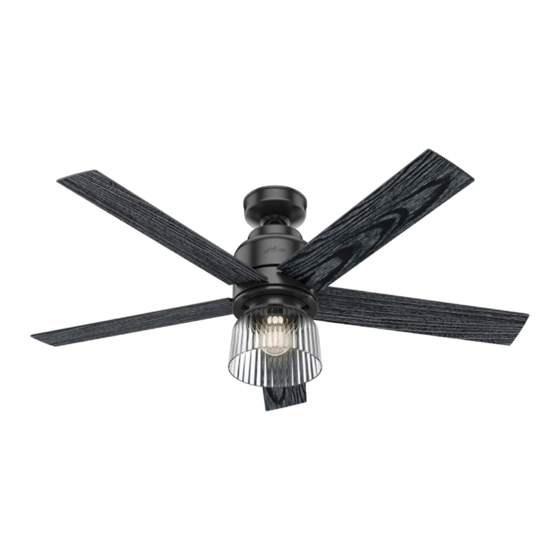

- Page 1 Grove Park Installation Manual Model: 50340 Matte Black 50341 Fresh White Fan weight ±2 lbs: 24.0 lbs (10.9 kg) ©2020 Hunter Fan Co. PG3892 r030320...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Hunter Pro Tip: parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
-
Page 4: Choosing The Right Installation Location
A little more information on Angled Mounting: For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit. -
Page 5: Installing The Ceiling Bracket
You have two options for installation. Pick which one works best for your location. Remove any existing Hunter Pro Tip: bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box. The machine screws are the ones that came with your outlet box. -
Page 6: Hanging The Fan
1886 Hanging the Fan NOTICE To prevent damage to fan, ALWAYS lift holding either the fan housing or the downrod. Place the downrod ball into the slot in the ceiling bracket. Progress Check: Your fan should look like this. Note: Fan style may vary. -
Page 7: Wiring The Fan
If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualified electrician. You are going to need these: Hunter Pro Tip: Here is how to connect the wires: 4 Wire Nuts (these are in the... -
Page 8: Installing The Canopy
1886 Installing the Canopy Insert the two canopy screws found in the hardware bag. Canopy Screw Lift the canopy into place so that the screw holes are aligned. Installing the Blades: Attach each blade to a blade iron using the blade washers, found in the hardware bag, and the blade assembly screws, found in the hardware bag. -
Page 9: Assembling The Light Kit
1886 Assembling the LIght Kit 2 of 6 1 of 6 Light Kit Screw Light Kit Screw Partially install two light kit assembly Feed the wire plug through the center Insert the third screw, screws, found in the hardware hole of the upper switch housing, found in the hardware bag, halfway into the motor housing... - Page 10 1886 Preparing the Wall Control Turning off the power KEY PRESS FUNCTION Ensure the power is OFF at the outlet box and wall switch location before proceeding LIGHT FUNCTIONS with installation. Light On/Off Light Dimming Control Long Light High Press Installing the battery Long Battery...
-
Page 11: Limited Lifetime Warranty
Hunter instructions, accidental damage caused by the fan owner or related parties, Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. modifications to the fan, improper or incorrectly performed maintenance or repair,... -
Page 12: Troubleshooting
“How do I properly install multiple remote-controlled fans?” for information on how to correct this issue. Hunter Pro Tip: Cleaning the Fan Use soft brushes or cloths to prevent scratching. Cleaning products may damage the finishes.
