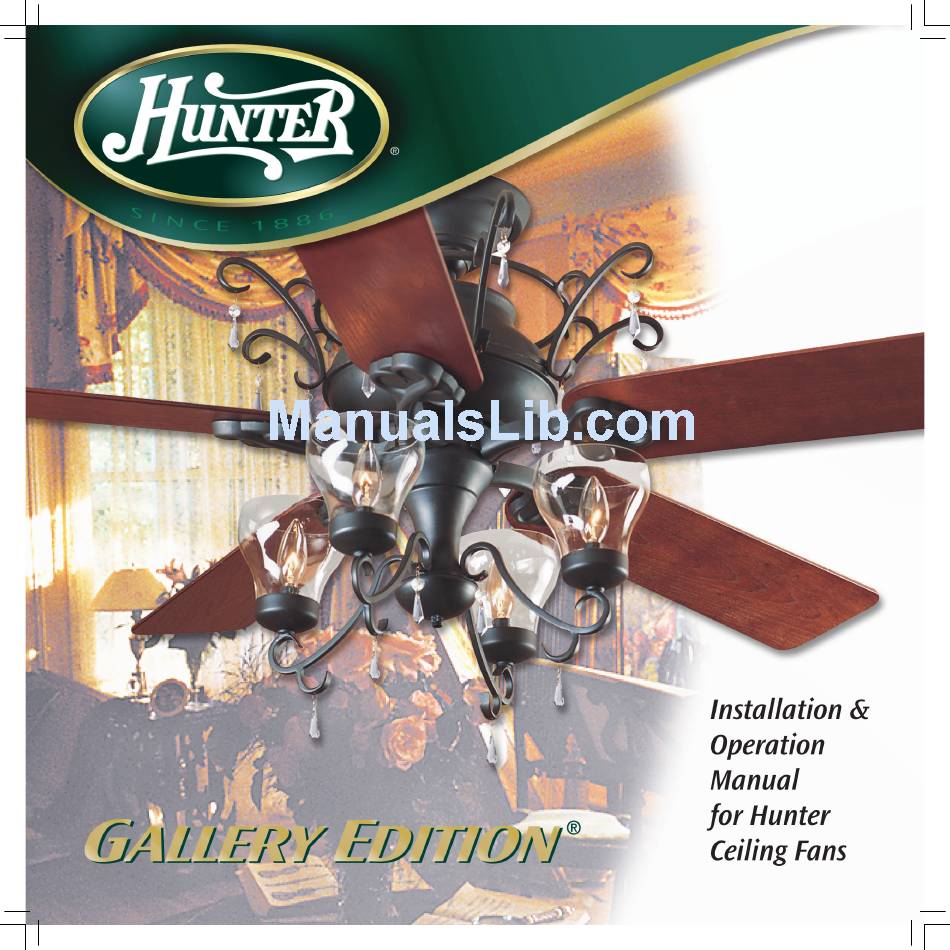

- Page 1 41871-01 • 05/28/04...
-
Page 2: Table Of Contents
Never insert foreign objects between rotating fan blades. • To reduce the risk of fire, electrical shock, or motor damage, do not © 2004 Hunter Fan Company use a solid-state speed control with this fan. Use only Hunter speed controls. Hunter Fan Company... - Page 3 Understanding Mounting Hunter’s patented mounting system provides you maximum installation fl exibility and ease. You can install your Hunter fan in one of two ways, depending on your preference: Standard or Angle mounting. e steps in this manual include instructions for both mounting methods.
-
Page 4: Getting Ready
• Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •... -
Page 5: Installing The Ceiling Plate
Do not over tighten. Steps 2-3 – 2-5 Flat Washer 3” Screw For Angled Ceilings: Be sure to orient the ceiling plate so that the arrows printed on the ceiling plate are pointing towards the ceiling peak. 41871-01 • 05/28/04 Hunter Fan Company... -
Page 6: Installing The Blade Irons
3-6. Securely tighten the blade iron assembly screws. 3-7. Repeat until all blade irons are assembled. Blade Iron Two Notches for Screws Blade Iron Assembly Screws Shipping Blocks Steps 3-1 – 3-7 Hunter Fan Company 41871-01 • 05/28/04... -
Page 7: Assembling And Hanging The Fan
Step 4-2 WARNING: Fan may fall if not assembled as directed in these installation instructions. Downrod Canopy Canopy Trim Ring Allen Head Set Screw Step 4-4 Step 4-3 U-shaped Hole Allen Head Set Screw 41871-01 • 05/28/04 Hunter Fan Company... -
Page 8: Wiring The Fan
CAUTION: Be sure no bare wire or wire strands are visible after making connections. 5-6. Push all wires and wire nuts back through the ceiling plate hole into the outlet box. Wire Nut Step 5-4 Hunter Fan Company 41871-01 • 05/28/04... -
Page 9: Installing The Canopy And Canopy Trim Ring
2. Press fi rmly on opposite sides of the ring towards the canopy. e tabs will fl ex out releasing the trim ring from the canopy Step 6-3 Steps 6-4 – 6-5 Canopy Screw 41871-01 • 05/28/04 Hunter Fan Company... -
Page 10: Installing The Blades
7-1. Open the locking mechanism. 7-2. Align the holes in the blade with the blade iron. 7-3. Close the locking mechanism securely. You will feel it lock into place. Step 7-1 Step 7-3 Hunter Fan Company 41871-01 • 05/28/04... -
Page 11: Completing Your Installation With Or Without A Light Fixture
8 • Completing Your Installation With or Without a Light Fixture Your Hunter fan comes with an integrated light fixture assembly and an optional switch housing cap and plug button. is feature gives you the option of installing the fan with OR without the included light fixture. - Page 12 Housing Pullchains” on page 14 for instructions. If you do not want to install the light fixture, see “Installing the Crystals and Pullchains” on page 14. Plug Connector Detail Housing Step 8-7 Assembly Screw Hunter Fan Company 41871-01 • 05/28/04...
- Page 13 7. Install the switch housing cap and plug button to the lower switch housing. 8. Continue with Step 8-6 on page 12. Male Dummy Terminal Female Dummy Terminal Plug Button Step 7 41871-01 • 05/28/04 Hunter Fan Company...
- Page 14 2. Attach the pullchain extensions to the breakaway connectors. If you are using the light fi xture, be sure to attach both the long and short pullchain extensions. Double Single Crystals Crystals Pullchain Pullchain Extension Extension (longer) (shorter) Step 1 Step 2 Breakaway Connector Hunter Fan Company 41871-01 • 05/28/04...
-
Page 15: Operating And Cleaning Your Ceiling Fan
To Change Airfl ow Direction Turn the fan off and let it come to a complete stop. Slide the reversing switch on the fan to the opposite position. Restart fan. Reversing Switch 41871-01 • 05/28/04 Hunter Fan Company... -
Page 16: Troubleshooting
3. Turn power off , support fan very carefully, and check that the hanger ball is properly seated. If you need parts or service assistance, please call 888-830-1326 or visit us at our WEB site at http://www.hunterfan.com. Hunter Fan Company 2500 Frisco Avenue Memphis, Tennessee 38114 Hunter Fan Company 41871-01 • 05/28/04...
