U-Line H-10778 Quick Start Manual

H-10778

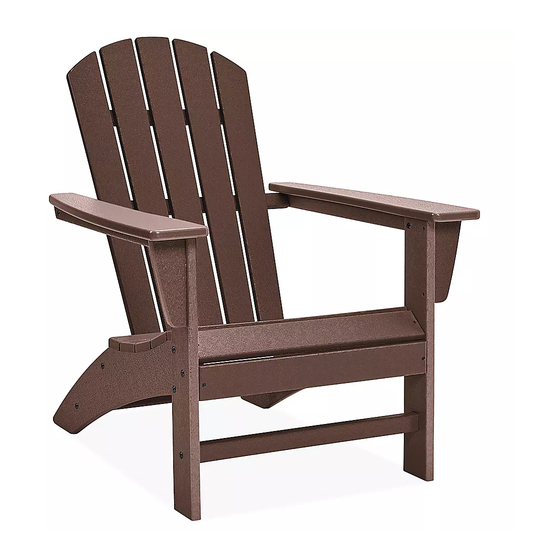

ADIRONDACK CHAIR
TOOLS NEEDED
4 mm T-Handle Hex Key
(Included)
Seat x 1
1⁄" Bolt x 6
1. Attach leg to seat using three 1⁄" bolts and
three locknuts. Attach crossbeam to leg using one
2" screw. Repeat for remaining leg on opposite side.
(See Figure 1)
Figure 1
Crossbeam
PAGE 1 OF 6
1-800-295-5510
uline.com
7/16" Wrench
Arm x 2
2¼" Bolt x 2
Inside View
PARTS
Leg x 2
2" Screw x 6
ASSEMBLY
2. Attach arm to leg with 2¼" bolt and locknut. Repeat
for remaining arm. (See Figure 2)
Figure 2
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Crossbeam x 1 Back x 1
Flange Nylon Locknut x 8
0223 IH-10778
