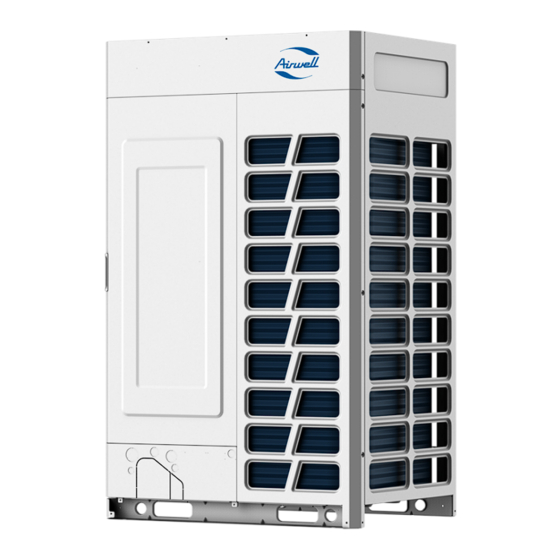

Service Manual
ODU VRF VVEA Series
R410A
English Manual
IMPORTANT NOTE:
Read this manual carefully before installing or operating your new air conditioning unit. Make sure to
save this manual for future reference.
22.AW.VVEA.250-2400.R410A.SM.EN.04.28.Rev01

Advertisement

Table of Contents
loading

Related Manuals for Airwell ODU VRF VVEA Series

Summary of Contents for Airwell ODU VRF VVEA Series

  • Page 1 Service Manual ODU VRF VVEA Series R410A English Manual IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. 22.AW.VVEA.250-2400.R410A.SM.EN.04.28.Rev01...

  • Page 2: Table Of Contents

    CONTENTS Part 1 . Outdoor unit ..............................1 1. Safety considerations ............................1 2. General Information ............................7 3. Specification ..............................14 4. Dimension ............................... 58 5. Center of gravity ............................... 60 6. Piping diagram ..............................62 7. Refrigerant flow ..............................65 8.

  • Page 3: Part 1 . Outdoor Unit

    Outdoor unit Part 1 . 1. Safety considerations Cautions and warnings Read these SAFETY CONSIDERATIONS carefully before installing air conditioning equipment, and be sure to install it correctly. After completing the installation, make sure that the unit operates properly during the start-up operation.
  • Page 4 Warning If the refrigerant gas leaks during the repair work, ventilate the area. The refrigerant gas can generate toxic gases when it contacts flames. The step-up capacitor supplies high-voltage electricity to the electrical components of the outdoor unit. Be sure to discharge the capacitor completely before conducting repair work.
  • Page 5 Caution Do not repair the electrical components with wet hands. Working on the equipment with wet hands can cause an electrical shock. Do not clean the air conditioner by splashing water. Washing the unit with water can cause an electrical shock. Be sure to provide the grounding when repairing the equipment in a humid or wet place, to avoid electrical shocks.
  • Page 6 1.2 Cautions regarding rroducts after repair Warning Be sure to use parts listed in the service parts list of the applicable model and appropriate tools to conduct repair work. Never attempt to modify the equipment. The use of inappropriate parts or tools can cause an electrical shock, excessive heat generation or fire.
  • Page 7 Warning Do not mix air or gas other than the specified refrigerant (R-410A) in the refrigerant system. If air enters the refrigerating system, an excessively high pressure results, causing equipment damage and injury. If the refrigerant gas leaks, be sure to locate the leak and repair it before charging the refrigerant.
  • Page 8 1.3 Inspection after repair Warning Check to make sure that the power cable plug is not dirty or loose, then insert the plug into a power outlet all the way. If the plug has dust or loose connection, it can cause an electrical shock or fire.

  • Page 9: General Information

    2. General Information 2.1. Products lineup Outdoor units Power supply Appearance Model Capacity(kW) Refrigerant (Ph, V, Hz) VVEA-250R-01T32 22.4 VVEA-280R-01T32 VVEA-335R-01T32 33.5 VVEA-400R-01T32 VVEA-450R-01T32 VVEA-504R-01T32 VVEA-560R-01T32 VVEA-615R-01T32 VVEA-670R-01T32 VVEA-735R-01T32 73.5 VVEA-800R-01T32 3Ph,380-415V, R410A 50/60Hz VVEA-850R-01T32 VVEA-900R-01T32 VVEA-950R-01T32 VVEA-1000R-01T32 VVEA-1060R-01T32 VVEA-1120R-01T32 VVEA-1160R-01T32 VVEA-1200R-01T32 VVEA-1300R-01T32...
  • Page 10 Power supply Appearance Model Capacity(kW) Refrigerant (Ph, V, Hz) VVEA-1350R-01T32 VVEA-1400R-01T32 VVEA-1450R-01T32 VVEA-1500R-01T32 VVEA-1560R-01T32 VVEA-1620R-01T32 VVEA-1680R-01T32 VVEA-1720R-01T32 VVEA-1760R-01T32 VVEA-1800R-01T32 3Ph,380-415V, VVEA-1900R-01T32 R410A 50/60Hz VVEA-1950R-01T32 VVEA-2000R-01T32 VVEA-2060R-01T32 VVEA-2120R-01T32 VVEA-2180R-01T32 VVEA-2240R-01T32 VVEA-2280R-01T32 VVEA-2320R-01T32 VVEA-2360R-01T32 VVEA-2400R-01T32...
  • Page 11 2.2. Combination of Outdoor Units Model Name VVEA-250R-01T32 VVEA-280R-01T32 VVEA-335R-01T32 VVEA-400R-01T32 Oudoor unit 1 VVEA-250R-01T32 VVEA-280R-01T32 VVEA-335R-01T32 VVEA-400R-01T32 Model Name VVEA-504R-01T32 VVEA-560R-01T32 VVEA-615R-01T32 VVEA-450R-01T32 Oudoor unit 1 VVEA-504R-01T32 VVEA-560R-01T32 VVEA-615R-01T32 VVEA-450R-01T32 Model Name VVEA-670R-01T32 VVEA-735R-01T32 VVEA-800R-01T32 VVEA-850R-01T32 VVEA-900R-01T32 Oudoor unit 1 VVEA-335R-01T32 VVEA-335R-01T32 VVEA-400R-01T32...
  • Page 12 System Number Module capacity of Units 22.4 ● ● 33.5 ● ● ● ● ● ● ●● 73.5 ● ● ●● ● ● ●● ● ● ●● ● ● ●● ● ● ●● ● ●● ●●● ●● ● ● ●● ●●●...
  • Page 13 Indoor units ROUND-WAY SMART AIR FLOW 4-WAY CASSETTE TYPE/PB-700lB CASSETTE/ Panel for CVTA CVQA-025/022/015N-01M22 CVQA-050/045/035N-01M22 CVTA-025/022N-01M22 CVTA-035N-01M22 4-WAY CASSETTE TYPE/CCV PANEL 90X90 CVTA-050/045N-01M22 AWSI-CCV018-N11 CVTA-070N-01M22 AWSI-CCV024-N11 CVTA-110/090N-01M22 AWSI-CCV030-N11 AWSI-CCV038-N11 CVTA-160/140N-01M22 AWSI-CCV048-N11 2-WAY CASSETTE TYPE/ P1B-1055IB ONE WAY CASSETTE TYPE/Panel for CVPAto s12 CVOA-025N-01M22 CVPA-035N-01M22 CVOA-035N-01M22...
  • Page 14 Indoor units MED ESP DUCT TYPE (50/100Pa) SLIM LOW ESP DUCT DVLA-025/022-01M22 DVMA-090N-01M22 DVLA-035N-01M22 DVMA-110N-01M22 DVMA-160/140N- DVLA-040N-01M22 01M22 HlGH ESP DUCT TYPE CONVERTlBLE TYPE DVMA-050N-01M22 DVMA-080/070N-01M22 FVVA-025N-01M22 FVVA-050/045/035N-01M22 DVMA-090N-01M22 DVMA-110N-01M22 DVMA-160/140N-01M22 FVVA-090/080/070N-01M22 FVVA-140/110N-01M22 DVHA-280/220N-01M22...
  • Page 15 N HIGH WALL MED ESP DUCT TYPE (50/100Pa) DVMA-015N-01M22 DVMA-022N-01M22 HVVA-025/022N-01M22 DVMA-025N-01M22 HVVA-035N-01M22 DVMA-035N-01M22 HVVA-050/045N-01M22 HVVA-070N-01M22 DVMA-045N-01M22 DVMA-050N-01M22 DVMA-080/070N-01M22 HVVA-090N-01M22 CONSOLE XVVA-050/035/025N-01M22 AWSI-HRV0800-N11 AWSI-HRV1000-N11 Note: The indoor unit connected to Flow Logic IV must be the new indoor manufactured after January 1, 2019 (the PCB is upgraded program)

  • Page 16: Specification

    3. Specification Model VVEA-250R-01T32 VVEA-280R-01T32 Combination Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 22.4 Rated capacity kBtu/h 76.43 95.54 Rated power input 5.63 7.67 Max. power input 12.80 13.80 Cooling Rated current 9.29 12.67 Max. current 21.14 22.79 3.98 3.65 SEER 7.05 6.68...
  • Page 17 Model VVEA-250R-01T32 VVEA-280R-01T32 Number of rows Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Outdoor coil Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Ф7...
  • Page 18 Model VVEA-335R-01T32 VVEA-400R-01T32 Combination Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 33.5 Rated capacity kBtu/h 114.30 136.48 Rated power input 9.57 12.31 Max. power input 18.20 19.20 Cooling Rated current 15.81 20.33 Max. current 30.06 31.71 3.50 3.25 SEER 6.58 6.37 Rated capacity 33.5...
  • Page 19 VVEA-335R-01T32 VVEA-400R-01T32 Model Number of rows Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Outdoor coil Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Ф7...
  • Page 20 Model VVEA-450R-01T32 VVEA-504R-01T32 Combination Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity Rated capacity kBtu/h 153.54 170.60 Rated power input 14.06 16.13 Max. power input 25.10 28.50 Cooling Rated current 23.22 26.64 Max. current 41.45 47.07 3.20 3.10 SEER 6.86 6.48 Rated capacity Rated capacity kBtu/h...
  • Page 21 VVEA-450R-01T32 VVEA-504R-01T32 Model Number of rows Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Outdoor coil Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Ф7...
  • Page 22 Model VVEA-560R-01T32 VVEA-615R-01T32 Combination Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity Rated capacity kBtu/h 191.07 204.72 Rated power input 17.23 20.00 Max. power input 32.00 33.00 Cooling Rated current 28.46 33.03 Max. current 52.85 54.50 3.25 3.00 SEER 5.90 5.74 Rated capacity Rated capacity kBtu/h...
  • Page 23 VVEA-560R-01T32 VVEA-615R-01T32 Model Number of rows Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Outdoor coil Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Ф7...
  • Page 24 Model VVEA-670R-01T32 VVEA-735R-01T32 Combination 12+12 12+14 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 67.0 73.5 Rated capacity kBtu/h 228.60 250.78 Rated power input 19.1 21.9 Max. power input 36.4 37.4 Cooling Rated current 31.61 36.13 Max. current 60.11 61.77 3.50 3.36 SEER 6.58...
  • Page 25 VVEA-670R-01T32 VVEA-735R-01T32 Model Number of rows Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Outdoor coil Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Ф7...
  • Page 26 Model VVEA-800R-01T32 VVEA-850R-01T32 Combination 14+14 14+16 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 80.0 85.0 Rated capacity kBtu/h 272.96 290.02 Rated power input 24.6 26.4 Max. power input 38.4 44.3 Cooling Rated current 40.65 43.55 Max. current 63.42 73.16 3.25 3.22 SEER 6.37...
  • Page 27 VVEA-800R-01T32 VVEA-850R-01T32 Model Number of rows Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Outdoor coil Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Ф7...
  • Page 28 Model VVEA-900R-01T32 VVEA-950R-01T32 Combination 16+16 16+18 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 90.0 95.0 Rated capacity kBtu/h 307.08 324.14 Rated power input 28.1 30.2 Max. power input 50.2 53.6 Cooling Rated current 46.45 49.86 Max. current 82.91 88.52 3.20 3.15 SEER 6.86...
  • Page 29 VVEA-900R-01T32 VVEA-950R-01T32 Model Number of rows Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Outdoor coil Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Ф7...
  • Page 30 Model VVEA-1000R-01T32 VVEA-1060R-01T32 Combination 18+18 18+20 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 100.0 106.0 Rated capacity kBtu/h 341.20 361.67 Rated power input 32.3 33.4 Max. power input 57.0 60.5 Cooling Rated current 53.27 55.09 Max. current 94.14 99.92 3.10 3.18 SEER 6.48...
  • Page 31 VVEA-1000R-01T32 VVEA-1060R-01T32 Model Number of rows Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Outdoor coil Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Ф7...
  • Page 32 Model VVEA-1120R-01T32 VVEA-1160R-01T32 Combination 20+20 20+22 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 112.0 116.0 Rated capacity kBtu/h 382.14 395.79 Rated power input 34.5 37.2 Max. power input 64.0 65.0 Cooling Rated current 56.91 61.49 Max. current 105.70 107.35 3.25 3.12 SEER 5.90...
  • Page 33 VVEA-1120R-01T32 VVEA-1160R-01T32 Model Number of rows Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Outdoor coil Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Ф7...
  • Page 34 Model VVEA-1200R-01T32 VVEA-1300R-01T32 Combination 22+22 14+16+16 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 120.0 130.0 Rated capacity kBtu/h 409.44 443.56 Rated power input 40.0 40.4 Max. power input 66.0 69.4 Cooling Rated current 66.06 66.77 Max. current 109.00 114.61 3.00 3.22 SEER 5.74...
  • Page 35 VVEA-1200R-01T32 VVEA-1300R-01T32 Model Number of rows 3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Outdoor coil...
  • Page 36 Model VVEA-1350R-01T32 VVEA-1400R-01T32 Combination 16+16+16 16+16+18 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 135.0 140.0 Rated capacity kBtu/h 460.62 477.68 Rated power input 42.2 44.3 Max. power input 75.3 78.7 Cooling Rated current 69.67 73.09 Max. current 124.36 129.97 3.20 3.16 SEER 6.86...
  • Page 37 VVEA-1350R-01T32 VVEA-1400R-01T32 Model Number of rows 3+3+3 3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Outdoor coil...
  • Page 38 Model VVEA-1450R-01T32 VVEA-1500R-01T32 Combination 16+18+18 18+18+18 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 145.0 150.0 Rated capacity kBtu/h 494.74 511.80 Rated power input 46.3 48.4 Max. power input 82.1 85.5 Cooling Rated current 76.50 79.91 Max. current 135.59 141.20 3.13 3.10 SEER 6.58...
  • Page 39 VVEA-1450R-01T32 VVEA-1500R-01T32 Model Number of rows 3+3+3 3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Outdoor coil...
  • Page 40 Model VVEA-1560R-01T32 VVEA-1620R-01T32 Combination 18+18+20 18+20+20 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 156.0 162.0 Rated capacity kBtu/h 532.27 552.74 Rated power input 49.5 50.6 Max. power input 89.0 92.5 Cooling Rated current 81.73 83.55 Max. current 146.98 152.76 3.15 3.20 SEER 6.25...
  • Page 41 VVEA-1560R-01T32 VVEA-1620R-01T32 Model Number of rows 3+3+3 3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Outdoor coil...
  • Page 42 Model VVEA-1680R-01T32 VVEA-1720R-01T32 Combination 20+20+20 20+20+22 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 168.0 172.0 Rated capacity kBtu/h 573.22 586.86 Rated power input 51.7 54.5 Max. power input 96.0 97.0 Cooling Rated current 85.37 89.94 Max. current 158.54 160.20 3.25 3.16 SEER 5.90...
  • Page 43 VVEA-1680R-01T32 VVEA-1720R-01T32 Model Number of rows 3+3+3 3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Outdoor coil...
  • Page 44 Model VVEA-1760R-01T32 VVEA-1800R-01T32 Combination 20+22+22 22+22+22 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 176.0 180.0 Rated capacity kBtu/h 600.51 614.16 Rated power input 57.2 60.0 Max. power input 98.0 99.0 Cooling Rated current 94.52 99.09 Max. current 161.85 163.50 3.08 3.00 SEER 5.79...
  • Page 45 VVEA-1760R-01T32 VVEA-1800R-01T32 Model Number of rows 3+3+3 3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Outdoor coil...
  • Page 46 Model VVEA-1760R-01T32 VVEA-1800R-01T32 Combination 20+22+22 22+22+22 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 176.0 180.0 Rated capacity kBtu/h 600.51 614.16 Rated power input 57.2 60.0 Max. power input 98.0 99.0 Cooling Rated current 94.52 99.09 Max. current 161.85 163.50 3.08 3.00 SEER 5.79...
  • Page 47 VVEA-1760R-01T32 VVEA-1800R-01T32 Model Number of rows 3+3+3 3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Outdoor coil...
  • Page 48 Model VVEA-1950R-01T32 VVEA-1900R-01T32 Combination 16+16+18+18 16+18+18+18 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 190.0 195.0 Rated capacity kBtu/h 648.28 665.34 Rated power input 60.4 62.4 Max. power input 107.2 110.6 Cooling Rated current 99.72 103.14 Max. current 177.04 182.66 3.15 3.12 SEER 6.64...
  • Page 49 VVEA-1950R-01T32 Model VVEA-1900R-01T32 Number of rows 3+3+3+3 3+3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Outdoor coil...
  • Page 50 Model VVEA-2000R-01T32 VVEA-2060R-01T32 Combination 18+18+18+18 18+18+18+20 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 200.0 206.0 Rated capacity kBtu/h 682.40 702.87 Rated power input 64.5 65.6 Max. power input 114.0 117.5 Cooling Rated current 106.55 108.37 Max. current 188.27 194.05 3.10 3.14 SEER 6.48...
  • Page 51 VVEA-2000R-01T32 VVEA-2060R-01T32 Model Number of rows 3+3+3+3 3+3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Outdoor coil...
  • Page 52 Model VVEA-2120R-01T32 VVEA-2180R-01T32 Combination 18+18+20+20 18+20+20+20 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 212.0 218.0 Rated capacity kBtu/h 723.34 743.82 Rated power input 66.7 67.8 Max. power input 121.0 124.5 Cooling Rated current 110.19 112.01 Max. current 199.83 205.61 3.18 3.21 SEER 6.15...
  • Page 53 VVEA-2120R-01T32 VVEA-2180R-01T32 Model Number of rows 3+3+3+3 3+3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Outdoor coil...
  • Page 54 Model VVEA-2240R-01T32 VVEA-2280R-01T32 Combination 20+20+20+20 20+20+20+22 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 224.0 228.0 Rated capacity kBtu/h 764.29 777.94 Rated power input 68.9 71.7 Max. power input 128.0 129.0 Cooling Rated current 113.83 118.40 Max. current 211.39 213.04 3.25 3.18 SEER 5.90...
  • Page 55 VVEA-2240R-01T32 VVEA-2280R-01T32 Model Number of rows 3+3+3+3 3+3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Outdoor coil...
  • Page 56 Model VVEA-2320R-01T32 VVEA-2360R-01T32 Combination 20+20+22+22 20+22+22+22 Power supply Ph/V/Hz 3/380~415/50/60 3/380~415/50/60 Rated capacity 232.0 236.0 Rated capacity kBtu/h 791.58 805.23 Rated power input 74.5 77.2 Max. power input 130.0 131.0 Cooling Rated current 122.97 127.55 Max. current 214.70 216.35 3.12 3.06 SEER 5.81...
  • Page 57 VVEA-2320R-01T32 VVEA-2360R-01T32 Model Number of rows 3+3+3+3 3+3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 21×18.186 Fin spacing 1.60 1.60 Fin type (code) Hydrophilic aluminum Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Clear lacquer Salt Spray Test Duration Hour Tube outside dia.and type INNERGROOVE TUBE INNERGROOVE TUBE Outdoor coil...
  • Page 58 Model VVEA-2400R-01T32 Combination 22+22+22+22 Power supply Ph/V/Hz 3/380~415/50/60 Rated capacity 240.0 Rated capacity kBtu/h 818.88 Rated power input 80.0 Max. power input 132.0 Cooling Rated current 132.12 Max. current 218.00 3.00 SEER 5.74 Rated capacity 240.0 Rated capacity kBtu/h 818.88 Rated power input 71.6 Max.
  • Page 59 VVEA-2400R-01T32 Model Number of rows 3+3+3+3 Tube pitch(a)x row pitch(b) 21×18.186 Fin spacing 1.60 Fin type (code) Hydrophilic aluminum Fin Coating Type Optional Clear lacquer Salt Spray Test Duration Hour Outdoor coil Tube outside dia.and type INNERGROOVE TUBE Ф7 (2843*1260+2757*1260+2669*1260)+(2843*1260+275 Coil length x height 7*1260+2669*1260)+(2843*1260+2757*1260+2669*12 60)+(2843*1260+2757*1260+2669*1260)

  • Page 60: Dimension

    4. Dimension VVEA-250/280/335/400R-01T32 Unit:mm Space between fixing holes 800 ⑧ Air outlet duct ＞300 Back connection position Right Left Front ＞1000 ⑦ ① ② ③ ④ ⑤ ⑥ Name Remark Signal line hole(Ø25) Using the rubber plug in the unit's attachment for protection Pipe outlet for 2-pipe system Pipe outlet for 3-pipe system hole,and using the line sheath in the unit's attachment for...
  • Page 61 VVEA-450/504/560/615R-01T32 Name Remark Signal line hole(Ø25) Using the rubber plug in the unit's attachment for protection Pipe outlet for 2-pipe system Pipe outlet for 3-pipe system hole,and using the line sheath in the unit's attachment for Power supply hole protectionAccording to the wire diameter size to choose the appropriate line Hoisting hole Power supply of signal line hole...

  • Page 62: Center Of Gravity

    5. Center of gravity VVEA-250/280/335/400R-01T32 Single Fan...
  • Page 63 VVEA-450/504/560/615R-01T32 Double Fan...

  • Page 64: Piping Diagram

    6. Piping diagram VVEA-250/280/335/400R-01T32 LEVb LEVa1 Tdef1 SC-HEX(lower) Tilq HEX1(upper) LEVa2 Liquid pipe Tdef2 Toci1 HEX2(lower) Liq.Tank Tsco Toci2 4WV3 4WV1 4WV2 Capi. High pressure gas pipe Gas pipe Capi. Accum. Toil inv. comp. :strainer...
  • Page 65 VVEA-450/504/560/615R-01T32 LEVb LEVa1 Tdef1 SC-HEX(lower) Tilq HEX1(upper) LEVa2 Liquid pipe Tdef2 Toci1 HEX2(lower) Liq.Tank Tsco Toci2 4WV3 4WV1 4WV2 4WV2 High pressure gas pipe O/S1 O/S2 SV31 HPS2 Gas pipe Capi. Capi. SV32 HPS1 Capi. Capi. SV10 Accum. Toil2 Toil1 inv.comp.2 inv.comp.1 :strainer...
  • Page 66 Part name Sign Function Data Remark ANB52FKQMT: 0.302Ω "Capacity control, to meet indoor load through Compressor 20°C frequency adjustment." ANB66FVAMT: 0,23Ω ANB78FVAMT: 0,23Ω Pressure switch HPs1/2 Protection control for high pressure 4.15Mpa, OFF setting In heating , compressor frequency adjustment and 0~4.15MPa protection control for abnormal pressure Pressure sensor...

  • Page 67: Refrigerant Flow

    7. Refrigerant flow All cooling High temperature, high pressure gas Low temperature, low pressure gas High temperature, high pressure liquid...
  • Page 68 All heating High temperature, high pressure gas Low temperature, low pressure gas High temperature, high pressure liquid...
  • Page 69 Cooling> heating circuit High temperature, high pressure gas Low temperature, low pressure gas High temperature, high pressure liquid...
  • Page 70 Cooling< heating circuit High temperature, high pressure gas Low temperature, low pressure gas High temperature, high pressure liquid...

  • Page 71: Functional Parts Layout

    8. Functional parts layout VVEA-250/280/335/400R-01T32...
  • Page 72 VVEA-450/504/560/615R-01T32...

  • Page 73: Wiring Diagram

    9. Wiring diagram Description of the Main-board Port definition No. Port Port description L/N/G AC Power Input Liquid Jetting to compressor 1 SV10 Drain the oil from compressor 2 Drain the oil from compressor 1 Balance pressure(Load-OFF) Hot and cold switching HEAT1 Heating band of compressor 1 HEAT2...

  • Page 74: Capacity Calculation Due To Capacity Modification Coefficient

    10. Capacity calculation due to capacity modification coefficient (1) Calculation method of cooling capacity---Refrigerating capacity to be known=Refrigerating capacity x(AxBxCxDxE) W A Capacity compensation coefficient of B Capacity compensation coefficient of outdoor indoor air wet-bulb temperature condition. air dry-bulb temperature condition. Indoor air wet-bulb temperature ●...
  • Page 75 VVEA-450R-01T32 VVEA-335-400R-01T32 VVEA-850-950R-01T32 VVEA-504-800R-01T32 VVEA-1620-1800R-01T32 VVEA-1000-1560R-01T32 VVEA-2360-2400R-01T32 VVEA-1900-2320R-01T32 Note: 1. The refrigerant pipe should be thickened when the single way length is over 90m. 2. When in cooling mode, outdoor is lower than indoor; or when in heating mode, outdoor is higher than indoor, the compensation factor should be decreased the below value from the above figure.
  • Page 76 (2) Calculation method of heating capacity---Heating capacity to be known=Heating capacity x(AxBxCxDxExF) W A. Capacity modification value B. Capacity modification value under outdoor air C. Capacity modification value under indoor air dry-bulb wet-bulb temperature condition. under airflow variation rate of temperature condition.

  • Page 77: Operation Range

    11. Operation range Cooling Heating Indoor temperature (°CWB) Indoor temperature (°CDB)

  • Page 78: Selection Procedure

    12. Selection procedure...

  • Page 79: Noise Level

    13. Noise level 13.1. Testing illustrate 1) Testing illustrate Height 1.4m...
  • Page 80 13.2. Octave band level VVEA-250/280R-01T32 VVEA-335/400R-01T32 VVEA-450/504R-01T32 VVEA-560/615R-01T32...

  • Page 81: Installation

    14. Installation 14.1. Safety • If the air conditioner is transferred to the others, this manual should be tranferred together. • Before installation, please read "Safety precaution" carefully to confirm the correct installation. • The mentioned precaustion includes " WARNING" and " CAUTION". The precausion caused death or heavy injury for faulty installation will be listed in "...
  • Page 82 CAUTION • Execute earthing for the unit. But the earthing wire can not be connected to the gas pipe, water pipe, lightening rod or the telephone earthing wire. Improper earthing will cause electric shock. • Don't install the unit at the place where leaks the flammable gas. Or it will cause fire. •...
  • Page 83 14.2. Installation instruction In installation, please check specially the below items: • If the connected units quantity and the total capacity is in the allowable range? • If the refrigerant pipe length is in the limited range? • If the pipe size is proper? And if the pipe is installed horizontally? •...
  • Page 84 Outdoor Indoor Capacity Combination type Indoor Qty Total indoor capacity (HP) Gather pipe (100W) 1908 Combination (450+450+504+504) 1~64 34~88.4 1962 Combination (450+504+504+504) 1~64 35~91 2016 Combination (504+504+504+504) 1~64 36~93.6 2072 Combination (504+504+504+560) 1~64 37~96.2 2128 Combination (504+504+560+560) 1~64 38~98.8 2184 Combination (504+560+560+560) 1~64 39~101.4...
  • Page 85 Transportation • In transportation, please don't dismantle the packaging, and move the unit to the installation location as closely as possible. • Don't hang the unit only at two points. When hanging the unit, don't sit on the unit. The unit should be upright. When removing the unit with the forklift, put the fork into the special hole at bottom of the unit.
  • Page 86 Outline and installation dimensions Fixed hole distance VVEA-250-400R-01T32 800mm Drain hole 750mm 980mm 70mm Exhaust duct connection position Power line outlet (According to the choice of the power line diameter size. The export, use the attached wire into the sheath) Signal line and Line Signal wire hole diameter Ø25...
  • Page 87 Outdoor unit installation Standard accessories Please check the attachment is complete, please be sure to use. Place No. definition Graphic Quantity Remarks position Installation Accessory instruction Rubber Signal line Accessory plug protection Power line Accessory sheath protection (8HP) (10HP) (12~14HP) (16~22HP) Reducing Accessory...
  • Page 88 Combination installation dimensions • There should be no obstacles in 2000mm above the top of outdoor unit; • Obstacles around outdoor should be greater than 900mm to the bottom of unit. • When multiple modules are installed, the outdoor should be in ranked as the capacity, the larger capacity is closer to the main pipe of gather pipe.
  • Page 89 ˃300mm ˃200mm ˃300mm ˃1000mm 3. Wall higher than the outdoor condenser Place with air inlet hole Notes: a. Fan speed Vs at air inlet is 1.5m/s or below. b. Air outlet height HD=H-h and below 1m. ˃300mm ˃200mm ˃1000mm ˃300mm External air duct...
  • Page 90 Place without air inlet hole Notes: a. Set a 500~1000mm bracket. b. Air outlet height HD=H-h and below 1m. ˃300mm ˃300mm ˃200mm ˃1000mm External air duct 4. The outdoor machine installation should consider the impact of seasonal wind, don't let the wind directly into the unit return air, otherwise it will affect the unit defrosting and related functions 5.
  • Page 91 Install snow cover Outlet snow cover Snowfall area, please install snow cover, see the right Inlet snow cover picture,To be unaffected by the snow, it is important to set up a high platform, which is calculated according to the maximum amount of snow in the area. At the same time, the outdoor external machine defrost setting change to be easy to frost setting, detailed see the digital tube setting.
  • Page 92 Install air ducting There are no obstacles in the 2000mm above the outdoor unit; When there are obstacles in the outer plane, there must be a pilot channel, and the wind will be free, the wind will not beshort-circuited, and the external static pressure will be less than 110Pa.
  • Page 93 19.05 is O-type, the pressure preservation will be bad, thus it must be 1/2H type and over the min. thickness. 3. The branch pipe and the gather pipe must be from Airwell. 4. When installing the stop valve, refer to the relative operation instruction.
  • Page 94 Pipe specification Outdoor gather pipe The first branch pipe a a a 1. Pipe "a" diameter (between indoor and branch pipe) (depends on indoor pipe) Indoor (x100W) Gas pipe(mm) Liquid pipe(mm) 15~28 Ø9.52 Ø6.35 36~56 Ø12.7 Ø6.35 71~140 Ø15.88 Ø9.52 226~300 Ø25.4 Ø9.52...
  • Page 95 3. Pipe "c" diameter (between VP and branch pipe) (depends on VP pipe) Suction gas pipe (mm) HP gas pipe (mm) Liquid pipe (mm) 112B Ø15.88 Ø12.7 Ø9.52 180B Ø15.88 Ø15.88 Ø9.52 280B Ø22.22 Ø19.05 Ø9.52 4. Pipe "d" diameter (between VP branch pipes) Total indoor capacity after the branch pipe Suction gas pipe HP gas pipe...
  • Page 96 Main pipe Enlarged main pipe Outdoor Outdoor Suction gas HP gas Liquid Suction gas HP gas Liquid capacity (HP) capacity (kW) pipe(mm) pipe(mm) pipe(mm) pipe(mm) pipe(mm) pipe(mm) 173.5 Ø41.30 Ø38.10 Ø19.05 Ø44.50 Ø41.30 Ø22.22 179.0 Ø41.30 Ø38.10 Ø19.05 Ø44.50 Ø41.30 Ø22.22 184.5 Ø41.30...
  • Page 97 Long pipe and high drop 1. Allowable piping length and drop between indoor and outdoor Outdoor 3 Outdoor is only one L12 L13 Outdoor 1 The outdoor is more than one unit When the distance between outdoors(L1, L3) is over 2m, the oil trap must be set (upright projecting pipe, 200mm high), as the figure : Outdoor 2 Outdoor 3...
  • Page 98 2. Applicable range Item Model All outdoors Pipe in above figure L5+2×(L6+L7+L8+L9+L11+L12+ Single way total pipe length 1000 m (correspond length) L23)+L10+L16+L17+L18+L19+L 20+L21+L22+L13+L14+L15 Single way pipe length Max. 165/190 (correspond length) L1+L3+ L5+L6+L7+L8+L9+L10 Main pipe beween outdoor to 1st branch Max.130 (correspond length) Outdoor is Max.
  • Page 99 Proper installation Wrong installation Oil return bend Compressor oil will flow into The height of the vertical the lowest unit section see schedule requirements In order to avoid damage to the pipe, the size of the return bend is referred to as the drawing. Pipe diameter Bending radius Vertical heigh...
  • Page 100 4. Example of connection Outdoor unit side (3 pipes) HP gas Pipe (Ø12.7) Indoor unit side (2 pipes) Suction gas Pipe (Ø15.88) KIT VVEA HR < 11,2 Liquid Pipe (Ø9.52) Gas Pipe (Ø15.88) Liquid Pipe (Ø9.52) Outdoor unit side (3 pipes) HP gas Pipe (Ø15.88) Indoor unit side (2 pipes) Suction gas Pipe (Ø15.88)
  • Page 101 Outdoor pipe dimension 24~44HP 46~66HP d Liquid pipe a Liquid pipe e Suction gas pipe b Suction gas pipe c HP gas pipe f HP gas pipe 68~88HP g Liquid pipe h Suction gas pipe i HP gas pipe The pipe "a, b, c, d, e, f, g, h, i" should be confirmed as to the below table Total outdoor capacity before gather Suction gas pipe (a,d,g) HP gas pipe (b,e,h)
  • Page 102 B. Indoor unit C. Pipe spec and the torque Torque(N . m) Diameter (mm) Gas pipe side Liquid pipe side Model Ø6.35 16~20 Diameter Connecting Diameter Connecting (mm) method (mm) method Ø9.52 40~50 Ø9.52 Ø6.35 Ø12.7 40~50 Ø9.52 Ø6.35 Ø15.88 90~120 Ø12.7 Ø6.35...
  • Page 103 Pipe installation Important • Please don't let the pipe and the parts in the unit collide each other. • When connecting the pipes, close the valves fully. • Protect the pipe end against the water, impurity into the pipes (welding after being flat, or being sealed with adhesive tape).
  • Page 104 B. Leakage test 1. The outdoor unit has been executed the leakage test in the factory. The pipe should be executed leakage test individually and forbidden to test after connecting with stop valve. 2. Refer to the below figure to charge the nitrogen into the unit to take a test. Never use the chlorin, oxygen, flammable gas in the leakage test.
  • Page 105 D. Check valve operation Open/ close method: (The suction gas pipe stop valve for VVEA-250R-01T32, VVEA-280R-01T32, VVEA-335R-01T32, VVEA-400R-01T32,VVEA-450R-01T32,VVEA-504R-01T32,VVEA-560R-01T32,VVEA-615R-01T32) • Take down the valve cap, suction gas pipe, HP gas pipe turns to "open" • Turn the liquid pipe and the oil equalization pipe with hexangular spanner until it stops. If opening the valve strongly, the valve will be damaged.
  • Page 106 Note: • To prevent the oil going into the pipe, please use the special tool for R410A, especially for gauge manifold and charging hose. • Mark the refrigerant type in different colour on the tank. R410A is pink. • Must not use the charging cylinder, because the R410A will change when transferring to the cylinder. •...
  • Page 107 14.4. Electric wiring and the application Note: 1. Please follow the national electrical standards, all provided parts, raw materials must comply with local laws and regulations. And please professional electrician installation. 2. Power supply must use the rated voltage and air conditioning unit dedicated power supply, power fluctuations in the power supply ratio of less than 2%, and were designed indoor unit, outdoor machine dedicated power.
  • Page 108 3. If the power cord length is greater than 20m, please increase the cable cross-sectional area, so as to avoid overload caused by the accident. 4. When the voltage drop at the power supply line exceeds 2%, increase the wire diameter appropriately. 5.
  • Page 109 Power line installation instructions Note: When connecting the power cord, please be sure to set aside enough length in the outdoor, which is convenient for turning over the electrical box. , and the box body is rotated to the left, and the steel wire rope in the column is used to check the box to prevent the turning. Left column Hook When connecting the power cord, please be sure to set aside enough length in the outdoor, which is convenient for...
  • Page 110 Communication wiring figure (Wired) control wire for wired controller with polarity Communication wire with polarity Note: • Outdoor units are in parallel through 3 polar wires. The outdoor and all VP (cooling and heating switching device) and all indoor units are in parallel through 2 non-polar wires. •...
  • Page 111 B. One wired controller controls one indoor unit, as shown in the above figure (indoor unit 6-19). The indoor unit and the wired controller are connected via three lines with polarity. C. Two wired controllers control one indoor unit, as shown in the figure (indoor unit 20). Either of the wired controllers can be set to be the master wired control while the other is set to be the slave wired controller.

  • Page 112: Branch Pipe Dimension

    15. Branch pipe dimension 3-pipe systerm TAU335HR TAU506HR TAU730HR TAU1350HR TAU2040HR Unit: mm, ID: inner diameter, OD: outer diameter Note: Cut off the pipe from its middle when using. Liquid Suction gas branch pipe HP gas branch pipe Liquid branch pipe Suction gas manifold pipe HP gas manifold pipe manifold pipe...
  • Page 113 2-pipe systerm Liquid side Gas side connection connection of Model Gas side branch pipe Liquid side branch pipe of branch pipe branch pipe TAU335 Φ9.53 Ø19.05 ID9.7 ID16.1 ID6.5 ID12.9 TAU506 Φ9.52 Ø22.22 ID12.9 ID22.4 ID9.7 ID19.3 ID6.5 ID16.1 ID12.9 Ø55 TAU730 Ø22.22...
  • Page 114 Liquid side Gas side connection connection of Model Gas side branch pipe Liquid side branch pipe of branch pipe branch pipe Φ19.05 TAU1350 ID16.1 Ø28.6 ID12.9 ID9.7 ID28.8 ID6.5 ID49 Φ44.5*1.5 41.3*41.3*38.1 Φ44.5*1.5 41.3*41.3*38.1 Φ44.5*1.5 Φ44.5*1.5 TAU2040 38.1*1.3 38.1*1.3...

  • Page 115: Gather Pipe Dimension

    16. Gather pipe dimension Gather pipe is used for combination of outdoor unit. TBS20HR (for 2 basic modules), TBS30HR (for 3 basic modules),TBS40HR (for 4 basic modules), Note: Cut off the pipe from its middle when using. Unit: mm, ID: inner diameter, OD: outer diameter Model Side Mark...
  • Page 116 Model Side Mark Manifold pipe Insulation material Side Mark Connection of manifold pipe *440 +0.2 ID25.6 +0.15 22.4 +0.15 19.2 *326 *301 +0.15 ID16.1 +0.15 ID12.9 +0.15 ID9.7 *203...
  • Page 117 Model Side Mark Manifold pipe Insulation material Side Mark Connection of manifold pipe *440 +0.2 ID25.6 +0.15 22.4 +0.15 19.2 *326...
  • Page 118 Model Side Mark Manifold pipe Insulation material Side Mark Connection of manifold pipe *301 +0.15 ID16.1 +0.15 ID12.9 +0.15 ID9.7 *203...

  • Page 119: Part 2 . One By One Valve Box

    One by one valve box Part 2 . 1. Specification KIT VVEA KIT VVEA KIT VVEA HR < Model HR < 28 HR < 18 11,2 Power Supply 1/220-230/50/60 Max. Number of branch lines Branching Number of Connectable Indoor Units Total Number of Connectable Indoor Units Branching Capacity of Connectable...

  • Page 120: Dimension

    2. Dimension...

  • Page 121: Piping Diagram

    3. Piping diagram Cooling ＞He All cooling LEVA2 LEVA2 Capi. Capi. LEVA1 LEVA1 LEV SC All heating / Hea Heating standby Cooling ＞Heating LEVA2 LEVA2 Capi. Capi. LEVA1 LEVA1 V SC LEV SC...
  • Page 122 All heating / Heating ＞ Cooling / Heating standby ＞Heating Cooling OF LEVA2 LEVA2 Capi. Capi. LEVA1 LEVA1 LEV SC LEV SC g ＞ Cooling / Cooling OFF LEVA2 Capi. LEVA1 LEV SC LEV SC...

  • Page 123: Wiring Diagram

    4. Wiring diagram 3 2 1 CN28 CN31 LED3 Tliqsc Tsco SW03 LED4 LED5 LED2 LED1 CN11 CN10 PMV3 BSV2 PMV2 BSV1 PMV1 Qo Po Qi Pi Terminal Terminal Block for Block for Communication Power To power supply Connect Connect Notice：...

  • Page 124: Installation

    5. Installation Outdoor unit side (3 pipes) HP gas Pipe (Ø12.7) Indoor unit side (2 pipes) Suction gas Pipe (Ø15.88) KIT VVEA HR < 11,2 Liquid Pipe (Ø9.52) Gas Pipe (Ø15.88) Liquid Pipe (Ø9.52) Outdoor unit side (3 pipes) HP gas Pipe (Ø15.88) Indoor unit side (2 pipes) Suction gas Pipe (Ø15.88) KIT VVEA HR <...
  • Page 125 • If the valve box is transferred to a new user, this manual shall be transferred to the user, together with the conditioner. • Before installation, be sure to read Safety Considerations in this manual for proper installation. • The safety considerations stated below is divided into “ Warning”...
  • Page 126 • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 127 Do not install at such places 1. A place that is filled with mineral oil, a kitchen which has oil and steam everywhere, etc., which may cause degradation, falling off and water leakage of the resinous components. 2. A place with corrosive gases such as sulphurous acid gas, which will lead to the corrosion of the copper tube, welding joint, etc., causing refrigerant leakage.
  • Page 128 Combinations • This series is cooling and heating heat recovery models. Only when the system is equipped with valve box, indoor units under different valve boxes can achieve cooling and heating simultaneously. The modes of the indoors which under the same valve box should be the same. If the indoors connected without valve box, the indoors only can do cooling mode.
  • Page 129 1. Pre-installation The installation location selected shall meet the following conditions and be approved by users. • The strength shall be sufficient to withstand the weight of the valve box • There is no significant tilt on the plane. • Ensure that there is enough space for installation and maintenance.as show in Fig.1 •...
  • Page 130 2. Preparation before installation...
  • Page 131 3. Installation of valve box Use parts and components specified for installing the installation components. (1) Change the installation direction of electric box according to requirements following the steps below; (see Fig.1) Remove the cover of the electrical appliance box; (2 screws) Remove the electrical appliance box;...
  • Page 132 Nut (purchased locally) Gasket (purchased locally) Lifting tool 10-15mm Valve box Double nuts (purchased locally) Lifting bolt (purchased locally) Fig.6 4. Refrigerant pipe Installation • Pipes between the outdoor unit and valve box, selection of refrigerant branching suite, and the Pipe between refrigerant branching suites and the indoor units, please refer to the installation instructions or equipment design data attached to the outdoor unit.
  • Page 133 <Notes> • Please do not let any type of gas other than the specified refrigerant go into the refrigeration system; • In case of refrigerant leakage during operation, please replace the gas. (Fill the refrigerant at the outdoor unit) Select piping material •...
  • Page 134 <Table-3> Tube size Tightening torque (N.m) Machined flare size A (mm) Flare shape Ø6.35 14.2~17.2 8.7~9.1 Ø9.52 32.7~39.9 12.8~13.2 Ø12.7 49.5~60.3 16.2~16.6 Ø15.88 61.8~75.4 19.3~19.7 Ø19.05 97.2~118.8 23.7—23.9 Ø22.22 117.2~138.8 28.2-28.5 <Table-4> Pipe size Tightening angle Recommended tool length (mm) Ø6.35 60°~90°...
  • Page 135 <Note> • For pipe welding, do not use antioxidant, for its residue may cause tube blocking and component fault. • For pipe welding, do not use flux. If the flux is chlorine product, it will corrode the tube; if it contains fluorine, it will even cause detrimental effects to the refrigerant system, such as refrigerant oil deterioration.
  • Page 136 <Table 6> Dimensions (mm) of connection tube of the indoor units Total capacity type of the indoor units Pipe dimensions (OD × minimum wall thickness) (×100W) Gas pipe Liquid pipe 22, 28 Ø9.52×0.8 Ø6.35×0.8 36, 45, 56 Ø12.7×0.8 Ø6.35×0.8 71, 80, 90, 112, 140 Ø15.88×1.0 Ø25.4×1.2 Ø9.52×0.8...
  • Page 137 Note HP gas pipe (*1) Gas pipe (*1) Valve box (Top side) Suction gas pipe (*1) Liquid pipe (*1) Liquid pipe (*1) Flare nut (*2) Flare nut (*2) Auxiliary pipe Flare nut (*2) Auxiliary pipe Flare nut (*2) Gas pipe (*1) Gas pipe (*1) Valve box (Top side) Valve box (Top side)
  • Page 138 (Note1): Auxiliary pipe -1,2,3: Install the flare nuts first and then use the auxiliary pipe after being flared in the field. Enlarge pipe Flare nut (*2) Gas pipe (*1) Fig.14 KIT VVEA HR < 28 The total capacity of the indoor unit in the downstream is more than 18.0 kW but less than 22.4 kW. Auxiliary pipe Auxiliary pipe Auxiliary pipe...
  • Page 139 Pipe insulation Please use the auxiliary insulation cylinder and anchor for insulation works according to Fig.17 after the gas leakage test. Tie wire (large) Insulation pipe HP gas pipe (*1) Gas pipe (*1) Suction gas pipe (*1) Insulation pipe Valve box (Top side) Liquid pipe (*1) Liquid pipe (*1) Tie wire (small)
  • Page 140 Warning • Electrical construction should be made with specific mains circuit by the qualified personnel according to the installation instruction. Electric shock and fire may be caused if the capacity of power supply is not sufficient. • During arranging the wiring layout, specified cables should be used as the mains line, which accords with the local regulations on wiring.
  • Page 141 Graphical representation for wiring Connect the communication terminal block P and Q of the main unit of the outdoor units with the communication terminal block P and Q of the first valve box (VP 1). Outdoor 1 Outdoor 2 Outdoor 3 To power supply 1PH,220-230V~, The communication wire of valve...
  • Page 142 (6) Tighten terminal screws with proper screw driver. Screw driver of small dimension will damage the screw head and fail to tighten properly. (7) If terminal screws are tightened excessively, they may be damaged. Refer to the following table for tightening torques of terminal screws: Dimension of terminal screw Tightening torque (N.m)

  • Page 143: Part 3 . One By Four Valve Box

    One by four valve box Part 3 . 1. Specification Model KIT VVEA HR 4 PORTS < 45 Power Supply 1/220-240/50/60 Max. Number of valve boxes that can be connected in series Branching Number of Connectable Indoor Units Dimension (W×H×D) 396×290×411 39.7(18) Liquid Pipe-Connect To Outdoor Unit...

  • Page 144: Dimension

    2. Dimension 4×22 4×52 65 65 65 76 65 65 65 44...

  • Page 145: Piping Diagram

    3. Piping diagram LEVhi LEVlo LEVhi LEVlo LEVhi LEVlo LEVhi LEVlo Liquid pipe （Ø15.88 ） High pressure gas pipe （Ø28.58 ） Gas pipe （Ø28.58 ）...

  • Page 146: Wiring Diagram

    4. Wiring diagram i l T i l T i l T s q` i l T...

  • Page 147: Installation

    5. Installation HP gas Pipe (Ø28.58) Plug Suction gas Pipe (Ø28.58) Plug Liquid Pipe (Ø15.88) Gas Pipe (Ø15.88) Liquid Pipe (Ø9.52) Before installation , be sure to remove the plug .When the valve box is connected with the outdoor unit, the left side of the three pipes or the right side of the three pipes can be selected according to the actual installation requirements.
  • Page 148 • If the valve box is transferred to a new user, this manual shall be transferred to the user, together with the conditioner. • Before installation, be sure to read Safety Considerations in this manual for proper installation. • The safety considerations stated below is divided into “ Warning”...
  • Page 149 • When contacting electrical components, ensure they are powered off. Contacting the live part may result in the danger of electric shock. • If there is leakage of the refrigerant gas flow during operation, refrigerant gas is required. If the refrigerant gas contacts any fire, poisonous gases will be produced.
  • Page 150 Do not install at such places 1. A place that is filled with mineral oil, a kitchen which has oil and steam everywhere, etc., which may cause degradation, falling off and water leakage of the resinous components. 2. A place with corrosive gases such as sulphurous acid gas, which will lead to the corrosion of the copper tube, welding joint, etc., causing refrigerant leakage.
  • Page 151 Wiring KIT VVEA HR 4 Auxiliary pipe Insulation tube PORTS < 45 harness Quantity Ø16.1 Ø19.2 Shape Ø10 Ø16 Ø28 Ø46 Ø22.22 Ø22.22 KIT VVEA HR 4 Specification PORTS < 45 Quantity Shape Ø9.52 Ø15.88 <Entrustment> Before the installation is completed, do not abandon the accessories needed in installation. Combinations •...
  • Page 152 Inspection item Pay much attention to the following during installation. Check them again after completion. (1) Inspection items after installation Inspection item Defect Inspection column If the installation of valve box is secure ? Falling off, vibration and noise If gas leakage inspection is completed ? No heating/cooling If complete insulation is achieved (refrigerant piping Water leakage...
  • Page 153 1. Pre-installation The installation location selected shall meet the following conditions and be approved by users. • The strength shall be sufficient to withstand the weight of the valve box • There is no significant tilt on the plane. • Ensure that there is enough space for installation and maintenance.as show in Fig.1 •...
  • Page 154 2. Preparation before installation (1) Valve box dimension (mm) 4×22 4×52 65 65 65 76 65 65 65 44 Fig.2 See the Fig.4 to install the lifting bolts and hoisting tools. • Use the lifting bolts with the size of M8~M10 •...
  • Page 155 3. Installation of valve box Use parts and components specified for installing the installation components. Install the lifting tools on the lifting bolts according to the instruction of the Fig.5 Be sure to follow the stipulations on products locally purchased to use nuts (M8 or M10 of 3 pieces for 4 positions) and gaskets (M8 with the outer diameter of 24~28 mm and M10 with that of 30~34 mm of 2 pieces for 4 positions) on the upper and lower sides of the lifting tools.
  • Page 156 The high-pressure gas pipe, suction gas pipe, liquid pipe must be provided with reliable thermal insulation. In the absence of thermal insulation, liquid leakage may happen. The outdoor unit is already filled with refrigerant. To connect the pipes to valve box or remove them from valve box, do use both spanner and torque wrench, as shown in the Fig.6.
  • Page 157 Wall thickness and size: select proper sizes according to Selection of piping dimensions • For the permissible maximum length, permissible elevation difference and permissible length after branching, please refer to the installation instructions or technical data attached to the outdoor unit. •...
  • Page 158 <Table-2> Pipe size Tightening angle Recommended tool length (mm) Ø6.35 60°~90° Ø9.52 60°~90° Ø12.7 30°~60° Ø15.88 30°~60° Ø19.05 20°~35° Ø22.22 15°~30° Ø19.05 pipe connected on site Apply refrigerant oil Valve box Welding Accessory pipe Ø19.05 pipe connected on site Valve box Fig.8 Welding Fig.9...
  • Page 159 Selection of piping dimensions Select refrigerant branching dimensions between outdoor units and valve box, between valve box and indoor units according to the following connection examples 1 and 2 and Tables 1-3. Connection example 1: Connect an indoor Connection example 2: with branching in the unit to the downstream of the valve box downstream of the valve box Downstream...
  • Page 160 <Table 2> Dimensions (mm) of connection tube of the indoor units Indoor (×100W) Gas pipe (mm) Liquid pipe (mm) 22~28 Ø9.52×0.8 Ø6.35×0.8 36~56 Ø12.7×0.8 Ø6.35×0.8 71~112 Ø15.88×1.0 Ø9.52×0.8 Note: High wall 0.8/1HP gas pipe: Ø12.7 High wall 2HP gas pipe/liquid pipe: Ø15.88/Ø9.52 <Table 3>...
  • Page 161 Suction gas Pipe (Ø28.58) Welding HP gas Pipe (Ø28.58) Sealing cap (Ø28.58) Valve box (Top side) Welding Sealing cap (Ø15.88) Liquid Pipe (Ø15.88) Gas Pipe (Ø15.88) Liquid Pipe (Ø15.88) Flare nut Indoor unit Suction gas Pipe (Ø28.58) Welding Welding HP gas Pipe Sealing cap (Ø28.58) (Ø28.58)
  • Page 162 Pipe insulation Please use the auxiliary insulation cylinder and anchor for insulation works according to Fig.12 after the gas leakage test. Tie wire (small) Tie wire (small) Insulation pipe Insulation pipe Valve box (Top side) Tie wire (small) Tie wire (small) Insulation pipe Insulation pipe Tie wire (small)
  • Page 163 Note 1: For suction gas pipes, high pressure gas pipe and liquid pipes, gas pipe, flare connections shall be wrapped with insulation materials (purchased locally) when their auxiliary insulation cylinders have been installed. For installation of insulation materials for the flare Field pipe Auxiliary pipe nut connections, it shall be cautioned that:...
  • Page 164 Warning • Electrical construction should be made with specific mains circuit by the qualified personnel according to the installation instruction. Electric shock and fire may be caused if the capacity of power supply is not sufficient. • During arranging the wiring layout, specified cables should be used as the mains line, which accords with the local regulations on wiring.
  • Page 165 The wiring for the power line and signal line of valve box The wiring for the power line of valve box, the wiring for the signal line between valve boxes and outdoor units as well as the wiring between valve boxes. Items Cross Sectional Area of Signal Line Rated...
  • Page 166 (3) Two-core nonpolar communication line with shield shall be adopted for communication lines between the valve box and the indoor/outdoor unit. Three-core polar communication line with distinguished polarities and shield shall be adopted for the wire controller connected to the indoor unit. (4) All valve boxes within one system may share one overcurrent breaker for power supply.

  • Page 167: Trial Operation Confirmation

    Trial operation confirmation The test run confirmation, in principle, shows that all the indoor units should be confirmed one by one. The improper connection of refrigeration pipe and control wire cannot be confirmed when all the indoor units are running simultaneously. So all the other indoor units should be set in "stopped condition". A.
  • Page 170 B. Air blower operation confirmation...
  • Page 171 C. Cooling operation confirmation...
  • Page 172 D. Heating operation confirmation...
  • Page 173 (Note 1)The general standard for temperature difference between inlet and outlet air In "cooling" operation, it is normal that the dry bulb temperature difference between inlet air and outlet air of the air conditioner is over 10°C (at the maximum frequency) after 30 minutes at least. In "heating"...
  • Page 174 C o n n e c t i n g m e t h o d s d e v i c e : Position of inserting test device (CN47) Insert one end of data line into the terminal of main PCB CN31 with a two-core terminal, one end connects with 485 device or Gangda device, the other end of the device connects computer.

  • Page 175: Startup

    7. Startup 7.1 Startup procedure 1. The materials preparation before on-site commissioning --Printed drawing of architectural design --Printed installation checking list and system start request --Startup manual --Flow Logic IV service manual --Trouble shooting and error code 2. Read the attention carefully before start up 3.
  • Page 176 5. Indoor unit --Anti-dust protection during installation --Installed on properly level --Service space reserved at least 50X50cm 6. Outdoor unit -- Installed an anti-vibration at the bottom -- Space (20cm/7.87inch away from each other) -- Gather pipe are the same level -- Breaker -- Communication cable (A / B / C, PQ) 7.
  • Page 177 7.3 Wiring-dip switch 1. Indoor dip switch setting—Indoor units for F l o w L o g i c I V and indoor units for Fl o w Lo g i c I I I are the same, so indoor dip switch setting is completely the same, please check with the service manual. 2.
  • Page 178 7.4 Power on 1. For the protection of the compressor, It is required to preheat the compressor oil before start up the indoor and outdoor units. 6 hours of preheating is the standard time for the preheating, the engineers have to wait for 6 hours until the compressor oil reaches the required temp.
  • Page 179 7.7 Flow Logic IV system startup report Flow Logic IV INSTALATION CHECK LIST AND SYSTEM START UP REQUEST ENGLISH BETA 1.2 PROJECT: CUSTOMER: INSTALLER: CITY/COUNTRY: ADDRESS: CONTACT TEL: DATE: PROJECT CONFIGURATION SYSTEM 1 CODE MODEL SYSTEM 2 CODE MODEL SYSTEM 3 CODE MODEL SYSTEM 4 CODE MODEL...
  • Page 180 Flow Logic IV ENGLISH BETA 1.2 INSTALATION CHECK LIST 1. PREINSTALATION 1.1. REFRIGERATION PIPING * Refrigerant piping are correctly insulated. * Refrigerant piping have enough fixed supports. * All welds were made with permanent nitrogen flow, to create an inert atmosphere. * All branch pipes are installed in horizontal direction.
  • Page 181 Flow Logic IV 1.6. OUTDOOR UNITS * Is Installed an anti-vibration system for the outdoor units. * The ground where the outdoor units are must be properly leveled. * 1 meter of distance is guaranteed for the outdoor units of walls and others. * Outdoor units are in the perfect physical conditions, free of dents or dings.
  • Page 182 Flow Logic IV ENGLISH BETA 1.2 SYSTEM START UP LIST SYSTEM CODE MODEL * Refrigerant recharge calculation Liquid pipe size Multiple factor Length Subtotal 6.35 (1/4") 0.022 9.52 (3/8") 0.054 12.7 (1/2") 0.11 15.88 (3/4") 0.17 19.05 (5/8") 0.25 22.22 (7/8") 0.35 25.4 (1") 0.52...
  • Page 183 Flow Logic IV ENGLISH BETA 1.2 START UP * Do measurements with all units switched ON after 1 hour. Items SW9/10/11 Master SW9/10/11 SLAVE 1 SW9/10/11 SLAVE 2 Pressure Pd1 (bar) 0/0/1 1/0/1 2/0/1 Pressure Ps (bar) 0/2/1 1/2/1 2/2/1 Temp.Td1 (°C) 0/3/1 1/3/1...

  • Page 184: Part 4

    Part 4 . 1. Outdoor PCB photo and dip switch setting Outdoor PCB code: 0151800256D SMG2 SMG1 SW4 (UP) SW6 (STOP) SW5 (START) SW7 (DOWN) LED1 LED3 LED4 BUS-B LED5 LED6 LED7 BUS-A Emergency stop...
  • Page 185 Function Function Power connector Emergency stop signal connector Solenoid valve connector Monitoring PC WIFI connector Low-power standby control connector Power suppression signal connector Compressor heating tape connector Expansion PCB 12VDC power supply connector High pressure switch connector Zigbee wireless communication connector Outdoor EEV connector Expansion PCB communication connector Ambient temperature, coil temperature sensor...
  • Page 186 Compressor driver board: 0151800260E Function Connected reactor connector Low-power standby control connector Connect electrolytic capacitor PCB connector Module three-phase power input connector Module drive output connector Dip switch Programming connector Main PCB and fan motor communicating connector 15VDC power output connector...
  • Page 187 Filter board: 0150401866 Function Filter board output connector Filter board ground wire connector Filter board power input connector...
  • Page 188 Capacitor board:0150401863 Function Electrolytic capacitor negative connector Fan DC power supply connector Electrolytic capacitor positive connector...

  • Page 189: Outdoor Pcb Dip Switch Setting

    2. Outdoor PCB dip switch setting LED light definition: • LED1: power supply lamp Power on light • LED3: electronic expansion valve LEVa1, LEVa2, fault lamp No fault, not light • LED4: electronic expansion valve LEVb, LEVc, fault lamp No fault, not light •...
  • Page 190 Outdoor dip switch introduction Identification: • Physical master unit: by setting dip switch, the unit number is 0. It is used to communicate with indoor unit, also it is the organizer of outdoor communications as communication master unit. • Functional master unit: the outdoor with the highest priority of running, the priority class is 0. •...
  • Page 191 ② BM2 introduction BM2_1 Reserved Reserved BM2_2 Outdoor unit heat mode Normal(default) BM2_3 setting (valid when BM1_4 Heating only Power on, Outdoor locks the indoor Locked the indoor wireless module MAC address (default) no action BM2_4 wireless module MAC address Power on, Allow all new indoor wireless modules to join (Single-system (Wireless communication)
  • Page 192 ④ BM4 introduction: Group class (physical master unit is valid) BM4_1 BM4_2 Protocol selection Third party standard MODBUS protocol (default) ModeBus BM4_1 Centralized control BMS protocol (HCM*） BM4_2 protocol selection Central control protocol (YCZ*) Reserved BM4_3 Reserved Reserved ModeBus set control communication address BM4_4 BM4_5...
  • Page 193 Outdoor unit digital tube display settings The contents of the display are defined as follows: • Key parts: long press the left START (SW5) control to enter, short press above UP (SW4) data increase, short press down DOWN (SW7) data reduction, long press the right STOP (SW6) control exit •...
  • Page 194 function Digital tube LD1 ~ 4 display (1) press START (SW5) for 2 seconds, to enter the instruction set state, flashing display instructions. Forced indoor (2) according to UP (SW4) or DOWN (SW7) () adjustment instructions (COOL/ 14（E） mechanism cooling / HEAT/OFF).
  • Page 195 function Digital tube LD1 ~ 4 display Outdoor unit LEVa1 open degree 0---470pluse Press START (SW5) for 2 seconds, 1111, enter the Outdoor unit LEVa2 open degree set state: flashing, press UP (SW4) valve fully open, according to DOWN (SW7) 2min after the valve is fully Outdoor unit LEVb open degree closed;...
  • Page 196 function Digital tube LD1 ~ 4 display Outdoor 14（E） 15（F） Frequency converter INV1 module temperature Unit: degree unit address 15（F） 15（F） Frequency converter INV2 module temperature Unit: degree ③ System status display and control (host) function Digital tube LD1 ~ 4 display Refrigerant type 410A represents 410A refrigerant LD1：The total number of outdoor unit...
  • Page 197 ④ E2 control parameters display and setting Each need to be set, setting method: (1)Press START (SW5) for 2 seconds, display 1111, enter the set state, flashing display the current value (2)According to UP (SW4) or DOWN (SW7) adjustment parameters (3)After the adjustment is completed <A>...

  • Page 198: Valve Box Pcb Photo And Dip Switch Setting

    3. Valve box PCB photo and dip switch setting One by one valve box PCB code: 0151800186A...
  • Page 199 SW03 is used for valve box address setting Manner of set Set the address with automatism （default） SW03_1 address Set the address with dip switch Pre-set（default） SW03_2 Pre-set Pre-set Communication address OFF OFF OFF OFF OFF OFF 0#（default） OFF OFF OFF OFF OFF ON OFF OFF OFF OFF ON OFF OFF OFF OFF OFF ON OFF OFF OFF ON OFF OFF...
  • Page 200 Communication address ON OFF OFF ON OFF OFF ON OFF OFF ON OFF ON ON OFF OFF ON ON OFF ON OFF OFF ON ON OFF ON OFF OFF OFF ON OFF ON OFF OFF ON ON OFF ON OFF ON OFF ON OFF ON OFF ON ON OFF ON ON OFF OFF...
  • Page 201 One by four valve box PCB code: 0151800466...
  • Page 202 SW1 sets the communication address between the valve box and the indoor unit 1. SW2 sets the communication address between the valve box and the indoor unit 2. SW3 sets the communication address between the valve box and the indoor unit 3. SW4 sets the communication address between the valve box and the indoor unit 4.
  • Page 203 Communication address ON OFF OFF ON OFF OFF ON OFF OFF ON OFF ON ON OFF OFF ON ON OFF ON OFF OFF ON ON OFF ON OFF OFF OFF ON OFF ON OFF OFF ON ON OFF ON OFF ON OFF ON OFF ON OFF ON ON OFF ON ON OFF OFF...

  • Page 204: Control Function

    4. Control function 4.1 Compressor control 4.1.1. Cycle start function of compressor (1) According to different load of indoor unit, determine the starting number of compressors and outdoor unit (2) If there is only 1 outdoor unit with 2 compressors, shift the priority of compressor 1 and 2 every 4 hours. (3) If there are several outdoor units, the priority of these outdoor units shall be shifted every 8 hours.
  • Page 205 4.2 Electronic expansion valve control Cooling: when startup, the electronic expansion valve is maintained at 100 pls and the electronic expansion valve is fully open after startup. Heating: When heating, the electronic expansion valve is usually superheated to certain degrees. SH = Toci1-ET 4.3 Fan motor control ①...
  • Page 206 a. In cooling mode the motor control by the high pressure. If Pd <20kg, the motor will reduce 1 class every 20 seconds, until the lowest class; if 20kg≤Pd<25kg, the motor run at the current speed, if Pd≥25kg, the motor will raise 1 class every 20 seconds, until the highest class b.
  • Page 207 ③ Restart of the compressor 1. In the control of the compressor, in order to prevent the starting at differential pressure, it must take some time to balance the high and low pressure after stopping fully, the restarting will delay automatically, and the compressor can restart after stopping for 3 to 5 minutes.
  • Page 208 3. When the operation output ratio of the outdoor unit 1 (actual operating frequency/total operating frequency) continue to rise up to the 75%, two compressors in the outdoor unit 2 will also work at the same time. 4. When the total operation output ratio of the outdoor unit 1 and outdoor unit 2 (actual operating frequency/total operating frequency) rises up to the 75%, two compressors in the outdoor unit 3 will also work at the same time.
  • Page 209 4.6 Defrosting control When one of the running outdoors reaches the defrosting condition, it will send defrosting signal to the master unit. After the master unit receives defrosting signal, it will send defrosting signal to all slave outdoors. All outdoor units will self-control after receiving the signal.
  • Page 210 4.8 High pressure protection In order to maintain normal cooling and heating operation, high pressure control is performed by a high pressure sensor. Limit the upper limitation of the compressor operating frequency and operating under a certain high pressure value 4.9 Low pressure protection By SV1 and compressor operating frequency control to maintains the low pressure above a specified value.
  • Page 211 In heating: ·Td low temperature side (<CT+10°C) is controlled by the[the first stage is indoor unit SH control/ the second stage is compressor output control/ the third stage is minimum number of outdoor units running control When the Td superheat is less than 25°C, the exhaust temperature will be increased by correcting the indoor unit superheat.
  • Page 212 ② Heating high pressure control Target pressure Pd when heating Remarks Long piping setting 30kg Medium piping setting 28kg Factory default setting Short piping setting 26kg During heating, the operating frequency of compressor is fuzzy controlled based on target Pd. The frequency of compressor goes down and Pd goes down;...
  • Page 213 Compressor ANB42 ANB52 ANB66 ANB78 ANB87 Rated Current 4.32 Heating is prohibited When the outdoor temperature is greater than or equal to 25 degrees, the setting can be made through the outdoor unit rotary dial, and the outdoor is prohibited from starting. Function Digital tube LD1 ~ 4 display Heating limitation when...

  • Page 214: Outdoor System Basic Control

    5. Outdoor system basic control Cooling Part name Operation Remark Compressor capacity control for Compressor cooling operation Fan motor Cooling operation fan control 4-way valve Electrinica expansion valve 470pls LEVA1 Electrinica expansion valve 470pls LEVA2 Solenoid valve SV1 Auto For low pressure control Solenoid valve SV3 Auto For discharging superheat control...
  • Page 215 In cooling Part name Operation control method Remark Compressor frequency up speed Compressor Soft start control 1rps/s, up to 60rps After the initial fan speed runs for 30 seconds, PID control will be Fan motor According to high pressure control performed according to the high pressure 4-way valve...
  • Page 216 Oil return control in cooling Oil return Oil return process Part name preparation End of oil return control control control Compressor Current frequency Oil return frequency Frequency before oil return Fan motor High voltage control High voltage control High voltage certain control 4-way valve Electrinica expansion valve 470pls...
  • Page 217 Indoor unit state when oil return control in cooling Part name of indoor Indoor unit wired Oil return operation in cooling unit controller Thermometer ON Fan motor Thermometer OFF Stop Thermometer ON Oil return open angle E l e c t r i n i c a e x p a n s i o n Thermometer OFF Oil return open angle valve...
  • Page 218 Stop control----When the system is in stop mode Part name Operation control Remark Compressor Fan motor 4-way valve Electrinica expansion valve Closed LEVA1 Electrinica expansion valve Closed LEVA2 Solenoid valve SV1 Solenoid valve SV3 Solenoid valve SV9 Solenoid valve SV10 Indoor temperature control Quit conditon is turned on...
  • Page 219 High and low pressure control High pressure control in cooling Normal operation Pd> 3.7MPa Pd< 3.5MPa Reduce compressor output capacity Pd> 4.15MPa Locked 3 times in 1 hour Hiph pressure stanby High pressure control in heating Normal operation Pd> 3.5MPa Pd<...
  • Page 220 Low pressure control in cooling Normal operation Pd< 0.35MPa Pd> 0.4MPa Reduce compressor output capacity Pd< 0.05MPa Locked 3 times in 1 hour Low pressure stanby Low pressure control in heating Normal operation Pd< 0.15MPa Pd> 0.2MPa Reduce compressor output capacity Pd<...
  • Page 221 Module control Module current protection control Normal operation Inverter current> Inverter current<standard current×1.05 standard current×1.1 Reduce compressor output capacity I n v e r t e r c u r r e n t > r a t e d current×1.25 Locked 3 times in 1 hour Overcurrent standby...
  • Page 222 5.4 4-way valve reversing When the four-way valve is switched, the high pressure point of the valve needs to reach the minimum pressure difference required by the valve action. 5.5 Supercooling coil control In cooling, the liquid outlet temperature Tliqsc of the suppercooling coil is controlled by adjusting the electronic expansion valve LEVb.
  • Page 223 5.14 Balancing oil operation (1) When more than 2 outdoor units are in operation, the master / slave unit will balancing oil every 20 minutes; (2) Balancing oil between the outdoor units, according to the pressure difference between the pressure of the high pressure chamber compressor oil pool of the oil discharging oudoor unit and the pressure of the suction side of the oil absorbing outdoor unit.
  • Page 224 5.17 Refrigerant recovery control during maintenance (1) When the outdoor unit is discarded and transferred, the refrigerant needs to be recovered from the outdoor unit. At this time, the outdoorl unit performs the refrigerant recovery operation. (The refrigerant in the system is recycled to the outdoor unit) (2) This control operation by hand (3) Operation step:...
  • Page 225 5.19 Quiet operation control This control is to deal with noise regulations at night or in the residential area. At night when the outdoor temperature is low, the quiet operation control is realized by "outdoor fan speed reduction and compressor speed reduction" (1) Relationship between master unit and slave unit Master outdoor unit receives the control signal and sent it to the slave outdoor unit, then the slave unit operate follow the directions.
  • Page 226 Outdoor ambient temperature range for silent operation mode Heating mode Cooling mode Valid Relieve Relieve Valid Outdoor ambient temperature Tao (℃ ) Outdoor ambient temperature Tao (℃ ) (4) Complete condition (1) Get the control complete signal from the external port like the central controller (2) Get the control complete signal from the local controller (3) All the indoor units’...

  • Page 227: Failure Code

    6. Failure code Failure code description: (failure code of the whole system is showed as 8 bits, so totally 256 codes. Indoor failure code should be judged by the table and the unit number) • Outdoor failure code exists in EEPROM, in which 5 failure codes can be kept. •...
  • Page 228 Digital tube Indication indication on wired Failure code Failure description Remarks on master controller definition unit (hex) The searched vp box quantity is less than set quantity for Outdoor unit 26-3 continuous 5 minutes and VP-box communication The searched vp box quantity is more than set quantity for 26-4 failure continuous 5 minutes...
  • Page 229 Digital tube indication Failure code definition Failure description Remarks on master unit After compressor is running，compression ratio ε ＞ 10.0 Compression ratio too forcontinuous 5 minutes ，stop and alarm。2 minutess and Once 39-1 high confirmation Protection Seconds later，resume automatically。If it occurs 4 times un-resumable in an hour，confirm the failure。...
  • Page 230 Digital tube Indication indication on wired Failure code definition Failure description Remarks on master controller unit (hex) Module rectifier side software transient overcurrent Module rectifier side current detection circuit anomaly Module hardware overcurrent In the process of starting or running, the rotor position Compressor out of can not be detected for 6 times in a row, and the INV step...
  • Page 231 In the case of no fault, if the system does not meet the start-up conditions, the host digital display standby code: Indoor machine capacity beyond the Indoor machine capacity beyond the outdoor 555.0 outdoor machine capacity of 150% or machine capacity of 150% or less than 50%, standby less than 50%, standby system system Ambient temperature above 26 degrees indoor heat...

  • Page 232: Troubleshooting

    7. Troubleshooting 7.1. Defrosting temperature sensors Tdef failure Failure code: Outdoor digital display tube: 20-0 Indoor wired controller: 14 Indoor unit LED : LED 5 flash 20 times Outdoor unit LED status : LED1 Normal LED2 Normal Abnormity detection method: ◆...
  • Page 233 7.2. Ambient temperature sensor: Tao failure Failure code: Outdoor digital display tube: 21 Indoor wired controller: 15 Indoor unit LED : LED 5 flash 20 times Outdoor unit LED status : LED1 Normal LED2 Normal Abnormity detection method: ◆ Check if the sensor connection is normal; ◆...
  • Page 234 7.3. Suction temperature sensor: Ts failure Failure code: Outdoor digital display tube: 22-2 Indoor wired controller: 16 Indoor unit LED : LED 5 flash 20 times Outdoor unit LED status : LED1 Normal LED2 Normal Abnormity detection method: ◆ Check if the sensor connection is normal; ◆...
  • Page 235 7.4. Discharging temperature sensor: Td1 and Td2 failure Failure code: Outdoor digital display tube: 23-0,23-1 Indoor wired controller: 17 Indoor unit LED : LED 5 flash 20 times Outdoor unit LED status : LED1 Normal LED2 Normal Abnormity detection method: ◆...
  • Page 236 7.5. Oil temperature sensor: Toil1 and Toil2 failure Failure code: Outdoor digital display tube: 24-0,24-1,24-2 Indoor wired controller: 16 Indoor unit LED : LED 5 flash 20 times Outdoor unit LED status : LED1 Normal LED2 Normal Abnormity detection method: ◆...
  • Page 237 Failure code LED5 Failure description: Outdoor Indoor unit LED status Heat exchanger inlet temperature: digital 20 times Toci1 failure display tube: 25-0 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series 2.
  • Page 238 Failure code LED5 Failure description: Outdoor Indoor unit LED status Communication between indoor unit and digital 20 times outdoor unit failure display tube: 26-0, 1, 2 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 239 Failure code LED5 Failure description: Outdoor Indoor unit LED status Outdoor compressor oil temperature too digital 20 times high failure(Toil1 and Toil2) display tube: 27-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 240 Failure code LED5 Failure description: Outdoor Indoor unit LED status High pressure sensor Pd failure digital 20 times display tube: LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series 2.
  • Page 241 Failure code LED5 Failure description: Outdoor Indoor unit LED status Low pressure sensor Ps failure digital 20 times display tube: LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series 2.
  • Page 242 Failure code LED5 Failure description: Outdoor Indoor unit LED status High pressure switch HPS1 and HPS2 fail- digital 20 times display tube: 30-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 243 FFailure LED5 Failure description: code Indoor unit LED status Defrosting temperature sensor failure: Outdoor 20 times Tsco and Tliqsc digital display tube: LED1 LED2 32-0, 1 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 244 LED5 Failure description: Failure code Indoor unit LED status AT24C04 EEPROM communication failure Outdoor AT24C04 EEPROM data check failure 20 times digital display IM EEPROM data or communication failure tube: 33-0, 2, 3 LED1 LED2 Indoor wired Outdoor unit LED status controller: 21 Normal Normal...
  • Page 245 Failure code LED5 Failure description: Outdoor Indoor unit LED status Outdoor compressor discharging tempera- digital 20 times ture (Td1, Td2).too high failure display tube: 34-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 246 Failure code LED5 Failure description: Outdoor Indoor unit LED status Four-way valve reversing failure digital 20 times display tube: 35-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series Check if the difference between 2.
  • Page 247 Failure code LED5 Failure description: Outdoor Indoor unit LED status Outdoor compressor oil temperature (Toil1, digital 20 times Toil2) too low failure display tube: 36-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 248 Failure code LED5 Failure description: Outdoor Indoor unit LED status Low pressure sensor Ps too low protection digital 20 times display tube: 39-0 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series Check if the low pressure...
  • Page 249 Failure code LED5 Failure description: Outdoor Indoor unit LED status Compressor ratio ε too high protection digital 20 times display tube: 39-1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series 2.
  • Page 250 Failure code LED5 Failure description: Outdoor Indoor unit LED status High pressure sensor Pd too high protec- digital 20 times tion display tube: LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series Replace it correctly by after-...
  • Page 251 Failure code LED5 Failure description: Outdoor Indoor unit LED status Outdoor unit compressor discharging tem- digital 20 times perature (Td1, Td2) too low failure display tube: 43-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting...
  • Page 252 Failure code LED5 Failure description: Outdoor Indoor unit LED status Communications between outdoor units digital 20 times failure. display tube: LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series Check if the communication wire Replace it correctly by after- between the outdoor units is normal.
  • Page 253 Failure code LED5 Failure description: Outdoor Indoor unit LED status Communication with INV1 and INV2 module digital 20 times board failure display tube: 46-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 254 Failure code LED5 Failure description: Outdoor Indoor unit LED status Communication with fan motor module digital 20 times board 1, 2 failure display tube: 46-4, 5 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 255 Failure code LED5 Failure description: Outdoor Indoor unit LED status Communication with wireless communicai- digital 20 times ton module failure display tube: LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series 2.
  • Page 256 Failure code LED5 Failure description: Outdoor Indoor unit LED status LEVa1,2 and LEVb,c over current protection digital 20 times display tube: 51-0,1,2,3 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series 2.
  • Page 257 Failure code LED5 Failure description: Outdoor Indoor unit LED status LEVa1,2 and LEVb,c open circuit digital 20 times display tube: 52-0,1,2,3 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series Check if the electronic expansion 2.
  • Page 258 Failure code LED5 Failure description: Outdoor Indoor unit LED status Emergency stop function switch failure digital 20 times display tube: LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series 2.
  • Page 259 Failure code LED5 Failure description: Outdoor Pressure difference between high and low Indoor unit LED status digital 20 times pressure too low failure display tube: 75-0 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 260 Failure code LED5 Failure description: Outdoor Indoor unit LED status Incorrect settings of quantity, address or digital 20 times capacity for outdoor unit display tube: 76-0, 1, 2 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Diagnosis and troubleshooting Diagnosis Troubleshooting...
  • Page 261 Failure code LED5 Failure description: Outdoor Indoor unit LED status Outdoor unit model are set incorrectly digital 20 times display tube: LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series 2.
  • Page 262 Failure code LED5 Failure description: Outdoor Indoor unit LED status Compressor module hardware over current digital 20 times display tube: 110-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series R e c t i f y o n s i t e b y a f t e r - s a l e s...
  • Page 263 Failure code LED5 Failure description: Outdoor Indoor unit LED status Fan motor module hardware over current digital 20 times display tube: 110-4, 5 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 264 Failure code LED5 Failure description: Outdoor Indoor unit LED status Compressor out of control digital 20 times display tube: 111-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series Replace on site by after-sales Check if the supply voltage is normal...
  • Page 265 Failure code LED5 Failure description: Outdoor Indoor unit LED status Compressor module radiator temp. too high digital 20 times display tube: 112-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 266 Failure code LED5 Failure description: Outdoor Indoor unit LED status Fan motor module radiator temp. too high digital 20 times display tube: 112- 4, 5 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 267 Failure code LED5 Failure description: Outdoor Indoor unit LED status Compressor module DC BUS under voltage digital 20 times display tube: 114-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 268 Failure code LED5 Failure description: Outdoor Indoor unit LED status Fan motor module DC BUS under voltage digital 20 times display tube: 114-4, 5 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 269 Failure code LED5 Failure description: Outdoor Indoor unit LED status Compressor module DC BUS over voltage digital 20 times display tube: 115-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 270 Failure code LED5 Failure description: Outdoor Indoor unit LED status Compressor module software over current digital 20 times display tube: 117-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series Check if the supply voltage is normal.
  • Page 271 Failure code LED5 Failure description: Outdoor Indoor unit LED status Fan motor module software over current digital 20 times display tube: 117- 4, 5 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 272 LED5 Failure description: Failure code Outdoor Indoor unit LED status Current detecting circuit abnormal of com- digital 20 times pressor module display tube: 119-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller77 Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 273 Continued LED5 Failure description: Failure code Outdoor Indoor unit LED status Current detecting circuit abnormal of com- digital 20 times pressor module display tube: 119-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller77 Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 274 Continued LED5 Failure description: Failure code Indoor unit LED status Current detecting circuit abnormal of Outdoor digital 20 times compressor module display tube: 119-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller77 Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 275 Failure code LED5 Failure description: Outdoor Indoor unit LED status Compressor module power supply abnor- digital display 20 times tube: 120-0, 1 LED1 LED2 121-0, 1 Indoor wired Outdoor unit LED status controller: 78, Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 276 Failure code LED5 Failure description: Indoor unit LED status Radiator temp. sensor of compressor mo- Outdoor digital 20 times dule is abnormal. display tube: 122-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: 7A Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting...
  • Page 277 Failure code LED5 Failure description: Outdoor Indoor unit LED status Hardware instantaneous over current of the compressor module rectifier side digital display 20 times tube: 123-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: 78, Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting...
  • Page 278 Failure code LED5 Failure description: Outdoor Compressor module three-phase power Indoor unit LED status failure digital display 20 times tube: 124-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: 78, Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series...
  • Page 279 Failure code LED5 Failure description: Outdoor Indoor unit LED status Compressor frequency un-match digital 20 times display tube: 125-0, 1 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series 2.
  • Page 280 Failure code LED5 Failure description: Outdoor Indoor unit LED status Fan motor speed un-match digital 20 times display tube: 125-4, 5 LED1 LED2 Indoor wired Outdoor unit LED status controller: Normal Normal 1. Model Failure diagnosis and troubleshooting Diagnosis Troubleshooting VVEA series 2.

  • Page 281: Sensor Resistance Table

    8. Sensor resistance table Model Name Code Characteristic Tao sensor 0150401910 R25=10KΩ VVEA-250R-01T32 Td1sensor 0150401914 R80=50KΩ VVEA-280R-01T32 Td2 sensor 0150401915 R80=50KΩ VVEA-335R-01T32 VVEA-400R-01T32 Toci1/Tsacc sensor 0150401911 R25=10KΩ VVEA-450R-01T32 VVEA-504R-01T32 Tdef sensor 0150401913 R25=10KΩ VVEA-560R-01T32 VVEA-615R-01T32 Toil1sensor 0150401916 R80=50KΩ Toil2sensor 0150401917 R80=50KΩ...
  • Page 282 R80=50kΩ±3% B25/80=4450K±3% Temp Resistance (kΩ) % (Resist. Tol) (°C) Rmax R (t) Normal Rmin MAX (+) MIN (-) 1749.014 1921.993 2094.972 1651.431 1813.265 1975.099 8.93 8.93 1560.165 1711.646 1863.127 8.85 8.85 1474.737 1616.593 1758.449 8.78 8.78 1394.709 1527.611 1660.513 1319.683 1444.25 1568.817 8.63...
  • Page 283 R80=50kΩ±3% B25/80=4450K±3% Temp Resistance (kΩ) % (Resist. Tol) (°C) Rmax R (t) Normal Rmin MAX (+) MIN (-) 272.329 290.407 308.485 6.23 6.23 260.427 277.493 294.559 6.15 6.15 249.104 265.216 281.328 6.08 6.08 238.329 253.541 268.753 228.073 242.437 256.801 5.93 5.93 218.308 231.873...
  • Page 284 R80=50kΩ±3% B25/80=4450K±3% Temp Resistance (kΩ) % (Resist. Tol) (°C) Rmax R (t) Normal Rmin MAX (+) MIN (-) 64.988 67.415 69.842 62.613 64.901 67.189 3.53 3.53 60.337 62.493 64.649 3.45 3.45 58.154 60.185 62.216 3.38 3.38 56.06 57.973 59.886 54.051 55.852 57.653 3.23...
  • Page 285 R80=50kΩ±3% B25/80=4450K±3% Temp Resistance (kΩ) % (Resist. Tol) (°C) Rmax R (t) Normal Rmin MAX (+) MIN (-) 20.067 21.049 22.031 4.67 4.67 19.408 20.372 21.336 4.73 4.73 18.773 19.72 20.667 18.162 19.091 20.02 4.87 4.87 17.573 18.485 19.397 4.93 4.93 17.005 17.9...
  • Page 286 R25=10kΩ±3% B25/50=3700K±3% Temp Resistance (kΩ) % (Resist. Tol) (°C) Rmax R (t) Normal Rmin MAX (+) MIN (-) 145.819 135.018 124.217 138.071 129.126 120.181 6.93 6.93 131.793 123.339 114.885 6.85 6.85 125.665 117.684 109.703 6.78 6.78 119.706 112.18 104.654 6.71 6.71 113.933 106.843...
  • Page 287 R25=10kΩ±3% B25/50=3700K±3% Temp Resistance (kΩ) % (Resist. Tol) (°C) Rmax R (t) Normal Rmin MAX (+) MIN (-) 24.742 23.687 22.632 4.45 4.45 23.61 22.619 21.628 4.38 4.38 22.538 21.607 20.676 4.31 4.31 21.522 20.647 19.772 4.24 4.24 20.559 19.737 18.915 4.16 4.16...
  • Page 288 R25=10kΩ±3% B25/50=3700K±3% Temp Resistance (kΩ) % (Resist. Tol) (°C) Rmax R (t) Normal Rmin MAX (+) MIN (-) 5.36 5.151 4.942 4.06 4.06 5.166 4.961 4.756 4.13 4.13 4.978 4.778 4.578 4.19 4.19 4.799 4.603 4.407 4.25 4.25 4.625 4.434 4.243 4.31 4.31...
  • Page 289 R25=10kΩ±3% B25/50=3700K±3% Temp Resistance (kΩ) % (Resist. Tol) (°C) Rmax R (t) Normal Rmin MAX (+) MIN (-) 1.676 1.578 1.48 6.19 6.19 1.626 1.53 1.434 6.25 6.25 1.578 1.484 1.39 6.31 6.31 1.531 1.439 1.347 6.38 6.38 1.486 1.396 1.306 6.44 6.44...
  • Page 290 Appendix table for manual updated information Updated information Version Update the one by four valve box specification Delete the smartlink content...
  • Page 291 Consult with the sales agency or manufacturer for details. ATTENTION : Le design et les données techniques sont donnés à titre indicatif et peuvent être modifiés sans préavis. AIRWELL RESIDENTIAL SAS 10,Rue du Fort de Saint Cyr, 78180 Montigny le Bretonneux - France www.airwell.com...

Table of Contents
