- Page 1 User's Manual GSD-802S 8-Port Gigabit Web Smart Ethernet Switch GSD-802PS 8-Port Gigabit Web Smart PoE Switch...
- Page 2 PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
-
Page 3: Table Of Contents
User’s Manual of GSD-802S / GSD-802PS TABLE OF CONTENTS 1. INTRODUCTION................................1 1.1 P ..............................1 ACKAGE ONTENTS 1.2 H ............................1 OW TO ANUAL 1.3 P ..............................1 RODUCT EATURES 1.4 PRODUCT SPECIFICATION............................. 1 2. INSTALLATION................................3 2.1 P .............................. - Page 4 User’s Manual of GSD-802S / GSD-802PS 4.9.1 IGMP Snooping Configuration..........................2 4.10 Q ..............................4 UALITY OF ERVICE 4.10.1 802.1p QoS Mode ............................. 5 4.10.2 DSCP QoS Mode .............................. 6 4.11 802.1X M ..............................8 ANAGEMENT 4.11.1 802.1X Configuration ............................9 4.11.2 802.1X Parameters ............................
- Page 5 User’s Manual of GSD-802S / GSD-802PS 7. TROUBLESHOOTING..............................5 APPENDIX A ..................................6 A.1 S ‘ RJ-45 P ..........................6 WITCH SSIGNMENTS A.2 10/100M , 10/100B -TX ............................ 6 A.3 RJ-45 ............................7 CABLE PIN ASSIGNMENT...
-
Page 6: Introduction
User’s Manual of GSD-802S / GSD-802PS 1. INTRODUCTION 1.1 Package Contents Check the contents of your package for following parts: Web Smart Gigabit Ethernet Switch x1 ● User's Manual CD x1 ● Quick Installation Guide x1 ● Power Cord x1 ●... -
Page 7: Product Features
User’s Manual of GSD-802S / GSD-802PS 1.3 Product Features Physical Port GSD-802S 8-Port 10/100/1000Base-T RJ-45 Copper with 2 Shared SFP / mini-GBIC slots GSD-802PS 8-Port 10/100/1000Base-T RJ-45 Copper with 2 Shared SFP / mini-GBIC slots Generic Features Comply with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab,1000Base-T, IEEE 802.3z,1000Base-SX/LX, Ethernet standard... -
Page 8: Product Specification
User’s Manual of GSD-802S / GSD-802PS Management Remote Web management interface Firmware upgrade through web interface Cable Diagnostics technology Support SNMPv1 with RFC-1213/1573-Interface group, Ethernet MIB SNMP Trap 1.4 PRODUCT SPECIFICATION Model GSD-802S GSD-802PS Hardware Specification 8-Port 10/100/1000Base-T Auto MDI/MDI-X... - Page 9 User’s Manual of GSD-802S / GSD-802PS IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet, 1000Base-T IEEE 802.3z Gigabit Ethernet, 1000Base-SX/LX IEEE 802.1Q Tagged VLAN Network Standards IEEE 802.1w Rapid Spanning Tree IEEE 802.1X Port-Based Authentication IEEE 802.3ad Link Aggregation Control Protocol IEEE 802.3x...
-
Page 10: Installation
Gigabit environment. 2.1.1 Product Overview PLANET Gigabit Ethernet Switch is a Web Smart Gigabit Ethernet Switch with 8 RJ-45 10/100/1000Mbps ports for high-speed network connectivity. The Gigabit Ethernet Switch can also automatically identify and determine the correct transmission speed and half/full duplex mode of the attached devices with its 8 ports. -
Page 11: Switch Front Panel

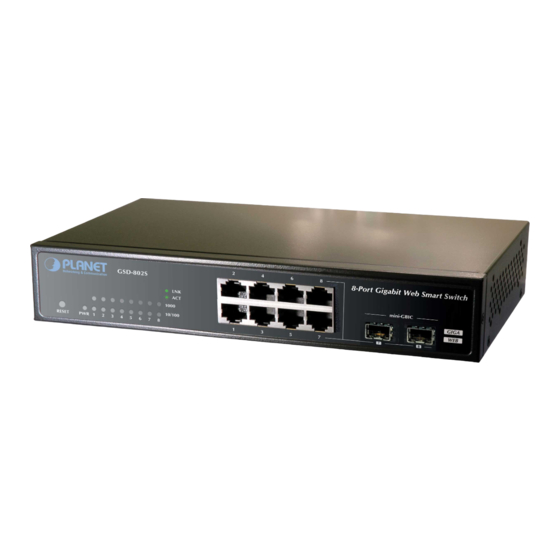

User’s Manual of GSD-802S / GSD-802PS 2.1.2 Switch Front Panel Figure 2-1 & Figure 2-2 shows a front panel of GSD-802S and GSD-802PS. Figure 2-1 PLANET GSD-802S Front Panel Figure 2-2 PLANET GSD-802PS Front Panel 2.1.3 LED Indicators LED of GSD-802S ■... -
Page 12: Switch Rear Panel
User’s Manual of GSD-802S / GSD-802PS Figure 2-4 PLANET GSD-802PS LED panel 2.1.4 Switch Rear Panel The rear panel of the Gigabit Ethernet Switch indicates an AC inlet power socket, which accepts input power from 100 to 240VAC, 50-60Hz. Figure 2-5 Rear Panel of GSD-802S... -
Page 13: Install The Switch
User’s Manual of GSD-802S / GSD-802PS 2.2 Install the Switch This section describes how to install your Gigabit Ethernet Switch and make connections to the Switch. Please read the following topics and perform the procedures in the order being presented. To install your Gigabit Ethernet Switch on a desktop or shelf, simply complete the following steps. -
Page 14: Rack Mounting
User’s Manual of GSD-802S / GSD-802PS 2.2.2 Rack Mounting To install the Gigabit Ethernet Switch in a 19-inch standard rack, please follows the instructions described below. Step1: Place the Gigabit Ethernet Switch on a hard flat surface, with the front panel positioned towards the front side. -
Page 15: Installing The Sfp Transceiver
Figure 2-9 Plug-in the SFP Transceiver Approved PLANET SFP Transceivers PLANET Gigabit Ethernet Switch supports both single mode and multi mode SFP transceiver. The following list of approved PLANET SFP transceivers is correct at the time of publication: ■MGB-SX SFP (1000Base-SX SFP transceiver ) ■MGB-LX SFP (1000Base-LX SFP transceiver ) - Page 16 User’s Manual of GSD-802S / GSD-802PS Check the Link mode of the SFP port if the link failed. Co works with some fiber-NICs or Media Converters, set the Link mode to “1000 Force” is needed. Remove the transceiver module Make sure there is no network activity by consult or check with the network administrator. Or through the management interface of the switch/converter (if available) to disable the port in advance.
-
Page 17: Switch Management
User’s Manual of GSD-802S / GSD-802PS 3. SWITCH MANAGEMENT This chapter describes how to manage the Gigabit Ethernet Switch. Topics include: - Overview - Management methods - Assigning an IP address to the Gigabit Ethernet Switch - Logging on to the Gigabit Ethernet Switch 3.1 Overview... - Page 18 - Web Management via a network or dial-up connection. 3.2.1 Web Management The PLANET Gigabit Ethernet Switch provides a built-in browser interface. You can manage the Gigabit Ethernet Switch remotely by having a remote host with web browser, such as Microsoft Internet Explorer, Netscape Navigator or Mozilla Firefox.
- Page 19 User’s Manual of GSD-802S / GSD-802PS Figure 3-1 Web Login Screen of Gigabit Ethernet Switch For security reason, please change and memorize the new password after this first setup. Only accept command in lowercase letter under web interface.
- Page 20 Gigabit Ethernet Switch from the local LAN. This section indicates how to configure the Gigabit Ethernet Switch to enable its smart function. The following section will base on the web screens of GSD-802PS, for GSD-802S the display will be the same to GSD-802PS.
