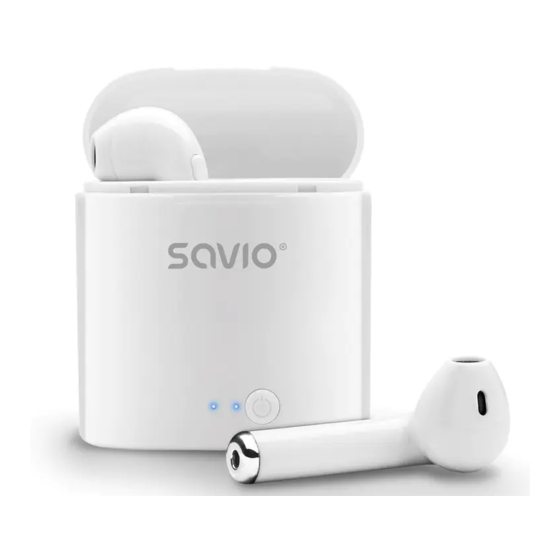

Savio TWS-01 User Manual

ENGLISH
Thank you for choosing Savio product!
If our product meets your expectations, share your opinion with
other people on the portal ceneo.pl, social media or on the
website of the store where you made the purchase. If you want
to show our device on SAVIO Facebook Page, we will be very
pleased.
If there is something that we could improve on our products, please
write to us at support@savio.net.pl
Thanks to your feedback, we will be able to better adapt the product
to your expectations.
Before starting the use of purchased device it is recommended
to read the whole manual.
1. Product scheme:
1. Multifunctional button
2. Microphone
3. Docking station / power bank
4. Headphone charging input
5. Power bank charging micro USB input
6. Diodes signalising operating mode
of the power bank
7. Turn on button in the power bank
2. Charging the device:
2.1 Charging earphones and power bank with the external source of
power
2.1.1 Plug the USB cable to the charging socket of the power bank.
2.1.2 Put earphones into the docking station (red notification light will
start to blink, informing about the power bank being charged).
Also the earphones charging will begin (in a case when the ear-
phones are discharged, the diode will lit red).
2.1.3 If power bank is fully charged, then the red diode will flash with
constant light.
2.1.4 When the earphones will be fully charged, red light will go out. The
headphones are ready to use.
2.2 Charging earphones with build in power bank
2.2.1 Put earphones into the docking station (power bank).
2.2.2 The earphones automatically will start to charge diode placed on
the power bank will lit blue and earphones will lit red.
2.2.3 When the earphones will be fully charged, red light will go out.The
headphones are ready to use.
3. Pairing of the earphones
Earphones Savio TWS-01 / TWS-02 can be used together or separately. On
Default, earphones will connect with each other. In case when both ear-
phones are connected, and only one work, get to the point 3.3 and connect
both earphones with each other.
3.1 Pairing of the two earphones
3.1.1 Press and hold the multifunctionl button on both of the earphones
till the diode strart to blink read and blue. After proper connection
of the earphones, you will hear will hear information about the
connection: „Connected".
3.1.2 Turn the Bluetooth in the device (e.g. smartphone), and choose
SAVIO TWS-01 / TWS-02 earphones from Bluetooth devices. Then
pair them. If the headphones had already been paired with device,
they will be connected automatically.
3.1.3 After connecting the earphones to the de-
vice, the blue diode on an earphones will stop
blinking. The earphones are ready to use.
3.2 Pairing of one earphone
3.2.1 Press and hold the multifunctional button on
the earphone till the diode start to blink red
and blue alternately.
3.2.2 Turn the Bluetooth in the device (e.g.smart-
phone), and choose Savio SAVIO TWS-01 /
TWS-02 earphones from Bluetooth devices.
Then pair them. If the headphones had al-
ready been paired with device, they will be
connected automatically.
3.2.3 After connecting the earphones to the de-
vice, the blue diode on an earphones will stop blinking. The ear-
phones are ready to use.
3.3 Connecting two earphones with each other (in the case when both
earphones are on, and only one work).
3.3.1 Press and hold the button on each of the earphones. You will hear
"Power on".
3.3.2 Make sure, that your earphones are not connected to any other
device through Bluetooth e.g. smartphone
3.3.3 Press the button twice on one of the earphones. If the earphones
will connect with each other, you will hear: "Connected".
3.3.4 Earphones are now connected with each other and ready to use.
3.4 Disconnecting of two earphones(in the case when both are work-
ing, and you want to use only one)
3.4.1 Press and hold the button on each of the earphones. You will hear
"Power on"
3.4.2 Make sure, that your earphones are not connected to any other de-
vice through Bluetooth e.g. smartphone
3.4.3 Press the button twice on one of the earphones. If earphones will
disconnect with each other, you will hear: "Disconnected"
3.4.4 Earphones are now disconnected and ready to pair the device with
one of them.
4. Multifunctional button description:
Press and hold a multifunctional button for a while cause turning earphones
on and off.
Bluetooth earphones
model: TWS-01 / TWS-02
User manual
①
⑦
⑥
4.1 During playing a song
• Press once: pause / resume play
• Press the button on the right earphone twice: se-
lect the previous song
• Press the button on the left earphone twice: select
the next song
• Press the button on the right earphone three times:
volume down
• Press the button on the left earphone three times:
volume up
4.2 While the phone calls goes in
• Press one time: accepting the call
• Press and hold a button rejecting the call
5. Content package
• Wireless Bluetooth earphones TWS-01 / TWS-02
• Charging cable USB (M) – Micro USB (M)
• Docking station power bank
• User manual
6. Technical specification:
• Bluetooth version: 5.0
② • Range: up to 10 meters
• Working time: up to 4 hours
④
• Charging time: up to 1 hour
• Total working time: up to 20 h (with use of power bank)
• Stand by time: up to 100 hours
• Impedance: 32 Ω
⑤
• Frequency response: 20Hz - 20 kHz
③ • Build in microphone: Yes
• Microphone sensivity: -42 ± 3 dB
• Indicator diode: Yes
• Frequency bands in which the radio equipment operates: 2400 - 2483.5 MHz
• Maximum radio-frequency power transmitted in the frequency band in
which the radio equipment operates: 4 dBm
7. Important notice:
• It is not necessary to put earphones in the power bank while charging.
• Remove the earphones from the power bank will automatically turn
them on.
• While the phone call, when two earphones are connected, only one of
them will be active.
• Blinking red diode on an earphone will inform you about low battery level.
• When the button placed on the power bank will not react, and a LED
diode will not be backlit, that means, that the power bank is depleted
and it needs to be charged.
8. Safety conditions:
• Use this device as intended.
• Incorrect use of the device may damage the device.
• For charging the power bank it is highly recommended to use 1 A charger,
or charge it from a USB port in the computer.
• Independent repairs and modification results in automatic loss of the
warranty.
• Hitting or dropping the device could cause damage of the device.
• The device should be used in dry area, the device should be protected
from water and high humidity.
POLSKI
Dziękujemy za zakup produktu marki Savio!
Jeśli nasz produkt spełnił Twoje oczekiwania, podziel się swoją opi-
nią z innymi osobami na portalu ceneo.pl, w mediach społeczno-
ściowych lub na stronie sklepu, w którym dokonałeś zakupu. Będzie
nam niezmiernie miło, jeśli zechcesz również pochwalić się naszym
urządzeniem na profilu SAVIO na Facebooku.
Jeśli jest coś, co moglibyśmy poprawić w naszych produktach, na-
pisz nam o tym n a adres: support@savio.net.pl
Dzięki Twojej opinii będziemy mogli jeszcze lepiej dopasować produkt
do Twoich oczekiwań.
Przed przystąpieniem do korzystania z zakupionego urządzenia zaleca
się przeczytanie całej instrukcji obsługi.
1. Schemat produktu
1. Przycisk wielofunkcyjny
2. Mikrofon
3. Stacja dokująca / power bank
4. Złącze ładowania słuchawek
5. Złącze micro USB do ładowania power banku
6. Diody sygnalizujące tryb pracy power banku
7. Przycisk włączania ładowania w power banku
2. Ładowanie urządzenia
2.1 Ładowanie słuchawek oraz power banku z zewnętrznego źródła
zasilania
2.1.1 Podłącz kabel USB do gniazda ładowania w power banku
2.1.2 Włóż słuchawki do stacji dokującej (czerwona dioda powiadomień
zacznie migać w kolorze czerwonym, informując o ładowaniu power
banku). W przypadku gdy słuchawki są rozładowane, zaświecą się
na czerwono i rozpocznie się ich ładowanie.
2.1.3 Jeśli power bank naładuje się do pełna, wówczas czerwona dioda
zaświeci się światłem ciągłym.
2.1.4 W przypadku pełnego naładowania słuchawek, czerwone podświe-
tlenie zgaśnie, słuchawki są gotowe do użycia.
2.2 Ładowanie słuchawek z użyciem wbudowanego power banku
2.2.1 Włóż słuchawki do stacji dokującej w power banku.
2.2.2 Słuchawki automatycznie zaczną się ładować, dioda umieszczona
na power banku zaświeci się na kolor niebieski, a słuchawki zostaną
1
Słuchawki Bluetooth
model: TWS-01 / TWS-02
Instrukcja obsługi
①
⑦
⑥
②
④
⑤
③
