Savio TWS-01, TWS-02 - Bluetooth Wireless Earphones Manual

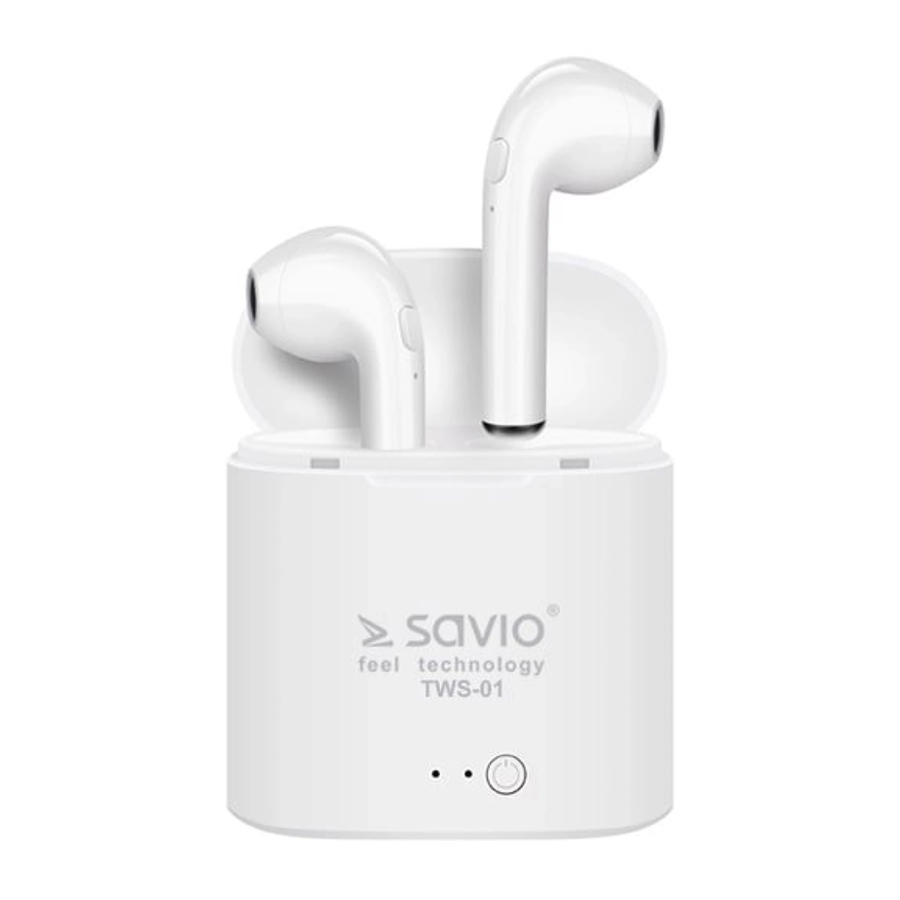

Product scheme

1. Multifunctional button
2. Microphone
3. Docking station/power bank
4. Headphone charging input.
5. Power bank charging micro USB input
6. Diodes signalising operating mode
7. Turn on button in the power bank

Charging the device

Charging earphones and power bank with the external source of power

1. Plug the USB cable to the charging socket of the power bank.
2. Put earphones into the docking station (red notification light will start to blink, informing about the power bank being charged). Also the earphones charging will begin (in a case when the earphones are discharged, the diode will lit red).
3. If power bank is fully charged, then the red diode will flash with constant light.
4. When the earphones will be fully charged, red light will go out. The headphones are ready to use.

Charging earphones with build in power bank

1. Put earphones into the docking station (power bank).
2. Push the turn on button in the power bank. Diode placed on the power bank will lit blue and earphones will lit red.
3. When the earphones will be fully charged, red light will go out. The headphones are ready to use.

Pairing of the earphones

Earphones Savio TWS-01/TWS-02 can be used together or separately. On Default, earphones will connect with each other. In Case when both earphones are connected, and only one work, get to the point 3.3 and connect both earphones with each other.

Pairing of the two earphones

1. Press and hold the multifunctionl button on both of the earphones till the diode strart to blink read and blue. After proper connection of the earphones, you will hear will hear information about the connection.
2. Turn the Bluetooth in the device (e.g. smartphone), and choose Savio earphone from Bluetooth devices. Then pair them. If the headphones had already been paired with device, they will be connected automatically.
3. After connecting the earphones with the device, the blue diode on an earphones start to blink.
   The earphones are ready to use.

Pairing of one earphone

1. Press and hold the multifunctional button on the earphone till the diode start to blink red and blue alternately.
2. Turn the Bluetooth in the device (e.g.smartphone), and choose Savio earphone from Bluetooth devices. Then pair them. If the headphones had already been paired with device, they will be connected automatically.
3. After connecting the earphones with the device, the blue diode on an earphones start to blink. The earphones are ready to use.

Connecting two earphones with each other

In the case when both earphones are on, and only one work

1. Press and hold the button on each of the earphones. You will hear "Power on"
2. Make sure, that your earphones are not connected to any other device through Bluetooth i.e. smartphone
3. Press the button twice on one of the earphones. If the earphones will connect with each other, you will hear: "Your headset is connected".
4. Earphones are now connected with each other and ready to use.

Disconnecting of two earphones

in the case when both are working, and you want to use only one

1. Press and hold the button on each of the earphones. You will hear "Power on"
2. Make sure, that your earphones are not connected to any other device through Bluetooth i.e. smartphone
3. Press the button twice on one of the earphones. If earphones will disconnect with each other, you will hear: "Your headset is disconnected"
4. Earphones are now disconnected and ready to pair the device with one of them.

Multifunctional button description

Press and hold a multifunctional button for a while cause turning earphones on and off.

While playing tracks

One time pressing pause/play track
Press and hold: choosing the next track

While the phone calls goes in

Press one time: accepting the call
Press and hold a button rejecting the call
Press the button fast twice: will connect with the last dialled number.

Content package

• Wireless Bluetooth earphones TWS-01/TWS-02
• Charging cable USB (M) – Micro USB (M)
• Docking station power bank
• User manual

Additional information:

• Bluetooth version: 5.0
• Range: up to 10 meters
• Working time: up to 2 hours
• Charging time: up to 1 hour
• Stand by time: up to 120 hours
• Build in microphone: Yes
• Indicator diode: Yes
• While charging the power bank it is highly recommended to use 1A charger, or charge it from a USB port in the computer.
• It is not necessary to put earphones in the power bank while charging.

Important notice:

• While the phone call, when two earphones are connected, only one of them will be active.
• Blinking red diode on an earphone will inform you about low battery level.
• When the button placed on the power bank will not react, and a LED diode will not be backlit, that means, that the power bank is depleted and it needs to be charged.

Warranty

The warranty covers a period of 24 months
Independent repairs and modifications result in automatic loss of the varranty
Warranty card is available for download on our website:
www.savio.net.pl/en/service

The product meets the requirements

Declaration of Conformityis available for download on website:
www.savio.net.pl/do-pobrania
