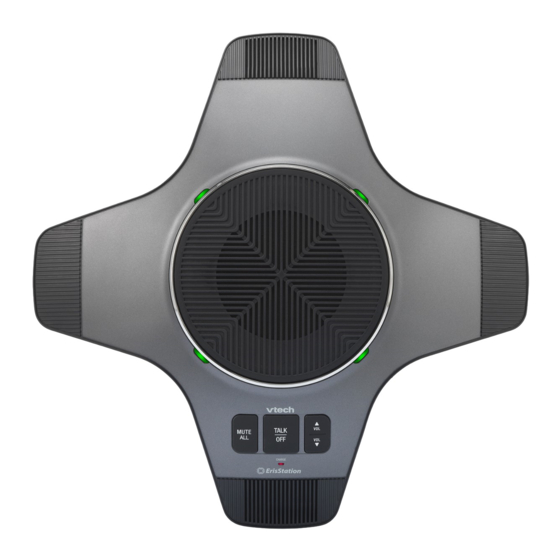

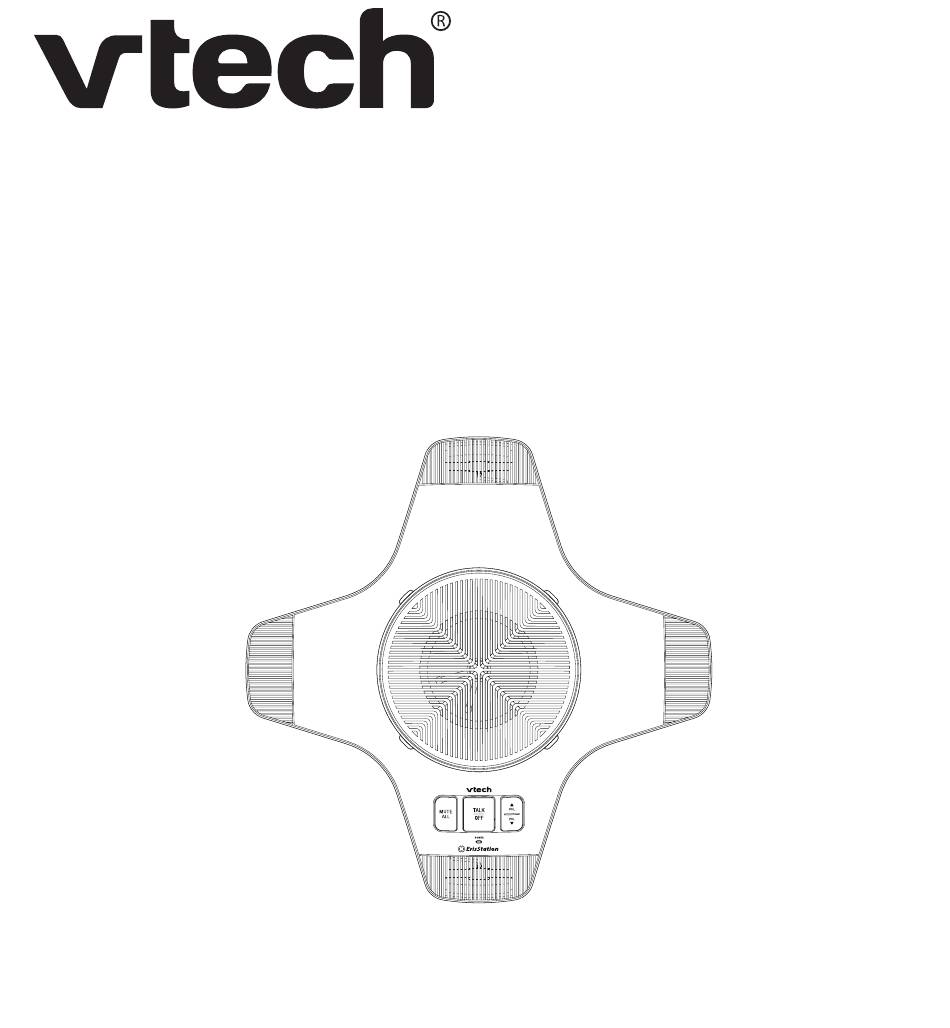

- Page 1 User’s manual VCS850 SIP DECT Expansion Wireless Speakerphone...
- Page 2 “Important safety instructions” on page 11 of this manual. This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech product. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature-rich VTech product.
-
Page 3: Table Of Contents
Getting started Parts checklist ......................1 Speakerphone layout ....................2 Installing the wireless speaker battery ..............3 Connecting power to the VCS850 ................3 Register the Wireless Speakerphone ............... 4 Replace a Wireless Speakerphone ................5 Speakerphone operation Make a call ........................ 6 Answer a call ...................... -
Page 4: Getting Started Parts Checklist
Getting started Parts checklist Your VCS850 package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Power adapter Wireless Speakerphone Quick Start Guide Battery • To purchase a replacement power adapter, visit our website at businessphones.vtech.com... -
Page 5: Speakerphone Layout
• Press and hold to enter registration • Flashes when battery is low mode (if the speakerphone becomes deregistered). LED color and behavior VCS850 Status GREEN Steady • Call active, speaker on Flashing • Incoming call Flashing (with red LED) •... -
Page 6: Installing The Wireless Speaker Battery
After connecting power, the VCS850 LEDs light orange for five seconds. • The supplied power adapter is designed for use with only the VCS850. It is not designed to power other devices. Do not connect the supplied power adapter to any other devices. •... -
Page 7: Register The Wireless Speakerphone
Flashing red and green LEDs indicate the VCS850 is ready for registration. After power-up, press and hold the REGISTRATION button on the bottom of the unit for five seconds. Release the button, and, with the VCS850 LEDs flashing red and green, perform the registration procedure below. -
Page 8: Replace A Wireless Speakerphone
Getting started Replace a Wireless Speakerphone If you want to replace a VCS850, you must deregister the speakerphones that are registered to the telephone base. To make deregistration easier, read all of the instructions on this page before you begin. -
Page 9: Speakerphone Operation Make A Call
Ringer When the VCS752 rings for incoming calls, the VCS850 rings as well. The VCS850 LEDs flash green, and the ringer will sound (if not muted). To immediately mute the ringer, press MUTE ALL. The ringer becomes active again for the next call. -
Page 10: Specifications
Appendix Specifications Frequency control Crystal controlled PLL synthesizer Transmit frequency 1921.536–1928.448 MHz Channels Nominal effective Maximum power allowed by FCC and IC. Actual operating range may range vary according to environmental conditions at the time of use. Power Ni-MH Battery Pack; 7.2V; 2100mAH rechargeable battery requirements Base unit adapter: Input: 100–240V AC 50/60Hz... -
Page 11: Troubleshooting
• Make sure the speakerphone charger power adapter is securely plugged into an electrical outlet (see “Connecting power to the VCS850” on page 3). The POWER light should be on. • Make sure the speakerphone is registered to the base (see “Register the Wireless Speakerphone”... - Page 12 Appendix Troubleshooting I cannot hear any ring tone from the cordless speakerphone when there is an incoming call. • Make sure the speakerphone ringer volume is not set to the lowest level. • If you have pressed MUTE ALL on the cordless speakerphone when it is ringing, it mutes the ring tone of the speakerphone.
- Page 13 Appendix Troubleshooting I cannot register the speakerphone. • If you have already registered the maximum numbers of handsets and/or speakerphones that the telephone system accommodates, you need to follow the deregistration instructions before registering a speakerphone. See “Register the Wireless Speakerphone” on page 4 and “Replace a Wireless Speakerphone”...
-
Page 14: Important Safety Instructions
Appendix Important safety instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. -
Page 15: Mesures De Sécurité Importantes
Débranchez l’appareil avant de procéder au nettoyage. Utilisez un chiffon humide et doux. 11. Ne surchargez pas les prises de courant et les rallonges. 12. Débranchez cet appareil de la prise de courant et communiquez avec le département de service à la clientèle de VTech dans les cas suivants : •... -
Page 16: Maintenance
Appendix Maintenance Taking care of your speakerphone Your wireless speakerphone contains sophisticated electronic parts, so it must be treated with care. Avoid rough treatment Save the original packing materials to protect your speakerphone if you ever need to ship it. Avoid water Your speakerphone can be damaged if it gets wet. -
Page 17: Warranty
How long is the limited warranty period? The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase. If VTech repairs or replaces a Materially Defective Product under the terms of this limited warranty, this limited warranty also applies to the repaired or replacement Product for a period of either (a) 90 days from the date the repaired or replacement Product is shipped to you or (b) the time remaining on the original one-year warranty;... - Page 18 VTech will return repaired or replaced Product under this limited warranty. Transportation, delivery or handling charges are prepaid. VTech assumes no risk for damage or loss of the Product in transit. If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, VTech will notify you and will request that you authorize the cost of repair prior to any further repair activity.
-
Page 19: Fcc, Acta And Ic Regulations
Appendix FCC, ACTA and IC regulations FCC Part 15 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. - Page 20 Appendix FCC, ACTA and IC regulations (continued) If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under Warranty.
- Page 21 A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications, Inc., Beaverton, Oregon 97008. Distributed in Canada by VTech Technologies Canada Ltd., Richmond, B.C. V6W 1L5. VTech is the registered trademark of VTech Holdings Limited.
