vtech VCS752
Conference Phone
Quick User Guide
Full-duplex speakerphone in base
DECT 6.0 for wireless speakerphone expansion
Bluetooth connectivity for headset and mobile pairing
Up to 12 hours of talk time per wireless microphone
For detailed information please visit the Star2Star
Knowledge Base at:
https://support.star2star.com/
Copyright © 2017, Star2Star Communications, LLC. All rights reserved. Star2Star is a registered Trademark of Star2Star Communications.
INTRODUCTION

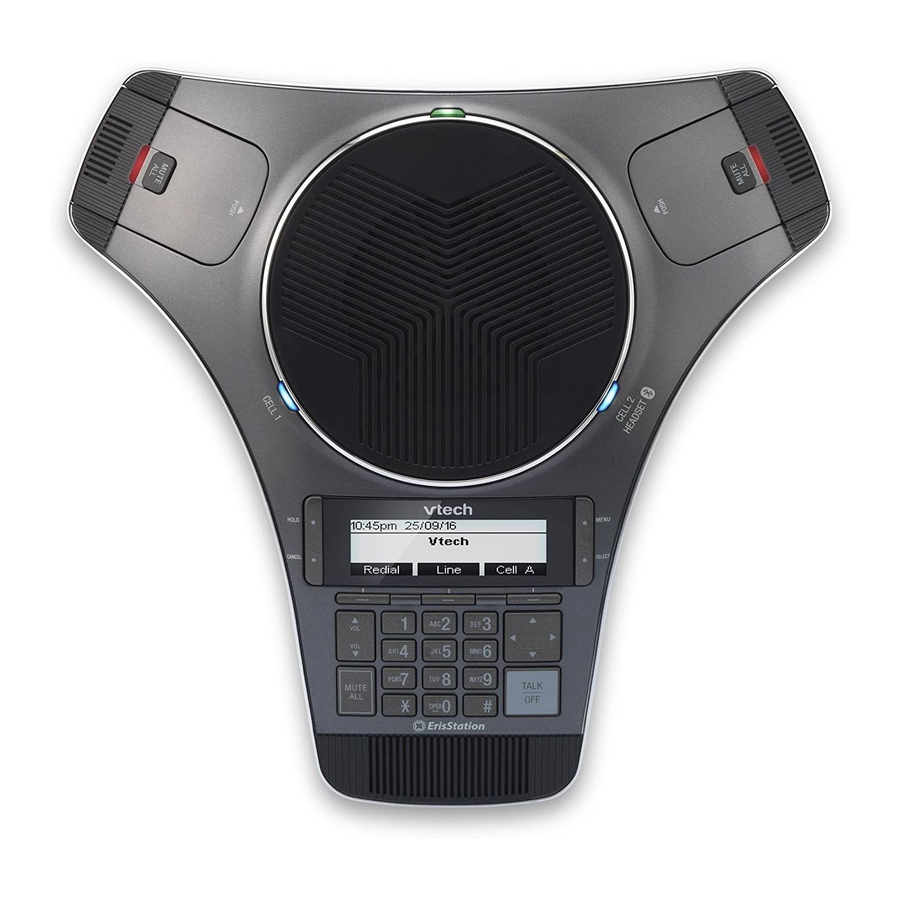

The VCS752 SIP Conference Phone with Two Wireless Mics
is designed for use in office settings. It consists of a base
unit and two wireless mics, enabling clear conversation
between participants in different areas of a meeting room.
The VCS752 also has Bluetooth and DECT connectivity.
After pairing Bluetooth devices with the VCS752, you can
use the conference phone to make and answer cellular calls,
or use a Bluetooth headset for a private conversation.
For large meeting rooms, you can extend the range of the
VCS752 with up to three VTech VCS850 DECT expansion
speakerphones.
PARTS CHECKLIST
Your VCS752 SIP Conference Phone with Two Wireless
Mics package contains the following items:
CONNECT BASE UNIT
The VCS752 can be powered by AC power or Power over
Ethernet (PoE—Class 0).
When using AC power, connect the base unit as shown
below.
Page 1 of 2
Star2Star vtech VCS752 Conference Phone Quick User Guide
1. Plug one end of the DC power cable into the power jack of
the base unit, and plug the other end into the VCS752 jack
of the power adapter. Route the cord through the slots.
2. Plug one end of the Ethernet cable into the LAN jack of
the power adapter, and plug the other end into a network
switch or router.
3. Plug the small end of the AC power cord into the power
jack of the adapter, and plug the large end into a wall outlet
not controlled by a switch.
To power the VCS752 using PoE:
1. Plug one end of the Ethernet cable into the Ethernet port
on the bottom of the unit.
2. Plug the other end of the cable into your network router or
switch. When the base unit is powered up, the status
indicators turn green for about two seconds.
INSTALL THE WIRELESS MIC BATTERY
1. Plug the battery connector securely into the socket inside
the battery compartment. Insert the battery (with the label
THIS SIDE UP facing up) into the battery compartment.
2. Slide the battery door until it clicks into place.
3. Place the wireless mics into the charging cradles until they
are flush.
The status indicator on the wireless mic turns orange when
charging, and turns off when the wireless mic is fully
charged.
