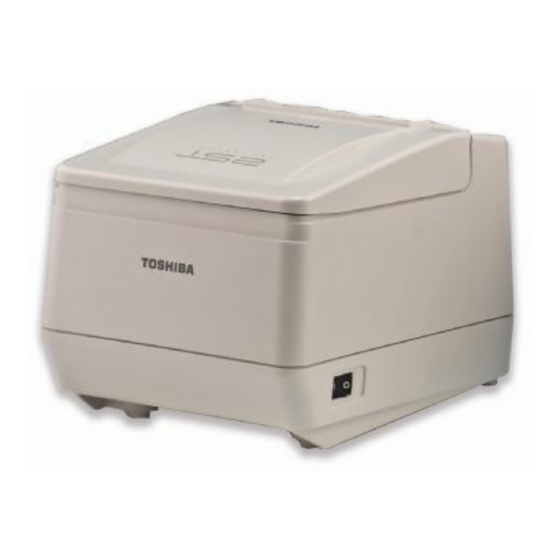

- Page 1 All manuals and user guides at all-guides.com One Blue Hill Plaza, 16 Floor, PO Box 1546 Pearl River, NY 10965 1-800-PC-AMERICA, 1-800-722-6374 (Voice) 845-920-0800 (Fax) 845-920-0880 Toshiba TRST-A1x Series Printer Installation P a g e...
- Page 2 All manuals and user guides at all-guides.com Hardware install 1. Connect the supplied USB “Y” printer cable to the powered (24V) USB port and route the cable through the cable restraint bars. 2. Ensure the printer power switch is turned off. 3.
- Page 3 All manuals and user guides at all-guides.com Loading Paper in the TRST-A1x Printer When you use this printer for the first time or when the receipt paper has been used up, load a receipt roll in, following the procedures listed below while the printer power is set to ON. A thermal printer prints thermal receipt paper by applying heat to the paper to react with the chemicals on the paper surface.
- Page 4 All manuals and user guides at all-guides.com Printer Configuration 1. Turn the printer off. 2. Turn the printer over and the back of the printer is facing up. You will see the number 12 at the bottom right hand corner. 3.
- Page 5 All manuals and user guides at all-guides.com 7. Short click the feed button to Set the USB interface type to Printer class then press and hold it down validate selection, you will hear beeps to confirm. 8. Printer class should show highlighted on the receipt. Perform a Long Click (Yes) to Save new parameters.
- Page 6 All manuals and user guides at all-guides.com Installing Microsoft POS for .NET The installer for Microsoft POS for .NET can be downloaded at: http://download2.pcamerica.com/drivers/POS_for_.Net.exe 1. Run the installer and select Install. 2. Enter a User Name and Organization and select Next.
- Page 7 All manuals and user guides at all-guides.com 4. Select Typical and then Next. 5. Select Install. 6. Select Finish. P a g e...
- Page 8 All manuals and user guides at all-guides.com TRST-A1x OPOS Driver Installation The installer for TRST-A1x can be downloaded at: http://download2.pcamerica.com/drivers/Toshiba_OPOS_Drivers.zip 1. Select Next. 2. Select Development $ Execute under setup type. 3. Select the interface type for the TRST-A1X. 4.
- Page 9 All manuals and user guides at all-guides.com 5. Select Next to install to the default location. 6. Select Install. 7. After the installation has completed select Finish. P a g e...
- Page 10 All manuals and user guides at all-guides.com Toshiba OPOS CheckHealth 1. Open the OPOS CheckHealth by going to Start then All Programs then OPOS CheckHealth 2. Once the application is open Select the + to open the hive for the POSPrinter.
- Page 11 All manuals and user guides at all-guides.com Configuration in CRE RPE Now you’re ready to set up your printer in RPE/CRE. 1. Start the RPE/CRE program. 2. Select the Options/Manager and enter your password (where applicable). 3. Select [4] Setup | [L] Friendly Printer Setup and re-enter your password if necessary. 4.
- Page 12 All manuals and user guides at all-guides.com Cash Drawer Configuration 1. Select the Manager or Options button. 2. Enter the administrator password (default: admin) where applicable. 3. Select Setup then, Setup Screen. 4. Select the Hardware tab. 5. Select Page1. 6.
- Page 13 All manuals and user guides at all-guides.com Printing Barcodes on Receipts 1. Select the Manager or Options button. 2. Enter the administrator password (default: admin) where applicable. 3. Select Setup then, Setup Screen. 4. Select the Receipt tab. 5. Check Print Bar Code On “On-Hold” Receipts. 6.
