NOTE: To enable the views showing valve parameters the respective valves must be pre-installed and
configured properly by a installation fitter.

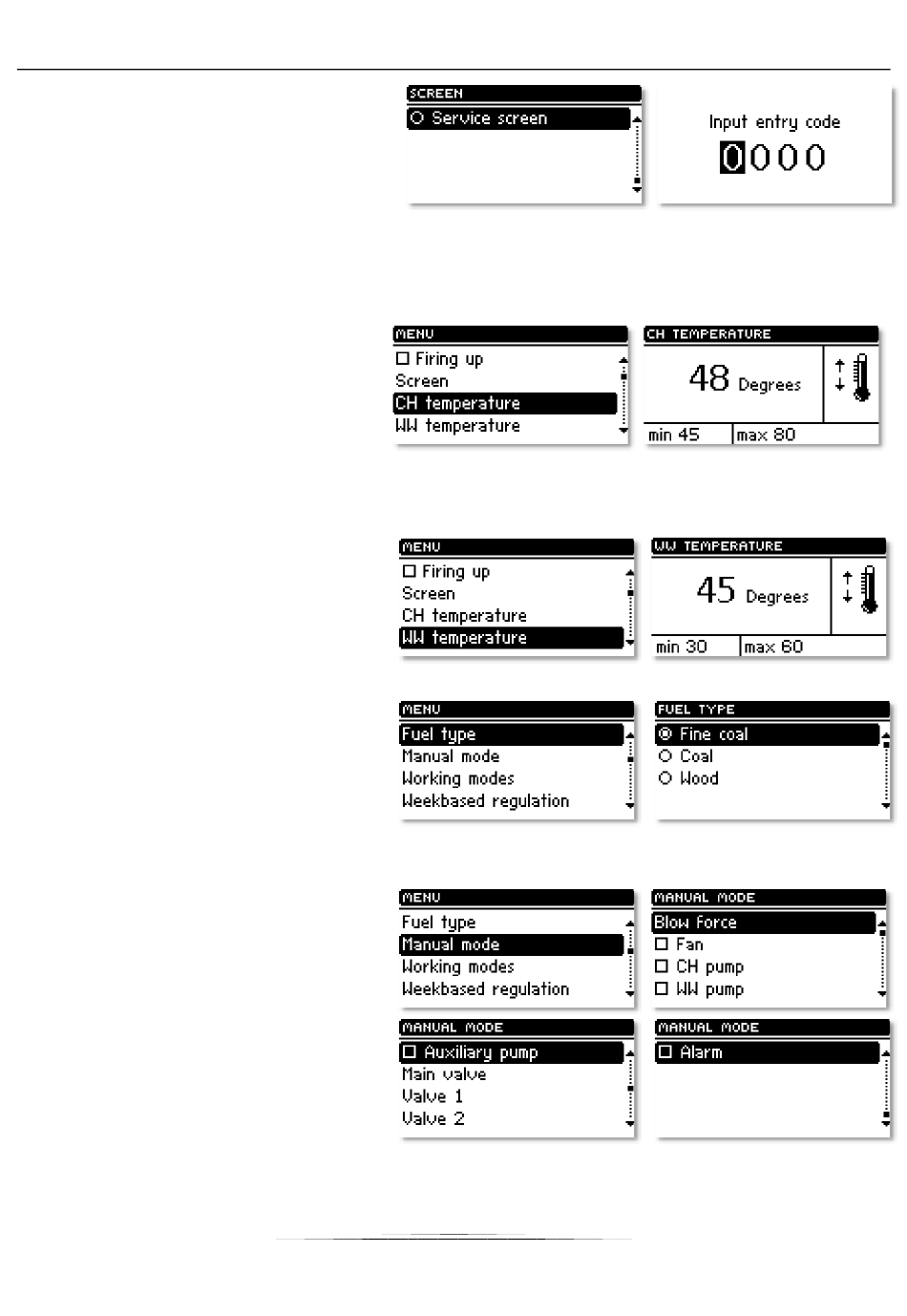

III.d)
This option is used to adjust the
set-point temperature of the boiler. You
can change the boiler temperature within
an adjustable temperature range of 45
to 85 O C. The central heating set-point can
be also changed
controller main screen by turning the
pulser knob.
III.e)
This function allows you to set your
required set-point
domestic hot water. You can adjust this
temperature within a range from 30
60 O C.

III.f) Type of fuel

This option is used choose one of three
types of fuel (coal, fines or wood) for
burning in the boiler. For each type of fuel
chosen a suitable operation mode for the
fan is selected to match the actual process
of combustion in the boiler.
III.g)
For your convenience the controller
is equipped with a Manual operation
module. When this function is active each
actuator (blowing, central heating pump,
hot water pump, additional circulating or
valve pump) can be switched on or off
independently and each active mixing valve
can be closed, opened or stopped.
You can start the motor of your
selected device by pressing the pulser. The
device will remain activated until the
pulser is pressed again.
Set-point CH temperature
O C
directly from the
Set-point DHW temperature
temperature for
O C to
Manual operation
7
User's manual
