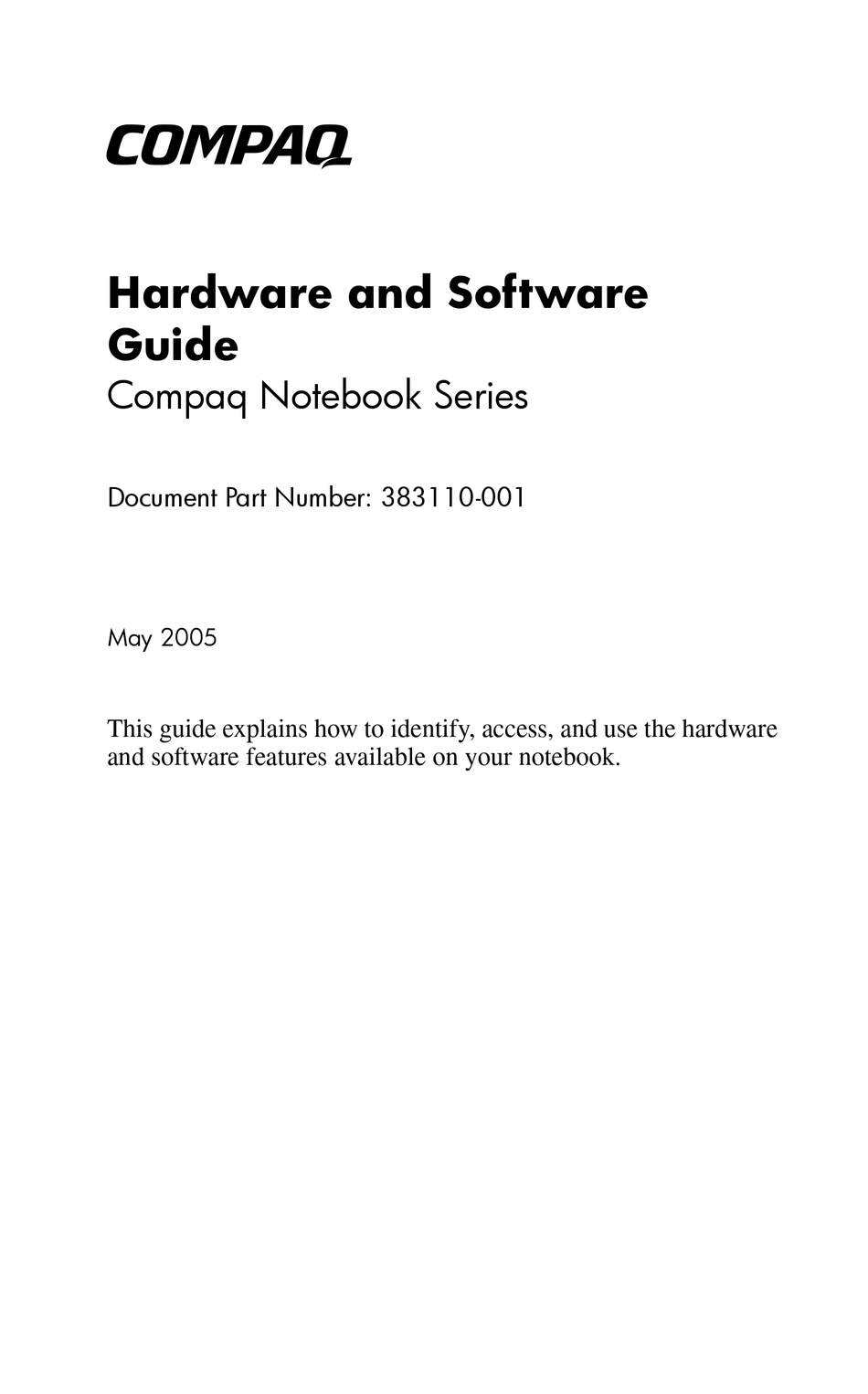

Page 1 Hardware and Software Guide Compaq Notebook Series Document Part Number: 383110-001 May 2005 This guide explains how to identify, access, and use the hardware and software features available on your notebook.
Page 2 HP shall not be liable for technical or editorial errors or omissions contained herein. Hardware and Software Guide Compaq Notebook Series First Edition May 2005 Reference Number: M2000 Document Part Number: 383110-001...
Page 3: Table Of Contents
1 Hardware Top Components ....... 1–1 Keys ........1–1 TouchPad .
Page 4 Contents 2 TouchPad and Keyboard TouchPad ........2–1 Identifying TouchPad Components .
Page 5 Battery Pack ........3–14 Charging a Battery Pack ..... 3–14 Monitoring the Charge in a Battery Pack .
Page 6 Contents 5 Wireless (Select Models Only) Wireless Features ....... 5–1 Wireless Controls .
Page 7 7 Hardware Upgrades and Replacements Device Connections ......7–1 Connecting a Powered Device....7–1 Connecting a USB Device.
Page 8 Contents Setup Utility ........8–9 Opening the Setup Utility ..... 8–9 Changing the Language of the Setup Utility .
Page 9: Hardware
Top Components Keys Component Function keys (12) Windows logo key Hardware and Software Guide Hardware Description Perform system and application tasks. When combined with keys perform additional tasks as hotkeys. Displays the Microsoft® Windows® Start menu. the function (Continued) 1–1...
Page 10 Hardware Component fn key Keypad keys (15) Windows applications key 1–2 Description Combines with other keys to perform system tasks. For example, pressing fn+f7 decreases screen brightness. Can be used like the keys on an external numeric keypad. Displays a shortcut menu for items beneath the pointer.
Page 11: Touchpad
TouchPad Component TouchPad* Left TouchPad button* Right TouchPad button* TouchPad vertical and horizontal scrolling regions* *This table describes default settings. For information about changing the functions of TouchPad components, refer to the Preferences” section in Hardware and Software Guide Description Moves the pointer.
Page 12: Power Controls
Hardware Power Controls Component Display switch* Power/standby button* *This table describes default settings. For information about changing the function of the display switch or power/standby button, refer to the Other Power Preferences” 1–4 Description If the notebook is closed while on, initiates standby.
Page 13: Lights
Lights Component Caps lock light Wireless light (select models only)* Power/standby light Hardware and Software Guide Description On: Caps lock is on. On: One or more optional internal wireless devices, such as a WLAN and/or a Bluetooth® device (select models only), are turned on.
Page 14 Hardware Component Mute light Num lock light *For information about establishing a wireless connection, refer to Chapter 5, “Wireless (Select Models Only).” † The notebook has 2 power/standby lights. The power/standby light on the top of the notebook is visible only when the notebook is open; the power/standby light on the front of the notebook is visible whether the notebook is open or closed.
Page 15: Wireless (Select Models Only) And Volume Buttons
Wireless (Select Models Only) and Volume Buttons Component Wireless button (select models only) Volume down button Volume up button Volume mute button Hardware and Software Guide Description Turns the wireless functionality on or off but does not create a wireless connection.
Page 16: Antennae (Select Models Only)
Hardware Antennae (Select Models Only) Component Antennae (2)* *The antennae (select models only) are not visible from the outside of the notebook. For optimal transmission, keep the areas immediately around the antennae free from obstructions. 1–8 Description Send and receive wireless device signals. Å...
Page 17: Front Components
Front Components Lights Component Power/standby light* IDE (Integrated Drive Electronics) drive light Battery light *The light on the power/standby button and the power/standby light on the front of the notebook display the same information. The light on the power/standby button is visible when the notebook is open; the power/standby light on the front of the notebook is visible whether the notebook is open or closed.
Page 18: Speakers, Jacks And Display Release Button
Hardware Speakers, Jacks and Display Release Button Component Stereo speakers (2) Display release button Audio-in (microphone) jack Audio-out (headphone) jack 1–10 Description Produce stereo sound. Opens the notebook. Connects an optional monaural (single sound channel) microphone. Connects optional headphones or powered stereo speakers.
Page 19: Rear Components
Rear Components Component Exhaust vent* *The notebook has 4 vents. This and all other vents are visible on the bottom of the notebook. One vent is also visible on the left side of the notebook. Hardware and Software Guide Description Provides airflow to cool internal components.
Page 20: Left-Side Components
Hardware Left-Side Components Ports and Jacks Component Power connector Monitor port Expansion Port 2 (select models only)* RJ-45 (network) jack RJ-11 (modem) jack ‡ USB port *The notebook has only one expansion port. The term Expansion Port 2 describes the type of expansion port. †...
Page 21: Pc Card Slot And Button
PC Card Slot and Button Component PC Card slot PC Card eject button Hardware and Software Guide Description Supports an optional Type I or Type II 32-bit (CardBus) or 16-bit PC Card. Ejects an optional PC Card from the PC Card slot. Hardware 1–13...
Page 22: Right-Side Components
Hardware Right-Side Components Component USB ports (1 or 2 depending on the notebook model)* Memory Reader (select models only) 1394 port (select models only) Memory Reader light (select models only) Optical drive 1–14 Description Connect optional USB devices. Supports an optional digital memory card.
Page 23 Component S-Video-out jack (select models only) Security cable slot *Depending on the model, the notebook has 2 or 3 USB ports. The other USB port is on the left side. † The digital memory card could be a Secure Digital (SD) Memory Card, Memory Stick, Memory Stick Pro, xD-Picture Card, MultiMediaCard, or SmartMedia (SM) card.
Page 24: Bottom Components
Hardware Bottom Components Mini PCI and Memory Compartments Component Mini PCI compartment Memory compartment 1–16 Description Holds an optional wireless LAN device. Ä To prevent an unresponsive system and the display of a warning message, install only a Mini PCI device authorized for use in your notebook by the governmental agency that regulates wireless devices in your country.
Page 25: Bays, Battery Latch And Vents
Bays, Battery Latch and Vents Component Battery bay Battery pack release latch Exhaust vents (4) Hard drive bay *Battery packs vary by model. † The notebook has 4 vents. One vent is also visible on the rear of the notebook. Hardware and Software Guide Description Holds a battery pack.
Page 26: Additional Components
Hardware Additional Components Hardware The components included with your notebook vary by region, country, notebook model, and the optional hardware you purchased. The following sections identify the standard external components included with most notebook models. Component Battery pack* AC adapter Power cord* Modem cable* Country-specific modem...
Page 27: Optical Discs
Optical Discs Software on optical discs, such as CDs or DVDs, is included with all notebook models. ■ The software applications packaged in the Required for Setup bag are not preinstalled on your notebook. Depending on how you want to use your notebook, you may want to install some or all of these applications.
Page 28: Labels
Hardware Labels The labels affixed to the notebook provide information you may need when you troubleshoot system problems or travel internationally with the notebook. ■ Service Tag—Provides the product name, product number (P/N), and serial number (S/N) of your notebook. You may need the product number and the serial number when you contact Customer Care.
Page 29: Touchpad And Keyboard
TouchPad and Keyboard TouchPad Identifying TouchPad Components The TouchPad includes the following components: 1 TouchPad 2 Left TouchPad button Hardware and Software Guide 3 Right TouchPad button 4 TouchPad vertical and horizontal scrolling regions 2–1...
Page 30: Using The Touchpad
TouchPad and Keyboard Using the TouchPad The TouchPad provides the navigation, selection, and scroll functions of an optional external mouse: ■ To move the pointer, slide your finger across the TouchPad surface in the direction you want to move the pointer. ■...
Page 31: Setting Touchpad Preferences
Setting TouchPad Preferences In the Windows Mouse Properties window you can ■ Adjust basic pointing device settings such as click speed, pointer speed and shape, and mouse trails. ■ Configure the right and left TouchPad buttons for right-handed or left-handed use. These buttons are set by default for right-handed use.
Page 32 TouchPad and Keyboard Among the preferences available in the TouchPad Properties window are ■ TouchPad Tapping, which enables you to tap the TouchPad once to select an item or twice to double-click an item. To access TouchPad Tapping settings, select Tapping. ■...
Page 33: Hotkeys
Hotkeys Identifying Hotkeys Hotkeys are preset combinations of the and one of the function keys 3. The icons on the Hotkey functions and procedures are described in the following sections. Hardware and Software Guide through keys represent hotkey functions. TouchPad and Keyboard key 1, the key 2, 2–5...
Page 34: Hotkey Quick Reference
TouchPad and Keyboard Hotkey Quick Reference The following table identifies the default hotkey functions. The function of the refer to the “Setting Other Power Preferences” Chapter 3, “Power.” Default Function Opens Help and Support Center. Opens print options window. Opens default Internet browser. Switches the image among displays.
Page 35: Using Hotkey Procedures
Using Hotkey Procedures Using Hotkeys On the Internal Keyboard To use a hotkey command on the notebook keyboard, use either of the following procedures: ■ Briefly press of the hotkey command. ■ Press and hold down the hotkey command, and then release both keys at the same time.
Page 36: Using Hotkey Commands
TouchPad and Keyboard Using Hotkey Commands Open Help and Support Center (fn+f1) hotkey opens the Help and Support Center. fn+f1 In addition to providing information about your operating system, the Help and Support Center provides ■ Information about your notebook, such as model and serial number, installed software, hardware components, and specifications.
Page 37: Open Print Window (Fn+F2)
Open Print Window (fn+f2) In Windows, the the active Windows application. Open Internet Explorer (fn+f3) hotkey opens Internet Explorer. fn+f3 ■ Until you have set up your Internet or network services, the hotkey opens the Windows Internet Connection Wizard. fn+f3 For information about using this wizard and other Internet connection methods, select ■...
Page 38: Switch Image (Fn+F4)
TouchPad and Keyboard Switch Image (fn+f4) hotkey switches the image among display devices fn+f4 connected to the system. For example, if an optional monitor is connected to the notebook through the monitor port, each time you press the notebook display, the monitor display, and a simultaneous display on both the notebook and the monitor.
Page 39: Initiate Standby (Fn+F5)
Initiate Standby (fn+f5) hotkey is set by default to initiate standby. fn+f5 When standby is initiated, your work is saved in random access memory (RAM), the screen clears, and power is conserved. While the notebook is in standby, the power/standby lights blink. ■...
Page 40: Initiate Quicklock (Fn+F6)
Then follow the instructions on the screen to enter your Windows user password or your Windows administrator password and access the notebook. For information about combining Windows passwords with Compaq passwords, refert to Decrease Brightness (fn+f7) hotkey decreases the brightness of the notebook fn+f7 screen.
Page 41 Media Activity Hotkeys (fn+f9 through fn+f12) The following 4 media activity hotkeys can control the play of an audio CD or a DVD. To control the play of a video CD, use the media activity controls in your video CD player. Play, Pause or Resume an Audio CD or a DVD (fn+f9) ■...
Page 42: Display System Information (Fn+Esc)
TouchPad and Keyboard Display System Information (fn+esc) hotkey displays information about system hardware fn+esc components and software version numbers. » To clear the display, press In the fn+esc input-output system) is displayed as the BIOS date. On some notebook models, the BIOS date is displayed in decimal format. The BIOS date is sometimes called the system ROM version number.
Page 43: Using The Embedded Numeric Keypad
TouchPad and Keyboard Using the Embedded Numeric Keypad The embedded numeric keypad consists of 15 keys that can be used like the keys on an external numeric keypad. When the embedded numeric keypad is turned on, each keypad key performs the functions indicated by the icon in the upper-right corner of the key.
Page 44: Turning The Embedded Numeric Keypad On And Off
TouchPad and Keyboard Turning the Embedded Numeric Keypad On and Off When the embedded numeric keypad is off, press turn the keypad on. The num lock light 2 is turned on. When the embedded numeric keypad is on, press turn the keypad off. The num lock light is turned off. 2–16 fn+num lk fn+num lk...
Page 45: Switching The Functions Of Keypad Keys
Switching the Functions of Keypad Keys You can temporarily switch the functions of an embedded numeric keypad key between its standard function and its keypad function. ■ To use a key on the keypad as a keypad key while the keypad is turned off, press and hold ■...
Page 46: Using An External Numeric Keypad
TouchPad and Keyboard Using an External Numeric Keypad ✎ The embedded numeric keypad cannot be used while an optional external numeric keypad is connected to the notebook. Most keys on most external numeric keypads function differently depending on whether num lock mode is on or off. For example: ■...
Page 47: Power
Power Sources Selecting a Power Source Use the following table to select a recommended power source for the way you plan to use the notebook. Hardware and Software Guide Power 3–1...
Page 48 Power Task Work in most software applications Charge or calibrate a battery pack in the notebook Install or modify system software or write to an optical disc 3–2 Recommended Power Source ■ Charged battery pack in the notebook ■ External power supplied through one of the following devices: ❐...
Page 49: Switching Between Battery And External Power
Switching Between Battery and External Power The notebook runs on external power whenever external power is available to the notebook. This conserves the charge in an inserted battery pack. External power can be supplied through the AC adapter or through an optional docking device or an optional combination power adapter.
Page 50: Power Control And Light Locations
Power Power Control and Light Locations The following illustration is provided as a quick reference to the locations of the power controls and lights on the notebook. The function of each of these items is summarized in “Hardware.” this chapter. 1 Display switch 2 Power/standby button 3 Power/standby light...
Page 51: Standby, Hibernation And Shutdown Overviews
Standby, Hibernation and Shutdown Overviews Standby Standby reduces power to system components that are not in use. When standby is initiated, your work is saved in random access memory (RAM), the screen is cleared, and the power/standby lights blink. Saving your work before initiating standby is not usually necessary but is a recommended precaution.
Page 52: Hibernation
Power Hibernation CAUTION: If the configuration of the notebook system is changed during Ä hibernation, it may not be possible to resume from hibernation. When the notebook is in hibernation: ■ Do not add or remove a memory module. ■ Do not remove or replace the hard drive.
Page 53: Leaving Your Work
Leaving Your Work If you plan to resume shortly—Initiate standby for shorter times and hibernation for longer times or for power conservation. The amount of time a battery pack can support standby or hibernation or hold a charge varies by notebook configuration and the condition of the battery pack.
Page 54: Standby, Hibernation And Shutdown Procedures
Power Standby, Hibernation and Shutdown Procedures This section explains the default standby, hibernation, and shutdown procedures. For information about changing the function of some of the power features on your notebook, refer to “Power Preferences” The controls and lights discussed in this section are illustrated in in the “Power Control and Light Locations”...
Page 55: Initiating Or Resuming From Standby
Initiating or Resuming from Standby Task Procedure Initiate standby. With the notebook on, use any of the following procedures: ■ Press the fn+f5 hotkey. ■ Close the notebook. ✎ ■ In Windows XP Home, ■ In Windows XP Professional, Allow the system No action is required.
Page 56: Initiating Or Restoring From Hibernation
Power Initiating or Restoring from Hibernation Hibernation cannot be initiated unless it is enabled. Hibernation is enabled by default. To verify that hibernation remains enabled, select Start > Control Panel > Performance and Maintenance > Power Options > Hibernate tab. If the Enable hibernation check box is selected, hibernation is enabled.
Page 57: Using Emergency Shutdown Procedures
Using Emergency Shutdown Procedures If the notebook does not respond to the standard Windows shutdown procedure for your operating system, try the following emergency shutdown procedures in the sequence provided: ■ Press ctrl+alt+del ❏ In Windows XP Home, select Shut Down > Turn Off. ❏...
Page 58: Power Preferences
Power Power Preferences Using Power Schemes A power scheme controls the amount of power the notebook uses while running on external power or on a battery pack, and also sets the notebook to initiate standby or hibernation after a period of inactivity you specify.
Page 59: Setting Other Power Preferences
Setting Other Power Preferences You can change the function of the power/standby button, the hotkey, and the display switch. fn+f5 By default, when the notebook is on: ■ Briefly pressing the power/standby button initiates hibernation. ■ Pressing the Microsoft operating systems, initiates standby. ■...
Page 60: Battery Pack
Power Battery Pack Charging a Battery Pack To prolong battery life and optimize the accuracy of battery charge displays: ■ If you are charging a new battery pack: ❏ Charge the battery pack while the notebook is connected to external power through the AC adapter. ❏...
Page 61: Monitoring The Charge In A Battery Pack
A battery pack inserted in the notebook charges whether the notebook is off or in use, but the battery pack charges faster while the notebook is off. Charging may be delayed if a battery pack is new, has been unused for 2 weeks or more, or is much warmer or cooler than room temperature.
Page 62: Displaying Charge Reports
Power Displaying Charge Reports To display battery charge information on the screen, use the operating system Power Meter feature. To access the Power Meter display: ■ Select Start > Control Panel > Performance and Maintenance > Power Options > Power Meter tab. –or–...
Page 63: Identifying Low-Battery Conditions
Identifying Low-Battery Conditions When a battery pack that is the only power source for the notebook reaches a low-battery condition, a text warning message is displayed, and the battery light blinks. If a low-battery condition is not resolved and the amount of charge remaining in the battery pack continues to drop, the notebook eventually enters a critical low-battery condition.
Page 64: Resolving Low-Battery Conditions
Power Resolving Low-Battery Conditions CAUTION: To prevent problems when restoring from hibernation: If the Ä notebook has reached a critical low-battery condition and has begun to initiate hibernation, do not restore power until hibernation is complete. When hibernation is complete, the power/standby lights are turned off. To resolve a low-battery condition: ■...
Page 65: Calibrating A Battery Pack
Calibrating a Battery Pack When to Calibrate Even if a battery pack is heavily used, calibration should be necessary only once a month. You do not have to calibrate a new battery pack before first use. Calibration does not usually increase battery run time, but it can increase the accuracy of battery charge displays, especially under the following conditions: ■...
Page 66: Discharging The Battery Pack
Power How to Calibrate To calibrate a battery pack, you must fully charge, fully discharge, and then fully recharge the battery pack. Charging the Battery Pack Charge the battery pack while the notebook is on. To charge the battery pack: WARNING: Do not charge the notebook battery pack onboard Å...
Page 67 If you use the notebook occasionally during the discharge process described below and have set energy-saving timeouts, expect the following performance from your system during the discharge: ■ Any unsaved work from your current session will be lost when the battery pack is fully discharged and the notebook is shut down.
Page 68: Recharging The Battery Pack
Power Recharging the Battery Pack 1. Connect the notebook to external power and maintain the connection until the battery pack is fully recharged and the battery light is turned off. You can use the notebook while the battery pack is recharging, but the battery pack will charge faster if the notebook is turned off.
Page 69: Conserving Battery Pack Power
Conserving Battery Pack Power To extend the time that a battery pack can run the notebook from a single charge, use the following battery conservation settings and procedures. Conserving Power as You Work To conserve power as you work: ■ Prevent devices you are not using from drawing power from the notebook.
Page 70: Selecting Power Conservation Settings
Power Selecting Power Conservation Settings To set the notebook to use less power: ■ Select a short wait for the screen saver and select a screen saver with minimal graphics and motion. To select a screen saver and a screen saver wait time: Select Start >...
Page 71: Removing A Battery Pack
Removing a Battery Pack Although battery packs vary by model, the removal procedure is the same for all models. To remove a battery pack: 1. Turn the notebook upside down. 2. Slide the battery release latch 1 to release the battery pack. 3.
Page 72: Inserting A Battery Pack
Power Inserting a Battery Pack Although battery packs vary by model, the insertion procedure is the same for all models. To insert a battery pack: 1. Turn the notebook upside down. 2. Lower the battery pack 1 into the battery bay and rotate it 2 until it is seated.
Page 73: Storing A Battery Pack
Storing a Battery Pack CAUTION: To prevent damage to a battery pack, do not expose it to Ä high temperatures for extended periods of time. If the notebook will be unused and disconnected from external power for more than 2 weeks, remove and store the battery pack in a location that is cool and dry.
Page 74: Multimedia
Multimedia Internal Speakers The internal speakers, identified in the following illustration, play sound in stereo from applications, the operating system, games, drive media, the Internet, and other sources. If an external device, such as headphones, is connected to the audio-out jack, the internal speakers are disabled. Hardware and Software Guide 4–1...
Page 75: Volume Controls
Multimedia Volume Controls You can adjust volume with the volume buttons on the notebook or the volume control software available in your operating system and in some multimedia applications. The volume mute button on the notebook overrides all software volume settings. ■...
Page 76: External Audio Devices
External Audio Devices Using the Audio-Out (Headphone) Jack WARNING: To reduce the risk of personal injury, adjust the volume Å before putting on headphones. CAUTION: To prevent possible damage to an external device, do not Ä plug a monaural (single sound channel) plug into the audio-out jack. The audio-out jack, sometimes called a headphone jack, connects optional headphones or externally powered stereo speakers.
Page 77: Using The Audio-In (Microphone) Jack
Multimedia Using the Audio-In (Microphone) Jack The audio-in jack, identified in the following illustration, connects an optional monaural (single sound channel) microphone. The audio-in jack is sometimes called a microphone jack. It is recommended that you use an electret condenser microphone with a 3.5-mm plug.
Page 78 Multimedia Plug the stereo end of the audio cable into the audio-out (headphone) jack on the notebook. Plug the other end of the cable into the audio-in jack on the external device. For more information about the notebook audio-out jack, refer to the “Using the Audio-Out (Headphone) Jack”...
Page 79: Displaying A Video Image
Multimedia Displaying a Video Image To display an image on the notebook display or a video device display, both the notebook and the video device must be turned on. » To switch the image between the notebook display and the video device display, repeatedly press the Pressing the notebook display, the connected video device display, and...
Page 80 ■ To remove a disc while the notebook is turned off: a. Insert the end of a small object like a paper clip into the release access 5 in the front bezel of the drive. b. Press the paper clip gently into the release access until the media tray is released.
Page 81: Using Media Activity Hotkeys
Multimedia Using Media Activity Hotkeys Media activity hotkeys are preset combinations of the and 4 of the function keys. You can use these hotkeys to control the play of an audio CD or a DVD that is inserted in the optical drive.
Page 82: Setting Autoplay Preferences
Setting AutoPlay Preferences AutoPlay is the operating system feature that determines how the notebook responds when you access files on a removable storage device such as a DVD-ROM drive, a DVD/CD-RW Combo Drive, or a DVD+RW/R and CD-RW Combo Drive. AutoPlay default settings vary by notebook model and configuration.
Page 83: Protecting Playback
Multimedia Protecting Playback To prevent the loss of playback or playback quality: ■ For optimal playback quality, save your work and close all open applications before playing a CD or a DVD. ■ Dock or undock the notebook from an optional docking device before or after playing a disc, not while playing a disc.
Page 84: Multimedia Software
❏ Install WinDVD from the Application and Driver Recovery disc provided with most Compaq notebooks. ❏ If you do not have the Application and Driver Recovery disc, contact Customer Care for a copy of the restore solution for you notebook.
Page 85: Observing The Copyright Warning
Multimedia ■ InterVideo WinDVD Creator Plus—Provides the ability to create, edit, and burn movies to a DVD or video CD. This software is located on the InterVideo WinDVD Creator CD, included with select notebooks. ■ Sonic RecordNow!—Enables you to create copies of data and audio CDs and DVDs, and create personalized audio CDs and DVDs.
Page 86: Installing Software
Installing Software To install software included with the notebook from a CD: 1. Insert an appropriate optical drive into the notebook MultiBay II as instructed in the Disc” in this chapter. 2. Connect the notebook to a reliable electrical outlet. 3.
Page 87: Enabling Autoplay
Multimedia Enabling AutoPlay AutoPlay is an option in Windows that turns the Autorun feature on or off. Autorun starts a program or plays a title on a disc as soon as it is inserted into the drive and the drive door is closed. By default, AutoPlay is enabled on the notebook.
Page 88: Using The Operating System
Using the Operating System To change settings through the operating system: 1. Open Device Manager by selecting Start > My Computer. Right-click in the window and select Properties > Hardware tab > Device Manager. 2. Select DVD/CD-ROM drives, right-click the DVD drive for which you want to change region settings, and then select Properties.
Page 89: Wireless (Select Models Only)
Wireless Features If your notebook is equipped with an 802.11 wireless device and/or a Bluetooth wireless device, you have a wireless notebook. ■ An 802.11 wireless notebook can connect to wireless local area networks (WLANs) in corporate offices, your home, and public places such as airports, restaurants, coffee shops, hotels, and universities.
Page 90: Wireless Controls
Wireless (Select Models Only) Wireless Controls Your notebook has a wireless button that can enable and disable 802.11 and Bluetooth wireless devices and wireless lights to indicate the state of the wireless devices. By default, the 802.11 and Bluetooth wireless devices and wireless lights are turned on when you turn on the notebook.
Page 91: Wireless Devices (Select Models Only)
802.11 Wireless Devices (Select Models Only) With an 802.11 wireless device, you can access a wireless local area network (commonly referred to as wireless network, wireless LAN, or WLAN), which is composed of other computers and accessories linked by a wireless router or a wireless access point. ■...
Page 92: Setting Up A Wlan In Your Home
Wireless (Select Models Only) Setting Up a WLAN in Your Home Microsoft Windows XP supports WLAN configuration with the Zero Client Configuration feature. To set up a WLAN and connect to the Internet in your home, you need the following equipment: ■...
Page 93: Connecting To A Wlan In Your Home
Connecting to a WLAN in Your Home To connect to a WLAN connection in your home: ■ Verify that all drivers required by your 802.11 wireless device are installed and that the wireless device is correctly configured. ✎ If you are using an integrated 802.11 wireless device, all required drivers are installed and the device is preconfigured and ready to use.
Page 94: Connecting To A Public Wlan
Wireless (Select Models Only) Connecting to a Public WLAN Contact your ISP or search the Web for a list of public WLANs near you. Web sites that list public WLANs include Cisco Hotspot Locator, Hotspotlist, and Geektools. When you are within range of a public WLAN, a Wireless Network Connection interactive message is displayed at the bottom of your computer screen.
Page 95: Identifying An 802.11 Wireless Device
Identifying an 802.11 Wireless Device You may need to know the name of the integrated 802.11 wireless device installed in your notebook. To identify an integrated 802.11 wireless device: 1. Display the names of the network devices on your notebook: a.
Page 96: Bluetooth Wireless Devices (Select Models Only)
Wireless (Select Models Only) Bluetooth Wireless Devices (Select Models Only) A Bluetooth wireless device provides short-range wireless communications that replace the physical cable connections that traditionally link electronic devices such as ■ Network access points. ■ Computers (desktop, notebook, PDA). ■...
Page 97 ■ Dial-up networking—Connects Bluetooth devices to the Internet. ■ Bluetooth serial port—Transfers data over the Bluetooth link using a virtual COM port. ■ Hands-Free—Enables a vehicle-embedded, hands-free unit or a notebook serving as a hands-free unit to establish a wireless connection to a cellular phone and to act as the Bluetooth cellular phone audio input and output mechanism.
Page 98: Wireless Device Power States
Wireless (Select Models Only) Wireless Device Power States The wireless button 1 enables and disables 802.11 and Bluetooth wireless devices, in conjunction with the Wireless Assistant software utility. By default, any 802.11 or Bluetooth wireless device and the wireless light 2 are turned on when you turn on the notebook.
Page 99 The 802.11 and Bluetooth wireless devices have 2 power states: ■ Enabled ■ Disabled You can enable and disable the wireless devices with the wireless button. You can also enable and disable the wireless devices in the Setup utility. ✎ You cannot use the wireless button or Wireless Assistant to control the wireless devices if they are disabled in the Setup utility.
Page 100: Turning On The Devices
Wireless (Select Models Only) Turning On the Devices ■ Wireless Assistant shows that both WLAN (802.11) and Bluetooth are turned off ■ Wireless light is off ■ Wireless Assistant shows that both WLAN and Bluetooth are disabled ■ Wireless light is off ■...
Page 101: Turning Off And Disabling The Devices
Turning Off and Disabling the Devices ■ Wireless Assistant shows that both WLAN and Bluetooth are turned on ■ Wireless light is on ■ Wireless Assistant shows that both WLAN and Bluetooth are turned off ■ Wireless light is off ■...
Page 102: Security
Security Features ✎ Security solutions are designed to act as deterrents. These deterrents may not prevent a product from being mishandled or stolen. Security features provided with your computer can protect the computer, personal information, and data from a variety of risks. Depending on how and where you use your computer, some security features may be unnecessary.
Page 103 Security To Protect Against Unauthorized use of the computer Unauthorized access to the Setup utility ( Unauthorized startup from an optical or diskette drive Computer viruses Unauthorized access to data Unauthorized access to the Setup utility BIOS settings and other system identification information Unauthorized removal of the computer...
Page 104: Quicklock
QuickLock QuickLock protects your computer by displaying the Windows operating system Log On window. While the Log On window is displayed, the computer cannot be accessed until a Windows user password or Windows administrator password is entered. Before you can use the QuickLock feature, you must set a Windows user password or Windows administrator password.
Page 105 Security ■ A Setup utility administrator password and a Windows administrator password have different functions. A Windows administrator password cannot be used to access the Setup utility, and a Setup utility administrator password cannot provide administrator-level access to your computer contents. ■...
Page 106: Coordinating Passwords
Coordinating Passwords A Setup administrator password and a Windows administrator password have different functions. A Windows administrator password cannot be used to access Setup, and a Setup administrator password cannot provide administrator-level access to your computer contents. Setup utility and Windows passwords function independently. You must use a Setup utility password at a Setup utility password prompt and a Windows password at a Windows password prompt.
Page 107: Setup Utility Administrator Password
Security Setup Utility Administrator Password The Setup utility administrator password protects the configuration settings and system identification information in the Setup utility. After this password is set, it must be entered to access the Setup utility. The administrator password ■ Is not interchangeable with a Windows administrator password, although both passwords can be identical.
Page 108: Setting An Administrator Password
Setting an Administrator Password An administrator password is set, changed, or deleted in the Setup utility. To manage this password: 1. Open the Setup utility by turning on or restarting the computer, and then pressing displayed in the lower-left corner of the screen. 2.
Page 109: Setup Utility Power-On Password
Security Setup Utility Power-On Password The Setup utility power-on password prevents unauthorized use of the computer. After this password is set, it must be entered each time the computer is turned on, restarted, or restored from hibernation. A power-on password ■...
Page 110: Setting A Power-On Password
Setting a Power-On Password A power-on password is set, changed, or deleted in the Setup utility. To manage the password: 1. Open the Setup utility by turning on or restarting the computer, and then pressing displayed in the lower-left corner of the screen. 2.
Page 111: Setup Utility Device Security
Security Setup Utility Device Security From the Device Security menu in the Setup utility, you can disable or enable an optical drive or a diskette drive. To disable or reenable system devices in the Setup utility: 1. Open the Setup utility by turning on or restarting the computer, and then pressing is displayed in the lower-left corner of the screen.
Page 112: Antivirus Software
Antivirus Software When you use the computer for e-mail, network, or Internet access, you expose the computer to computer viruses. Computer viruses can disable your operating system, applications, or utilities or cause them to function abnormally. Antivirus software can detect most viruses, destroy them, and in most cases, repair damage they have caused.
Page 113: Critical Security Updates For Windows Xp
Security Critical Security Updates for Windows XP CAUTION: To protect your computer from security breaches and Ä computer viruses, it is recommended that you install every critical update from Microsoft as soon as you receive an alert. You should also run Windows Update on a monthly basis to install the latest recommended updates from Microsoft.
Page 114: Firewall Software
Security Firewall Software When you use the computer for e-mail, network, or Internet access, it is possible for unauthorized persons to obtain information about you, your computer, and your data. To protect your privacy, it is recommended that you use firewall software. Firewalls monitor all incoming and outgoing traffic on your computer by including features such as logging and reporting, automatic alarms, and user interfaces for configuring the firewall.
Page 115: Optional Security Cable
Security Optional Security Cable ✎ Security solutions are designed to act as deterrents. These deterrents may not prevent a product from being mishandled or stolen. To install a security cable: 1. Loop the security cable around a secured object. 2. Insert the key 1 into the cable lock 2. 3.
Page 116: Hardware Upgrades And Replacements
Hardware Upgrades and Device Connections Connecting a Powered Device To connect the notebook to an optional external device that has a power cord: 1. Be sure the device is turned off. 2. Connect the device to the jack or jack on the notebook specified by the device manufacturer.
Page 117: Connecting A Usb Device
Hardware Upgrades and Replacements Connecting a USB Device USB (Universal Serial Bus) is a hardware interface that can be used to connect an external device such as a USB keyboard, mouse, drive, printer, scanner, or hub to the notebook or an optional docking device.
Page 118: Connecting A 1394 Device (Select Models Only)
Connecting a 1394 Device (Select Models Only) IEEE 1394 is a hardware interface that can be used to connect a high-speed multimedia or data storage device to the notebook. Scanners, digital cameras, and digital camcorders often require a 1394 connection. You may have to load device-specific drivers and other software before using some 1394 devices.
Page 119: Connecting A Communication Device
Hardware Upgrades and Replacements Connecting a Communication Device Basic instructions for connecting the modem and setting up Internet service with an Internet service provider (ISP) are provided in the printed Getting Started guide included with your notebook. For information about using the Network Service Boot to connect the notebook to a PXE (Preboot Execution Environment) server during startup, refer to the Features”...
Page 120: Using The Memory Reader Light
Hardware Upgrades and Replacements You can set the notebook to open the files on a digital memory card in ways you specify. For example, you could set a digital memory card to open with a slide show of the photographs it contains.
Page 121: Inserting A Digital Memory Card
Hardware Upgrades and Replacements Inserting a Digital Memory Card CAUTION: To prevent damage to digital memory card connectors: Ä ■ Use minimal force when inserting a digital memory card into the Memory Readerlot. ■ Do not move or transport the notebook while a digital memory card is inserted in the Memory Reader.
Page 122: Removing A Digital Memory Card
Removing a Digital Memory Card To remove a digital memory card: 1. Close all applications and complete all activities that are using the card. (To stop a data transfer, select the cancel button in the Windows Copying window.) 2. Select the My Computer icon on the Windows Desktop. 3.
Page 123: Pc Cards
Hardware Upgrades and Replacements PC Cards CAUTION: To preserve support for all PC Cards, do not install all of Ä the software or any of the enablers provided by a single PC Card manufacturer. If you are instructed by the documentation included with a PC Card to install device drivers: ■...
Page 124: Inserting A Pc Card
Inserting a PC Card CAUTION: To prevent damage to the PC Card connectors: Ä ■ Use minimal force when inserting a PC Card into a PC Card slot. ■ Do not move or transport the notebook while a PC Card is inserted. 1.
Page 125: Stopping Or Removing A Pc Card
Hardware Upgrades and Replacements Stopping or Removing a PC Card CAUTION: To prevent loss of work or an unresponsive system, stop a Ä PC Card before removing it. ✎ Stopping a PC Card, even if it is not in use, conserves power. To stop or remove a PC Card: 1.
Page 126: Drives
Drives Adding a Drive to the System The internal hard drive and optical drive are standard features of the notebook. The type of optical drive varies by notebook model. An optional drive can be added to the system by connecting it, as instructed in the drive documentation, to one of the USB ports or to the 1394 port.
Page 127: Caring For Drives
Hardware Upgrades and Replacements Caring for Drives CAUTION: To prevent damage to the notebook or a drive and loss Ä of work: ■ Do not remove the internal hard drive except for repair or replacement. For instructions, refer to the Hard Drive”...
Page 128: Replacing The Internal Hard Drive
Replacing the Internal Hard Drive The hard drive in the hard drive bay is the internal hard drive. Remove the internal hard drive only for repair or replacement. CAUTION: To prevent an unresponsive system and loss of work, do not Ä...
Page 129 Hardware Upgrades and Replacements 3. To remove the hard drive cover and expose the hard drive tab, lift the cover 1 upward and away from the notebook 2. 4. To remove the hard drive, pull upward on the hard drive tab 1 to release the hard drive, and then lift the hard drive 2 out of the hard drive bay.
Page 130 Hardware Upgrades and Replacements 5. To insert the replacement hard drive, tilt the connector edge of the hard drive 1 downward, and then lower the hard drive into the hard drive bay until it is seated 2. Hardware and Software Guide 7–15...
Page 131 Hardware Upgrades and Replacements 6. Replace the hard drive cover. a. Place the cover over the hard drive bay. b. Slide the cover 1 slightly toward the right side of the notebook until the cover is seated 2. 7. Tighten the 2 hard drive security screws. 7–16 Hardware and Software Guide...
Page 132: Memory
Memory The notebook has 2 memory slots. Depending on your notebook model, either one or both memory slots may contain a replaceable memory module. Increasing Memory You can increase the amount of RAM (random access memory) in the notebook by adding memory modules to vacant memory slots or by replacing installed memory modules.
Page 133: Removing Or Inserting A Memory Module
Hardware Upgrades and Replacements Removing or Inserting a Memory Module WARNING: To prevent exposure to electrical shock, access only the Å memory compartment during this procedure. The memory compartment, the battery bay, and the hard drive bay are the only user-accessible internal compartments on the notebook.
Page 134 Hardware Upgrades and Replacements 6. Turn the notebook upside down. 7. Loosen the 2 memory compartment screws 1, and then lift up and remove the memory compartment cover 2. Hardware and Software Guide 7–19...
Page 135 Hardware Upgrades and Replacements 8. Remove a memory module. To remove a memory module: a. Pull away the retention clips on each side of the module 1. (The module tilts upward.) b. Grasp the edges of the module and gently pull the module out of the memory slot 2.
Page 136 To insert a memory module: a. Align the keyed (notched) edge of the module with the keyed area in the memory slot 1. If you are inserting a single memory module into a vacant memory compartment, insert the module into the lower slot.
Page 137 Hardware Upgrades and Replacements 9. To close the memory compartment, align the tabs on the memory compartment cover with the cover slots on the notebook, and then slide the cover over the memory compartment until it is seated 1. 10. Tighten the 2 memory compartment screws 2. 11.
Page 138: Software Updates And Recoveries And System Software
Prepare for a ROM (read-only memory) update by identifying the ROM version currently installed on the notebook. ■ Access updates at the Web site. ■ Download and install updates. Hardware and Software Guide Software Updates and Recoveries and System Software http://www.compaq.com/consumersupport “Using System 8–1...
Page 139: Preparing For A Software Update
Software Updates and Recoveries and System Software Preparing for a Software Update If your notebook connects to a network, consult with your network administrator before installing any software updates, particularly a ROM update. Accessing Notebook Product Information To access the updates for your notebook, you may need the following information: ■...
Page 140: Accessing Notebook Rom Information
Accessing Notebook ROM Information To determine whether an available ROM update is a later ROM version than the ROM version currently installed on the notebook, you need to know the version of the currently installed ROM. » To display ROM information from within Windows, press fn+esc system ROM is displayed as the BIOS (basic input-output system) date.
Page 141: Downloading And Installing An Update
Do not unplug the notebook from the AC outlet. ■ Do not shut down the notebook or initiate standby or hibernation. ■ Do not insert, remove, connect, or disconnect any device, cable, or cord. 8–4 http://www.compaq.com/consumersupport Hardware and Software Guide...
Page 142: Downloading A Rom Update
Downloading a ROM Update: 1. Select Start > Help and Support > My Compaq Computer. Record the product name and BIOS version displayed in System Information. 2. Access the and then select the suggested support link for your region. 3. Select the option to Download drivers and software and enter the product name of your notebook.
Page 143: Downloading And Installing A Non-Rom Softpaq
1. Access the and then select the suggested support link for your region. 2. Follow the instructions on the screen to identify your notebook and access the SoftPaq you want to download. 8–6 http://www.compaq.com/consumersupport Web site, Hardware and Software Guide...
Page 144 My Computer > Local Disk (C:) or your hard drive designation > SWSetup. The destination folder for most downloads from the http://www.compaq.com/consumersupport folder. If you don’t see the download in the SWSetup folder, look in the My Documents folder. 6. In the destination folder, select the name or number of the software package you have downloaded.
Page 145: Software Recoveries
Software Updates and Recoveries and System Software Software Recoveries Using System Restore System Restore is an operating system feature that enables you to undo harmful changes to your notebook software by restoring your software to an earlier time, called a restore point, when your software was functioning optimally.
Page 146: Restoring To A Restore Point
Restoring to a Restore Point To restore the notebook to a restore point: 1. Make sure the notebook is connected to reliable external power through the AC adapter. 2. Select Start > Help and Support > System Restore. 3. Select Restore my computer to an earlier time, and then follow the instructions on the screen.
Page 147: Changing The Language Of The Setup Utility
Software Updates and Recoveries and System Software Changing the Language of the Setup Utility The following procedure explains how to change the language of the Setup utility. If the notebook is not in the Setup utility, begin at step 1. If the notebook is in the Setup utility, begin at step 2. 1.
Page 148: Displaying System Information
Displaying System Information The following procedure explains how to display system information in the Setup utility. If the Setup utility is not open, begin at step 1. If the Setup utility is open, begin at step 2. 1. To open the Setup utility, turn on or restart the notebook in Windows, and then press to enter setup”...
Page 149: Restoring Default Settings In The Setup Utility
Software Updates and Recoveries and System Software Restoring Default Settings in the Setup Utility The following procedure explains how to restore the Setup utility default settings. If the notebook is not in the Setup utility, begin at step 1. If the notebook is in the Setup utility, begin at step 2. 1.
Page 150: Using Advanced Setup Utility Features
Software Updates and Recoveries and System Software Using Advanced Setup Utility Features This guide describes the Setup utility features recommended for all users. For more information about the Setup utility features recommended for advanced users only, refer to the Help and Support Center by selecting Start >...
Page 151: Closing The Setup Utility
Software Updates and Recoveries and System Software Closing the Setup Utility You can close the Setup utility with or without saving changes. ■ To close the Setup utility and save your changes from the current session, use either of the following procedures: ❏...
Page 152: Specifications
Operating Environment The operating environment information in the following table may be helpful if you plan to use or transport the notebook in extreme environments. Factor Temperature Operating Nonoperating Relative humidity (noncondensing) Operating Nonoperating Maximum altitude (unpressurized) Operating Nonoperating Hardware and Software Guide Specifications Metric U.S.
Page 153: Rated Input Power
DC power source, it is strongly that the notebook be powered only with an AC adapter or DC power cord supplied with or approved for a Compaq notebook. The notebook is capable of accepting DC power within the following specifications.
Page 154: Expansion Port Input/Output Signals
Expansion Port Input/Output Signals The expansion port signal information in this section may be helpful if you plan to use an optional expansion product that connects to the expansion port on your notebook. This port is illustrated in the Chapter 1, “Hardware.” Optional expansion products that connect to the notebook through the expansion port may include a docking device or a media cable.
Page 155 1394 port 1–14 AC adapter 1–18 AC power vs. battery power 3–1 administrator password 6–4 6–6 airport security devices 7–12 altitude specifications A–1 antennae 1–8 antivirus software 6–11 application recovery disc 1–19 applications key, Windows 1–2 applications, reinstalling or repairing 1–19 applications.
Page 156 Index Bluetooth device, wireless light 1–5 Bluetooth label 1–20 boot order 8–13 buttons display release 1–10 mute 1–7 PC Card eject 1–13 power 1–4 TouchPad 1–3 volume 1–7 wireless 1–5 See also battery pack release latch; display switch; keys cable lock, security 6–14 cables audio 4–4 media cable 2–10...
Page 157 connectors drive 7–12 power 1–12 See also jacks; ports conservation, power 3–22 copyright warning 4–12 cord, power identifying 1–18 See also cables country-specific modem adapter 1–18 critical low-battery condition 3–17 default settings, restoring in the Setup utility 8–12 device disabling 6–10 device security 6–10 device, connecting powered 7–1...
Page 158 Index DVD region settings 4–14 DVDs hotkeys 4–8 inserting, removing 4–6 playing 4–8 setting AutoPlay preferences 4–9 writing to 4–10 See also recovery discs eject buttons optical drive 4–6 PC Card 7–10 electrostatic discharge (ESD) 7–12 7–18 emergency shutdown procedures 3–11 enablers, PC Card 7–8 environmental specifications A–1...
Page 159 hotkey commands access Help and Support Center 2–8 control media activity (play, pause, stop, etc.) 2–13 4–8 decrease display brightness 2–12 display system information 2–14 increase display brightness 2–12 initiate QuickLock 2–12 initiate standby 3–9 open Internet Explorer 2–9 open print options window 2–9 Quick Reference 2–6 switch image 2–10...
Page 160 Index labels Bluetooth 1–20 Microsoft Certificate of Authenticity 1–20 Modem Approval 1–20 Regulatory 1–20 Service Tag 1–20 wireless certification 1–20 WLAN 1–20 language, changing in Setup utility 8–10 latch, battery pack release, location 1–17 lights battery 1–9 caps lock 1–5 IDE drive 1–9 Memory Reader 1–14 mute 1–6...
Page 161 mouse, external setting preferences 2–3 USB 7–2 MultiMediaCard 7–4 mute button 1–7 mute light 1–6 network cable 1–12 network documentation 7–4 network jack 1–12 Network Service Boot 8–13 Norton AntiVirus 6–11 notebook model, family, type, and serial number 2–8 key 2–16 num lock num lock light 1–6 numeric keypad.
Page 162 Index ports 1394 1–14 expansion port 1–12 external monitor 1–12 2–10 USB 1–12 See also connectors; jacks power conserving 3–6 control and light locations 3–4 schemes 3–12 setting preferences 3–12 sources 3–1 switching between AC and battery 3–3 See also battery pack; hibernation;...
Page 163 determining current version of 8–3 downloading and installing 8–4 obtaining updates 8–4 ROMPaq 8–4 scanner 7–3 screen saver 3–23 key 2–7 scroll lock scrolling regions, TouchPad 1–3 2–2 Secure Digital Memory Card (SD Card) 7–4 security cable lock, connecting 6–14 security cable slot 1–15 security features 6–1 serial number, notebook 1–20...
Page 164 Index speakers external 4–3 internal 1–10 specifications operating environment A–1 rated input power A–2 standby avoiding when using discs, diskettes 3–7 initiated during critical low-battery condition 3–17 initiating 3–9 password 3–12 power/standby light 1–5 1–9 resuming from 3–9 setting preferences 3–12 standby password 6–4 stereo speakers external 4–3...
Page 165 viruses, antivirus software 6–11 volume buttons 1–7 volume, adjusting 4–2 Windows applications key 1–2 Windows category vs. Windows classic view 2–3 Windows firewall 6–2 Windows logo key 1–1 Windows passwords 6–4 wireless button 1–7 wireless certification label 1–20 Hardware and Software Guide wireless device antennae 1–8 wireless device documentation 7–4...
