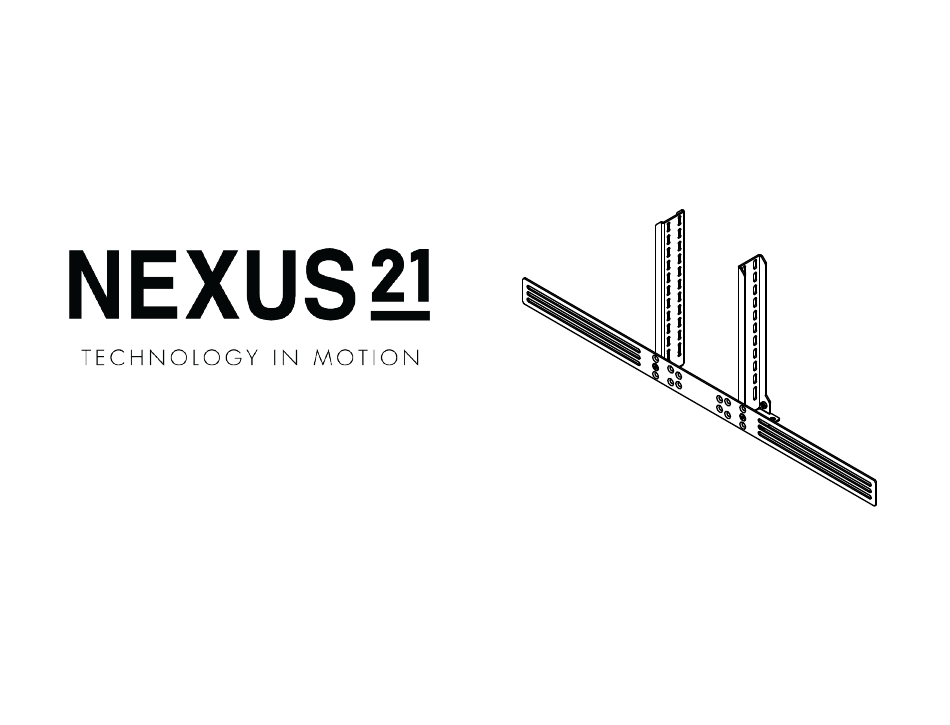

- Page 1 Installation Manual for Soundbar Mount *For use with L-65, L-65 HTG, and L-65s...
- Page 2 Table of Contents Page 3 Parts & Hardware List Page 4 Warranty & Return Policies Page 6 Assembly & Installation Version: 1.0.0 Date: 03-10-23...
-
Page 3: Parts List
Parts List Accessory Mounting Accessory Mounting Bracket Soundbar Mounting Bracket Hardware Pack Bracket Spacer Hardware Pack Contains: (4) - 1” Fender Washer (4) - M6 x 12 FHMS (16) - M6 x 12 BHMS (1) - Small Assorted Hardware Pack* (4) - M6 x 20 BHMS (1) - 1/4”... -
Page 4: How It Works
In the event that you do need a replacement part or system, we’ll ship it to you right away, along with a prepaid UPS return shipping label and a package for the defective part or system to be returned to our offi ce. Nexus 21 will cover the shipping cost of the replacement part or system within the continental United States and Canada (excludes Hawaii, Alaska and Puerto Rico). -
Page 5: Return Policy
Within 30 Days of Delivery: Customers may return a Nexus 21 product(s) for any reason within 30 days of the date it is received for a full refund of the purchase price. Shipping charges associated with your order are not eligible for refund. To initiate a product-return request, please review the following conditions: •... -
Page 6: Assembly And Installation
Assembly & Installation This section of the manual will walk you through how to assemble and install your Soundbar Mount... - Page 7 1a. Line up the Accessory Mounting Bracket Spacer with the centered holes on the bottom of the left and right sides of the Screen Support. 1b. Attach the Accessory Mounting Bracket to the Accessory Mounting Bracket Spacer using (4) M6 x 12 BHMS on each side.
- Page 8 2. Secure the Soundbar Mounting Bracket to the Accessory Mounting Bracket using (2) M6 x 12 FHMS. Note: If adjustment is needed later, the Soundbar Mount can be installed with the holes above and below.
- Page 9 3. Attach your soundbar to the Soundbar Mounting Bracket using the appropriate hardware for your Soundbar. Note: If adjustment is needed later, the Soundbar can be installed with any of the three slotted cutouts.
- Page 10 0.5” [1.3cm] Minimum 1” [2.5cm] 3. Once the soundbar is mounted, ensure that there is no more than a 0.5” [1.3cm] gap between your soundbar and The TV. 4. Once the lift system is lowered, ensure there is no less than a 1” [2.5cm] gap between your soundbar and the cabinet floor.
- Page 11 0.5” [1.3cm] Increments 0.5” [1.3cm] Increments 0.65” [1.7cm] Increments Note: If the soundbar is not in the correct vertical position, adjustment points are built into the Soundbar Mount and the Accessory Mounting Brackets in these locations.
