Nexus 21 L-65 Installation Manual

Hide thumbs Also See for L-65:

Advertisement

Quick Links

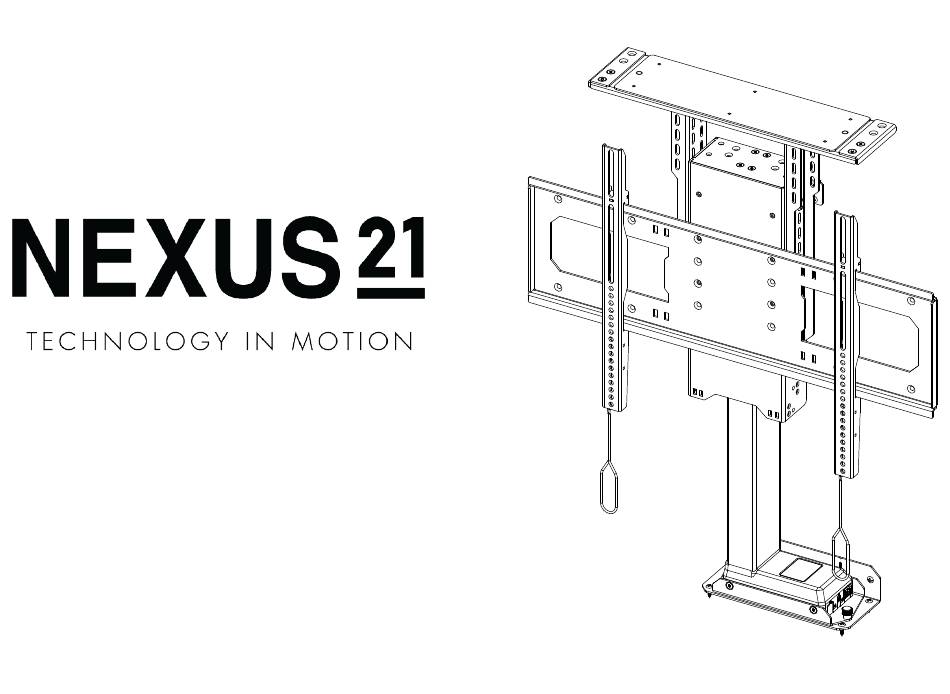

Installation Manual for
L-65

Advertisement

loading
Need help?

Need help?

Do you have a question about the L-65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nexus 21 L-65

Summary of Contents for Nexus 21 L-65

  • Page 1 Installation Manual for L-65...

  • Page 2: Table Of Contents

    Table of Contents Page 3 Safety Information Page 4 Parts & Hardware List Page 6 Warranty & Return Policies Page 8 Assembly & Installation Page 14 Connecting the Lift System Page 16 Assembly & Installation Continued Page 21 TV Mounting Page 26 Lid Installation Version:...

  • Page 3: Safety Information

    Nexus 21 products. Nexus 21 bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the servicing of Nexus 21 products performed by anyone other than Nexus 21. Nexus 21 intends to make this and all documentation as accurate as possible.

  • Page 4: Parts & Hardware List

    Parts List Control Box Base Mount Column Clamp Base & Extension Lift Column Mount Lift Column Motor Cable Backup Switch Power Cable Screen Support (2) Lid Support Bracket Lid Plate & Lid Adapter Plate TV Mounting Template...
  • Page 5 Parts List Continued (2) Vertical Mounting Bar Screen Backplate Hardware Pack Control Kit Hardware Pack Contains: (8) - M6 x 12 BHMS (4) - M6 Thumb Screw (4) - Snakeskin Ties (10) - #8 x 3/4 FHWS (12) - M6 x 12 FHMS (1) - M4 Small Hex Key (4) - Plastic Ties (2) - #10 x 1-3/4 FHWS...

  • Page 6: Warranty & Return Policies

    In the event that you do need a replacement part or system, we’ll ship it to you right away, along with a prepaid UPS return shipping label and a package for the defective part or system to be returned to our offi ce. Nexus 21 will cover the shipping cost of the replacement part or system within the continental United States and Canada (excludes Hawaii, Alaska and Puerto Rico).
  • Page 7 Within 30 Days of Delivery: Customers may return a Nexus 21 product(s) for any reason within 30 days of the date it is received for a full refund of the purchase price. Shipping charges associated with your order are not eligible for refund. To initiate a product-return request, please review the following conditions: •...

  • Page 8: Assembly & Installation

    Assembly & Installation This section of the manual will walk you through how to assemble and install your lift system.
  • Page 9 A u d i o V i d e o ( A V ) S i d e C o n t r o l B o x ( C B ) S i 1a. Identify which side of your TV the AV ports are on; this will be the AV Side of the Cabinet. The other side will be where you mount your control box; this will be the CB Side. For Illustration purposes, the rest of this manual will show an installation with the AV side on the left and the CB side on the right.
  • Page 10 Center 2. Attach the Base Mount to the base and rear panels of the cabinet using (6) #10 x 3/4 THWS by aligning the center line on the Base Mount with the center of the cabinet. Note: If your CB Side is on the right, align the center line with the arrow pointing to the right with the center of your cabinet. If your CB side is on the left, align the center line with the arrow pointing to the left.
  • Page 11 23.5” 3. Attach the Column Clamp Base to the rear of the cabinet 23.5” [59.7cm] from the top of the Base Mount using (4) #10 x 3/4 THWS. Note: Use the Center line Cutout on the Base Mount and Column Clamp Base to assist with locating them on the inside of your cabinet.
  • Page 12 5. Slide the Column Clamp Extension around the front of 4b. Attach the Lift Column Assembly to the Base Mount using (2) 4a. Attach the Lift Column Mount to the base of the lift column and secure it to the Column Clamp Base Thumb Screws.

  • Page 13: Connecting The Lift System

    Connecting the Lift System This section of the manual will walk you through how to connect your lift system.
  • Page 14 Lift Column - Port 1 Contact Closure/IR/RF/IP Controls - Port A2 Backup Switch - Port A1 To Power Outlet 6a. Connect one end of the Motor Cable to the Lift Column and the other to Port #1 on the Control Box. 6b.
  • Page 15 8. Test the function of the lift system by pressing the Up button on the Wired Backup 7. Press the Down button on the Backup Switch, release, then press and hold it for 5 Switch to raise the system fully. seconds to perform an ‘Initialize’.

  • Page 16: Assembly & Installation Continued

    Assembly & Installation Continued...
  • Page 17 9. If your cabinet does not have a built in Lid-Catch, install the provided Lid Corner Catches from the Hardware Pack in each corner of the cabinet using (8) #10 x 3/4 THWS.
  • Page 18 10a. Partially extend the lift system by pressing the Up button on the Wired Backup Switch. Once the system reaches an appropriate height, press the Down button to stop it. 10b. Attach the Screen Support to the top of the Lift Column using (4) M6 x 16 FHMS.
  • Page 19 1/4” 11a. Lower your lift system by pressing the Down button on the Wired Backup Switch. 11b. Position your Lid Support Brackets along the left and right sides of the Screen Support so the top of each lid support rests no more than 1/4” from the bottom of the level or straight edge.
  • Page 20 12. Attach the Lid Plate to the Lid Support Brackets using (4) M6 x 12 FHMS. Note: Ensure the notched side is facing the rear of the cabinet.

  • Page 21: Tv Mounting

    TV Mounting This section will walk you through mounting your TV to your L-65 Lift System.
  • Page 22 1/2” 13a. Raise your lift, align the template with the screen support holes, then fold or cut the template to be flush with the bottom of the lid plate. 13b. Measure 1/2” from the new top of the template and draw a line. This line indicates the position for where the top of the TV will be.
  • Page 23 TV VESA Holes TV VESA Holes 14a. Align the line you just drew with the top of the TV. 14b. Attach the Vertical Mounting Bars to the Screen Backplate, ensuring the spring-loaded latch on each Vertical Mounting Bar is engaged against the Screen Backplate. 14c.
  • Page 24 15a. Disconnect the Screen Backplate from the Vertical Mounting Bars. Note: you can disengage the spring-loaded latch on the Vertical Mounting Bars by pulling the straps at the bottom. 15b. Attach the Screen Backplate to the holes on the Screen Support that correspond with the marked holes on your TV Mounting Template using (4) M6 x 12 FHMS.
  • Page 25 16a. Attach the Vertical Mounting Bars to your TV using the marked holes. If you are using a soundbar, follow the information sheet included with it first. 16b. Hang your TV on the Screen Backplate, ensure the spring-loaded latch on each Vertical Mounting Bar is engaged with the Screen Backplate. Note: If needed, the level of the TV can be adjusted by tightening the bolts on the back of each Vertical Mounting Bar...

  • Page 26: Lid Installation

    Lid Installation This section will walk you through installing your lid on your L-65 Lift System.
  • Page 27 Min 1” For deeper cabinets, adjust the Lid Plate Extensions Min 1” 17. Fully Retract your lift system by pressing the “down” button on the Wired Backup Switch. Note: If you have a deeper cabinet, remove the (4) M6 x 12 FHMS for the Lid Plate Extensions and adjust them towards the front of the cabinet. Leave at least a 1” gap.
  • Page 28 Top View Pin Receiver Center Pin Nut 18a. Ensure the holes on the Lid Plate and Pin Receiver are centered with each other. Ensure the Pin Nuts are tight. 18b. Place the Lid Adapter on top of the Lid Plate, align the Lid Pins with the holes on the Pin Receivers.
  • Page 29 19. Lower the Lift system, then place your lid within the opening of your cabinet so that it rests on the lid catch. Ensure there is an even gap between the lid and the surrounding opening all the way around.
  • Page 30 20a. Partially extend your lift system by pressing the “Up” button on the Wired Backup Switch until the lift has traveled approximately 18”, then press the “Down” button to stop it. 20b. Mark the 6 holes for the Lid Attachment Point, then remove your lid from the Lid Plate and flip it over.
  • Page 31 21a. Align the Lid Adapter with the marked holes then affix your lid to the Lid Adapter using the (6) provided #8 x 3/4 FHWS and countersunk holes. 21b. Place your lid back on top of the Lid Plate and lower your lift system to ensure an even gap all the way around. Note: If any adjustment is necessary raise the lift, loosen the pin receiver nuts, lower the system, then adjust the lid position until there is an even gap all the way around.
