Red Arrow FLSMD50Y-1 Installation Instructions

PRODUCT: LED SMD YELLOW FLOODLIGHTS
PRODUCT CODES: FLSMD50Y-1, FLSMD100Y-1, FLSMD150Y-1,
FLSMD200Y-1
INSTALLATION INSTRUCTIONS -
1. ENSURE THERE IS ADEQUATE FREE AIR CIRCULATION
OF AT LEAST 100MM AROUND THE LUMINAIRE.
ALL LUMINAIRES RUN HOT. IT IS THE INSTALLER'S
RESPONSIBILITY TO CONSIDER ANY FIRE RISKS AND TAKE
APPROPRIATE PRECAUTIONS.
2. THE NEAREST ILLUMINATED SURFACE MUST BE AT LEAST
0.5M FROM THE FRONT OF THE FITTING.
3. DO NOT USE IF THE GLASS IS BROKEN.
REPLACE THE LUMINAIRE
4. DRILL TWO HOLES ACCORDING TO THE HOLES ON THE
BRACKET, ON A WALL OR SIMILAR HARD SURFACE.
5. FIX THE BRACKET TO THE WALL OR SIMILAR HARD
SURFACE WITH SUITABLE FIXINGS ( NOT INCLUDED ) .

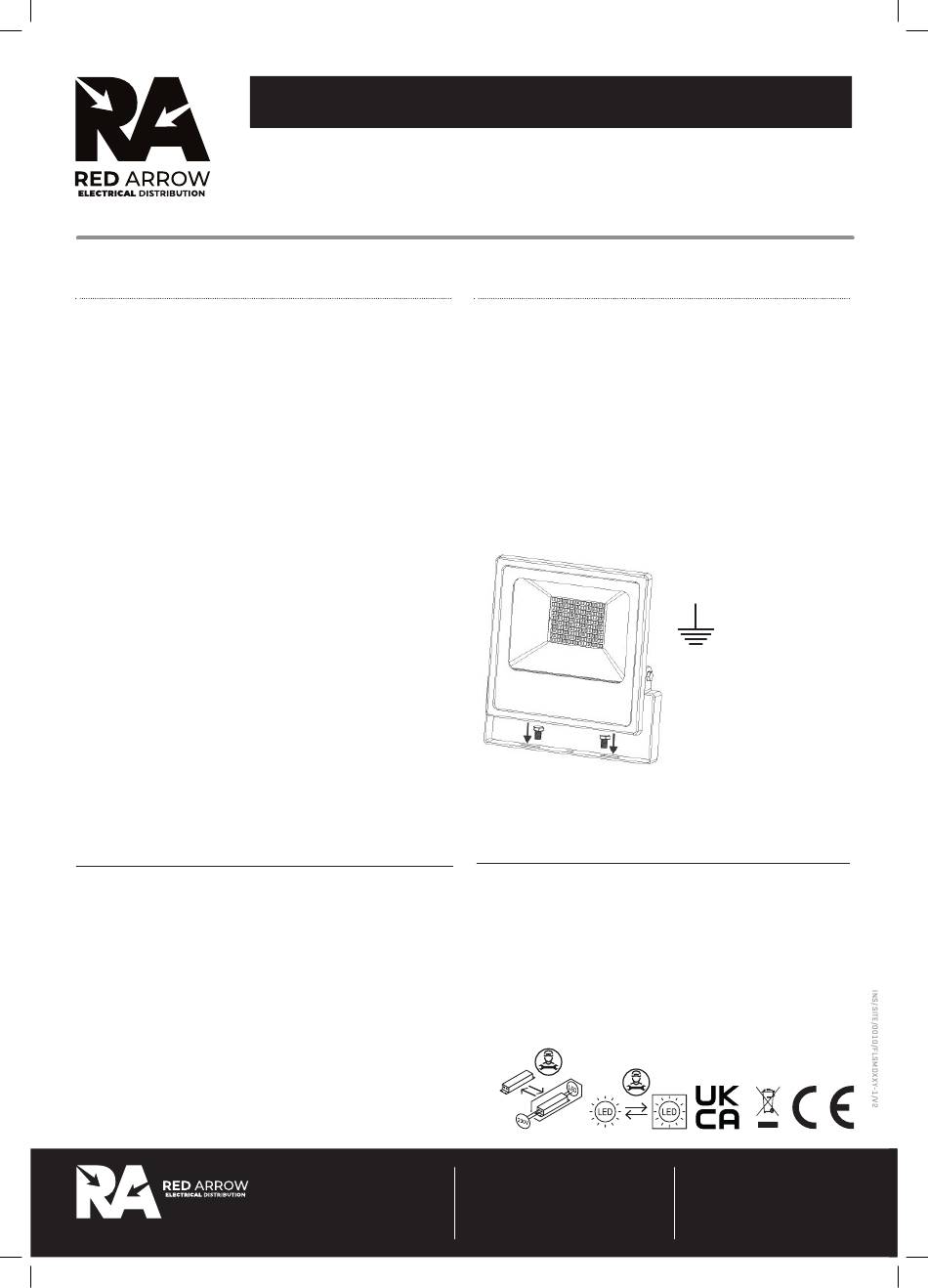

6. CONNECT THE CABLE CORRECTLY TO THE SUPPLY,
OBSERVING THE COLOUR-CODING SHOWN TO THE RIGHT.
ENSURE ALL ELECTRICAL CONNECTIONS ARE TIGHT WITH
NO LOOSE STRANDS.
G U A R A N T E E
This product is guaranteed for a period of 3 years from the date of purchase.
The guarantee is invalid in the case of improper use, tampering, removal of the
Q.C. date label, installation in an improper working environment or installation
not according to the current edition of the I.E.E. Wiring Regulations (BS7671).
The guarantee is also invalidated if the luminaire has been insulation tested.
Should this product fail during the guarantee period it will be replaced free
of charge, subject to correct installation and return of the faulty unit. We
do not accept responsibility for any installation costs associated with the
replacement of this product. Your statutory rights are not affected. We reserve
the right to alter specifications without prior notice.
PAGE 4 ( BACK PAGE )
INSTALLATION INSTRUCTIONS
Red Arrow Electrical Distribution
Cortonwood Drive, Brampton,
Barnsley, S73 0UF
ADDITIONAL INFORMATION
• PLEASE NOTE THIS IS AN IP65 RATED PRODUCT, TAKE CARE
NOT TO BREAK ANY SEALS AS THIS WILL AFFECT IT'S WATER
RESISTANT RATING.
• DO NOT MODIFY THIS PRODUCT. ANY MODIFICATION TO THIS
FITTING WILL VOID THE WARRANTY.
• RED ARROW WILL NOT TAKE ANY RESPONSIBILITY
FOR ANY PRODUCT DAMAGES CAUSED BY MOUNTING
PROCEDURES WHICH ARE NOT IN ACCORDANCE WITH
THESE INSTRUCTIONS.
• THESE FITTINGS COMPLY TO CE AND UKCA STANDARDS.
• POWDER COATED FINISH
M A I N T E N A N C E
• This fitting will require routine cleaning if used in adverse (dust, paint,
welding, oils etc) environments. Do not use solvents, aggressive
detergents or abrasives.
• When this fitting comes to the end of it's life or you choose to replace it,
please do not dispose of it with your general waste. Please recycle where
the facilities exist, check with your local authority for suitable options.
• The LEDs and driver in this product can be replaced at the end of life. This
must be carried out by a professional, competent person. Alternatively,
and for best results, we would recommend replacement is done by
Red Arrow (chargeable service).
