LED Floodlights

Installation Instructions

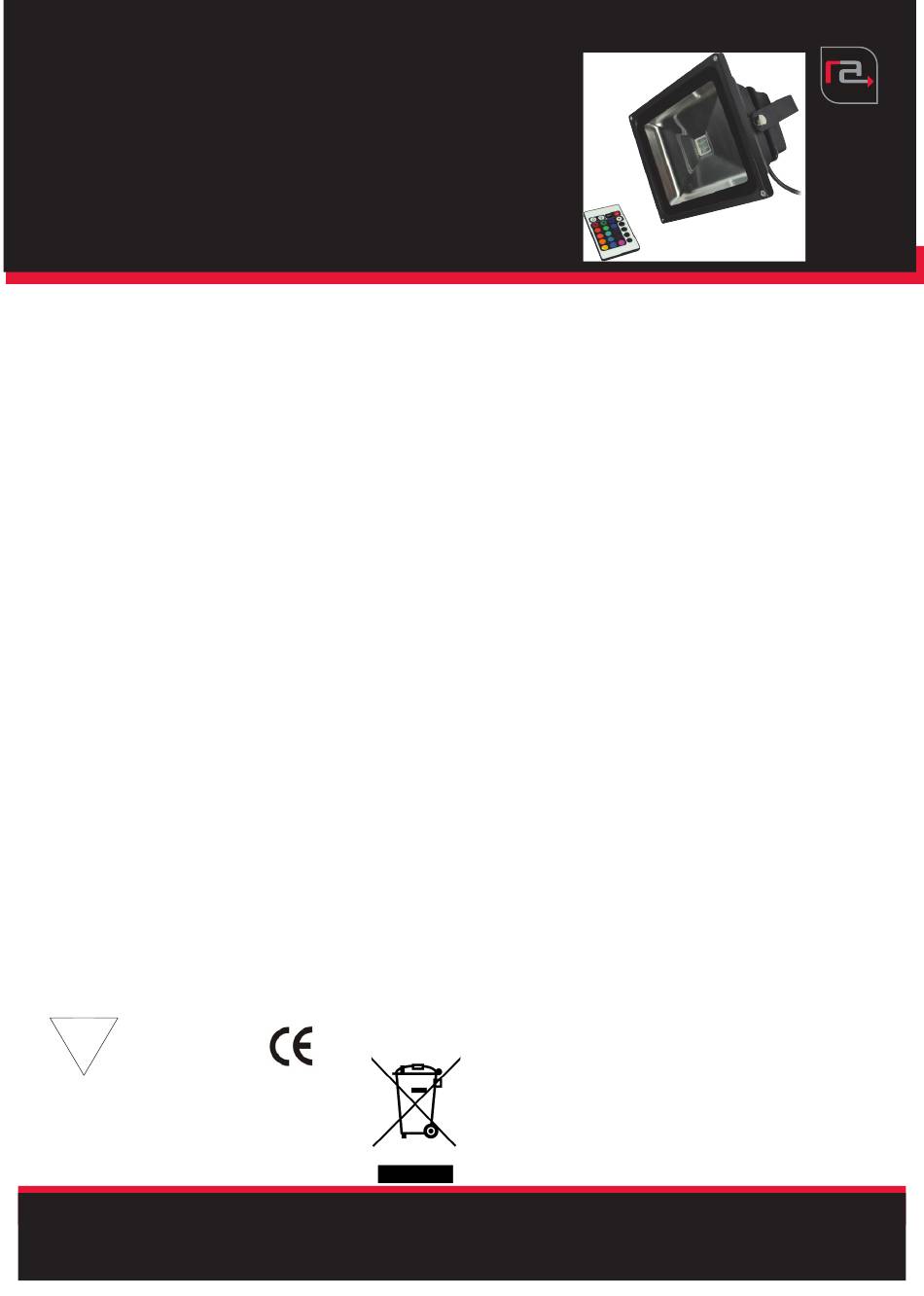

Page 1
For models: LEDFL30B-RGB
This installation must be carried out by an electrician.
Please read these instructions carefully before installation.
Leave a copy for the user/maintenance engineer for future reference.
Specification
LED Floodlight
Class I (must be earthed)
Wattage: 30W
Lamp type (included): LED
Lumen Output: 2400lm (depending on model).
Supply voltage: 85V-265V
IP Rating: IP65
Material: Black, Die Cast Aluminium
Important Installation Information
Installation should be carried out in accordance
with the latest edition of the I.E.E. wiring
regulations (BS7671) and taking into consideration
the latest Building Regulations. If in doubt, consult
a qualified electrician.
IMPORTANT: Ensure that ALL electrical
connections are tight with no loose strands,
including factory made connections.
Input voltage – 85V-240V
Ensure there is adequate free air circulation of at
least 100mm around the luminaire. All luminaires
run hot. It is the installer's responsibility to consider
fire risk and take appropriate precautions.
Before commencing installation or maintenance,
ensure electricity is switched off at the mains.
The nearest illuminated surface must be at least
0.5m from the front of the fitting.
F
Product is suitable for
mounting on flammable
material
Red Arrow Trading
Elsworth House, Herries Road South,
Sheffield, S6 1QS
Product complies with
all relevant European
standards
PRN WEE/BJ1331XR
T: 0800 195 0006
E: sales@redarrowtrading.com
Important User Information
Always switch off mains supply before servicing, fitting
or maintenance.
Allow the LED and fitting to cool before replacing LED.
Installation Instructions
Check for concealed cables before drilling fixing holes.
Remove the bracket pulling out the two bolts on both sides.
Fix the bracket to a wall or similar hard surface.
Fix the body to the bracket.
Usage of RGB LED Remote Controller
Key infared controller adapts the advanced micro control
unit, it is used for controlling a variety of LED lamps. It can
adjust brightness, static colour choices and various dynamic
changes in lighting effects through infared remote control.
Please take off the insulating film before using the infared
remote control.
When operating the remote control, it must face the
infared receiver. Please ensure there is no barrier between
the remote controller and the receiver.
The distance between the remote controller and the receiver
must be less than 10m.
**Please turn overleaf for Key Functions for Remote Control.
Maintenance
Before any maintenance ensure the product has cooled
down.
This product is supplied ready to use. No maintenance should
be required, except if damaged or the front glass cover is
broken. In either case please contact your supplier.
Cleaning
Depending on the application, clean the glass cover at
regular intervals, and remove all dust or dirt to ensure
luminaire works correctly.
•Use cotton duster (no alcohol, no solvent), only water to clean
glass.
F: 0870 043 3946
www.redarrowtrading.com
