Red Arrow FLAC50Y Installation Instructions

110V Slimline Floodlights
Product Codes: FLAC50Y, FLAC100Y, FLAC150Y & FLAC200Y

Safety Warning

•
The installation should be carried out
by a qualified electrician in compliance
with the current edition of the IEE
Wiring Regulations.
•
Prior to installation, carry out the
necessary risk assessment considering
the people who could be at risk,
the level of risk and the precautions
required to control the risk
•
Ensure that the circuit supply is
isolated either by the circuit supply
fuse being removed or the applicable

Specification

Box Contents -

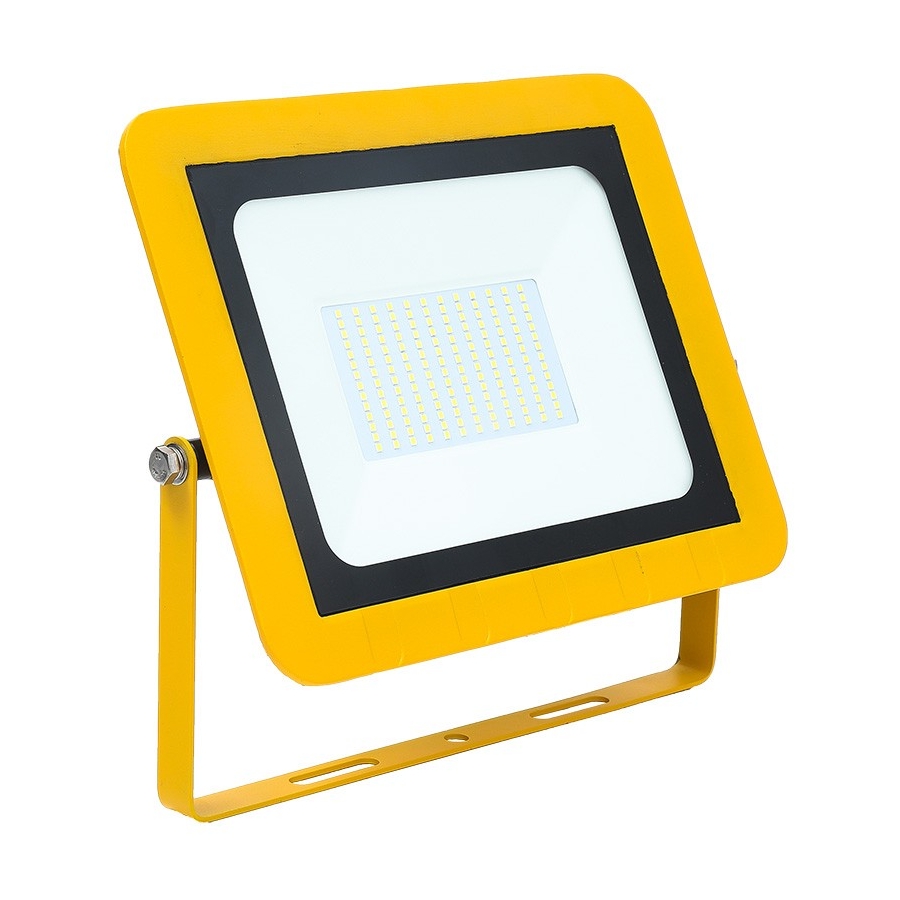

1 x 110V Slimline Floodlight
FLAC50Y: L: 205 x W: 165 x D: 33mm
FLAC100Y: L: 290 x W: 230 x D: 41mm
Dimensions:
FLAC150Y: L: 330 x W: 270 x D: 47mm
FLAC200Y: L: 390 x W: 330 x D: 47mm
Material: Die-Cast Aluminium Body & Glass Lens
Working
Standard: -20°C - 45°C
Temperature:
360° Bracket
Included:
Pre-wired 1m Cable
50-
LED
110V
200
WATT
Installation Instructions
1. Ensure there is adequate free air circulation of at least 100mm around the fitting. All fittings run hot. It is the installer's responsibility to consider any fire
risk and take appropriate precautions.
2. The nearest illuminated surface must be at least 0.5m from the front of the fitting.
3.
Check for concealed cables before drilling any fixing holes.
4. Unscrew the side fixing bolts and remove the mounting bracket from the floodlight.
5.
Position and fix the mounting bracket to a suitable solid surface using the appropriate screws and wall plugs, sufficient to support the weight of the
floodlight.
6.
Replace the main body of the floodlight and secure it to the installed bracket using the side fixing bolts.
7. The floodlight is supplied pre-wired with 1m of cable. The cable should be installed with an aduequate 'drip loop' to prevent ingress of moisture through
the cable gland. Care should be taken so that cables are not trapped between the mounting bracket and the floodlight.
8.
Connect the floodlight to the mains supply with a suitable junction box enclosure or connection fitting, making sure that any exposed connections and
joints are sufficiently weatherproofed.
9.
Make the electrical connections as follows, observing the correct polarity:
LIVE (L) BROWN to terminal marked L
NEUTRAL (N) BLUE to terminal marked N
EARTH ( ) GREEN/YELLOW to terminal marked
WARNING - THIS FITTING MUST BE EARTHED
10. Ensure that there are no exposed conductors, loose or trapped cable strands.
11. Switch on the power supply and test the installation for satisfactory operation.

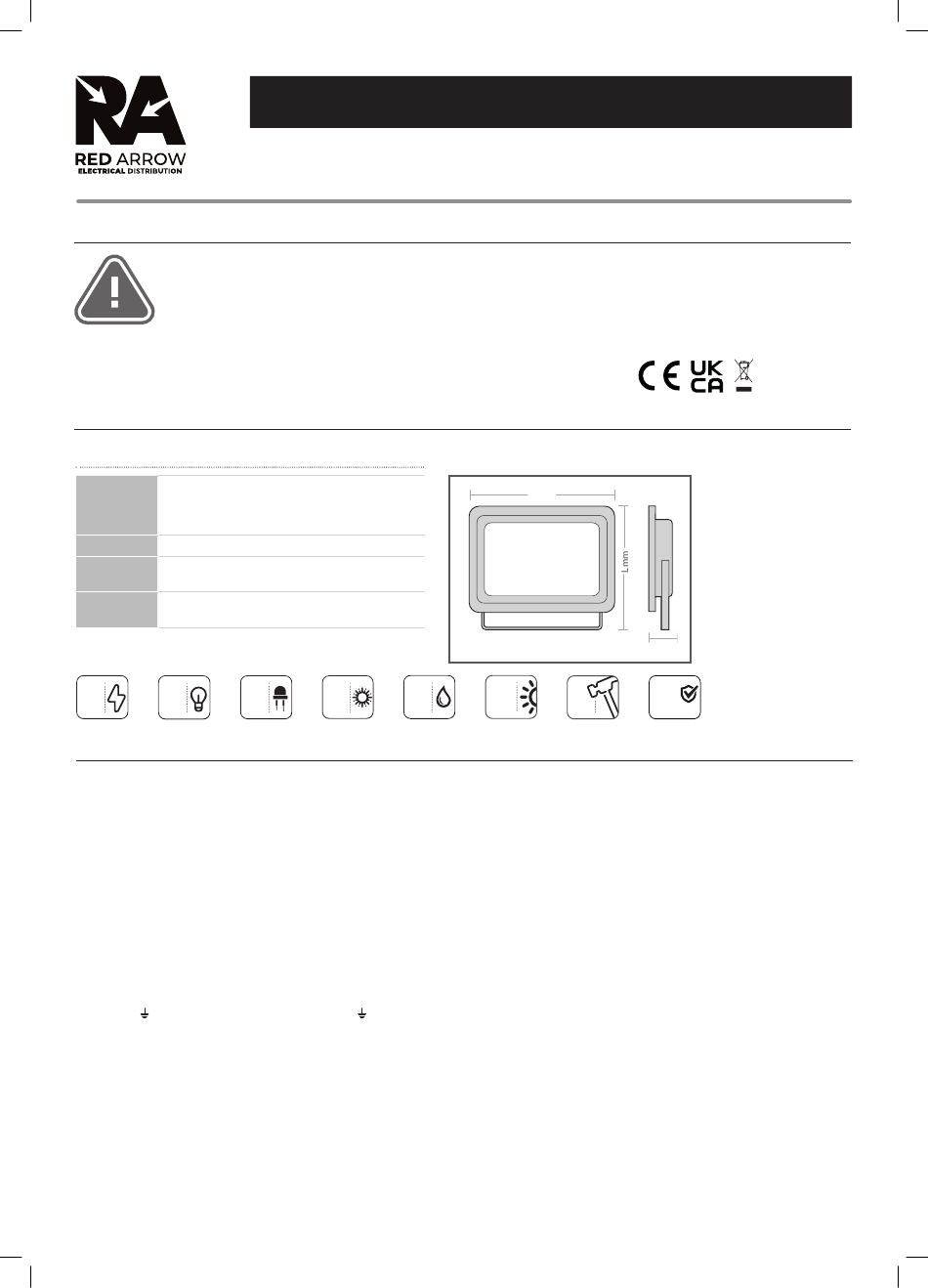

PAGE 1 ( FRONT PAGE )
INSTALLATION INSTRUCTIONS
circuit breaker being turned off before
installation or any maintenance.
•
Check the total load on the circuit
ensuring the luminaire does not exceed
the rating of the circuit cable, fuse or
circuit breaker.
•
Long-term use and voltage fluctuations
can reduce the life span of the fitting.
•
If the fitting incorporates control gear,
ensure careful sizing to avoid instances
of nuisance tripping of the protective
device used in the installation.
IP65
6500K
•
Follow the provided installation
instructions, using the fixings supplied
or recommended.
•
Keep out of reach of children.
Wmm
Dmm
2
4750-
IK07
YRS
19,000LM
GUARANTEE
