FLOODLIGHTS SMD LED WITH
PHOTOCELL
FOR MODEL: FLSMD100BPC-1, FLSMD150BPC-1 & FLSMD200BPC-1
INTRODUCTION

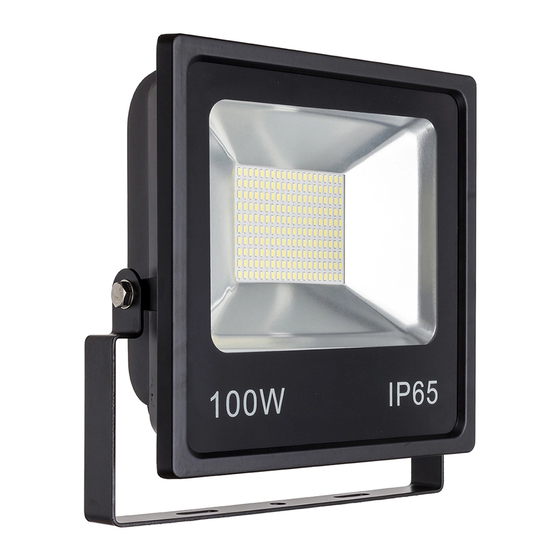

Robust, IP65 LED Floodlight
suitable for security and
outdoor lighting. Bracket
can accomodate full
rotation.
SPECIFICATION
120-
LED
277V
8000-
IP65
16000lm
• Dimensions:
100W: L: 320 x W: 325 x D: 90mm
150W: L: 365 x W: 360 x D: 95mm
200W: L: 420 x W: 425 x D: 125mm
• LED: 5730 SMD LED
• Working Temperature: -20°C - 40°C
BOX CONTENTS
• 1 x Fitting
SAFETY WARNING
• The installation should be carried out by a qualified electrician in compliance with the current edition
of the IEE Wiring Regulations.
• Prior to installation carry out the necessary risk assessment considering the people who could be at
risk, the level of risk and the precautions required to control the risk.
• Ensure that the circuit supply is isolated either by the circuit supply fuse being removed or the
applicable circuit breaker being turned off before installation or any maintenance.
• Check the total load on the circuit including the luminaire does not exceed the rating of the circuit
cable, fuse or circuit breaker.
• If the fitting incorporates control gear, ensure careful sizing to avoid instances of nuisance tripping of
the protective device used in the installation.
•
Follow the provided installation instructions, using the fixings supplied or recommended.
Red Arrow Trading
Elsworth House, Herries Road South
Sheffield, S6 1QS
6500K
>70 Ra
100W-
50/
IK07
60Hz
200W
T: 0800 195 0006 F: 0870 195 0006
E: sales@redarrowtrading.com
www.redarrowtrading.com
