INSTALLATION INSTRUCTIONS
PRODUCT INSTRUCTIONS PRODUCT INSTRUCTIONS
P R O D U C T C O D E S : F L A C 50 Y, F L A C 100 Y, F L A C 150 Y
I N T R O D U C T I O N

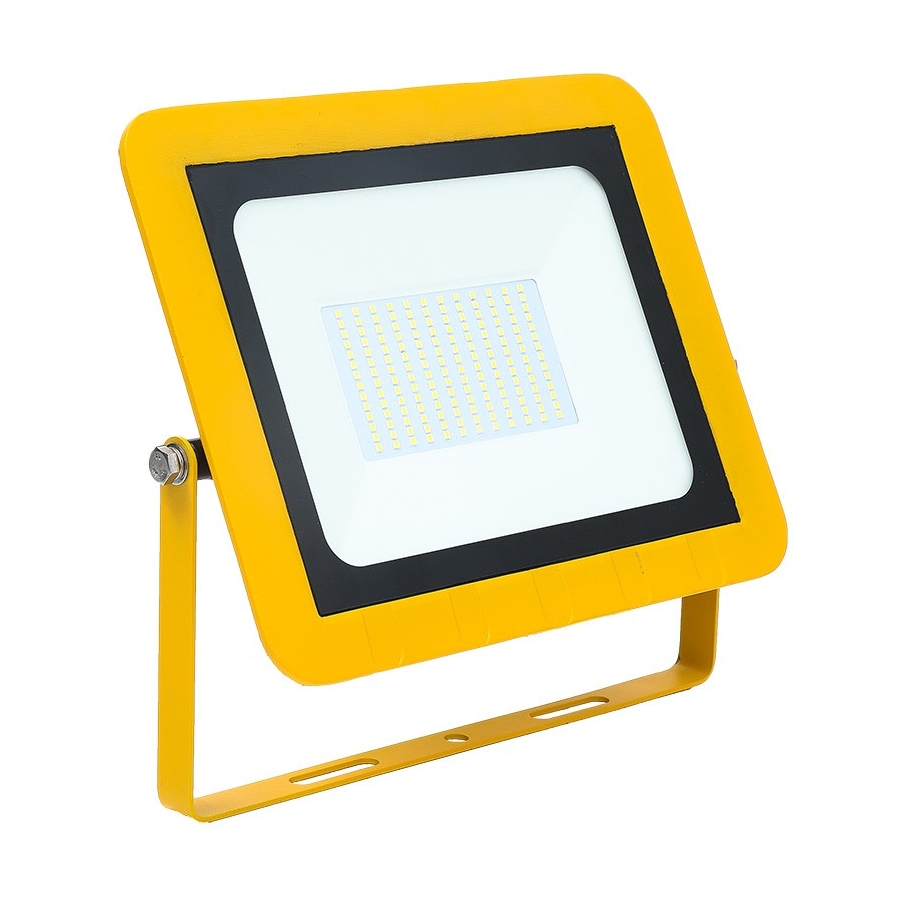

Slimline 110V site lighting floodlights, suitable for any construction or
building site application. Manufactured from robust die cast aluminium and
fitted with circuit surge protection.
B O X C O N T E N T S
1 x Site AC Floodlight
S P E C I F I C A T I O N
110-
50-
LED
130V 150W
4750-
IK07
14,250lm
Dimensions: FLAC50Y: L: 205 x W: 165 x D: 33mm
FLAC100Y: L: 290 x W: 230 x D: 41mm
FLAC150Y: L: 330 x W: 270 x D: 47mm
Material: Die-Cast Aluminium
Finish: Matt Yellow
Working Temperature: -20°C - 45°C
H05RN-F 1m Cable included
S A F E T Y W A R N I N G
• The installation should be carried out by a qualified electrician in compliance with the current edition of the IEE Wiring Regulations.
• Prior to installation, carry out the necessary risk assessment considering the people who could be at risk, the level of risk and the precautions required to
control the risk
• Ensure that the circuit supply is isolated either by the circuit supply fuse being removed or the applicable circuit breaker being turned off before installation
or any maintenance.
• Check the total load on the circuit ensuring the luminaire does not exceed the rating of the circuit cable, fuse or circuit breaker.
• Long-term use and voltage fluctuations can reduce the life span of the fitting.
• If the fitting incorporates control gear, ensure careful sizing to avoid instances of nuisance tripping of the protective device used in the installation.
• Follow the provided installation instructions, using the fixings supplied or recommended.
• Keep out of reach of children.
Red Arrow Electrical Distribution
Elsworth House, Herries Road South
Sheffield, S6 1QS
P R O D U C T: S I T E A C F L O O D L I G H T S
6500K
IP65
