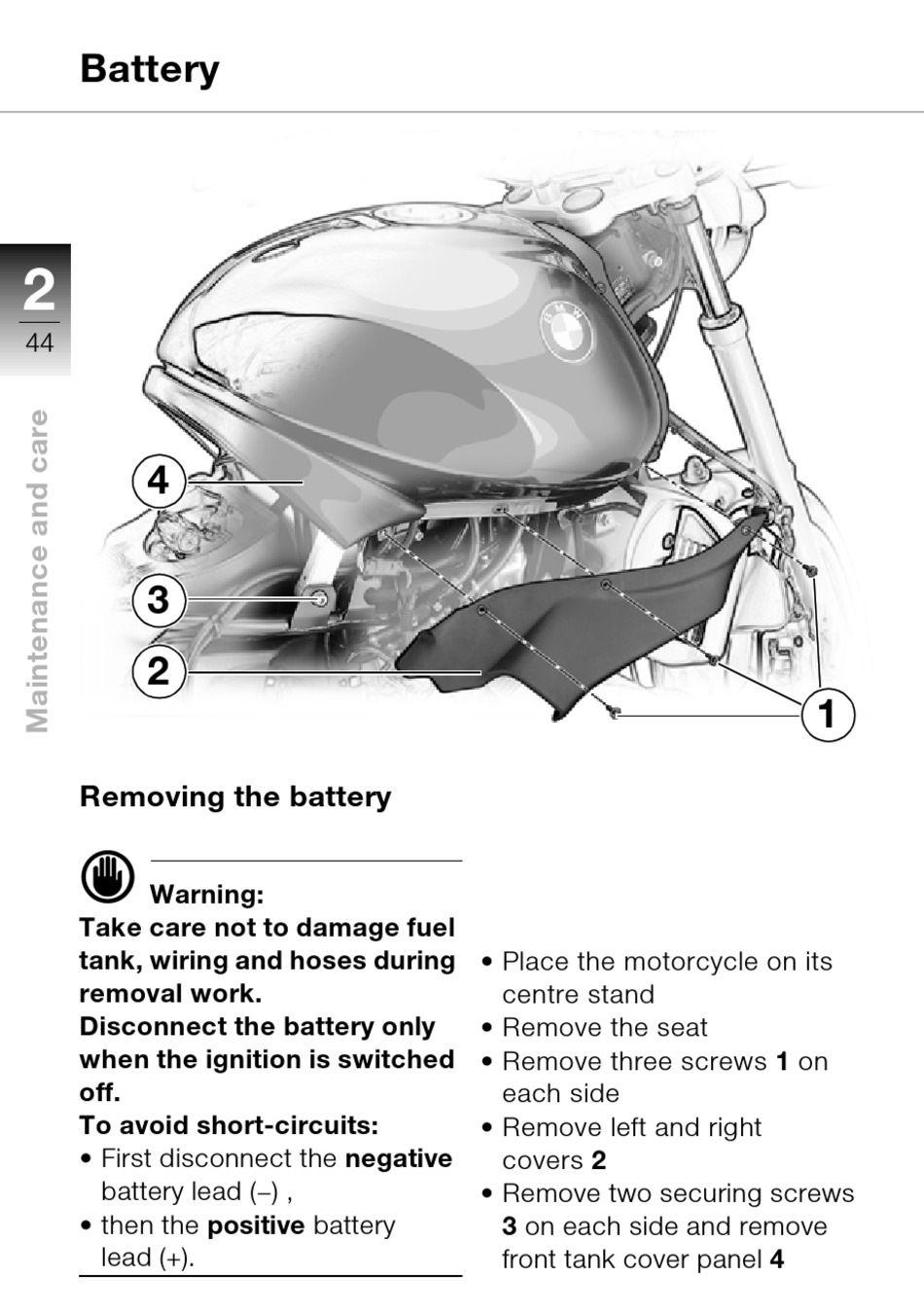

Battery
2 2
44
4
3
2
Removing the battery
d
Warning:
Take care not to damage fuel
tank, wiring and hoses during
removal work.
Disconnect the battery only
when the ignition is switched
off.
To avoid short-circuits:
• First disconnect the negative
battery lead (—) ,
• then the positive battery
lead (+).
• Place the motorcycle on its
centre stand
• Remove the seat
• Remove three screws 1 on
each side
• Remove left and right
covers 2
• Remove two securing screws
3 on each side and remove
front tank cover panel 4
1
