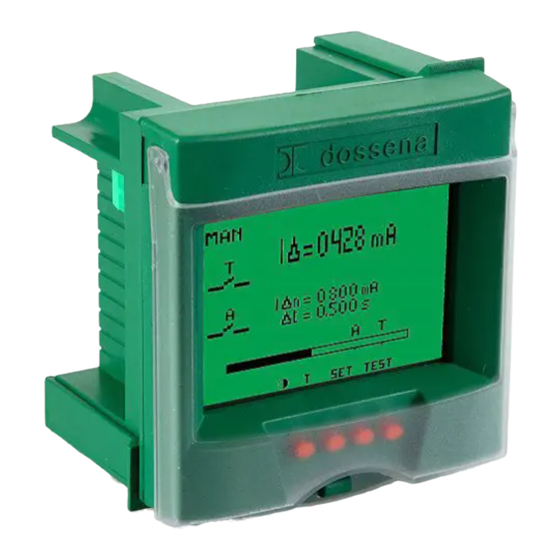

DER3
MU 1140 R
.9
EV
CARATTERISTICHE TECNICHE / TECHNICAL CHARACTERISTICS
Us Tensione di alimentazione/ Auxiliary power
supply (Vaux)
Consumo max/ Max consumption
Circuito controllato (in abbinamento a toroidi serie D Dossena) / Monitored circuit (by using Dossena D series toroids)
Tipo di MRCD/ Type of MRCD
Un Tensione nominale/ rated voltage
Sistema di distribuzione/ Distribution system
Tipo di Misura/ Measurement type
Campo di regolazione IΔn/ Adjustment range IΔn
Collegamenti toroide↔relè/ Connections
toroid↔MRCD
In Massima corrente ammissibile/ Maximum
load current
Classe di isolamento/ Insulation class
Grado di protezione/ Protection degree
Contatti uscita/ Output contacts
Tipo di Interfaccia seriale/ Serial interface
Terminazione linea seriale/ Serial line
termination
Isolamento galvanico seriale/ Serial line
insulation
Massima altitudine/ Maximum altitude
9DER3/1I - 9DER3/2I – 9DER3/2IM- 9DER3/2IRS485 - 9DER3/2IMRS485 - 9DER3/1D - 9DER3/2D –9DER3/2DRS485
Alimentazione ausiliaria/ Auxiliary power supply
48 ÷ 400Vca/ac -15/+10% (@50/60Hz ) Uimp
≤ 4VA
A/AC
<1000Vca/ac (@50/60Hz)
TT, TN
TRMS
0,030 ÷ 30A
Cavi schermati twistati/
Shielded twisted cables
D35
D60
D80
480A
720A
1020A
Involucro/ Housing
II sul frontale/ II on the front
IP40 frontale/ front panel
IP20 morsetti/ terminals
Altre caratteristiche/ Other features
2 NA-C-NC / NO-C-NC
NA/NO: 250Vca/ac 5A P.F.1 / 30Vcc/dc 5A
NC/NC: 250Vca/ac 3A P.F.1 / 30Vcc/dc 3A
RS485 Modbus RTU
120Ω
<1kV @50Hz
2000m
Categoria sovratensione/ Overvoltage category
Grado inquinamento/ Pollution degree
Norme di riferimento/ Standards
Uimp
Icw
Tipo di regolazione/ Adjustment
Campo di regolazione Δt/ Adjustment range Δt
Categoria sovratensione/ Overvoltage category
Grado inquinamento/ Pollution degree
D110
D160
D210
D60A
1560A
1860A
2160A
720A
Tenuta al fuoco/ Fire resistance
Sezione max morsetti/ Max. terminals section
Spellatura conduttori/ Cable strip
Coppia di serraggio/ Tightening torque
Temp.di funzionamento/ Operation
temperature
Temp. di stoccaggio/ Storage temperature
Codice Ordinazione/ Order Code:
4kV
CAT II
2
IEC 60947-2
8kV
80kA (0,5Sec.)
Continua /variabile
Continuously/ variable
Inst./ 0,06 ÷ 15Sec.
CAT III
2
D110A
D160A
D210A
1560A
1860A
2460A
3900A
Involucro in classe V0
Housing class V0
2
2,5mm
7mm
0,6Nm
-10 ÷ +55°C
-20 ÷ +80°C
DRT
