Codice Ordinazione/ Order Code:
DER4
MU 1283 REV 1
9DER4/1I – 9DER4/2I – 9DER4/2IM - 9DER4/2IRS485 – 9DER4/2IMRS485 – 9DER4/1D - 9DER4/2D - 9DER4/2DRS485
ESEMPI APPLICATIVI / APPLICATION EXAMPLES

Advertisement

loading
Need help?

Need help?

Do you have a question about the DER4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dossena DER4

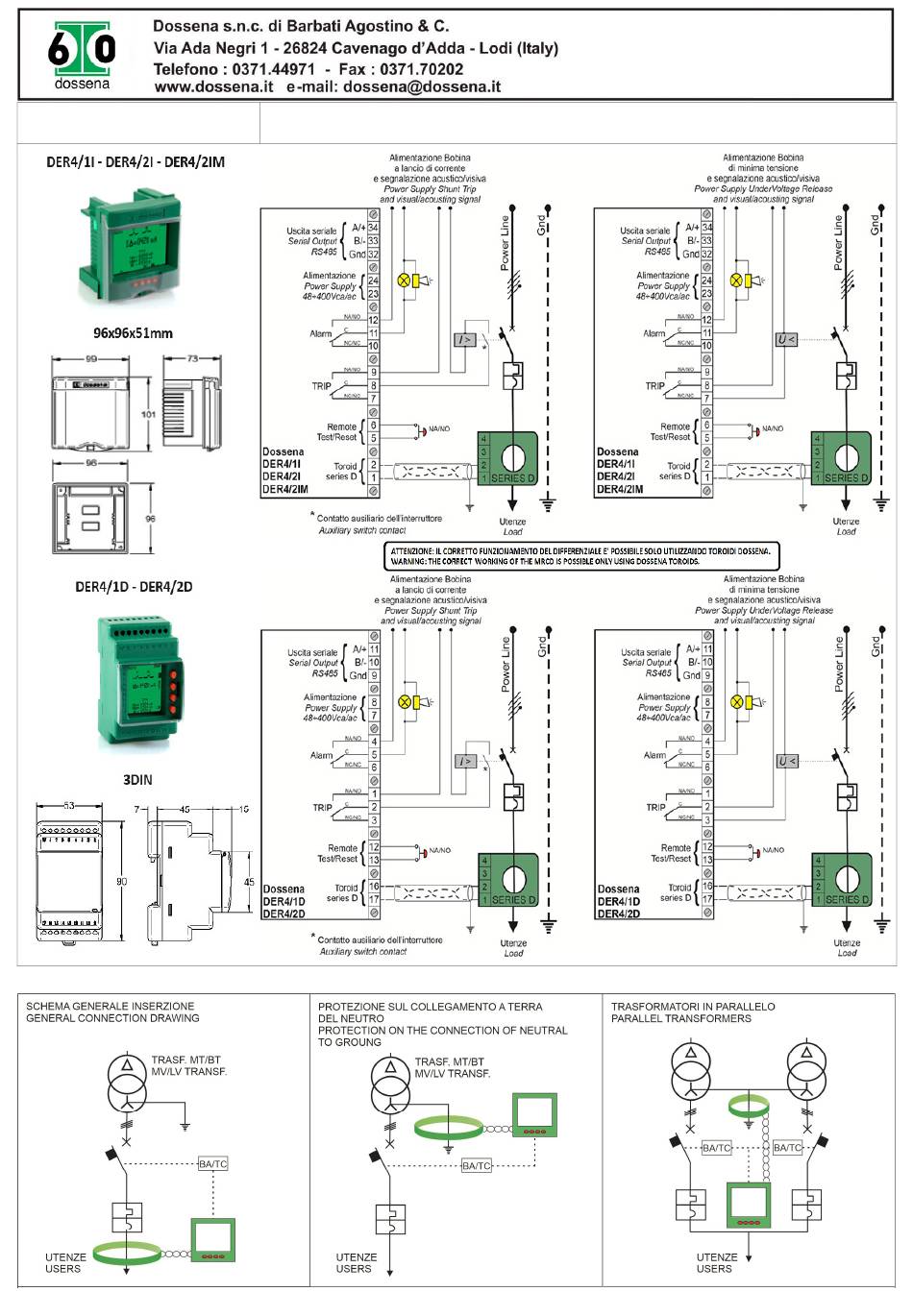

  • Page 1 Codice Ordinazione/ Order Code: DER4 MU 1283 REV 1 9DER4/1I – 9DER4/2I – 9DER4/2IM - 9DER4/2IRS485 – 9DER4/2IMRS485 – 9DER4/1D - 9DER4/2D - 9DER4/2DRS485 ESEMPI APPLICATIVI / APPLICATION EXAMPLES...
  • Page 2: Caratteristiche Tecniche / Technical Characteristics

    CAT II Consumo max/ Overvoltage category ≤ 4VA Max consumption Grado inquinamento Pollution degree Circuito controllato (in abbinamento a toroidi Dossena) / Monitored circuit (by using Dossena toroids) Tipo di MRCD/ Norme di riferimento/ IEC 60947-2 Type of MRCD Standards Un Tensione nominale/ <1000Vca/ac (@50/60Hz)
  • Page 3 3) La sezione dei conduttori deve essere tale che la resistenza totale di ciascuna connessione DER4 ↔ trasduttore sia inferiore a 0,5Ω. 4) Ridurre al minimo la distanza dei collegamenti tra DER4 e toroide tenendoli il più lontano possibile da cavi di potenza; utilizzare cavo twistato e schermato con lo schermo isolato dai conduttori interni e connesso a terra in un solo punto (sezione cavo ≥0,5mm2)
  • Page 4 Introduction: The residual current devices, type A/AC Dossena DER4 series, fully compliant with IEC 60947-2: 2019, can be used in LV network in AC, TT and TN type. The series offers a wide range of adjustment of the I∆n threshold (up to 30 A) and of the delay time (up to 30s). DER4 guarantees ease of use, reliability, and speed of programming. The measures and parameters are clearly displayed.
  • Page 5 ALLARMI/ALARMS COLORE/ EVENTI/ EVENTS CAUSA/ CAUSE COLOR giallo fisso Il 2° relè cambia di stato. SUPERAMENTO SOGLIA ALLARME Incremento del valore di corrente I∆. La corrente di dispersione I∆ ha superato la soglia di allarme . yellow The 2 relay switches. ALARM THRESHOLD EXCEEDED The increase of I∆...
